Page 1073 of 4378

FORD MUSTANG 2003 Workshop Manual 27. Remove the heater water outlet tube. 28. NOTE: Record the location of the long bolts and the short bolts. Remove the lower intake manifold and the intake manifold gasket. 29. Remove the access

Page 1074 of 4378

FORD MUSTANG 2003 Workshop Manual 31. Remove the A/C compressor bracket. 32. Using the special tool, remove the power steering pump pulley. 33. Remove the power steering pump bracket. 34. Remove the bolts and the generator mounting

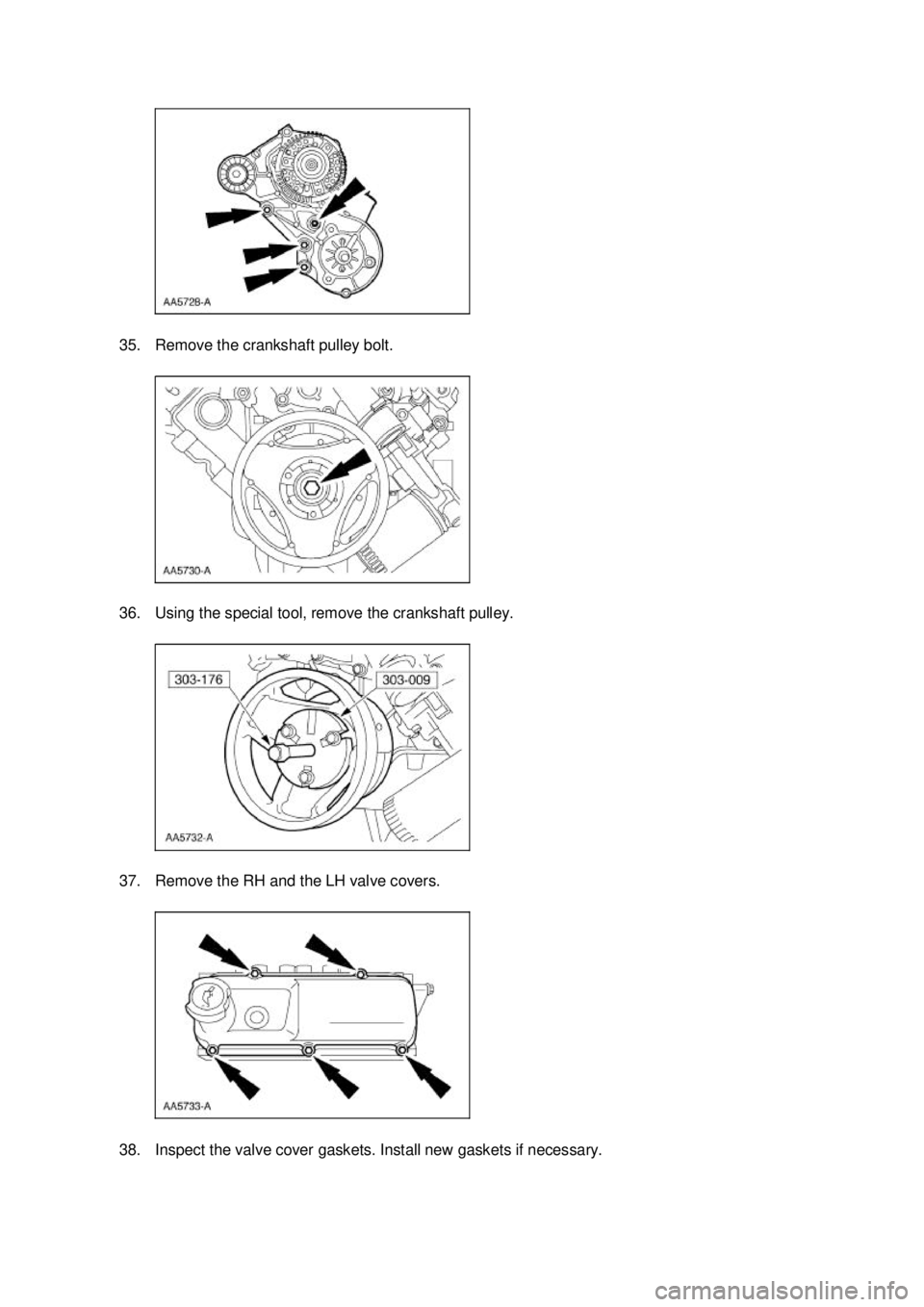

Page 1075 of 4378

FORD MUSTANG 2003 Workshop Manual 35. Remove the crankshaft pulley bolt. 36. Using the special tool, remove the crankshaft pulley. 37. Remove the RH and the LH valve covers. 38. Inspect the valve cover gaskets. Install new gaskets

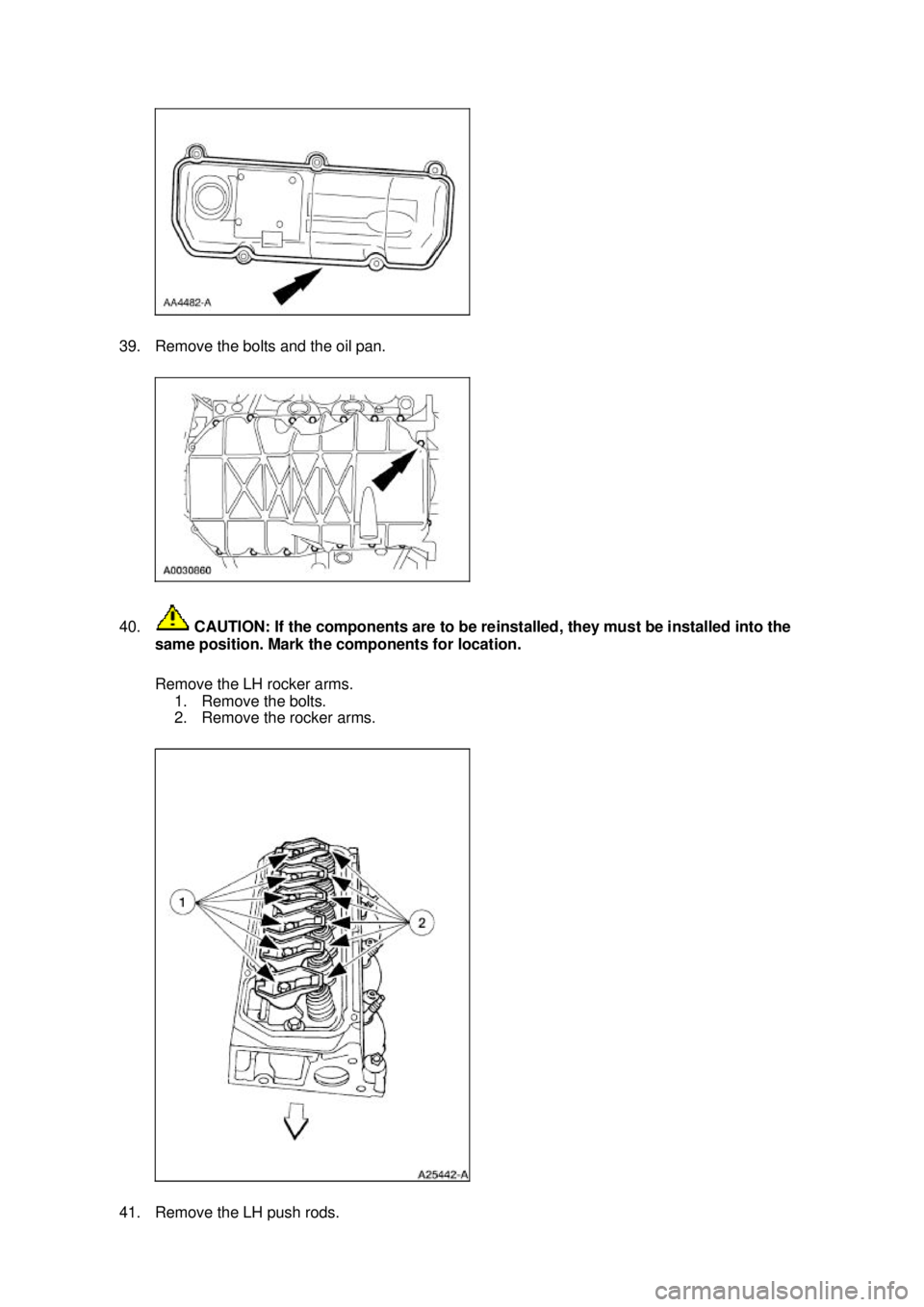

Page 1076 of 4378

FORD MUSTANG 2003 Workshop Manual 39. Remove the bolts and the oil pan. 40. CAUTION: If the components are to be reinstalled, they must be installed into the same position. Mark the components for location. Remove the LH rocker ar

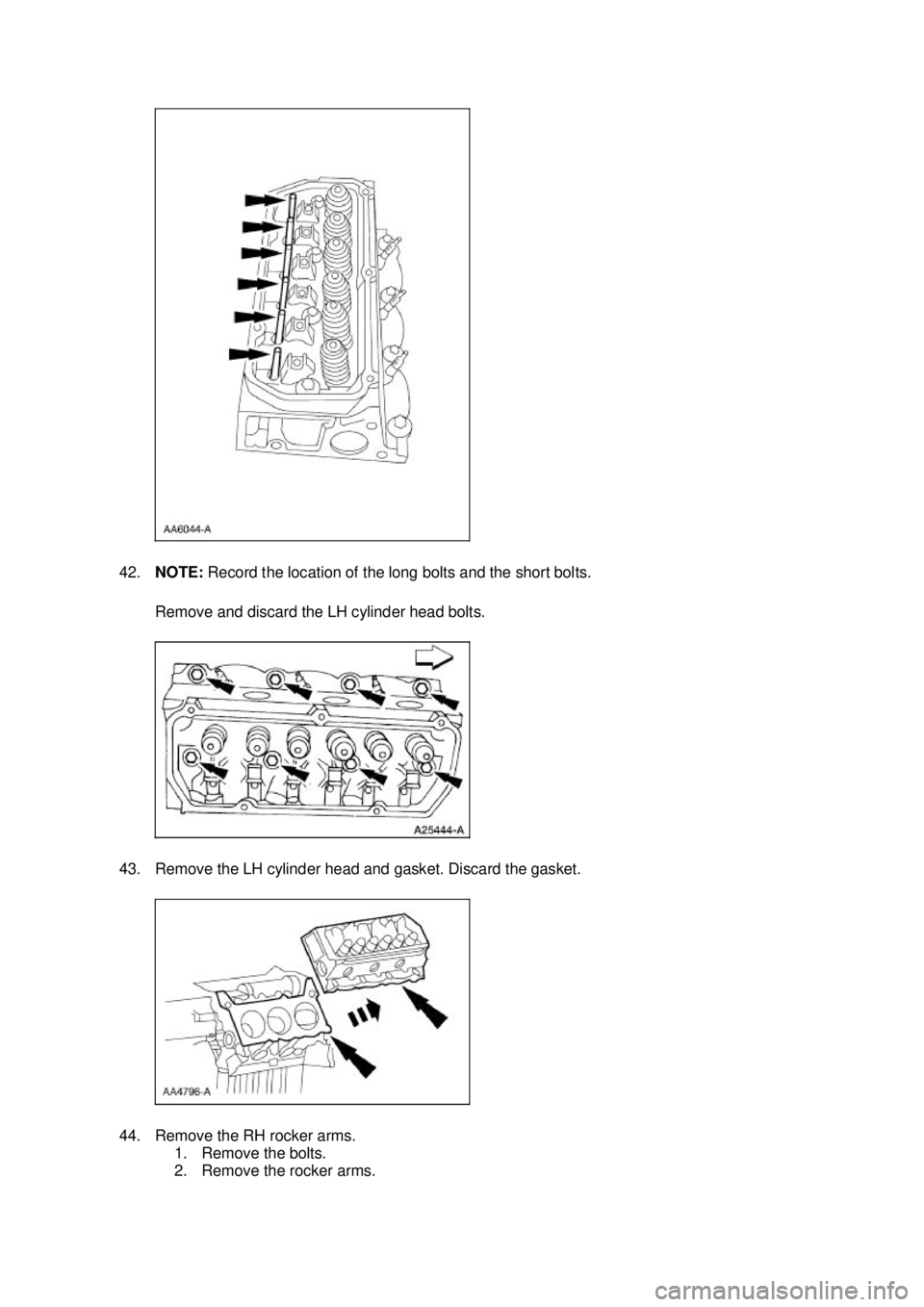

Page 1077 of 4378

FORD MUSTANG 2003 Workshop Manual 42. NOTE: Record the location of the long bolts and the short bolts. Remove and discard the LH cylinder head bolts. 43. Remove the LH cylinder head and gasket. Discard the gasket. 44. Remove the R

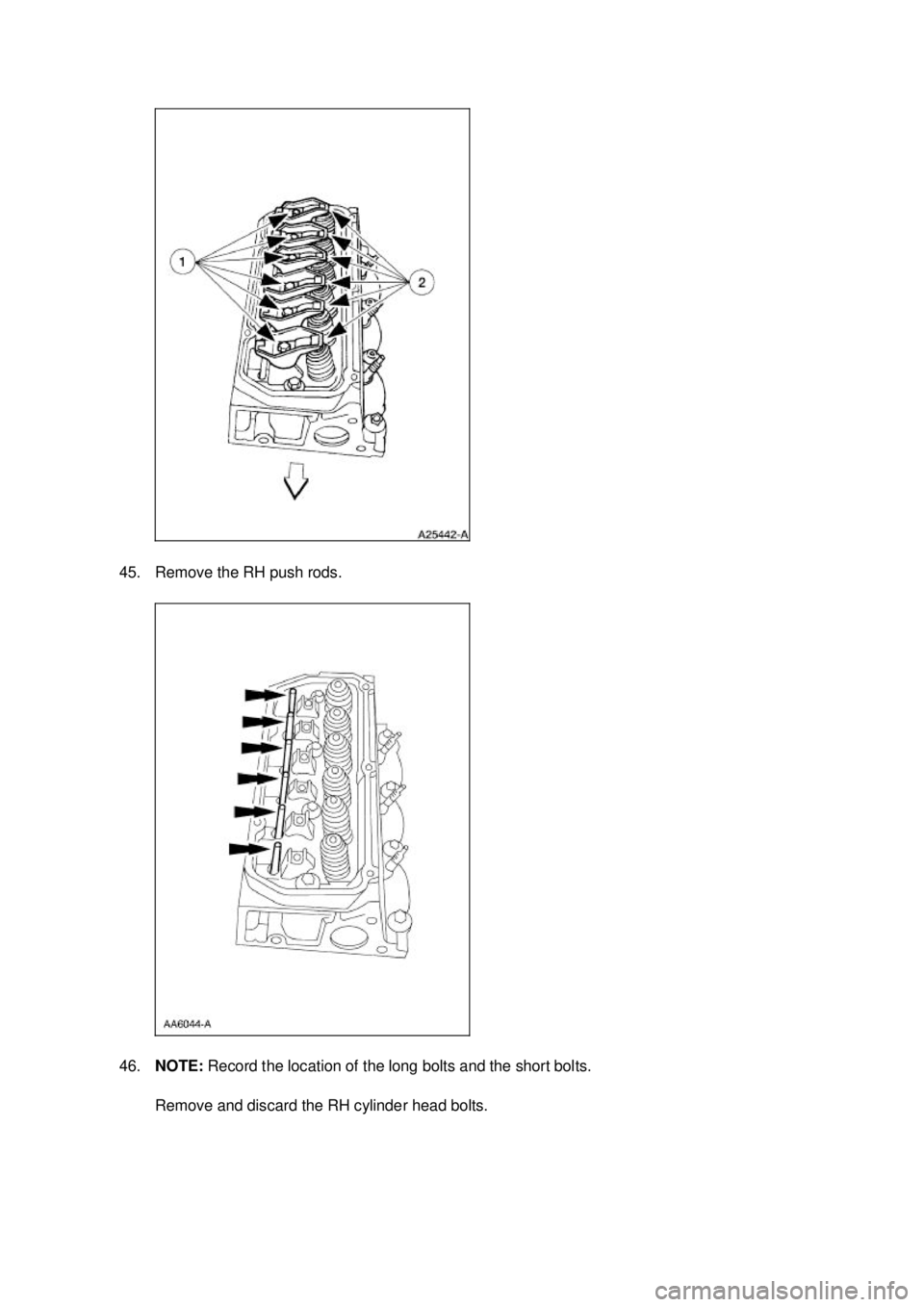

Page 1078 of 4378

FORD MUSTANG 2003 Workshop Manual 45. Remove the RH push rods. 46. NOTE: Record the location of the long bolts and the short bolts. Remove and discard the RH cylinder head bolts. Klj . 13 ba 212003 Mustang Workshop Manual

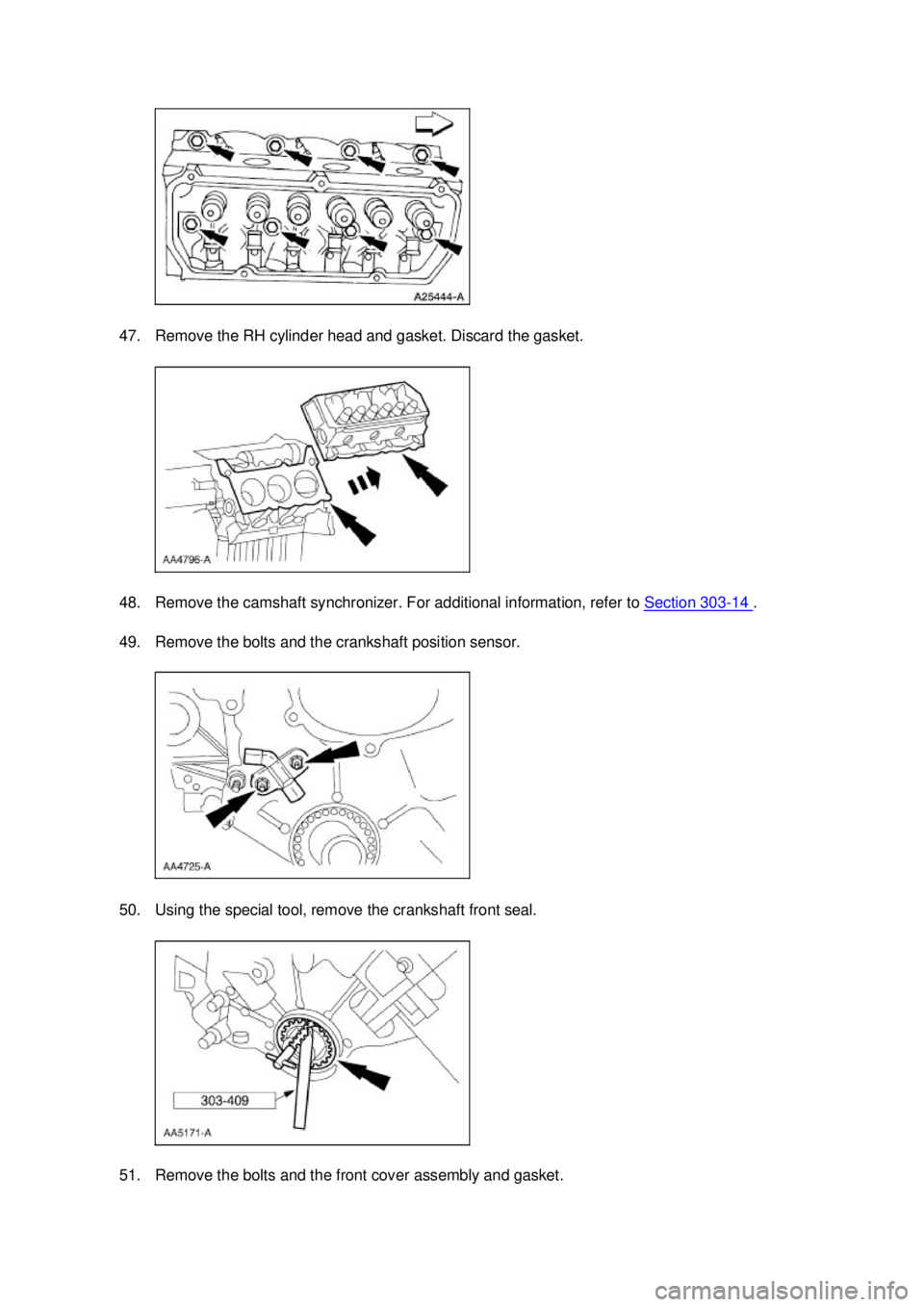

Page 1079 of 4378

FORD MUSTANG 2003 Workshop Manual 47. Remove the RH cylinder head and gasket. Discard the gasket. 48. Remove the camshaft synchronizer. For additional information, refer to Section 303 - 14 . 49. Remove the bolts and the crankshaf

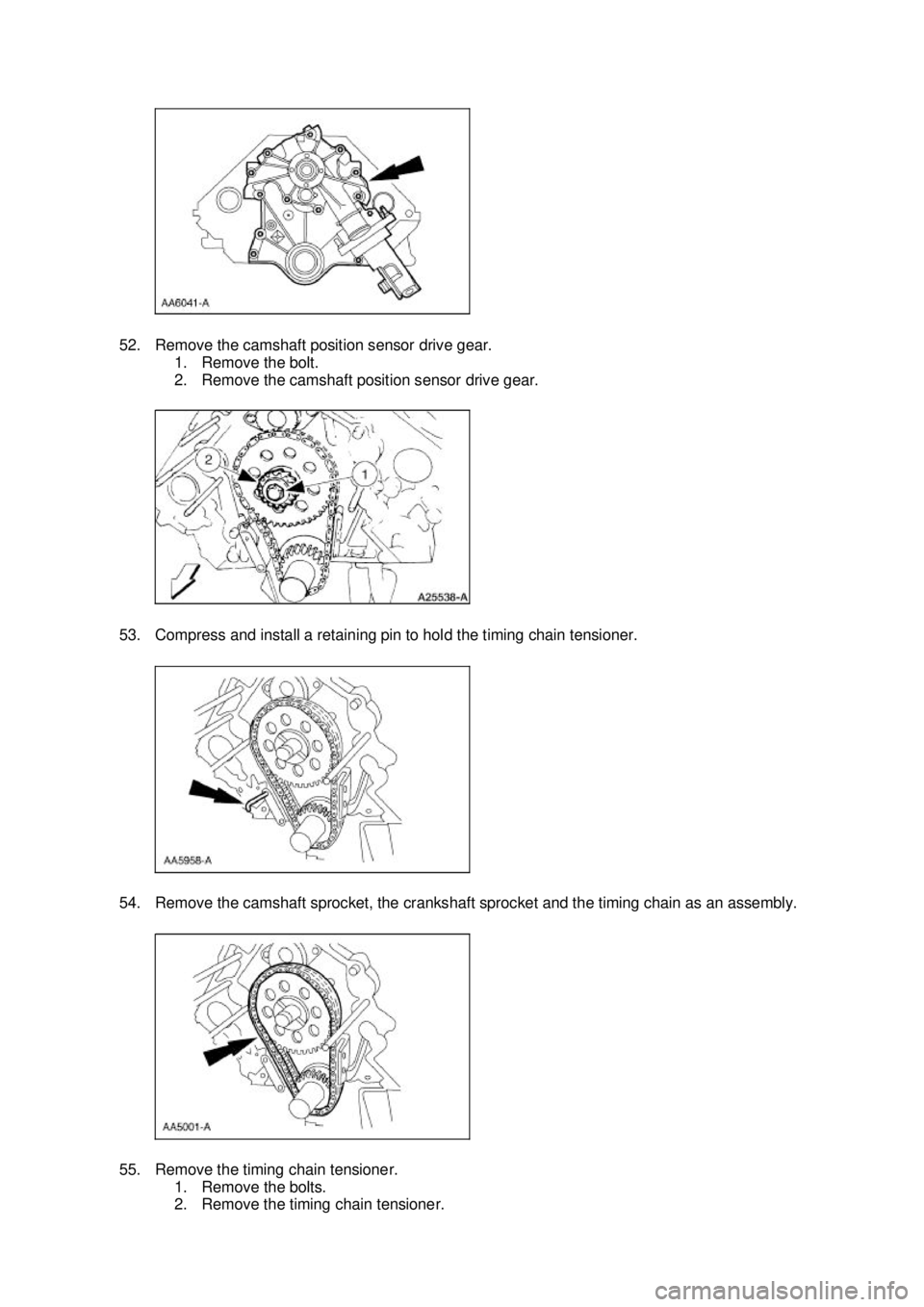

Page 1080 of 4378

FORD MUSTANG 2003 Workshop Manual 52. Remove the camshaft position sensor drive gear. 1. Remove the bolt. 2. Remove the camshaft position sensor drive gear. 53. Compress and install a retaining pin to hold the timing chain tensione
