Page 3985 of 4378

FORD MUSTANG 2003 Workshop Manual 2. Position the height adjuster in the full down or up position. 3. Latch the seat belt buckle and tongue assembly. 4. Pull the shoulder belt out until the automatic locking retractor (ALR) feature

Page 3986 of 4378

FORD MUSTANG 2003 Workshop Manual GENERAL PROCEDURES Safety Belt Cleaning 1. WARNING: Do not bleach or re- dye the webbing, as the webbing may weaken. Clean the safety belt webbing only with a mild soap solution recommended for cl

Page 3987 of 4378

FORD MUSTANG 2003 Workshop Manual GENERAL PROCEDURES Safety Belt Maintenance WARNING: All safety belt assemblies include retractors, buckles, front seat belt buckle support assemblies (slide bar, if so equipped), shoulder belt hei

Page 3988 of 4378

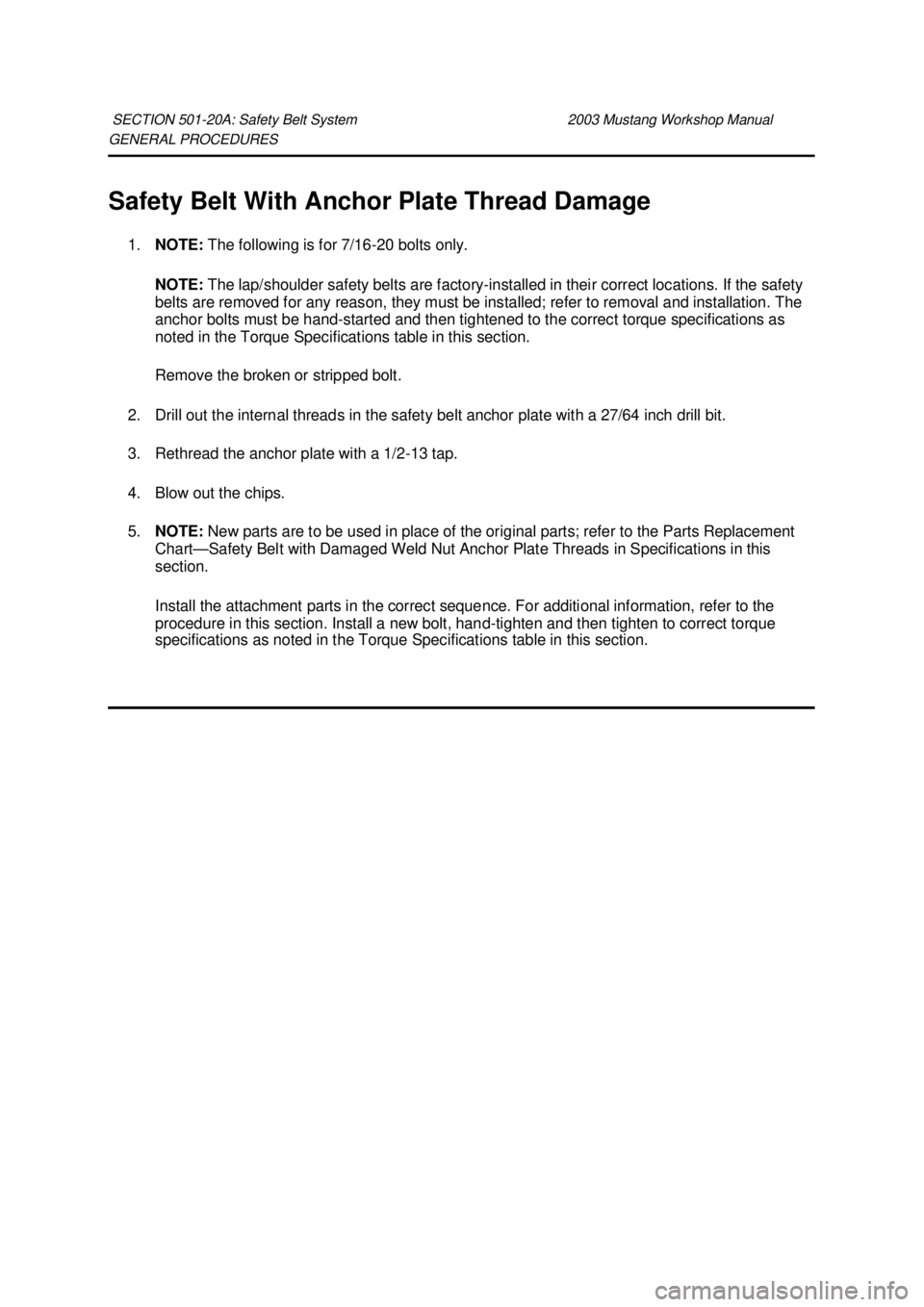

FORD MUSTANG 2003 Workshop Manual GENERAL PROCEDURES Safety Belt With Anchor Plate Thread Damage 1. NOTE: The following is for 7/16- 20 bolts only. NOTE: The lap/shoulder safety belts are factory- installed in their correct locat

Page 3989 of 4378

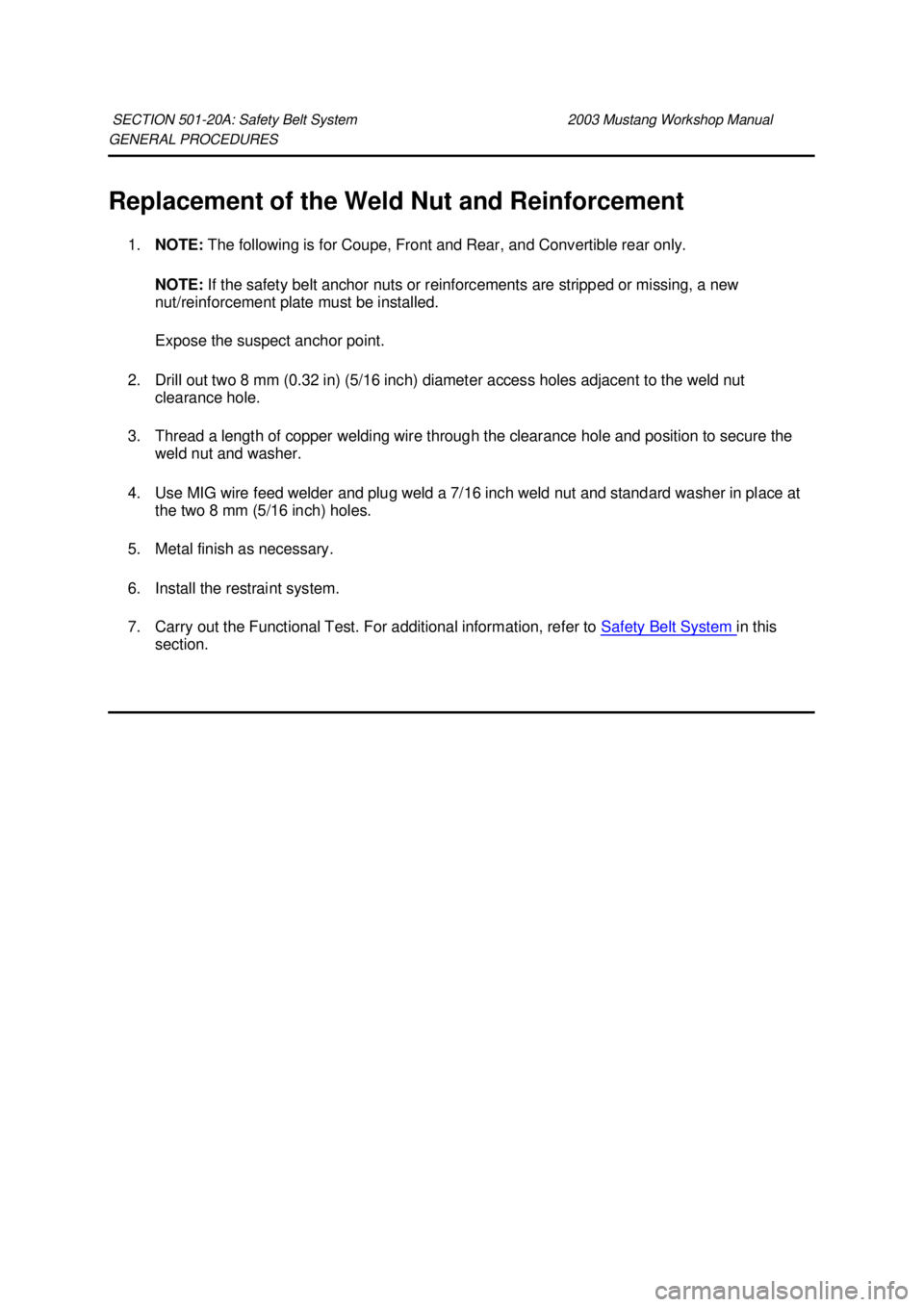

FORD MUSTANG 2003 Workshop Manual GENERAL PROCEDURES Replacement of the Weld Nut and Reinforcement 1. NOTE: The following is for Coupe, Front and Rear, and Convertible rear only. NOTE: If the safety belt anchor nuts or reinforcem

Page 3990 of 4378

FORD MUSTANG 2003 Workshop Manual GENERAL PROCEDURES Safety Belt Procedure After a Collision WARNING: All safety belt assemblies include retractors, buckles, front seat belt buckle support assemblies (slide bar, if so equipped), s

Page 3991 of 4378

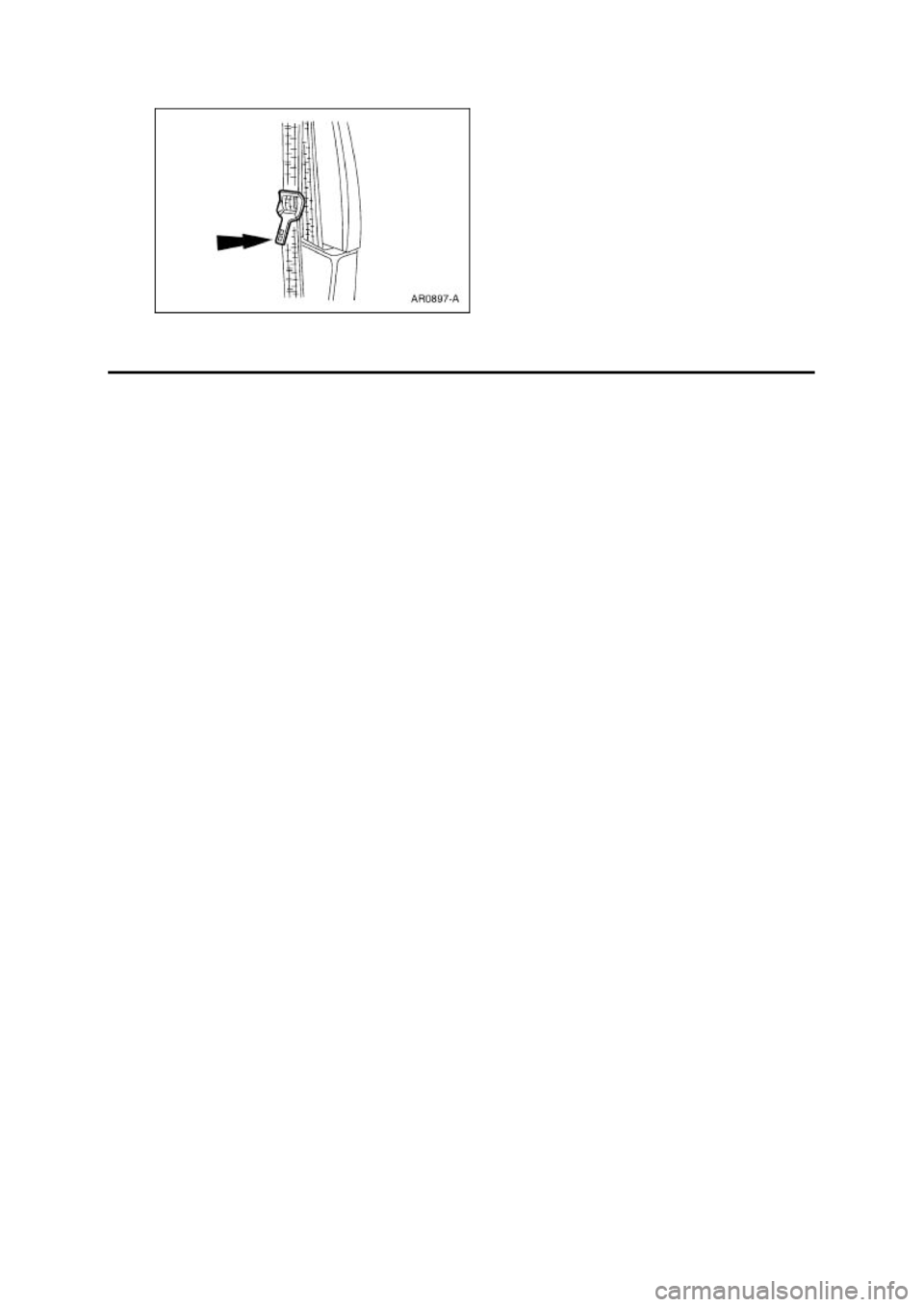

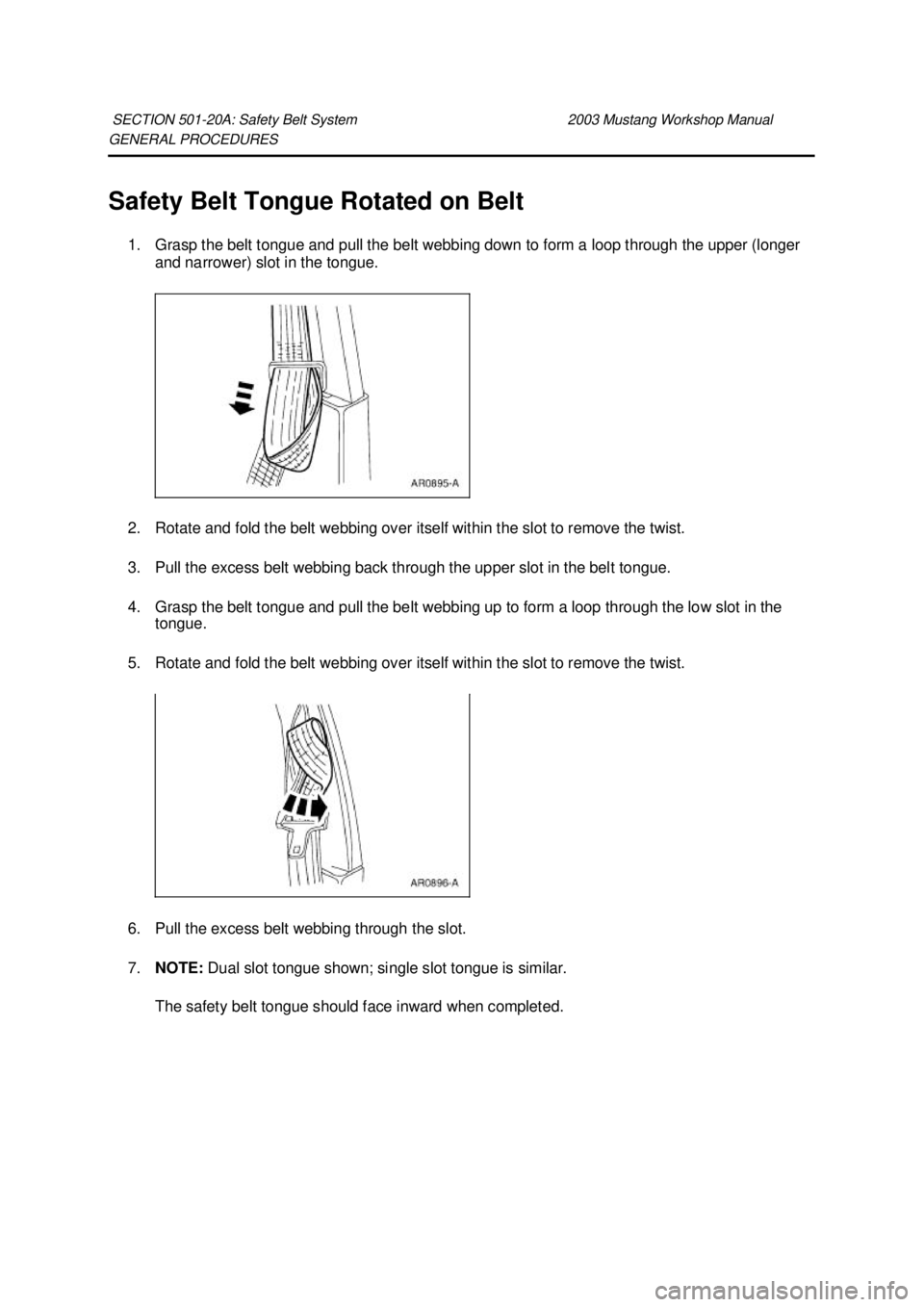

FORD MUSTANG 2003 Workshop Manual GENERAL PROCEDURES Safety Belt Tongue Rotated on Belt 1. Grasp the belt tongue and pull the belt webbing down to form a loop through the upper (longer and narrower) slot in the tongue. 2. Rotate a

Page 3992 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 2 ba 22003 Mustang Workshop Manual 18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...
