Page 4129 of 4378

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION Front Subframe — 3.8L Engine Removal and Installation All vehicles 1. Remove the steering gear. For additional information, refer to Section 211 - 02 . 2. Remove the

Page 4130 of 4378

FORD MUSTANG 2003 Workshop Manual 6. Install the special tool. 7. Install the special tool. 8. Install the special tool. 9. Raise and support the vehicle. 10. Remove the LH engine mount nut. Klj . 2 ba 52003 Mustang Works

Page 4131 of 4378

FORD MUSTANG 2003 Workshop Manual 11. Remove the RH engine mount nut. 12. Lower the vehicle. 13. Using the special tool, raise and support the engine. 14. Raise the vehicle. 15. Support the front subframe. 16. Remove the four fro

Page 4132 of 4378

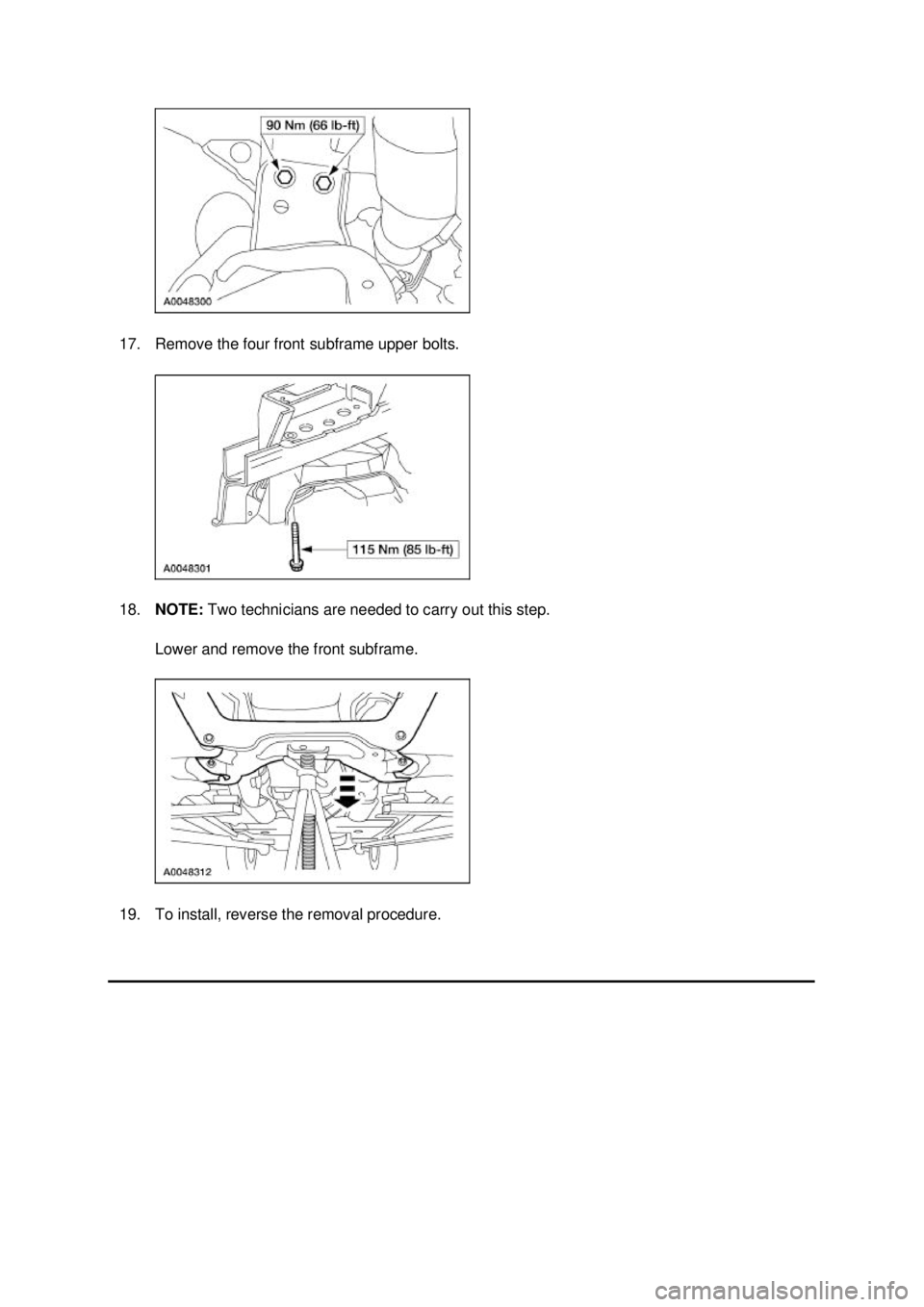

FORD MUSTANG 2003 Workshop Manual 17. Remove the four front subframe upper bolts. 18. NOTE: Two technicians are needed to carry out this step. Lower and remove the front subframe. 19. To install, reverse the removal procedure. K

Page 4133 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 5 ba 52003 Mustang Workshop Manual 18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

Page 4134 of 4378

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION Front Subframe — 4.6L (2V) Engine Removal and Installation All vehicles 1. Remove the steering gear. For additional information, refer to Section 211 - 02 . 2. Remove

Page 4135 of 4378

FORD MUSTANG 2003 Workshop Manual 6. Install the special tool. 7. Install the special tool. 8. Raise and support the vehicle. 9. Remove the two engine mount nuts. 10. Lower the vehicle. 11. Using the special tool, raise and suppo

Page 4136 of 4378

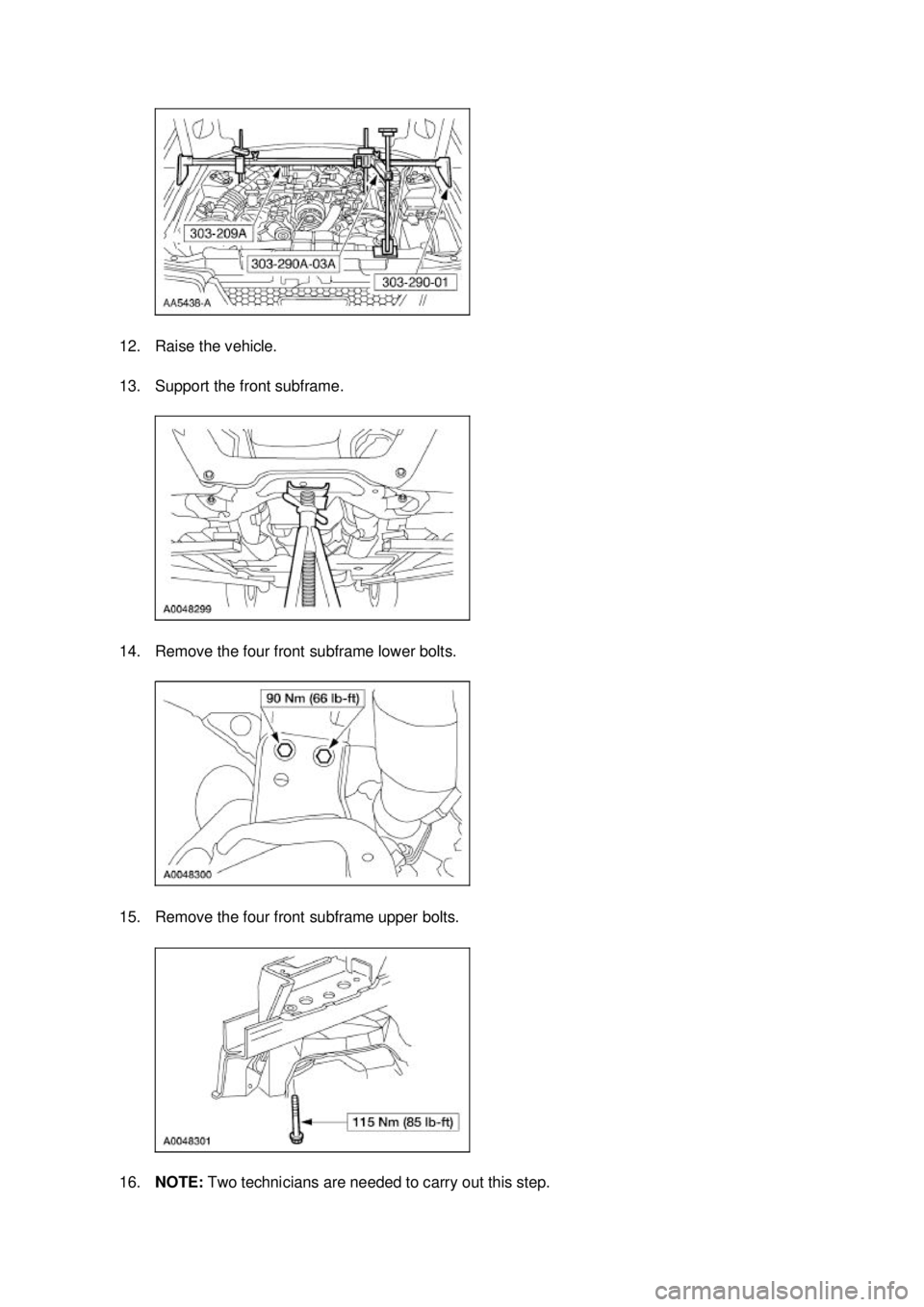

FORD MUSTANG 2003 Workshop Manual 12. Raise the vehicle. 13. Support the front subframe. 14. Remove the four front subframe lower bolts. 15. Remove the four front subframe upper bolts. 16. NOTE: Two technicians are needed to carr
