Page 3169 of 4378

FORD MUSTANG 2003 Workshop Manual 6. Remove the heater air damper door motor. 1. Disconnect the vacuum lines. 2. Loosen the nuts and unclip the motor. 7. Release the vacuum harness from the housing. 8. Remove the screws and remove

Page 3170 of 4378

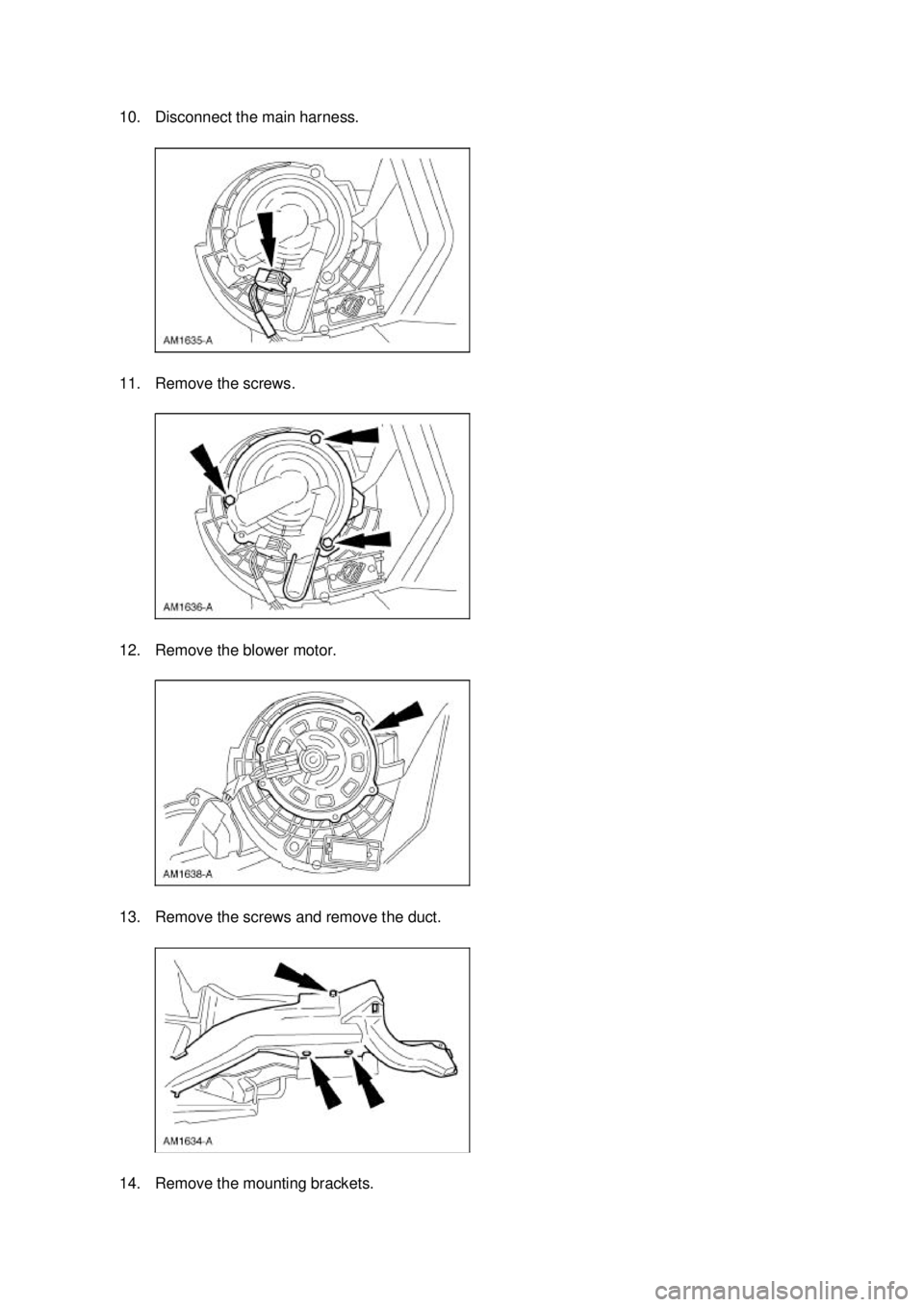

FORD MUSTANG 2003 Workshop Manual 10. Disconnect the main harness. 11. Remove the screws. 12. Remove the blower motor. 13. Remove the screws and remove the duct. 14. Remove the mounting brackets. Klj . 3 ba 42003 Mustang

Page 3171 of 4378

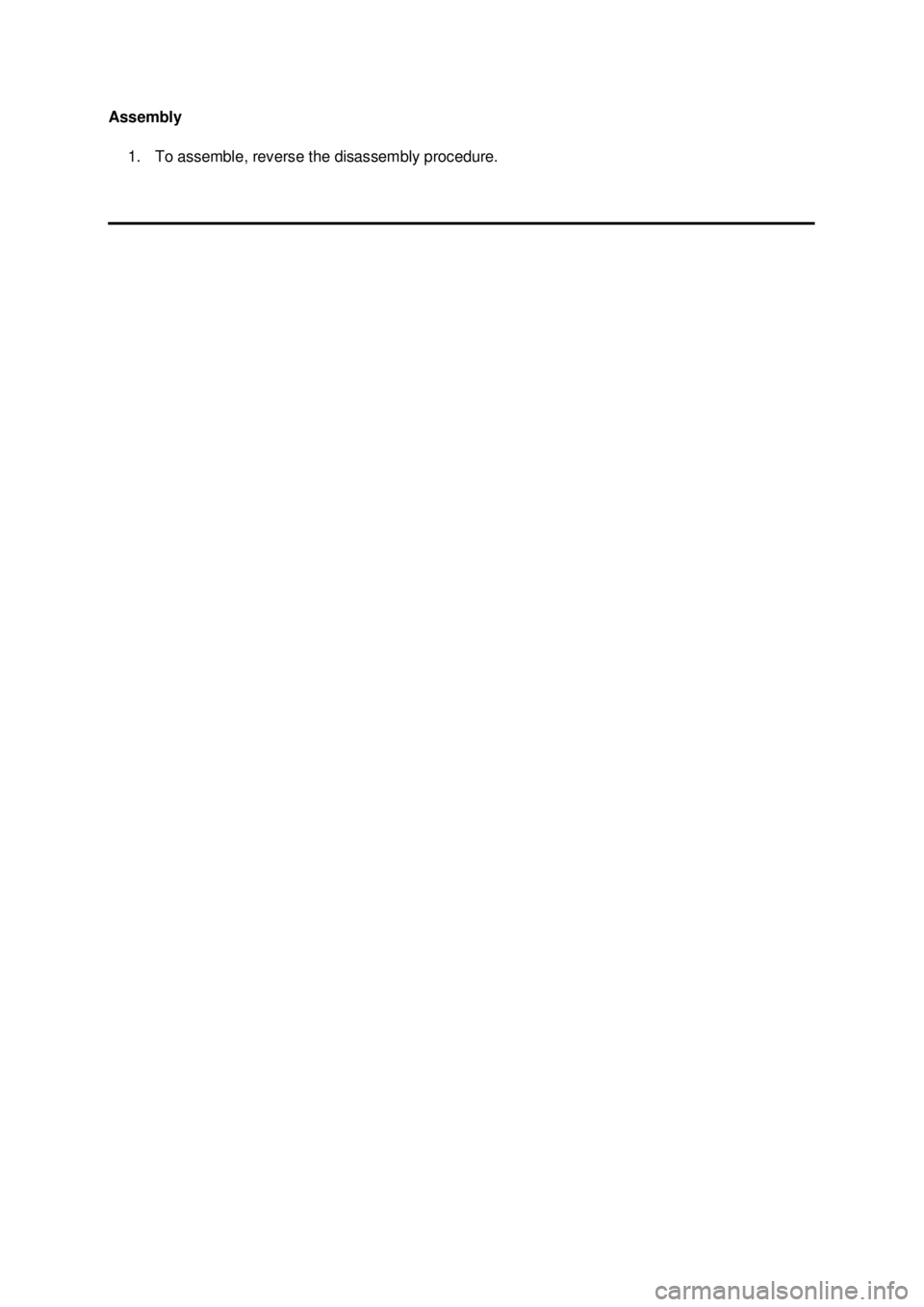

FORD MUSTANG 2003 Workshop Manual Assembly 1. To assemble, reverse the disassembly procedure. Klj . 4 ba 42003 Mustang Workshop Manual 18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

Page 3172 of 4378

FORD MUSTANG 2003 Workshop Manual SPECIFICATIONS SECTION 412- 03: Air Conditioning 2003 Mustang Workshop Manual General Specifications Item Specification Lubricant PAG Refrigerant Compressor Oil (R-134a Systems) F7AZ-19589- DA (

Page 3173 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 2 ba 22003 Mustang Workshop Manual 18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

Page 3174 of 4378

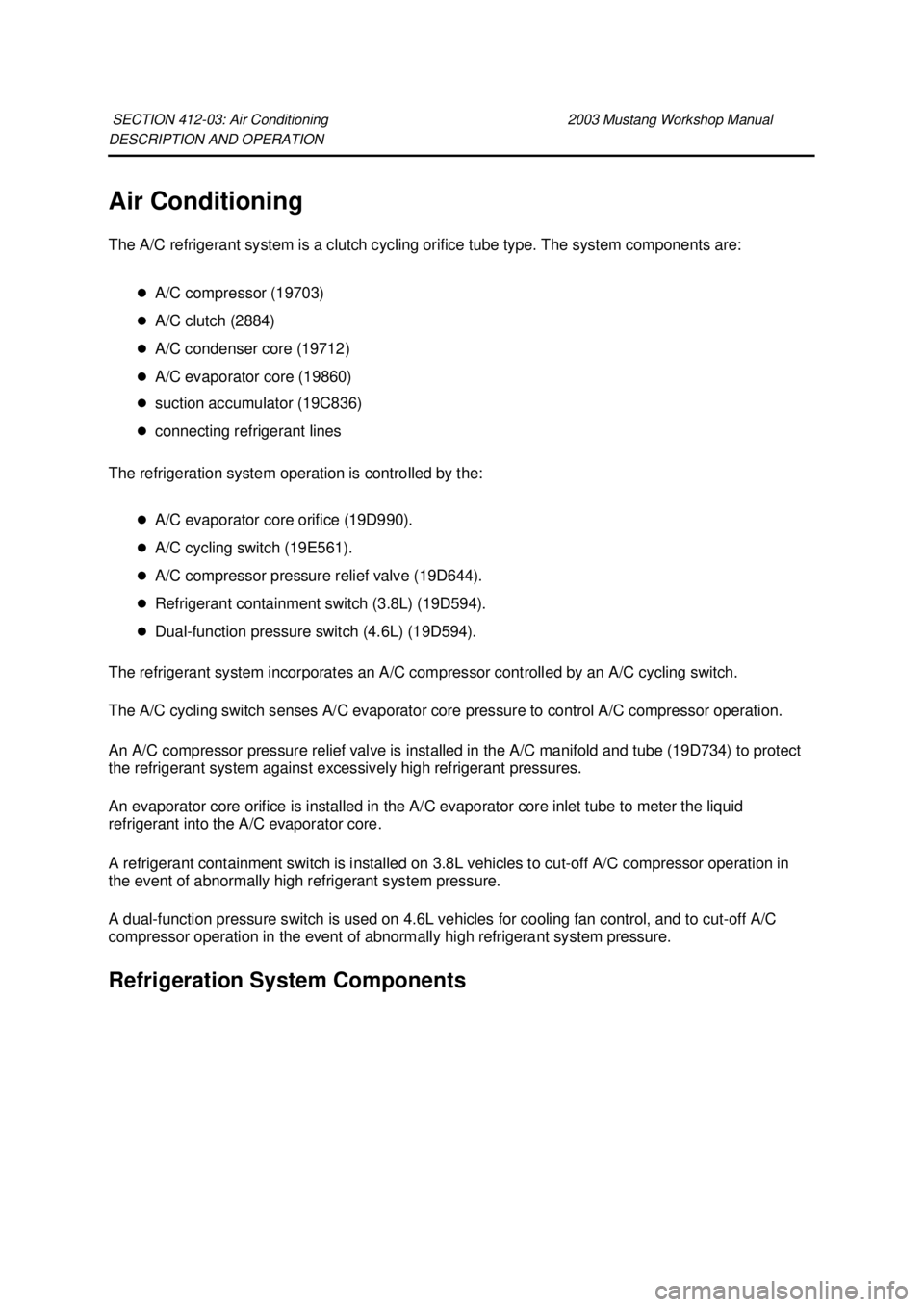

FORD MUSTANG 2003 Workshop Manual DESCRIPTION AND OPERATION Air Conditioning The A/C refrigerant system is a clutch cycling orifice tube type. The system components are: �zA/C compressor (19703) �z A/C clutch (2884) �z A/C conden

Page 3175 of 4378

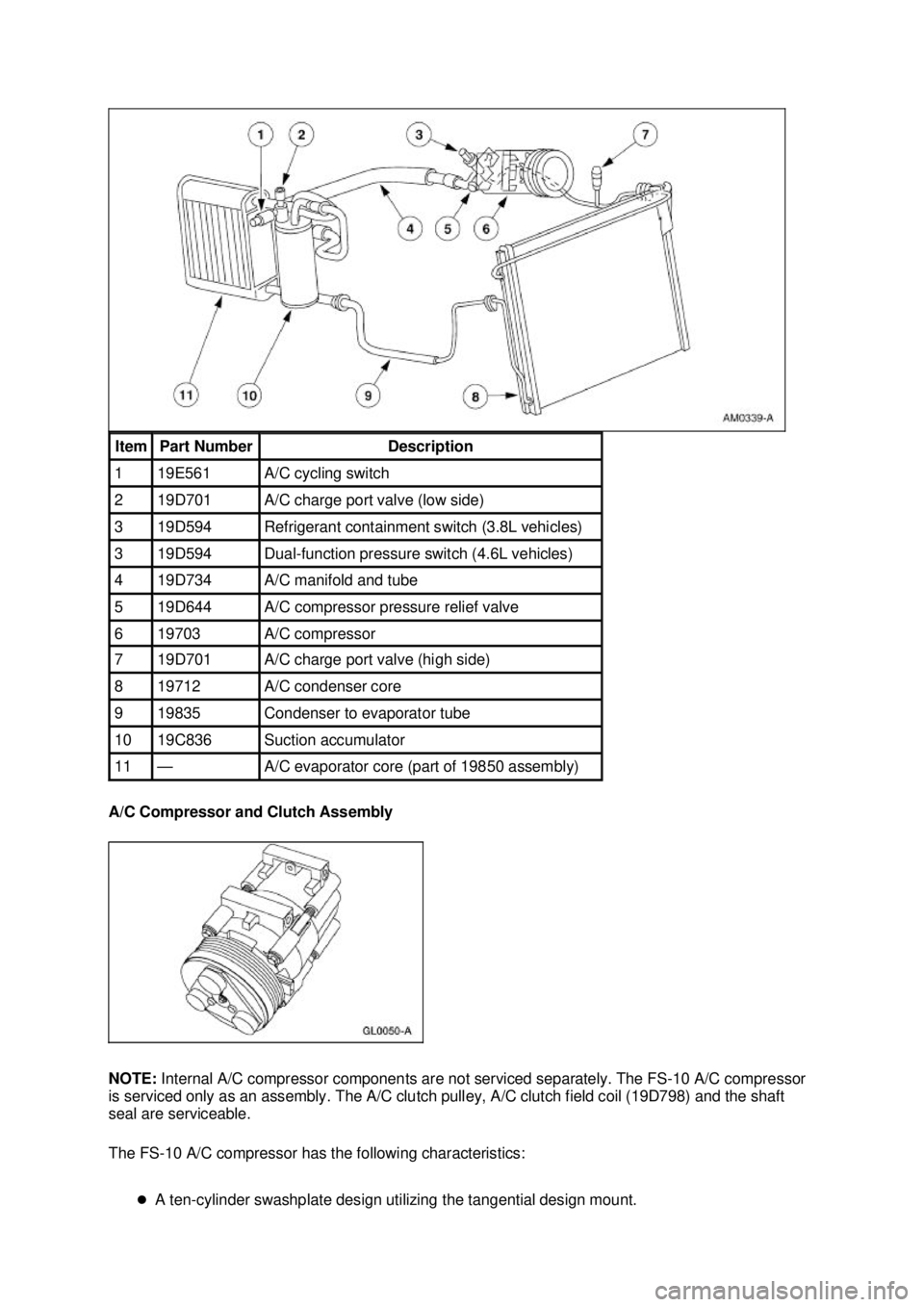

FORD MUSTANG 2003 Workshop Manual A/C Compressor and Clutch Assembly NOTE: Internal A/C compressor components are not serviced separately. The FS- 10 A/C compressor is serviced only as an assembly. The A/C clutch pulley, A/C clutch

Page 3176 of 4378

FORD MUSTANG 2003 Workshop Manual �z A one- piece lip- type seal (installed from the front of the A/C compressor) is used to seal it at the shaft opening in the assembly. �z Five double- acting pistons operate within the cylinder as
