2003 FORD MUSTANG CD player

The radio type codes are:
z2 — Premium electronic AM/FM stereo with compact disc (CD) player and clock
z 9 — CDX6+, AM/FM stereo with 6- disc compact disc (CD) changer and MACH 460 subwoofer
sound system
z Z — AM/FM stereo, dual media (MP3) with compact disc (CD) player
Axle Ratio Codes Klj . 10 ba
162003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4920/S3B~us~en~ ...

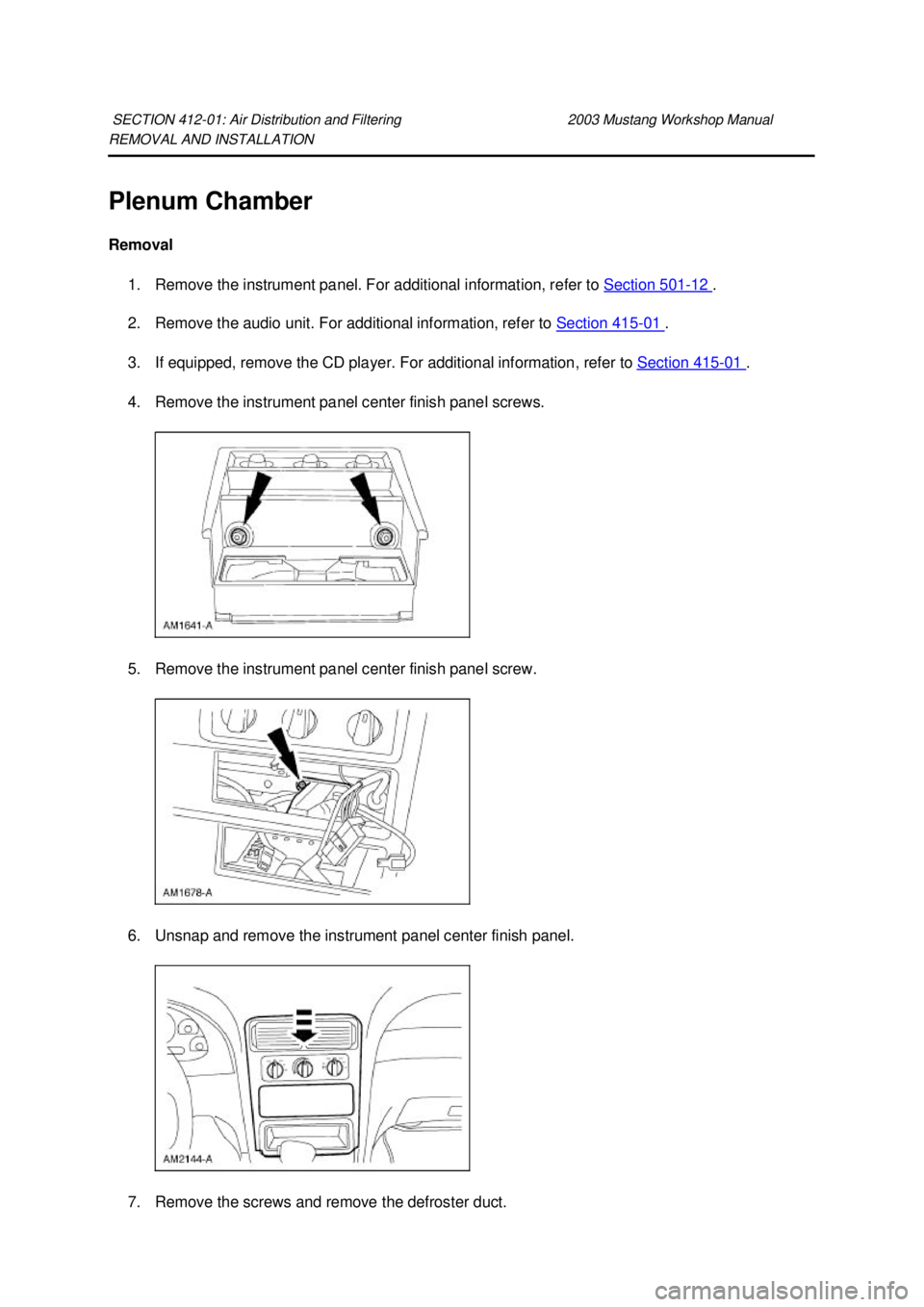

REMOVAL AND INSTALLATION
Plenum Chamber
Removal
1. Remove the instrument panel. For additional information, refer to Section 501 - 12 .
2. Remove the audio unit. For additional information, refer to Section 415 - 01 .
3. If equipped, remove the CD player. For additional information, refer to Section 415 - 01 .
4. Remove the instrument panel center finish panel screws.
5. Remove the instrument panel center finish panel screw.
6. Unsnap and remove the instrument panel center finish panel.
7. Remove the screws and remove the defroster duct.
SECTION 412-
01: Air Distribution and Filtering 2003 Mustang Workshop Manual Klj . 1 ba
32003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...

correctly
(CJB) fuses:
„6
(20A).
„ 27
(25A).
„ 32
(15A).
z Battery
junction box
(BJB) fuses:
„3
(40A).
„ 4
(40A).
„ 6
(40A).
z Circuitry.
z Audio unit.
z Ignition
switch.
z Audio unit display blank —
audio unit operates z
Audio unit. zREMOVE the audio
unit and SEND it to
an authorized Ford
audio system repair
facility. TEST the
system for normal
operation.
z Tape player only inoperative zAudio unit. zREMOVE the audio
unit and SEND it to
an authorized Ford
audio system repair
facility. TEST the
system for normal
operation.
z Poor reception zAntenna
connections.
z Antenna
cable.
z Noise
suppression
equipment.
z Audio unit.
z Generator.
z Ignition
system. z
Go To Pinpoint Test B .
z Poor reception — FM only zFM signal out
of range. z
INFORM customer
of methods for
obtaining best
reception.
z Continuous SEEK/SCAN in
AM/FM z
Antenna.
z Antenna
connections.
z Audio unit. z
Go To Pinpoint Test C .
z No sound from one or more of
the speakers — not all speakers z
Speaker(s).
z Circuitry.
z Audio unit.
z Subwoofer
amplifier. z
Go To Pinpoint Test D .
z No sound from all of the zAudio unit. zGo To Pinpoint Test Klj . 2 ba
