Page 3969 of 4378

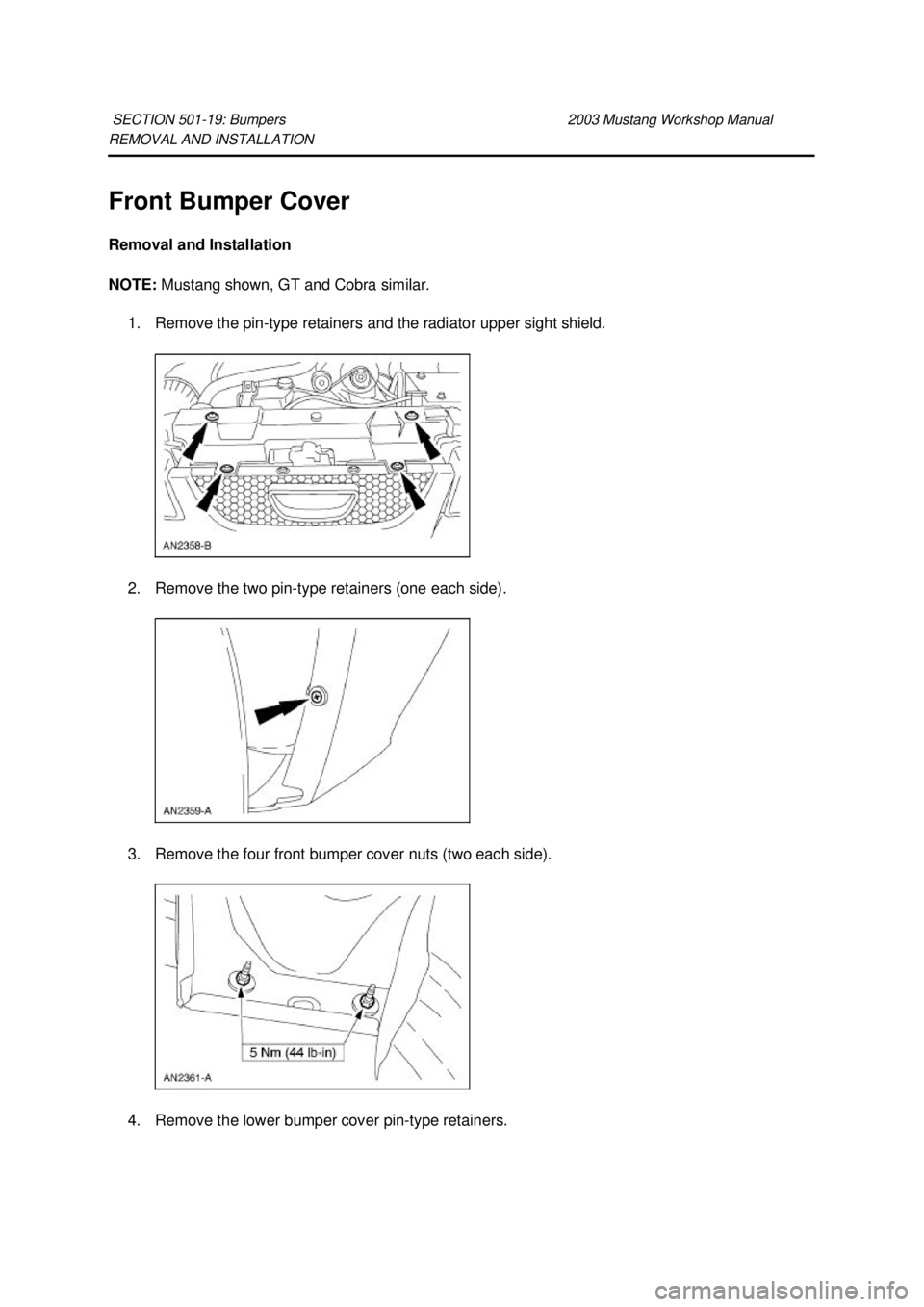

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION Front Bumper Cover Removal and Installation NOTE: Mustang shown, GT and Cobra similar. 1. Remove the pin- type retainers and the radiator upper sight shield. 2. Remove t

Page 3970 of 4378

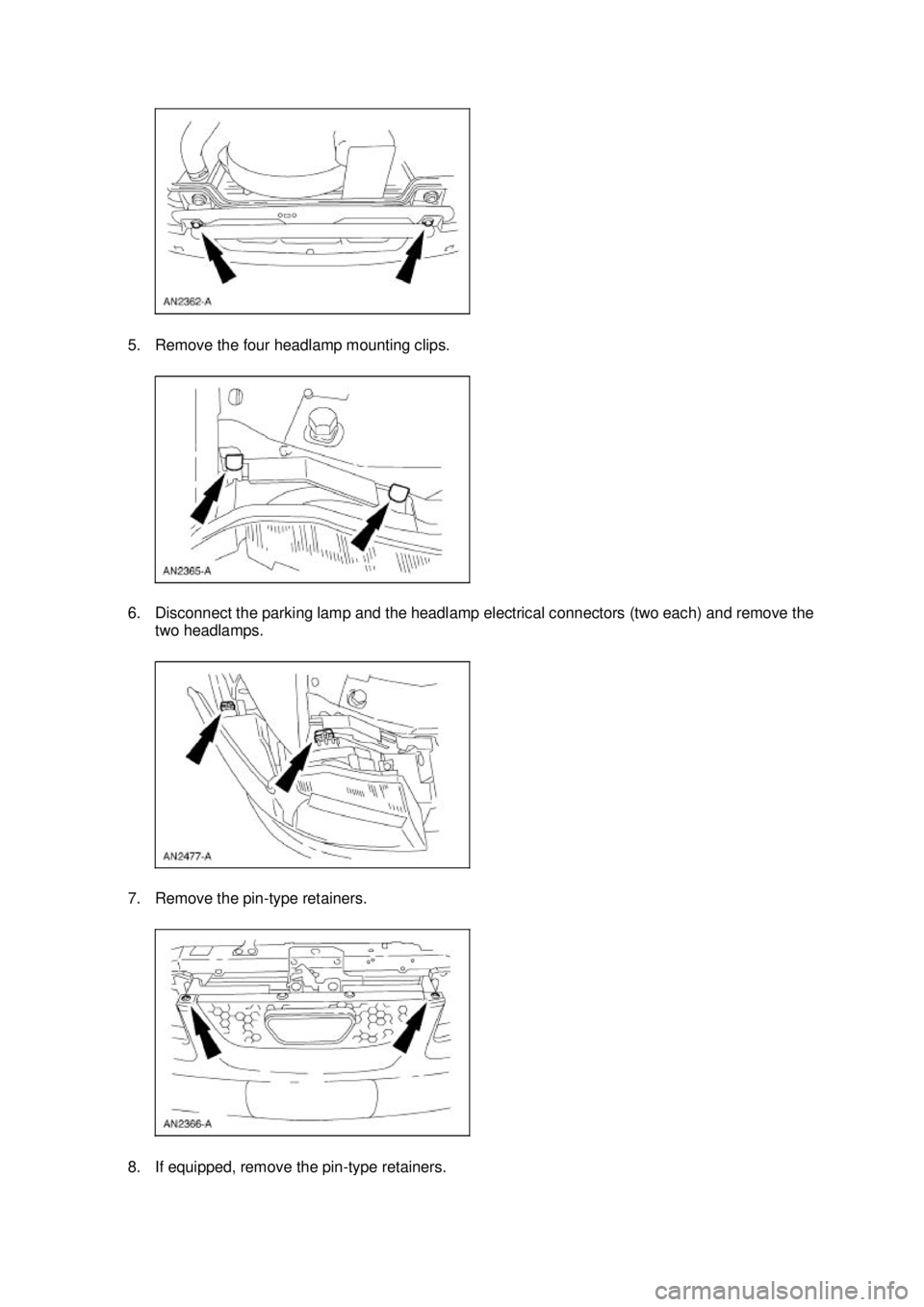

FORD MUSTANG 2003 Workshop Manual 5. Remove the four headlamp mounting clips. 6. Disconnect the parking lamp and the headlamp electrical connectors (two each) and remove the two headlamps. 7. Remove the pin- type retainers. 8. If e

Page 3971 of 4378

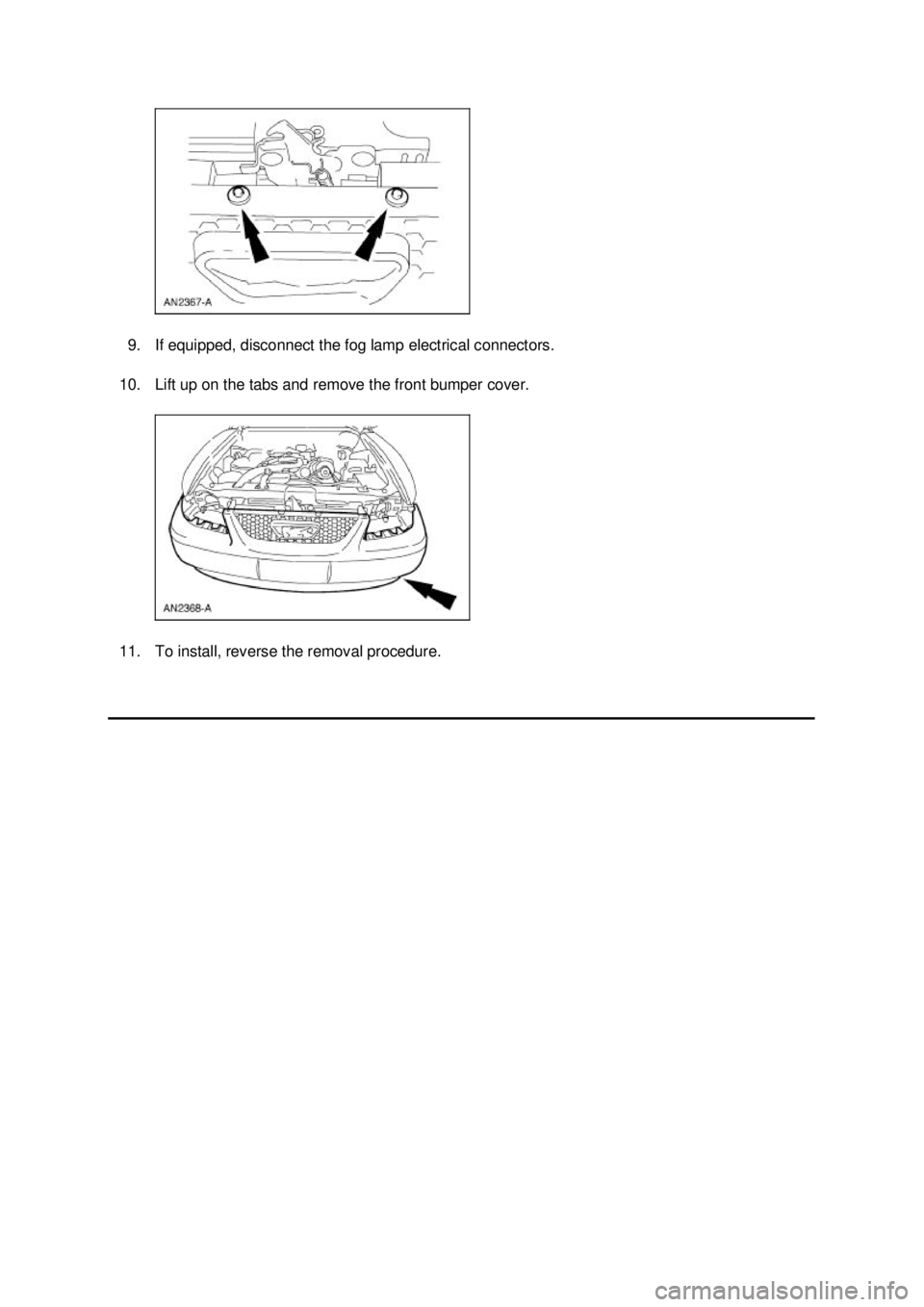

FORD MUSTANG 2003 Workshop Manual 9. If equipped, disconnect the fog lamp electrical connectors. 10. Lift up on the tabs and remove the front bumper cover. 11. To install, reverse the removal procedure. Klj . 3 ba 32003 Mus

Page 3972 of 4378

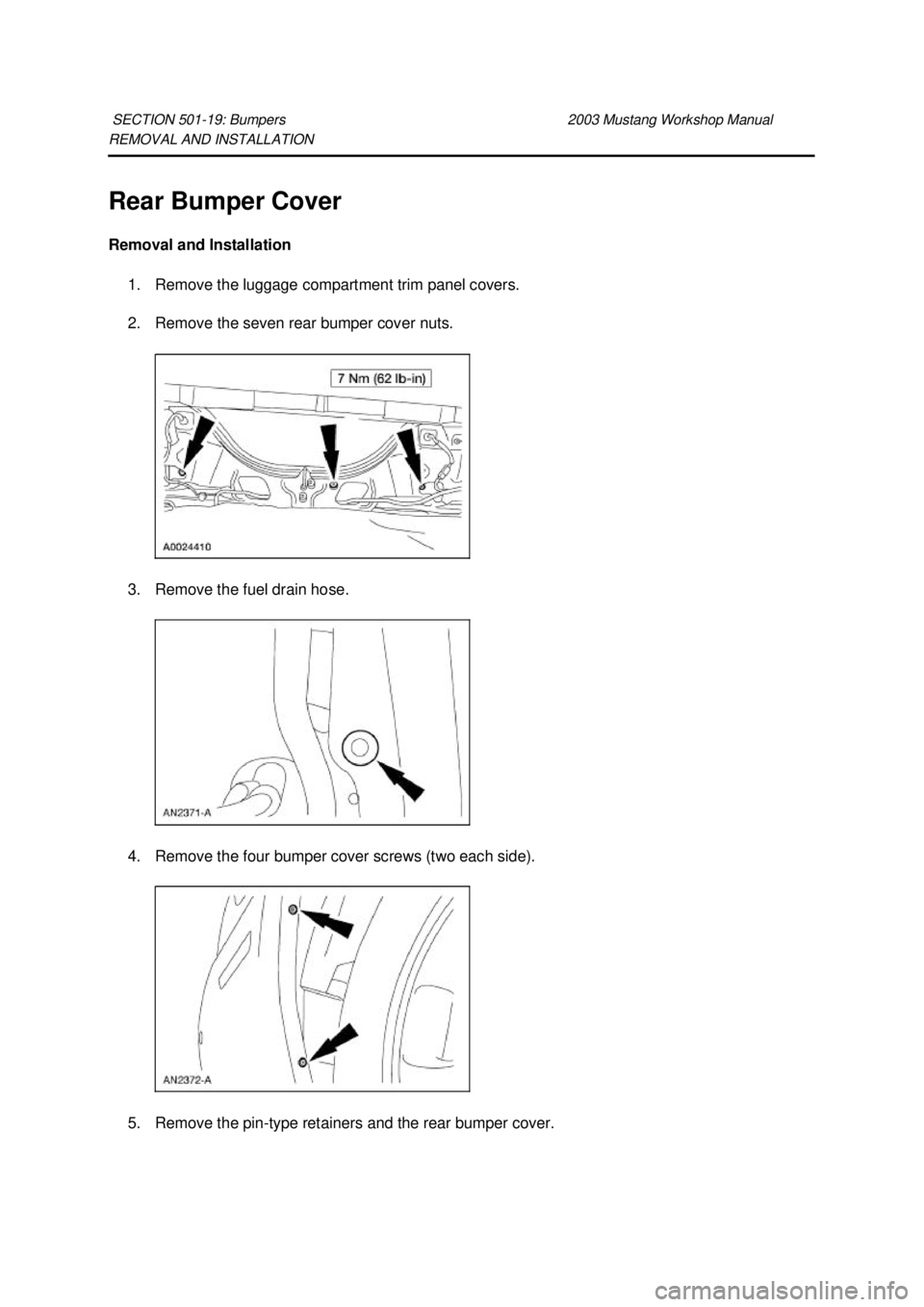

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION Rear Bumper Cover Removal and Installation 1. Remove the luggage compartment trim panel covers. 2. Remove the seven rear bumper cover nuts. 3. Remove the fuel drain hose.

Page 3973 of 4378

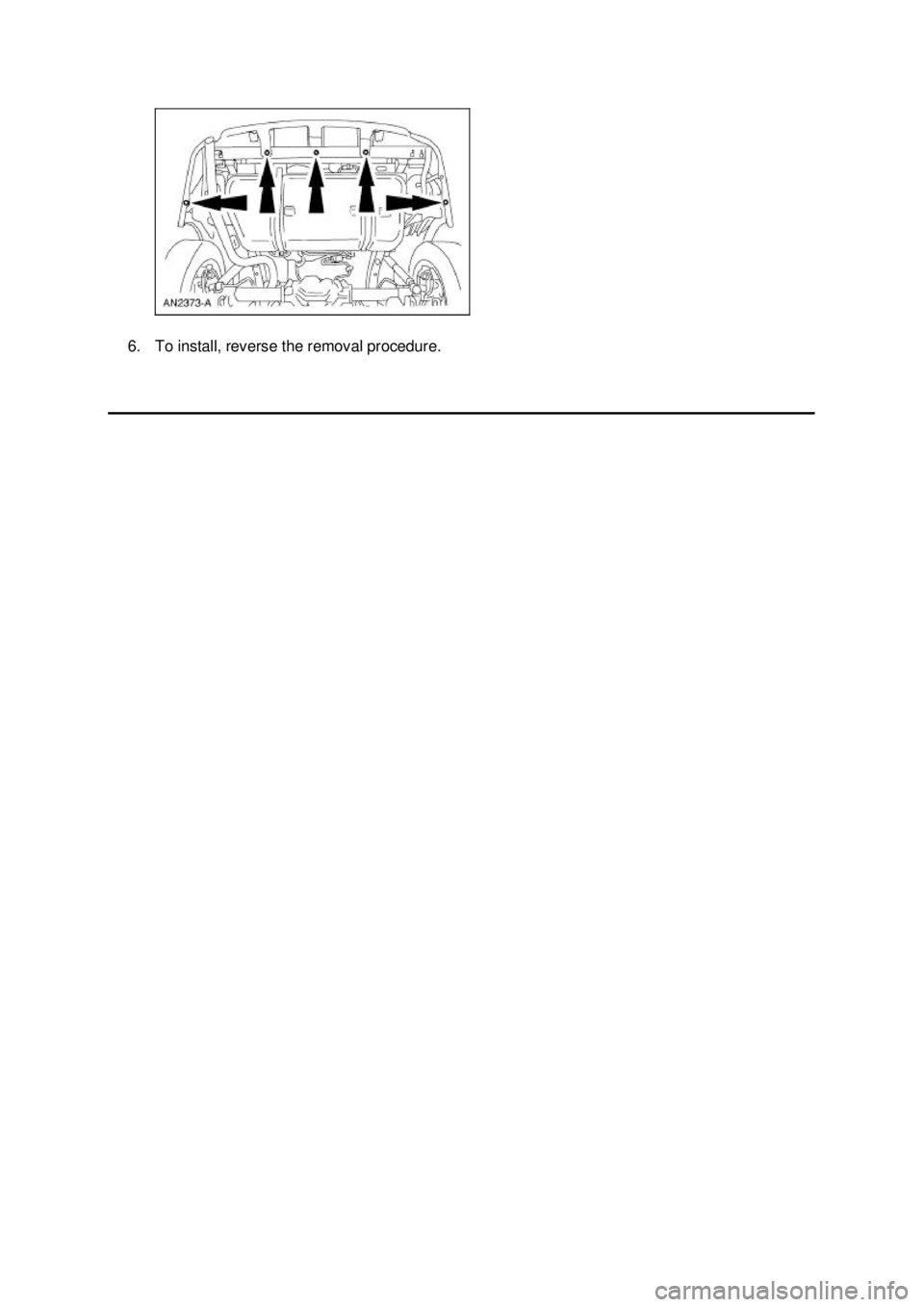

FORD MUSTANG 2003 Workshop Manual 6. To install, reverse the removal procedure. Klj . 2 ba 22003 Mustang Workshop Manual 18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

Page 3974 of 4378

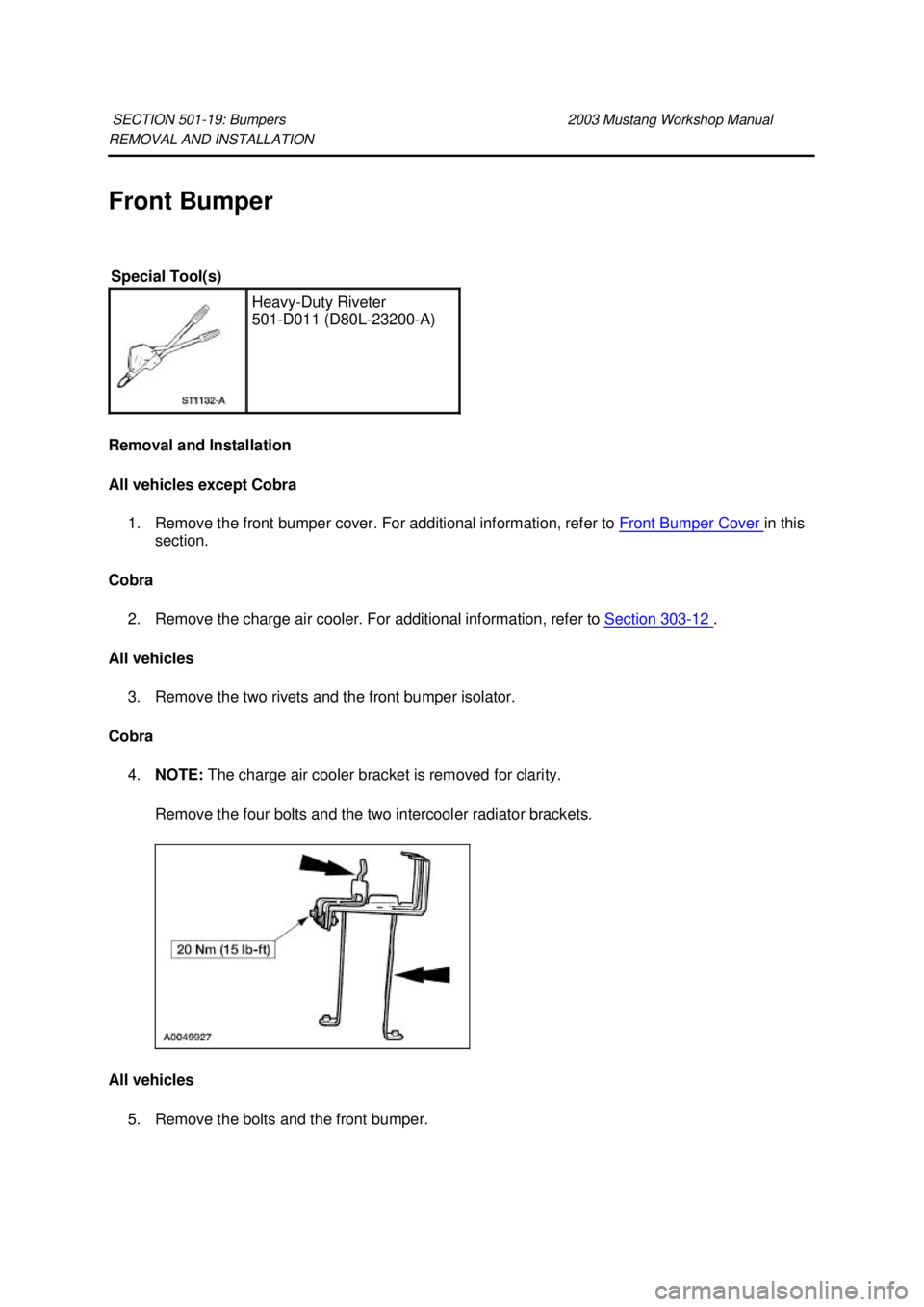

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION Front Bumper Removal and Installation All vehicles except Cobra 1. Remove the front bumper cover. For additional information, refer to Front Bumper Cover in this sectio

Page 3975 of 4378

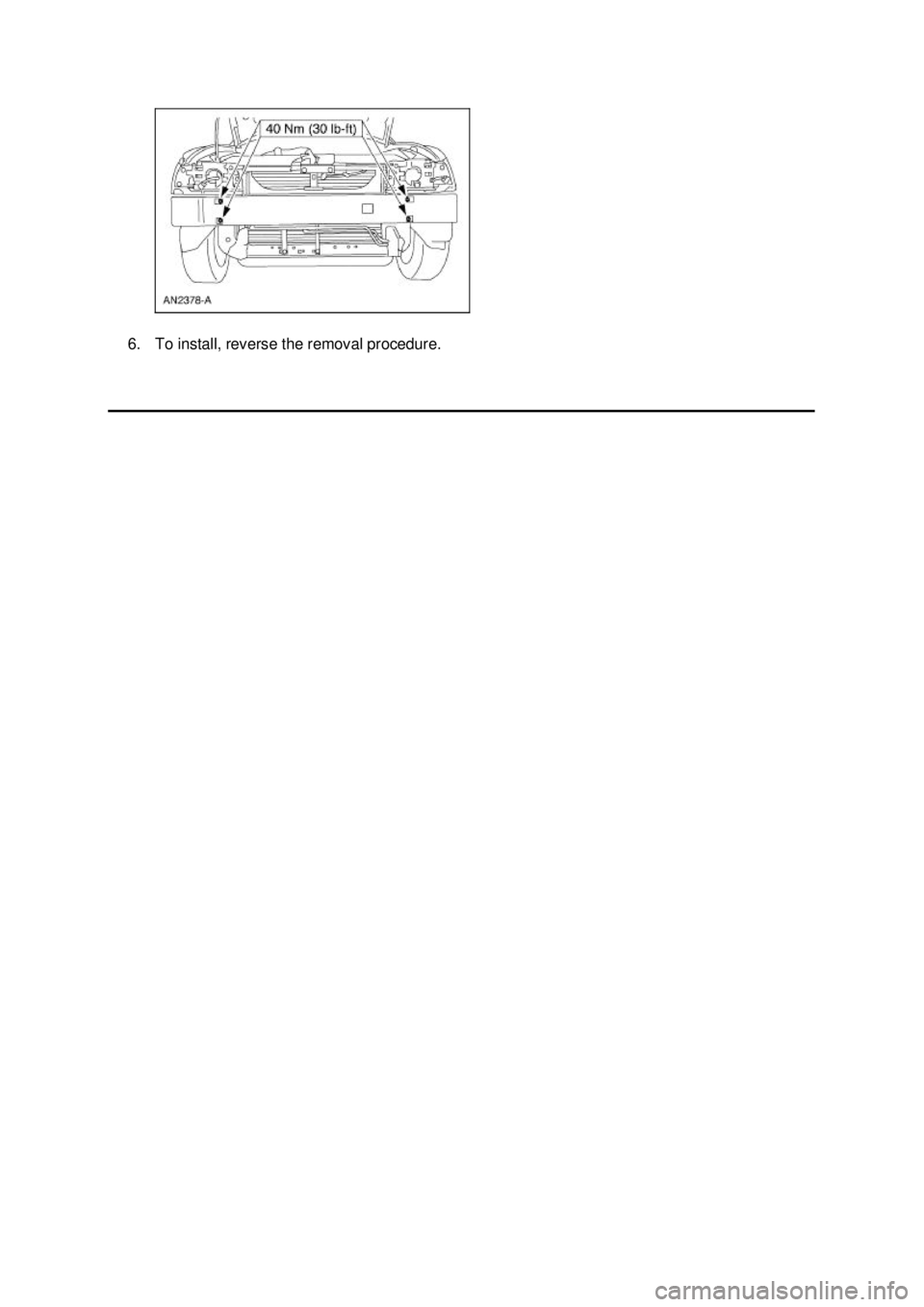

FORD MUSTANG 2003 Workshop Manual 6. To install, reverse the removal procedure. Klj . 2 ba 22003 Mustang Workshop Manual 18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

Page 3976 of 4378

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION Rear Bumper Removal and Installation All vehicles 1. Remove the rear bumper cover. For additional information, refer to Rear Bumper Cover in this section. 2. Remove th
