Page 3641 of 4378

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION Moulding — Roof Side Removal and Installation 1. Remove the weatherstrip. 2. Remove the exterior roof side moulding screws. 3. Remove the interior roof side moulding sc

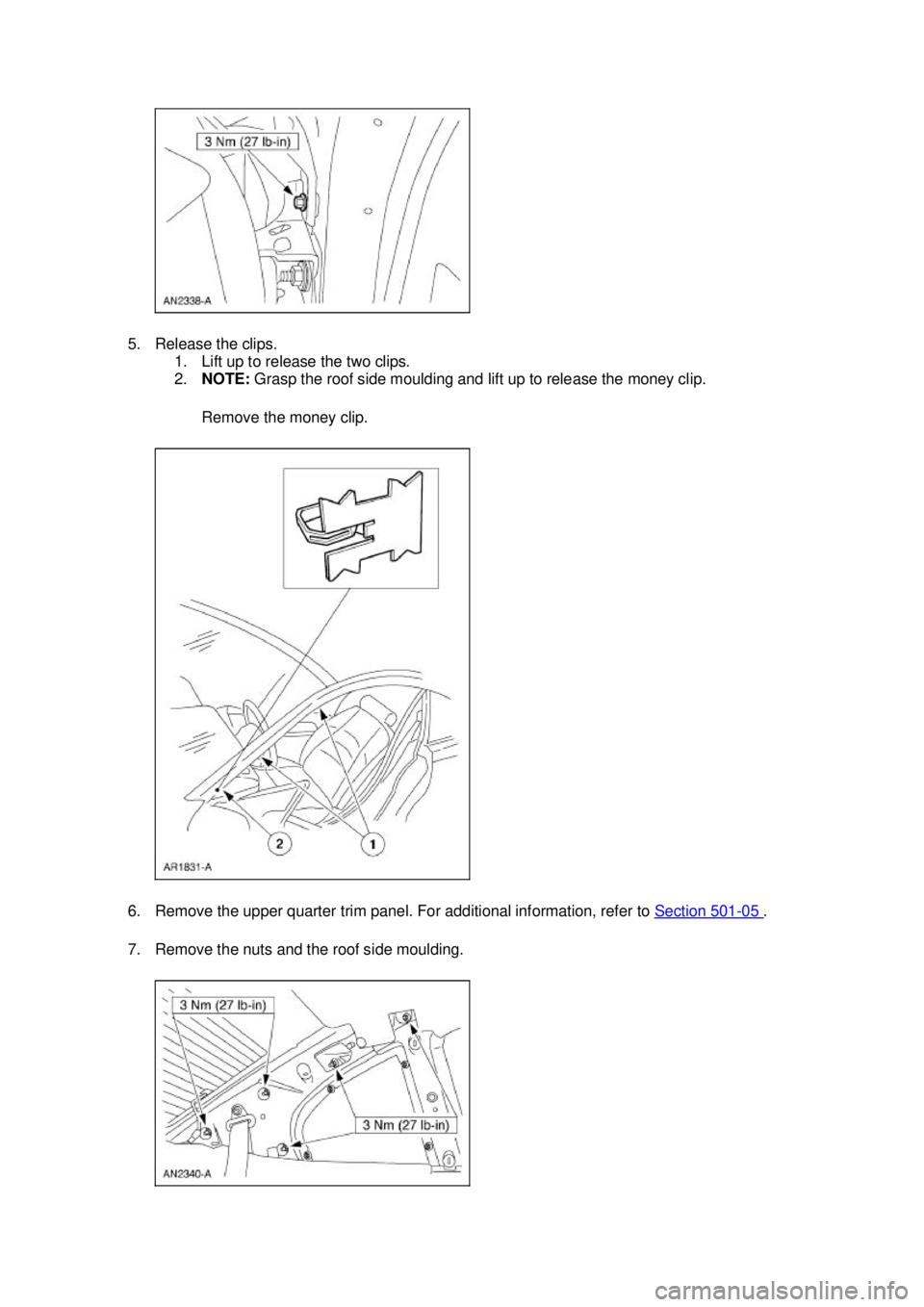

Page 3642 of 4378

FORD MUSTANG 2003 Workshop Manual 5. Release the clips. 1. Lift up to release the two clips. 2.NOTE: Grasp the roof side moulding and lift up to release the money clip. Remove the money clip. 6. Remove the upper quarter trim pane

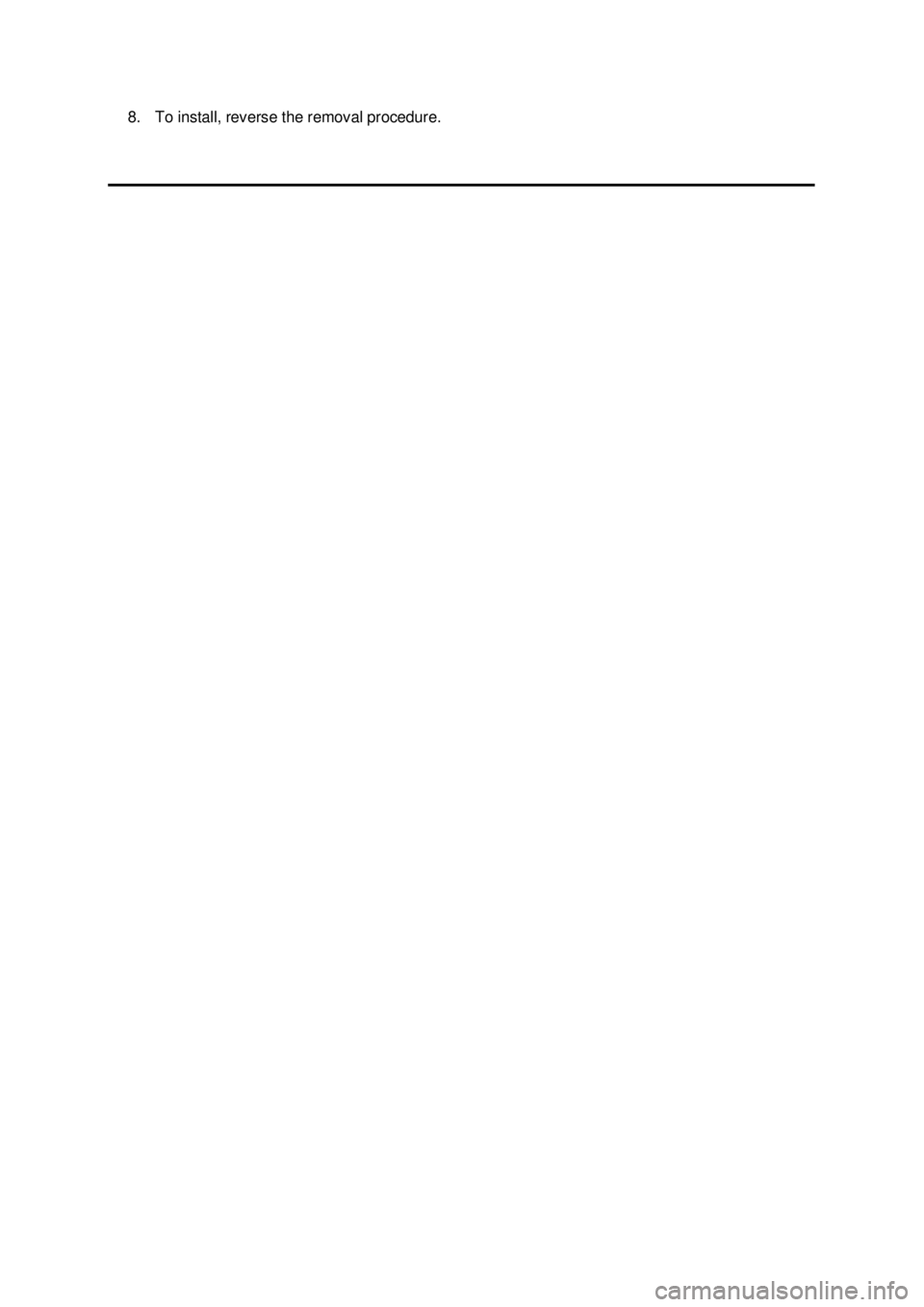

Page 3643 of 4378

FORD MUSTANG 2003 Workshop Manual 8. To install, reverse the removal procedure. Klj . 3 ba 32003 Mustang Workshop Manual 18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

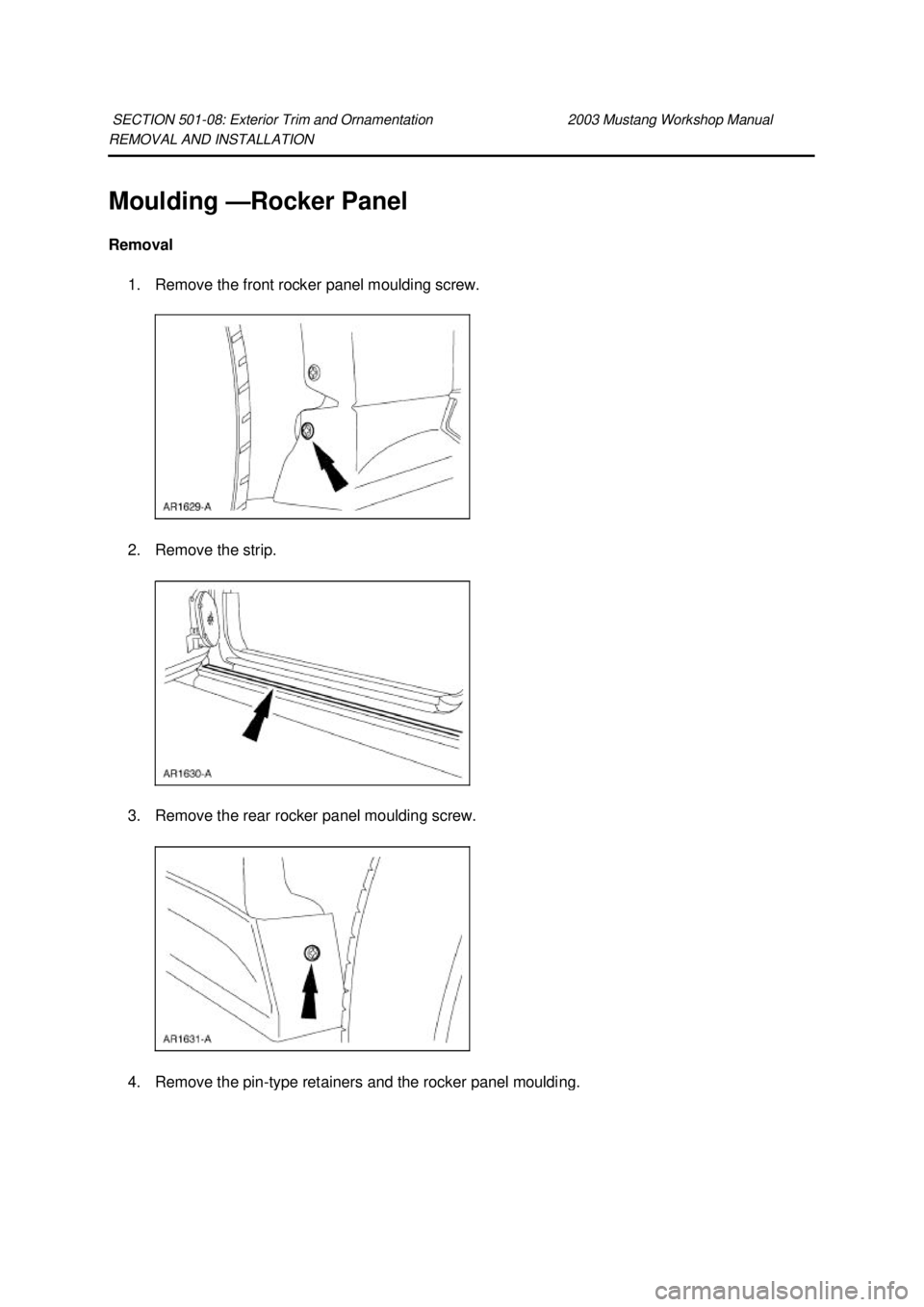

Page 3644 of 4378

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION Moulding — Rocker Panel Removal 1. Remove the front rocker panel moulding screw. 2. Remove the strip. 3. Remove the rear rocker panel moulding screw. 4. Remove the pin

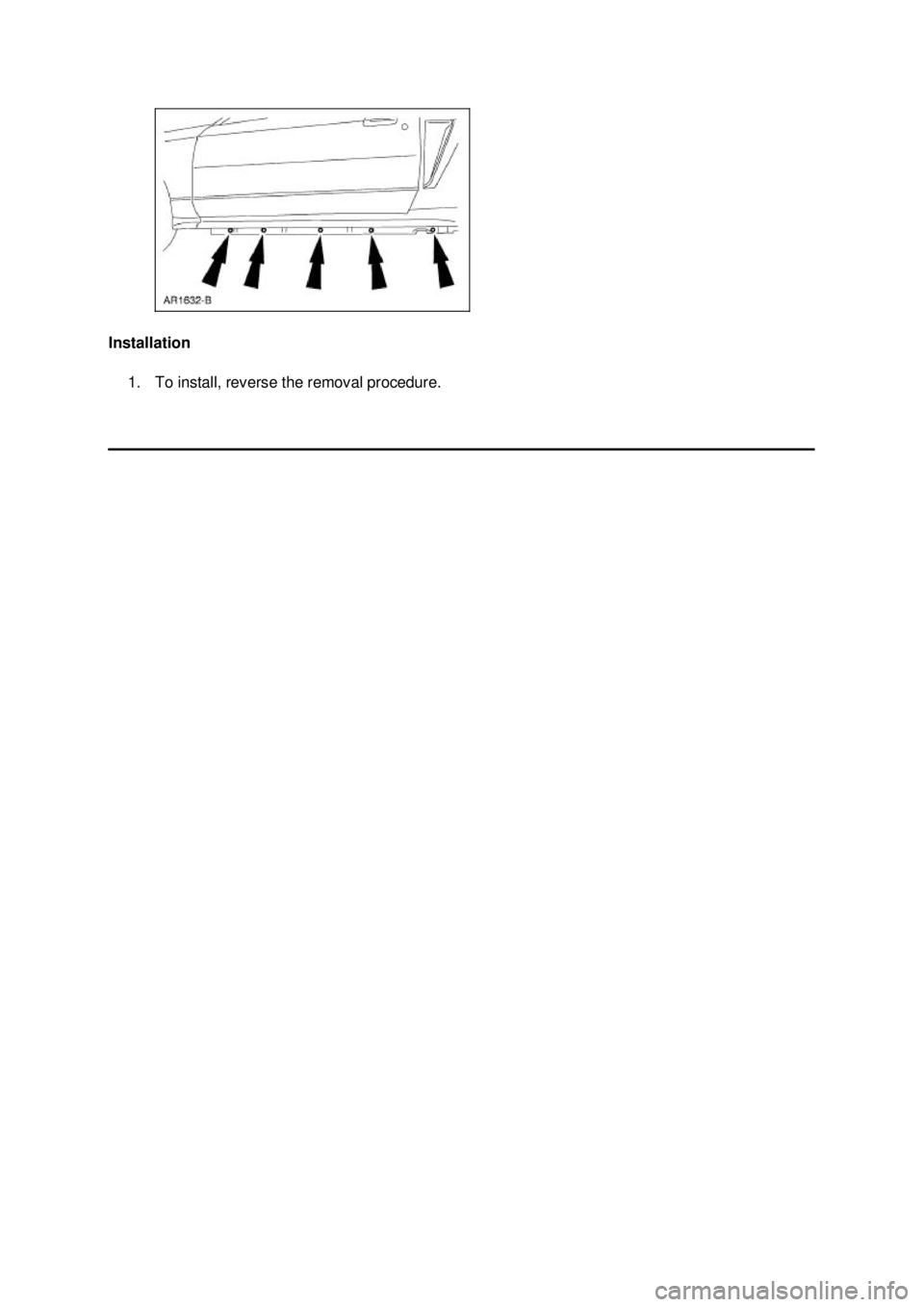

Page 3645 of 4378

FORD MUSTANG 2003 Workshop Manual Installation 1. To install, reverse the removal procedure. Klj . 2 ba 22003 Mustang Workshop Manual 18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

Page 3646 of 4378

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION Rear Spoiler Removal and Installation 1. Open the luggage compartment lid. 2. Disconnect the high mounted stoplamp electrical connector. 3. Remove the screws and the nuts

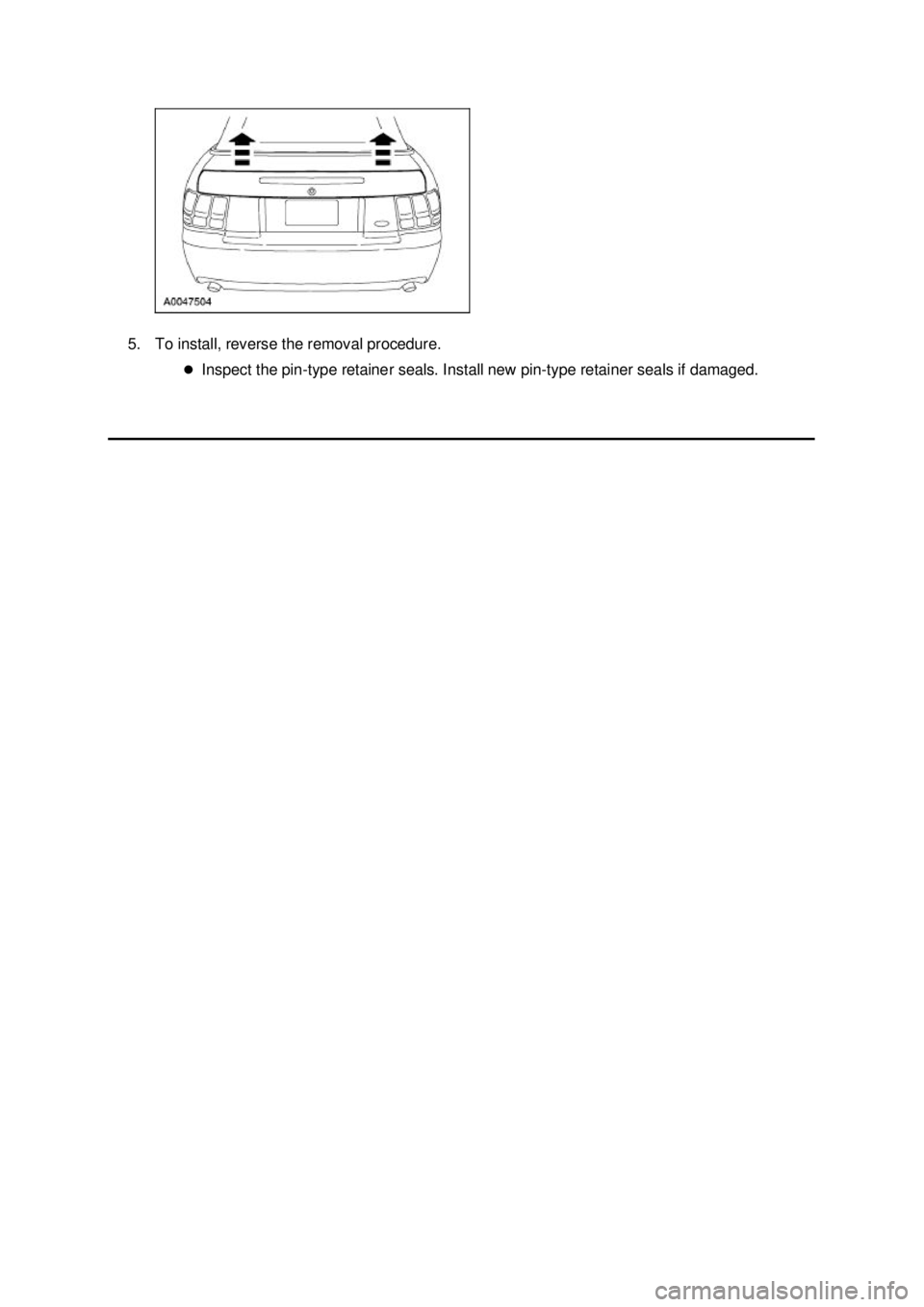

Page 3647 of 4378

FORD MUSTANG 2003 Workshop Manual 5. To install, reverse the removal procedure. �zInspect the pin- type retainer seals. Install new pin- type retainer seals if damaged. Klj . 2 ba 22003 Mustang Workshop Manual 18. 11. 2011fi

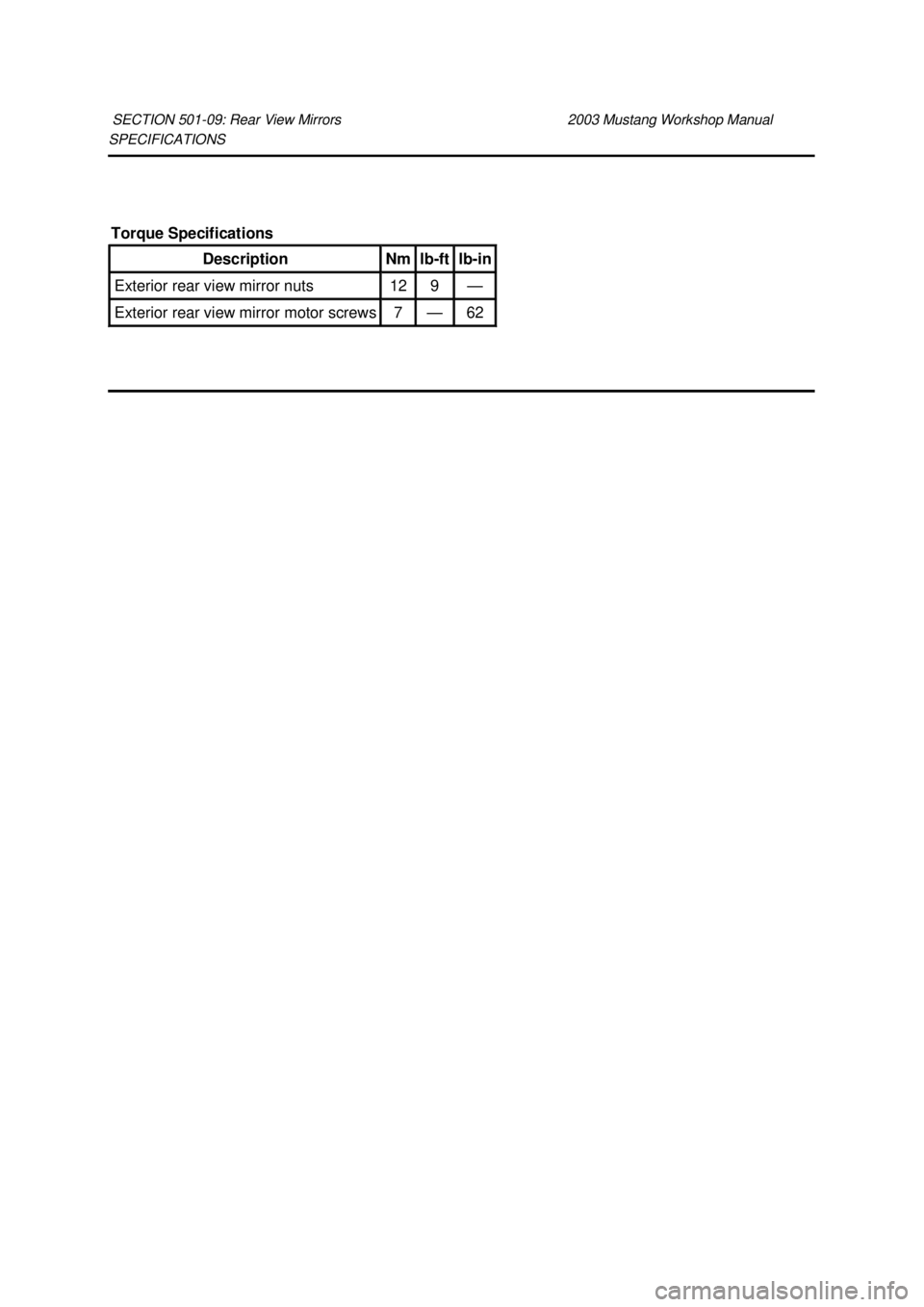

Page 3648 of 4378

FORD MUSTANG 2003 Workshop Manual SPECIFICATIONS SECTION 501- 09: Rear View Mirrors 2003 Mustang Workshop Manual Torque Specifications Description Nm lb- ft lb- in Exterior rear view mirror nuts 12 9 — Exterior rear view m
