Page 1817 of 4378

FORD MUSTANG 2003 Workshop Manual 80. Remove the engine from the stand. 81. NOTE: If not secured within four minutes, the sealant must be removed and the sealing area cleaned with metal surface cleaner. Allow to dry until there is

Page 1818 of 4378

FORD MUSTANG 2003 Workshop Manual 83. Using the special tool, install the crankshaft rear main seal. 84. Using the special tools, install the crankshaft oil slinger. Automatic transmission vehicles 85. Install the flexplate and ins

Page 1819 of 4378

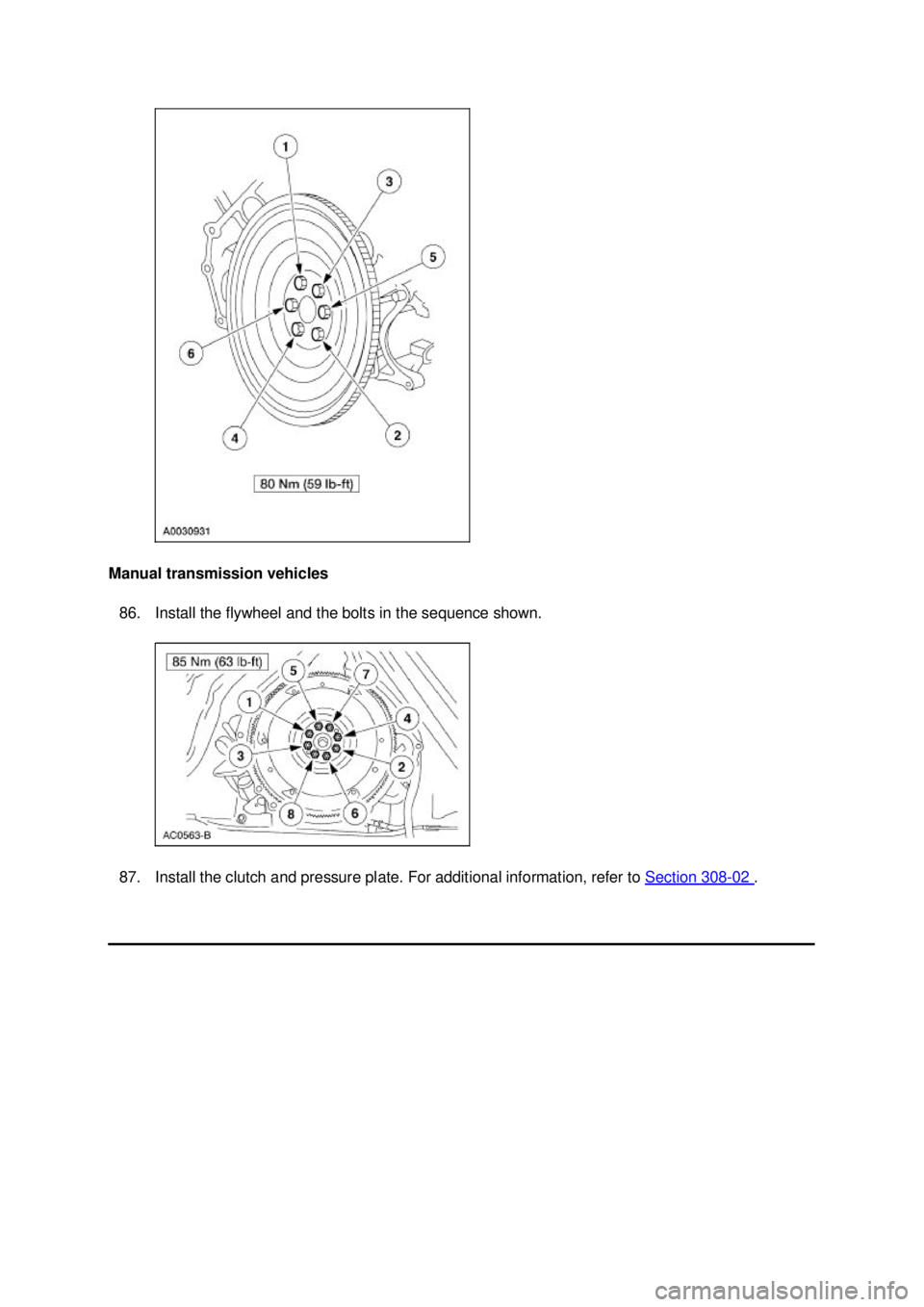

FORD MUSTANG 2003 Workshop Manual Manual transmission vehicles 86. Install the flywheel and the bolts in the sequence shown. 87. Install the clutch and pressure plate. For additional information, refer to Section 308 - 02 . Klj

Page 1820 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 30 ba 302003 Mustang Workshop Manual 17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

Page 1821 of 4378

FORD MUSTANG 2003 Workshop Manual INSTALLATION Engine Installation All vehicles 1. Install the engine in the vehicle and remove the floor crane and the spreader bar. SECTION 303- 01D: Engine — Mach I 4.6L (4V) 2003 Mustang Wor

Page 1822 of 4378

FORD MUSTANG 2003 Workshop Manual Manual transmission vehicles 2. Install the clutch cable and retaining screws. All vehicles 3. Raise and support the vehicle. For additional information, refer to Section 100 - 02 . 4. Connect t

Page 1823 of 4378

FORD MUSTANG 2003 Workshop Manual Manual transmission vehicles 6. Lubricate the ball stud, clutch release lever and the input shaft with clean engine oil. All vehicles 7. Raise the transmission and install the seven bolts. 8. Inst

Page 1824 of 4378

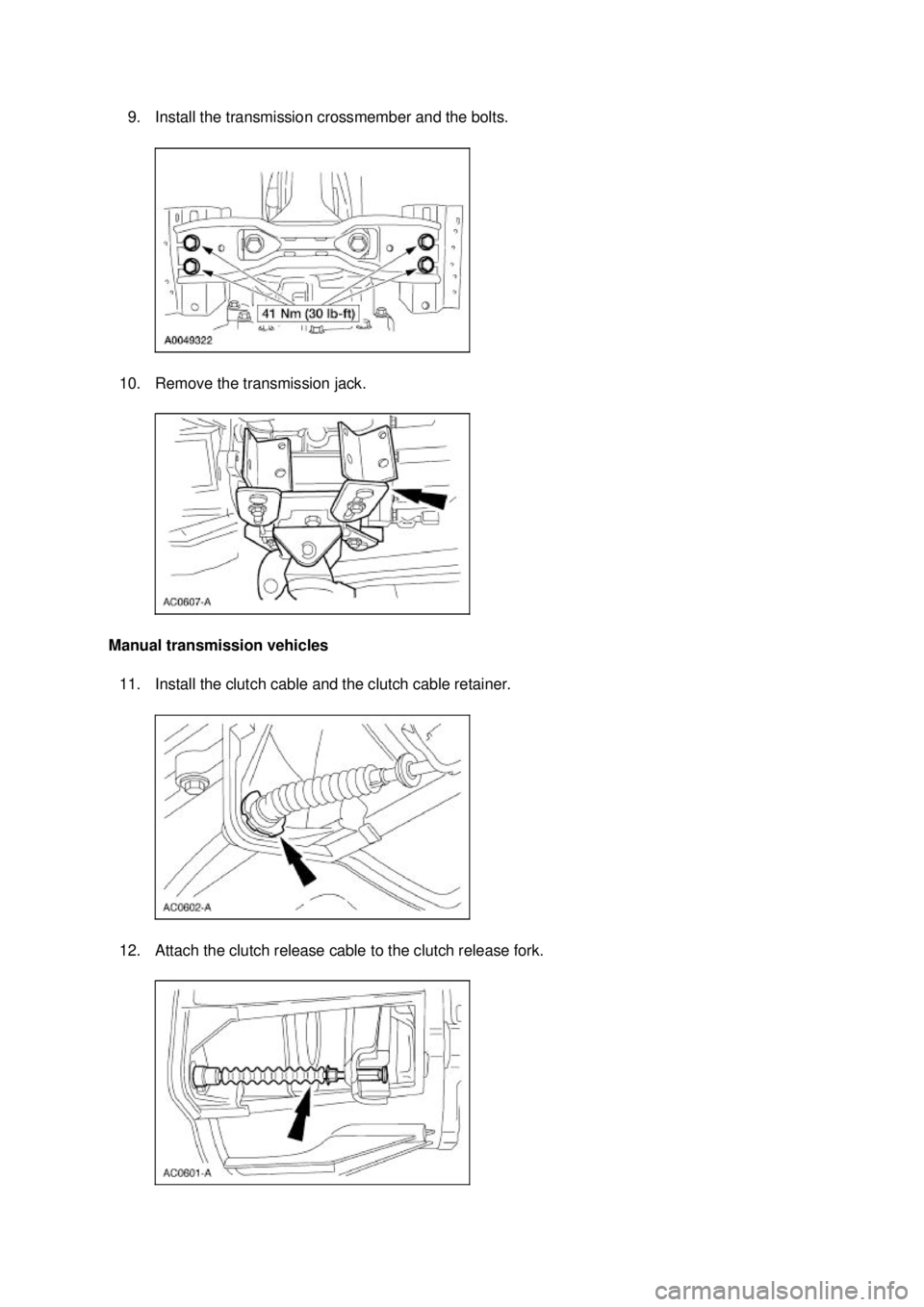

FORD MUSTANG 2003 Workshop Manual 9. Install the transmission crossmember and the bolts. 10. Remove the transmission jack. Manual transmission vehicles 11. Install the clutch cable and the clutch cable retainer. 12. Attach the clu
