Page 2921 of 4378

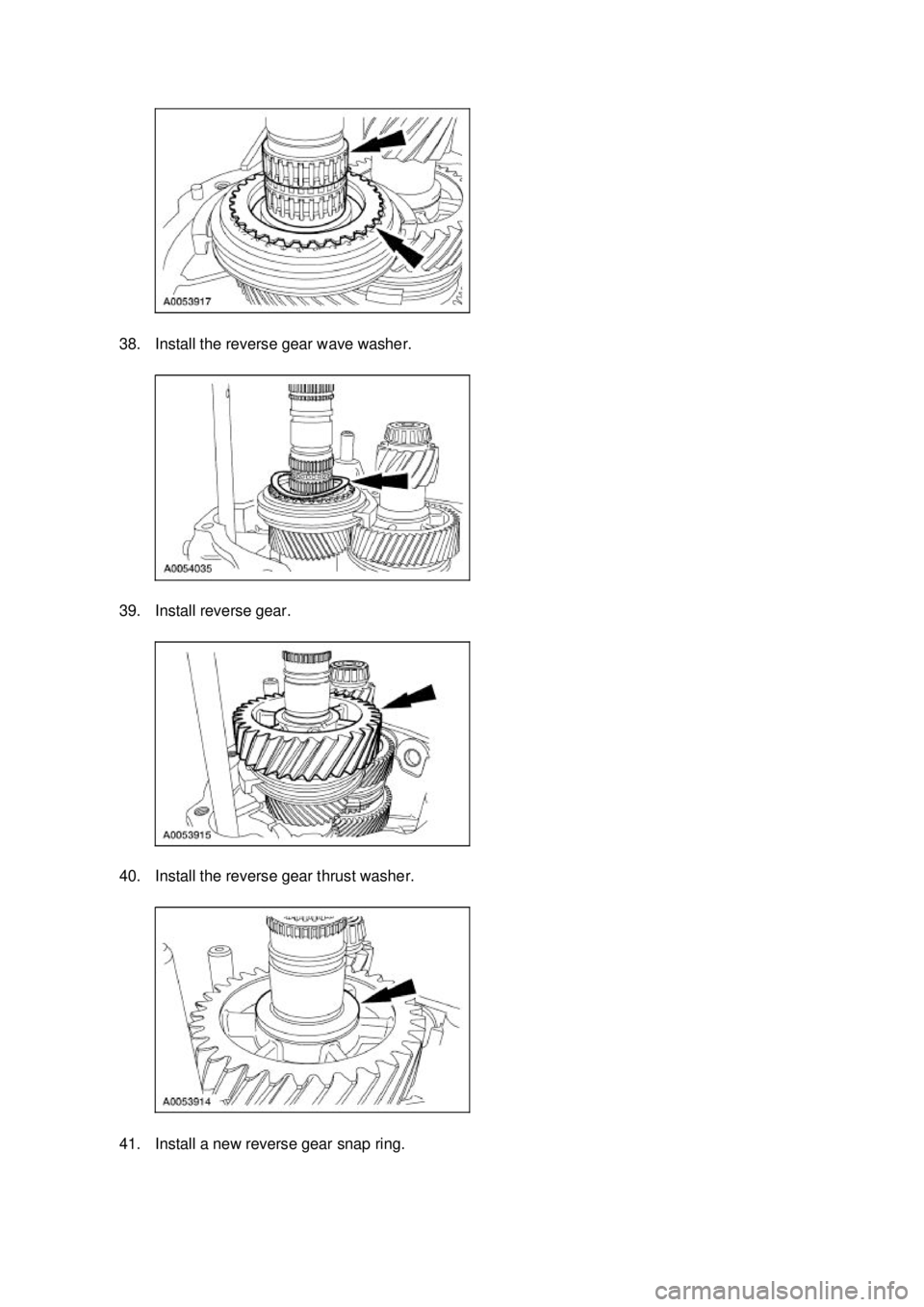

FORD MUSTANG 2003 Workshop Manual 38. Install the reverse gear wave washer. 39. Install reverse gear. 40. Install the reverse gear thrust washer. 41. Install a new reverse gear snap ring. Klj . 14 ba 182003 Mustang Worksho

Page 2922 of 4378

FORD MUSTANG 2003 Workshop Manual 42. Install the lower spacer, the rear mainshaft roller bearing and the upper spacer. 43. Install the rear mainshaft roller bearing snap ring. 44. Install a new output speed shaft (OSS) sensor tone

Page 2923 of 4378

FORD MUSTANG 2003 Workshop Manual 46. Install a new OSS sensor tone wheel retaining ring. 47. Install the shipping seal. 48. Apply threadlock and sealer to the threads of the plug, then install the plug into the transmission adapte

Page 2924 of 4378

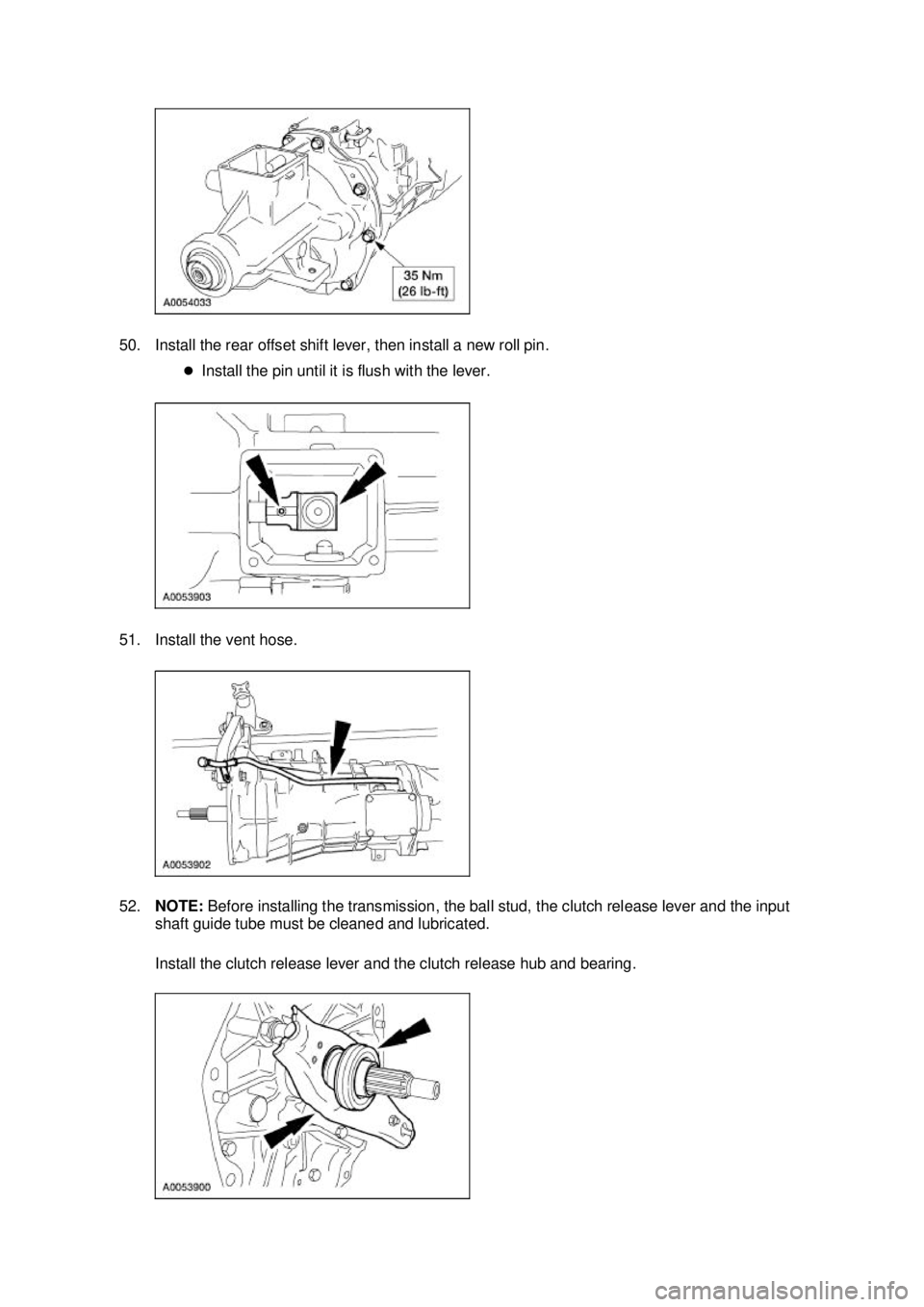

FORD MUSTANG 2003 Workshop Manual 50. Install the rear offset shift lever, then install a new roll pin. �zInstall the pin until it is flush with the lever. 51. Install the vent hose. 52. NOTE: Before installing the transmission, t

Page 2925 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 18 ba 182003 Mustang Workshop Manual 18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...

Page 2926 of 4378

FORD MUSTANG 2003 Workshop Manual INSTALLATION Transmission 1. NOTE: Before installing the transmission, the ball stud, clutch release lever and the input shaft must be cleaned and lubricated with grease. Position the transmissio

Page 2927 of 4378

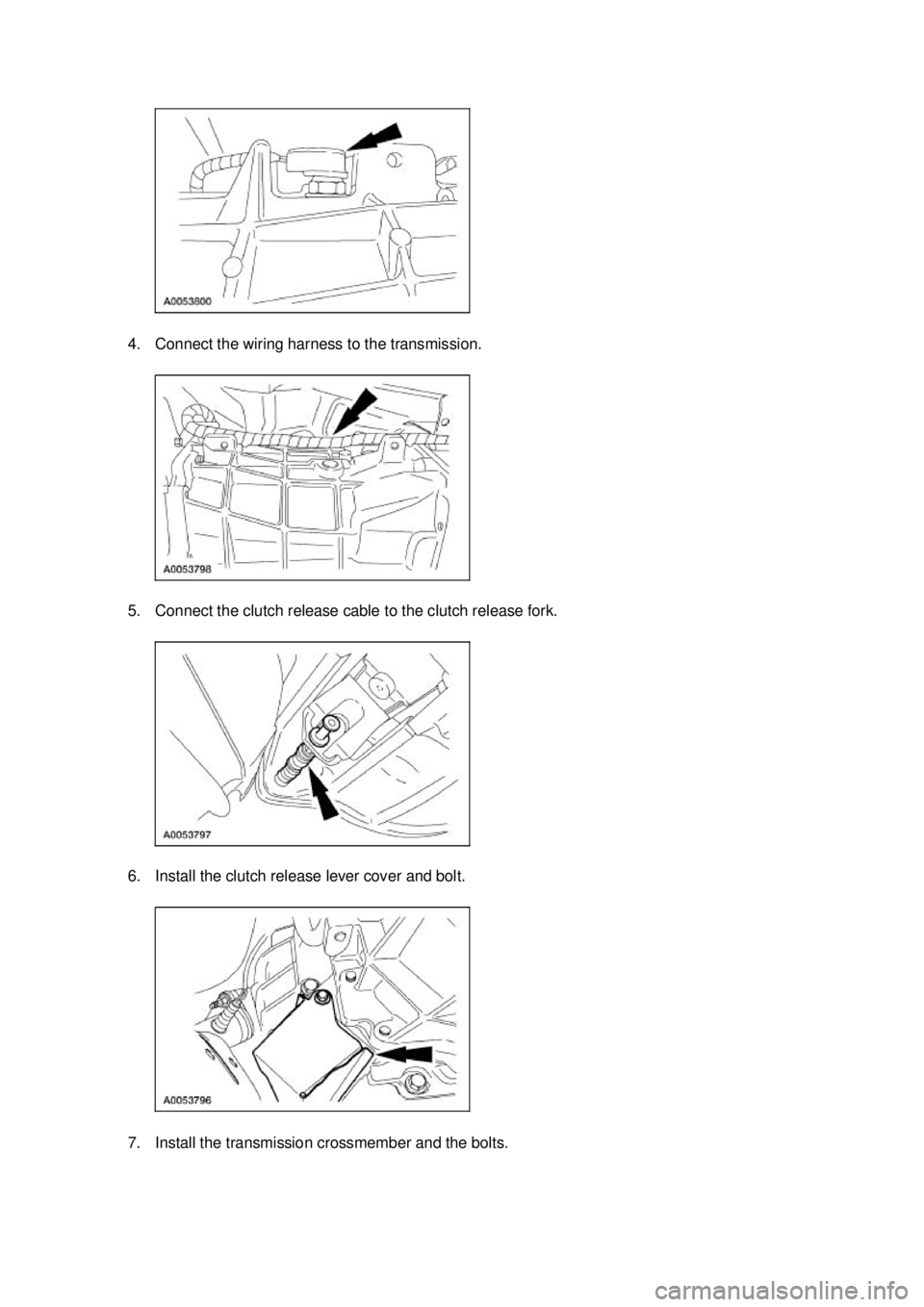

FORD MUSTANG 2003 Workshop Manual 4. Connect the wiring harness to the transmission. 5. Connect the clutch release cable to the clutch release fork. 6. Install the clutch release lever cover and bolt. 7. Install the transmission cr

Page 2928 of 4378

FORD MUSTANG 2003 Workshop Manual 8. Remove the transmission jack from the transmission. 9. Connect the heated oxygen sensor (HO2S) electrical connectors to the crossmember. 10. CAUTION: Align the index marks on the driveshaft flan
