Page 1417 of 4378

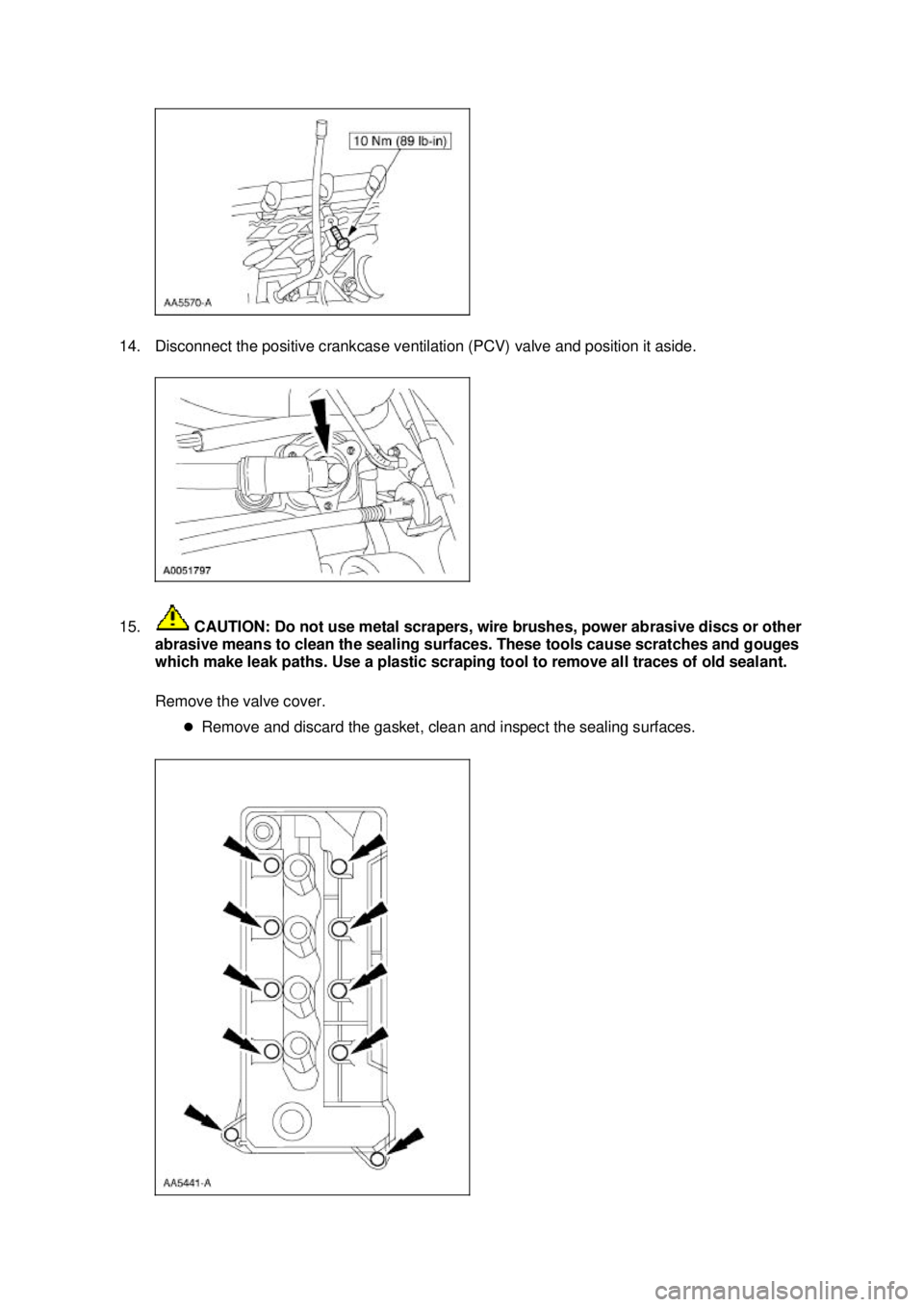

FORD MUSTANG 2003 Workshop Manual 14. Disconnect the positive crankcase ventilation (PCV) valve and position it aside. 15. CAUTION: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the

Page 1418 of 4378

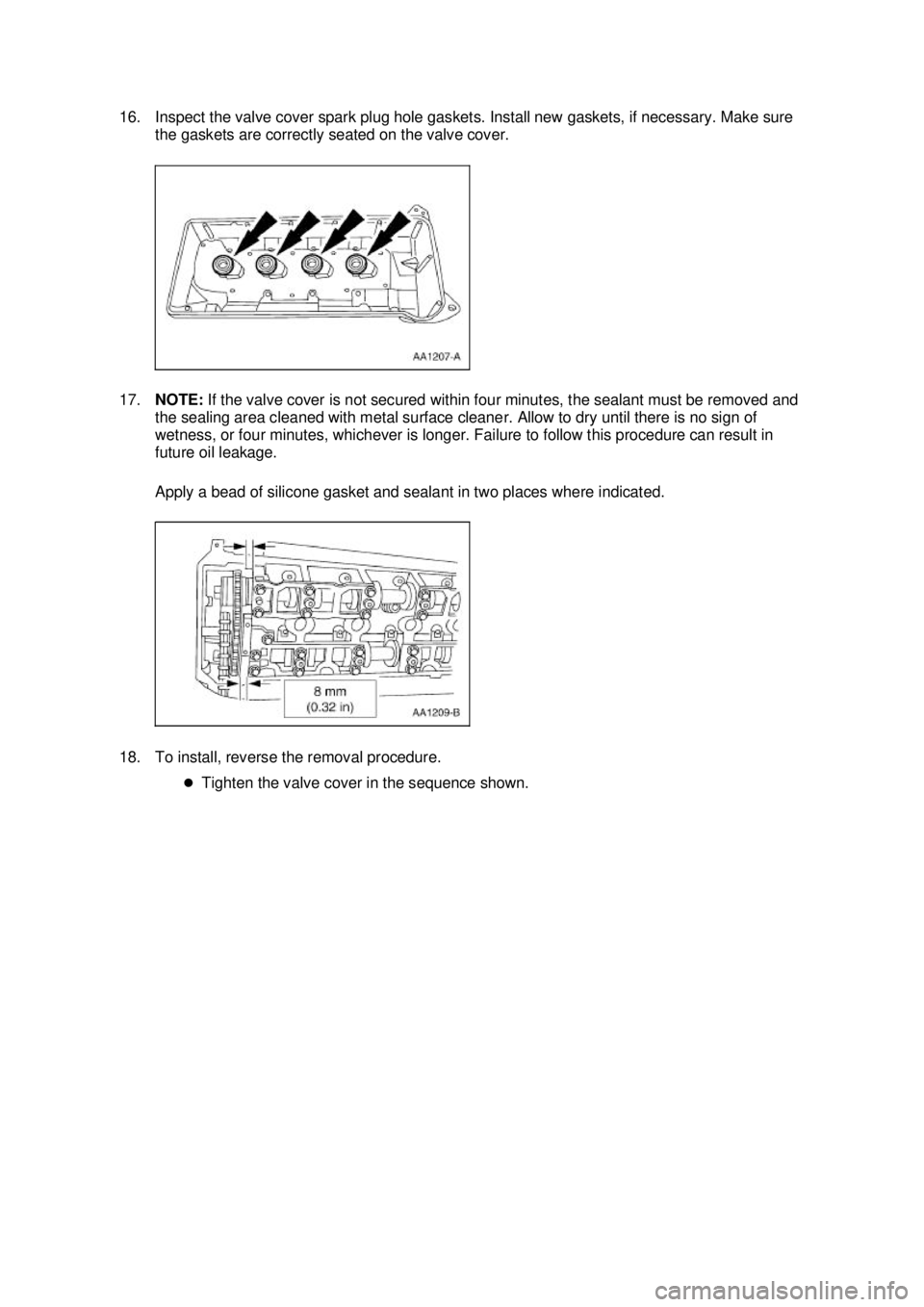

FORD MUSTANG 2003 Workshop Manual 16. Inspect the valve cover spark plug hole gaskets. Install new gaskets, if necessary. Make sure the gaskets are correctly seated on the valve cover. 17. NOTE: If the valve cover is not secured wi

Page 1419 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 6 ba 62003 Mustang Workshop Manual 17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

Page 1420 of 4378

FORD MUSTANG 2003 Workshop Manual IN- VEHICLE REPAIR Crankshaft Pulley Removal 1. Remove the auxiliary crankshaft pulley. For additional information, refer to Crankshaft Pulley — Auxiliary in this section. 2. Remove the access

Page 1421 of 4378

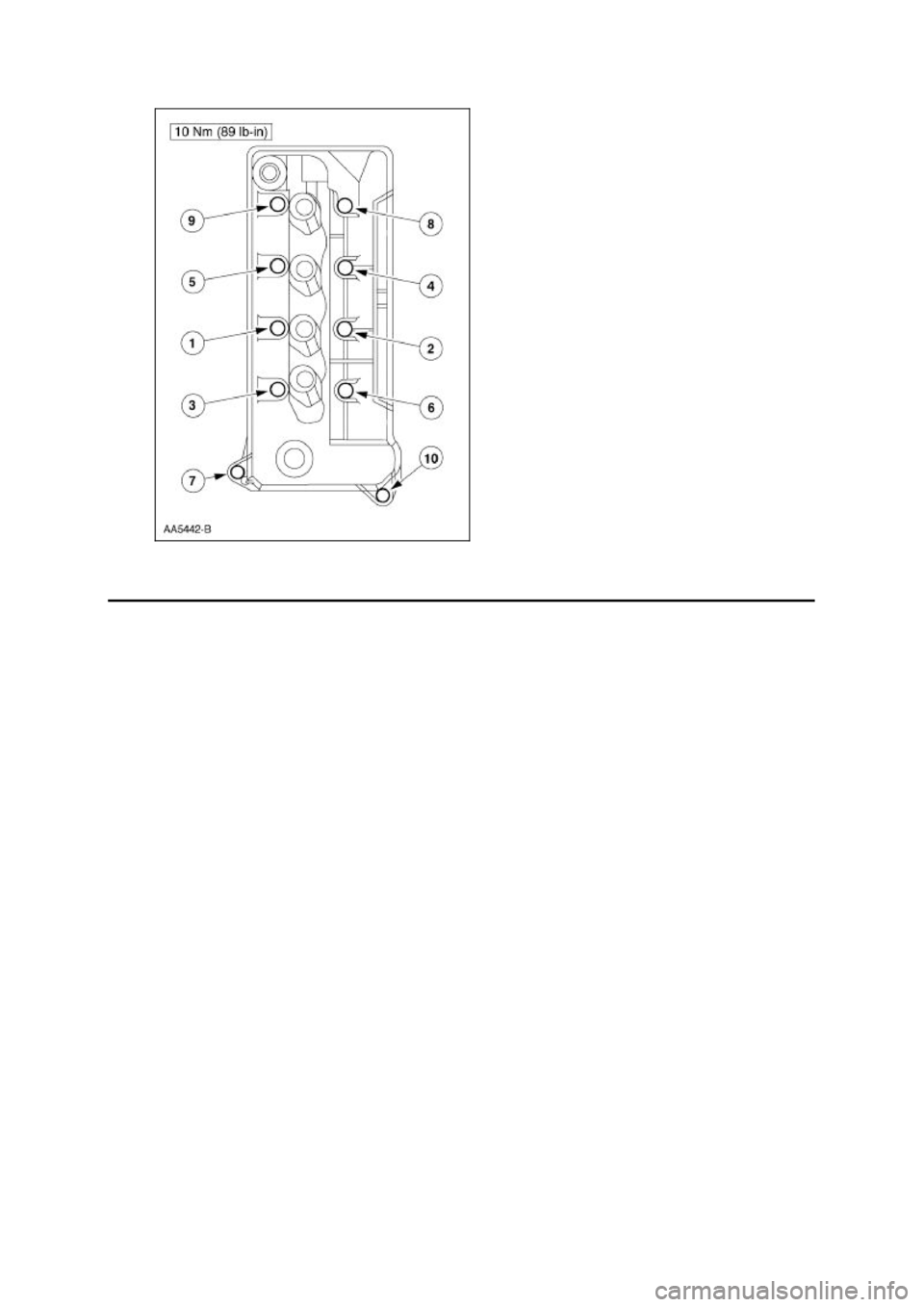

FORD MUSTANG 2003 Workshop Manual Installation 1. NOTE: The crankshaft pulley must be installed within four minutes after applying the silicone. Apply silicone gasket and sealant to the Woodruff key slot on the crankshaft pulley.

Page 1422 of 4378

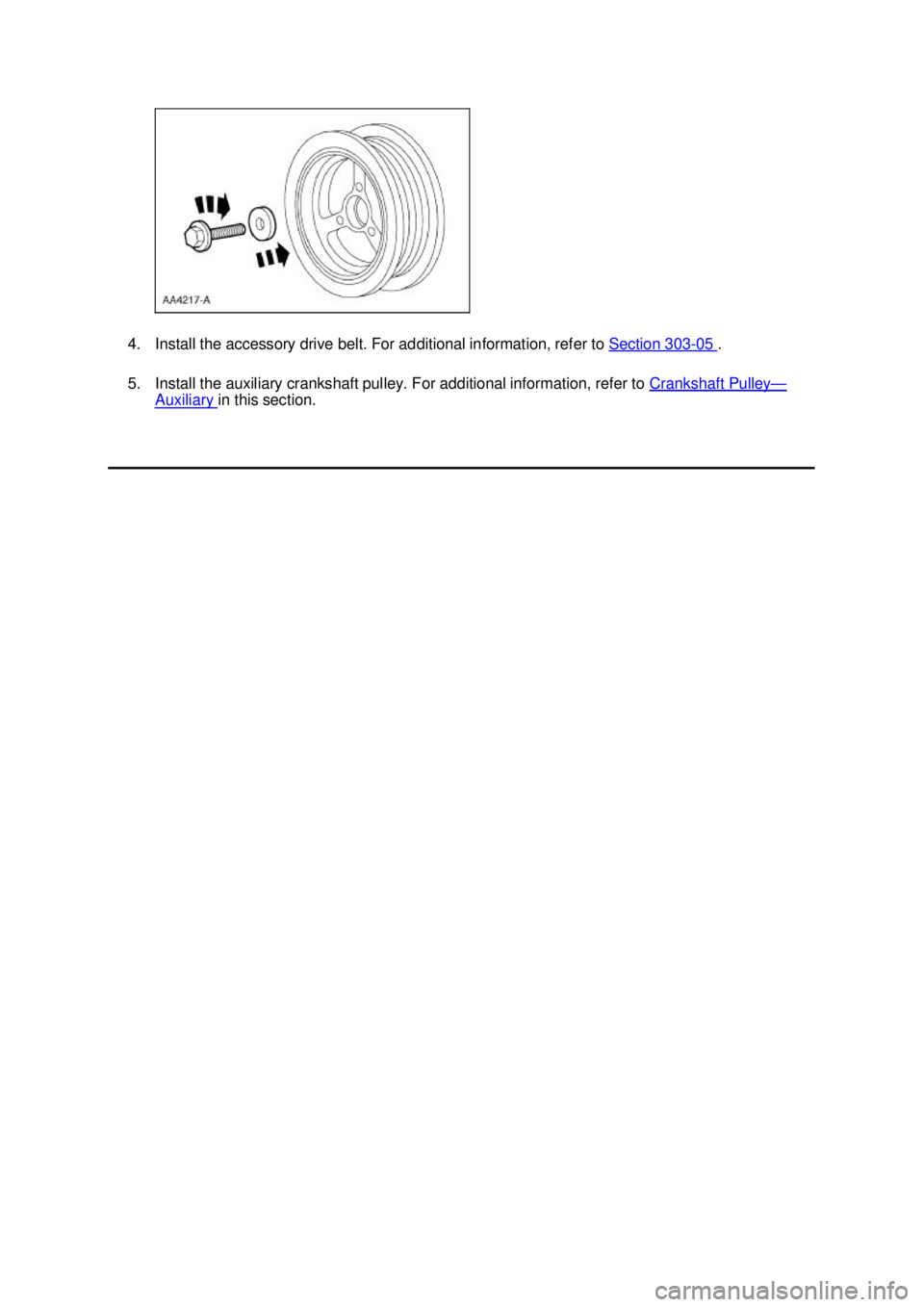

FORD MUSTANG 2003 Workshop Manual 4. Install the accessory drive belt. For additional information, refer to Section 303 - 05 . 5. Install the auxiliary crankshaft pulley. For additional information, refer to Crankshaft Pulley —

Page 1423 of 4378

FORD MUSTANG 2003 Workshop Manual IN- VEHICLE REPAIR Crankshaft Pulley — Auxiliary Removal and Installation 1. Remove the cooling fan. For additional information, refer to Section 303 - 03A . 2. Remove the supercharger drive b

Page 1424 of 4378

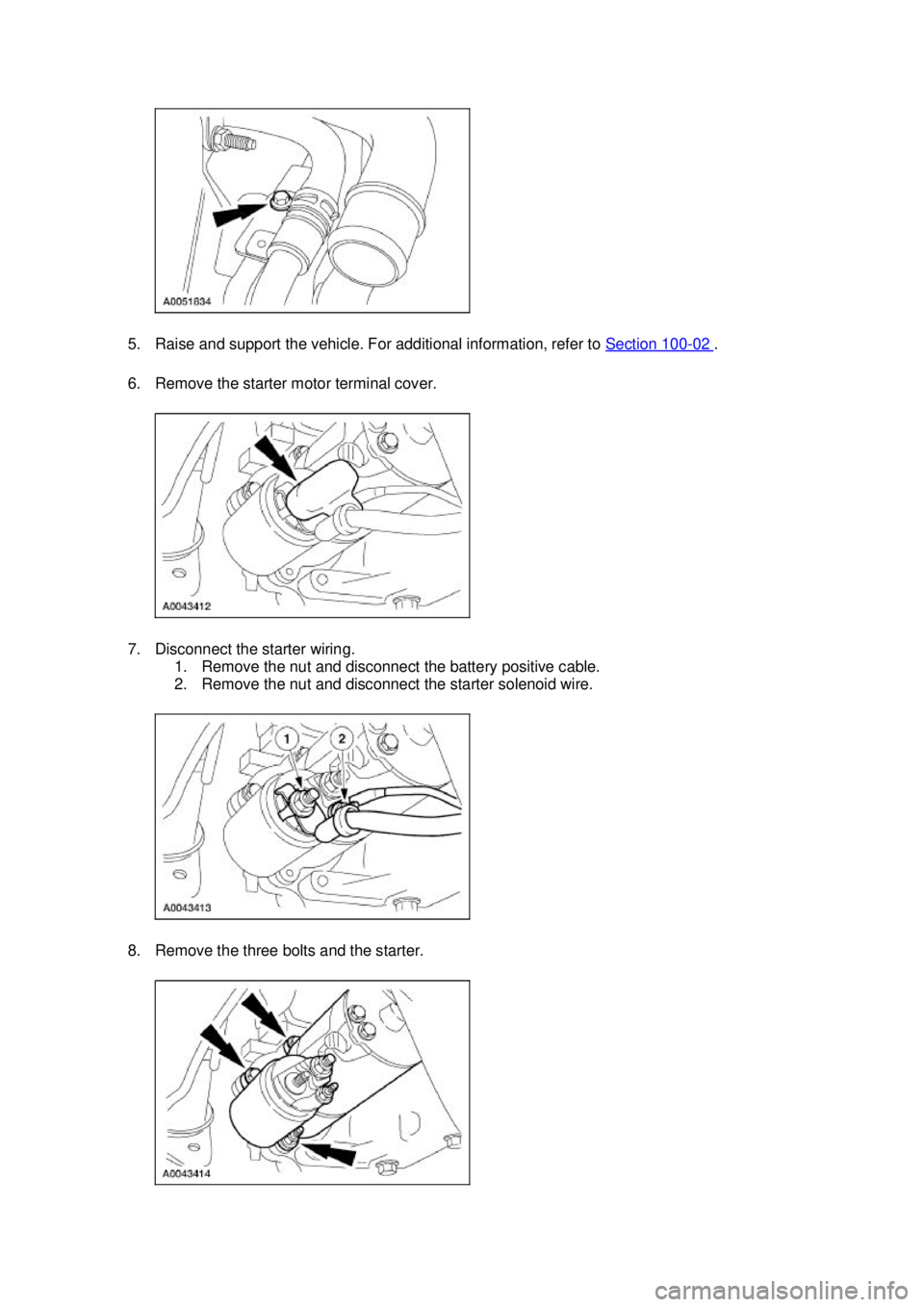

FORD MUSTANG 2003 Workshop Manual 5. Raise and support the vehicle. For additional information, refer to Section 100 - 02 . 6. Remove the starter motor terminal cover. 7. Disconnect the starter wiring. 1. Remove the nut and disco
