Page 1905 of 4378

FORD MUSTANG 2003 Workshop Manual operating. Failure to follow these instructions could result in damage to the cooling system or
engine and/or personal injury. To avoid having scalding hot coolant or steam blow out of the
cooling s

operating. Failure to follow these instructions could result in damage to the cooling system or
engine and/or personal injury. To avoid having scalding hot coolant or steam blow out of the
cooling system, use extreme care when removing the pressure relief cap from a hot degas
bottle. Wait until the engine has cooled, then wrap a thick cloth around the pressure relief cap
and turn it slowly one turn (counterclockwise). Step back while the pressure is released from
the cooling system. When certain all the pressure has been released, remove pressure relief
cap (still with a cloth).
1. Immerse the pressure relief cap in water and install it on the shallow filler neck of Radiator/Heater Core Pressure Tester and Radiator Cap Adapter, part of Radiator/Heater Core
Pressure Tester.
2. Immerse the filler neck seal in water and install it in the filler neck adapter.
3. Install the filler neck adapter with the filler neck seal to the Radiator Cap Adapter.
4. Connect the female quick- connect fitting of the pressure test pump to the male quick- connect
fitting of the filler neck adapter.
5. NOTE: If the plunger of the pump is depressed too fast, an erroneous pressure reading will
result.
Slowly depress the plunger of the pressure test pump until the pressure gauge reading stops
increasing and note the highest pressure reading obtained.
6. Release the pressure by turning the relief screw counterclockwise. Then tighten the pressure relief screw and repeat Step 6 (at least twice) to make sure the reading is repeatable within the
specifications of the pressure relief cap.
7. If the pressure test gauge readings are not within specifications, install a new pressure relief cap. If the pressure test gauge readings are within specifications, carry out the cooling system
pressure test.
Radiator Leak Test, Removed From the Vehicle CAUTION: Never leak test an aluminum radiator or intercooler in the same water that
copper/brass radiators are tested in. Flux and caustic cleaners may be present in the cleaning
tank and they will damage aluminum radiators and intercoolers.
NOTE: Clean the radiator or intercooler before leak testing to avoid contamination of tank.
1. Leak test the radiator or intercooler in clean water with 138 kPa (20 psi) air pressure. Klj . 6 ba
72003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

Page 1906 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 7 ba
72003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

Page 1907 of 4378

FORD MUSTANG 2003 Workshop Manual GENERAL PROCEDURES
Supercharger Cooling System Draining, Filling and
Bleeding
Draining
WARNING: Never remove the pressure relief cap while the engine is operating or when the
cooling system is h

GENERAL PROCEDURES
Supercharger Cooling System Draining, Filling and
Bleeding
Draining
WARNING: Never remove the pressure relief cap while the engine is operating or when the
cooling system is hot. Failure to follow these instructions can result in damage to the cooling
system or engine or personal injury. To avoid having scalding hot coolant or steam blow out of
the degas bottle when removing the pressure relief cap, wait until the engine has cooled, then
wrap a thick cloth around the pressure relief cap and turn it slowly. Step back while the
pressure is released from the cooling system. When certain all the pressure has been released,
(still with a cloth) turn and remove the pressure relief cap.
CAUTION: The coolant must be recovered in a suitable, clean container for reuse. If the
coolant is contaminated, it must be recycled or disposed of correctly and replaced.
CAUTION: Some vehicle cooling systems are filled with Motorcraft Premium Engine
Coolant VC -4-A (in Oregon VC- 5, in Canada CXC- 10) or equivalent meeting Ford specification
ESE- M97B44- A (green color). Others are filled with Motorcraft Premium Gold Engine Coolant
VC -7-A or equivalent meeting Ford specification WSS- M97B51-A1 (yellow color). Always fill the
cooling system with the same coolant that is present in the system. Do not mix coolant types.
NOTE: The addition of Motorcraft Cooling System Stop Leak Pellets, VC- 6, darkens Motorcraft
Premium Gold Engine Coolant from yellow to golden tan.
NOTE: Less than 80% of coolant capacity can be recovered with the engine in the vehicle. Dirty, rusty
or contaminated coolant requires replacement.
1. Raise and support the vehicle. For additional information, refer to Section 100 - 02 .
2. Remove the lower hose from the intercooler radiator and allow the coolant to drain.
Filling and Bleeding
CAUTION: Engine coolant provides freeze protection, boil protection, cooling efficiency
and corrosion protection to the engine and cooling components. In order to obtain these
protections, the engine coolant must be maintained at the correct concentration and fluid level
in the degas bottle.
CAUTION: Some vehicle cooling systems are filled with Motorcraft Premium Engine
Coolant VC -4-A (in Oregon VC- 5, in Canada CXC- 10) or equivalent meeting Ford specification
ESE- M97B44- A (green color). Others are filled with Motorcraft Premium Gold Engine Coolant
VC -7-A or equivalent meeting Ford specification WSS- M97B51-A1 (yellow color). Always fill the
cooling system with the same coolant that is present in the system. Do not mix coolant types.
NOTE: The addition of Motorcraft Cooling System Stop Leak Pellets, VC- 6, darkens Motorcraft
Premium Gold Engine Coolant from yellow to golden tan.
NOTE: When adding engine coolant, use a 50/50 mixture of engine coolant and clean, drinkable
water. SECTION 303-
03B: Supercharger Cooling 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

Page 1908 of 4378

FORD MUSTANG 2003 Workshop Manual 1. To maintain the integrity of the coolant and the cooling system:
1. Add Motorcraft Premium Engine Coolant VC-4- A (in Oregon VC-5, in Canada CXC-10)
or equivalent meeting Ford specification ESE-M

1. To maintain the integrity of the coolant and the cooling system:
1. Add Motorcraft Premium Engine Coolant VC-4- A (in Oregon VC-5, in Canada CXC-10)
or equivalent meeting Ford specification ESE-M97B44- A (green color), or Motorcraft
Premium Gold Engine Coolant VC-7- A or equivalent meeting Ford specification WSS-
M97B51- A1 (yellow color). Use the same coolant that was drained from the cooling
system. Do not mix coolant types.
2. Do not add/mix orange-colored Motorcraft Speciality Orange Engine Coolant VC- 2 or
equivalent meeting Ford specification WSS-M97B44- D. Mixing coolants may degrade the
coolant's corrosion protection.
3. Do not add alcohol, methanol, brine, or any engine coolants mixed with alcohol or
methanol antifreeze. These can cause engine damage from overheating or freezing.
4. Do not mix with recycled coolant unless it meets the requirements of Ford specification ESE- M97B44- A or WSS-M97B51- A1. Not all coolant recycling processes meet these
Ford specifications. Use of such coolants can harm the engine and cooling system
components.
2. Fill the degas bottle. Use Motorcraft Premium Engine Coolant VC-4- A (in Oregon VC-5, in
Canada CXC- 10) or equivalent meeting Ford specification ESE-M97B44- A (green color), or
Motorcraft Premium Gold Engine Coolant VC-7- A or equivalent meeting Ford specification
WSS- M97B51- A1 (yellow color). Use the same coolant that was drained from the cooling
system. Do not mix coolant types.
3. Start the engine and allow to run until coolant circulation is observed in the intercooler degas bottle. Absence of circulation indicates air is trapped in the system.
zTurn the engine off.
4. Add coolant as needed. Use Motorcraft Premium Engine Coolant VC -4-A (in Oregon VC-5, in
Canada CXC- 10) or equivalent meeting Ford specification ESE-M97B44- A (green color), or
Motorcraft Premium Gold Engine Coolant VC-7- A or equivalent meeting Ford specification
WSS- M97B51- A1 (yellow color). Use the same coolant that was drained from the cooling
system. Do not mix coolant types.
5. Repeat the above procedure to make sure all entrapped air is released. Klj . 2 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

Page 1909 of 4378

FORD MUSTANG 2003 Workshop Manual GENERAL PROCEDURES
Supercharger Cooling System Flushing
1. WARNING: Never remove the pressure relief cap while the engine is operating or
when the cooling system is hot. Failure to follow these in

Page 1910 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 2 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

Page 1911 of 4378

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION
Water Pump
Removal and Installation
1. Disconnect the battery ground cable.
2. Drain the coolant. For additional information, refer to Supercharger Cooling System Drainin

Page 1912 of 4378

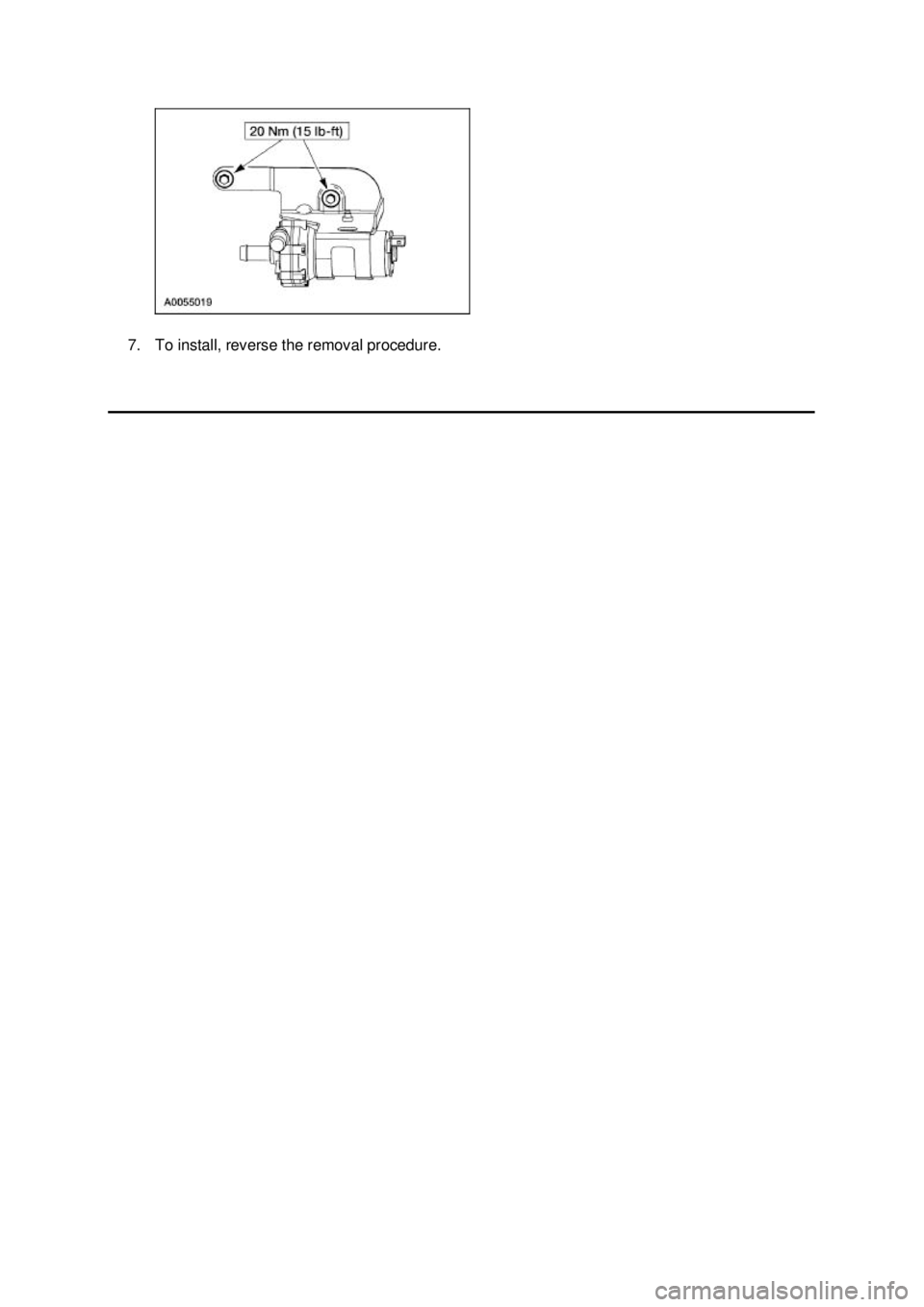

FORD MUSTANG 2003 Workshop Manual 7. To install, reverse the removal procedure. Klj . 2 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...
