Page 137 of 4378

FORD MUSTANG 2003 Workshop Manual REFER to
Section 204 - 04 .
�z Strut(s). �zINSTALL new strut(s) as
necessary. REFER to Section 204 - 01 .
�z Shock absorber(s). �zINSTALL new shock absorber
(s) as necessary.
�z Loose front

REFER to
Section 204 - 04 .
z Strut(s). zINSTALL new strut(s) as
necessary. REFER to Section 204 - 01 .
z Shock absorber(s). zINSTALL new shock absorber
(s) as necessary.
z Loose front
stabilizer bar (5482)
or rear stabilizer
bar (5A772). z
TIGHTEN to specification.
REFER to Section 204 - 01 or
Section 204 - 02 .
z Worn stabilizer
assembly bushing
(s). z
INSTALL new bushing(s) as
necessary. REFER to Section 204 - 01 or
Section 204 - 02 .
z Front coil spring(s)
or rear spring(s). z
INSTALL new front coil
springs or rear springs as
necessary. REFER to Section 204 - 01 or
Section 204 - 02 .
z Vehicle leans to
one side z
Unevenly loaded or
overloaded vehicle. z
NOTIFY the customer of
incorrect vehicle loading.
z Front or rear
suspension
components. z
INSPECT the front and rear
suspension system. REPAIR
or INSTALL new suspension
components as necessary.
REFER to Section 204 - 01 or
Section 204 - 02 .
z Front coil springs or
rear springs. z
INSTALL new front coil
springs or rear springs as
necessary. REFER to Section 204 - 01 or
Section 204 - 02 .
z Incorrect ride
height. Lateral tilt
out of specification. z
CHECK ride height. INSTALL
new front coil springs or rear
springs as necessary. REFER
to Section 204 - 01 or
Section 204 - 02 .
z Vibration/noise zTire or wheel
runout.
z Tire flatspotting.
z Wheel bearings.
z Wheel hubs.
z Brake components.
z Suspension
components.
z Steering
components. z
REFER to Section 100 - 04 .
z Wander zUnevenly loaded or
overloaded vehicle. z
NOTIFY the customer of
incorrect vehicle loading.
z Ball joint(s). zGO to the Ball Joint Inspection
component test in this section.
z Front wheel bearing
(s). z
REFER to Wheel Bearing Inspection in this section.
z Loose, worn or
damaged
suspension
components(s). z
INSTALL new suspension
components as necessary.
REFER to Section 204 - 01 or
Section 204 - 02 .
z Loose suspension
fasteners. z
TIGHTEN to specification.
REFER to Section 204 - 01 or
Section 204 - 02 . Klj . 4 ba
62003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

Page 138 of 4378

FORD MUSTANG 2003 Workshop Manual Component Tests
Ball Joint Inspection
1. Raise and support the vehicle. Refer to Section 100 - 02 .
2. Prior to performing any inspection of the ball joints, inspect the wheel bearings.
3. Posit

Page 139 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 6 ba
62003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

Page 140 of 4378

FORD MUSTANG 2003 Workshop Manual GENERAL PROCEDURES

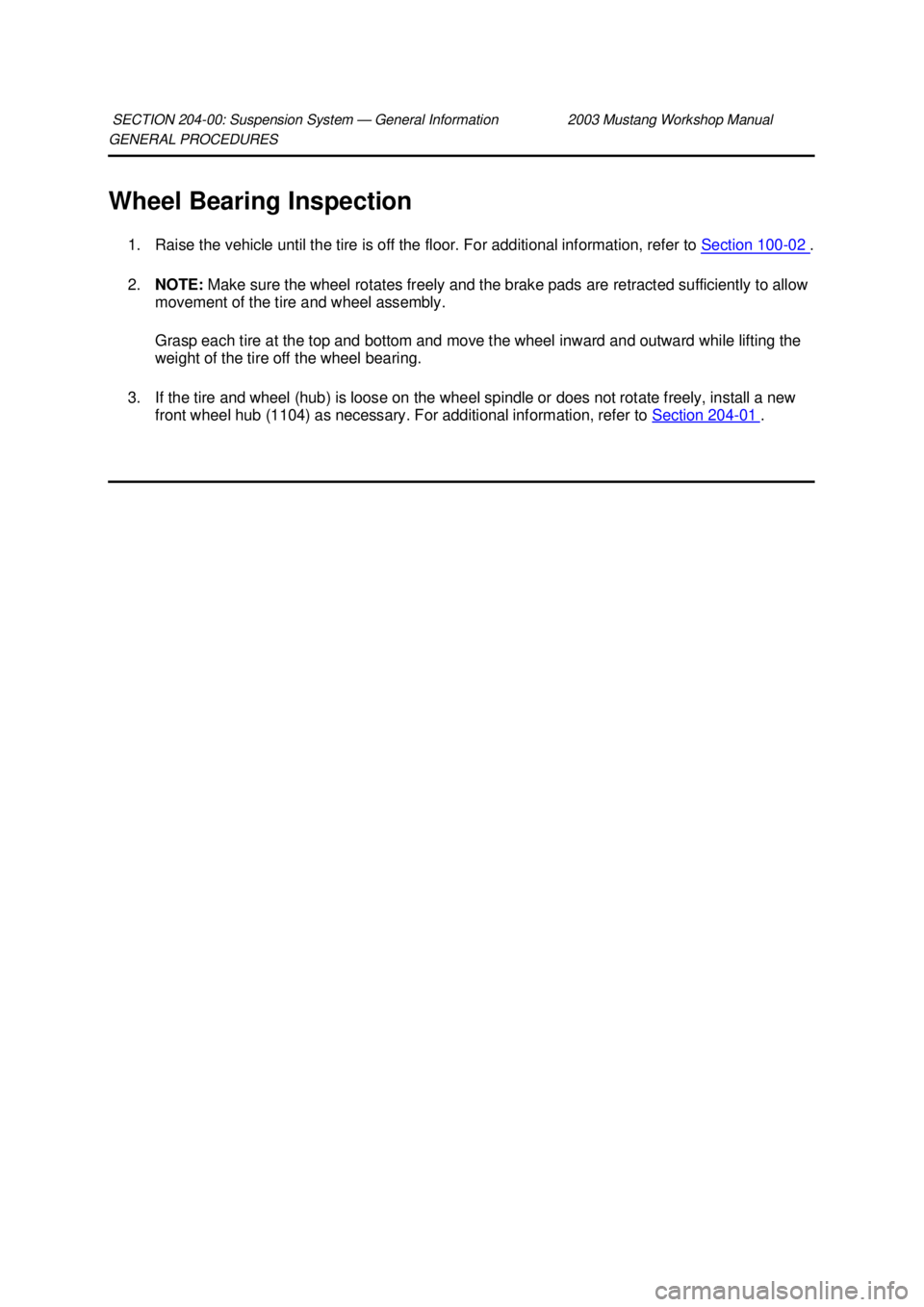

Wheel Bearing Inspection
1. Raise the vehicle until the tire is off the floor. For additional information, refer to Section 100 - 02 .
2. NOTE: Make sure the wheel rotates fre

Page 141 of 4378

FORD MUSTANG 2003 Workshop Manual GENERAL PROCEDURES
Camber and Caster Adjustment —
Front
All vehicles 1. Remove the rivet. Loosen the nuts and bolt.
Vehicles requiring camber adjustment 2. Move the front suspension camber adju

Page 142 of 4378

FORD MUSTANG 2003 Workshop Manual 5. Remove the nuts, bolt and the front suspension camber adjusting plate.
6. Raise the front end. Position the strut and spring assembly out of the way. For additional
information, refer to Section

Page 143 of 4378

FORD MUSTANG 2003 Workshop Manual 10. Align the camber marks and position the front suspension camber adjustment plate at the
correct caster setting.
All vehicles 11. Tighten the nuts and bolt.
12. Recheck the wheel alignment. Fol

Page 144 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 4 ba
42003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...
