Page 1329 of 4378

FORD MUSTANG 2003 Workshop Manual 65. NOTE: Only three bolts are required for installation. Install the power steering pump. �zPosition the power steering pump. �z Install the bolts. 66. Lubricate the O- ring seal with PAG compre

Page 1330 of 4378

FORD MUSTANG 2003 Workshop Manual 68. Install the camshaft roller followers. 1. Install the special tool. 2. Compress the valve spring. 3. Install the camshaft follower. 69. NOTE: One spark plug shown, others similar. Install sp

Page 1331 of 4378

FORD MUSTANG 2003 Workshop Manual Apply an eight millimeter bead of silicone gasket and sealant at the intersection of the engine front cover and the cylinder head. 71. NOTE: RH valve cover shown, LH similar. Install the valve cov

Page 1332 of 4378

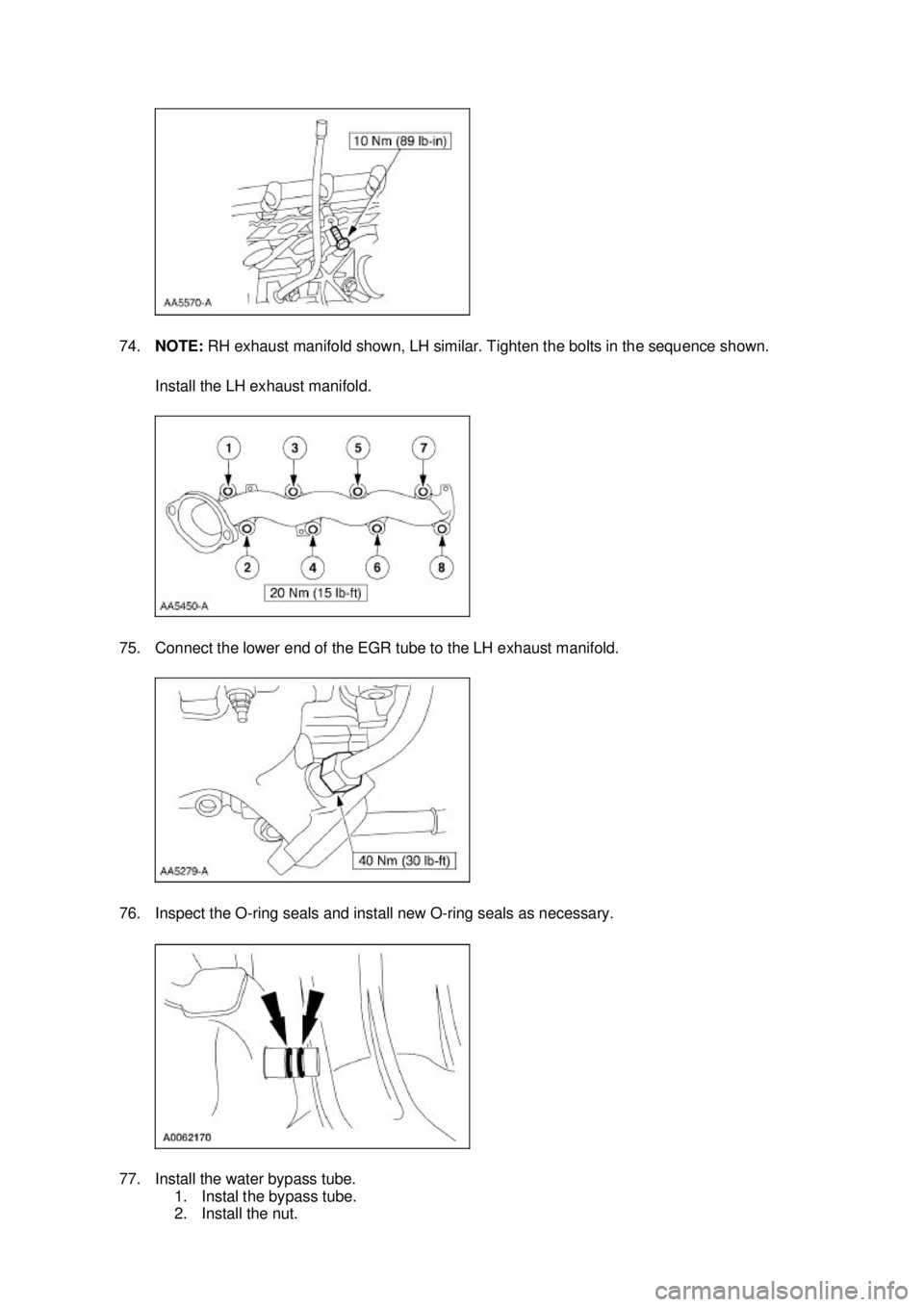

FORD MUSTANG 2003 Workshop Manual 74. NOTE: RH exhaust manifold shown, LH similar. Tighten the bolts in the sequence shown. Install the LH exhaust manifold. 75. Connect the lower end of the EGR tube to the LH exhaust manifold. 76.

Page 1333 of 4378

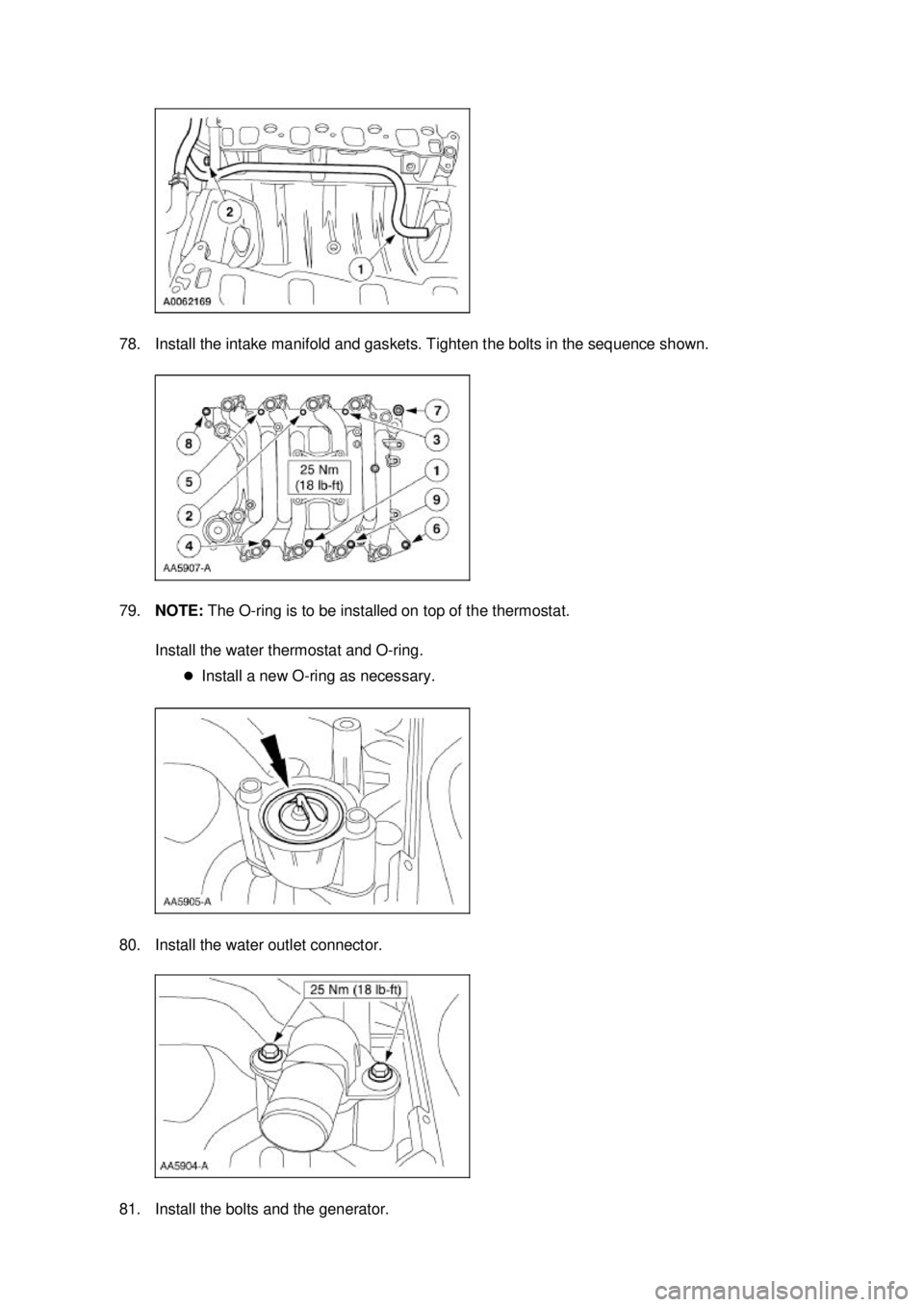

FORD MUSTANG 2003 Workshop Manual 78. Install the intake manifold and gaskets. Tighten the bolts in the sequence shown. 79. NOTE: The O-ring is to be installed on top of the thermostat. Install the water thermostat and O- ring. �z

Page 1334 of 4378

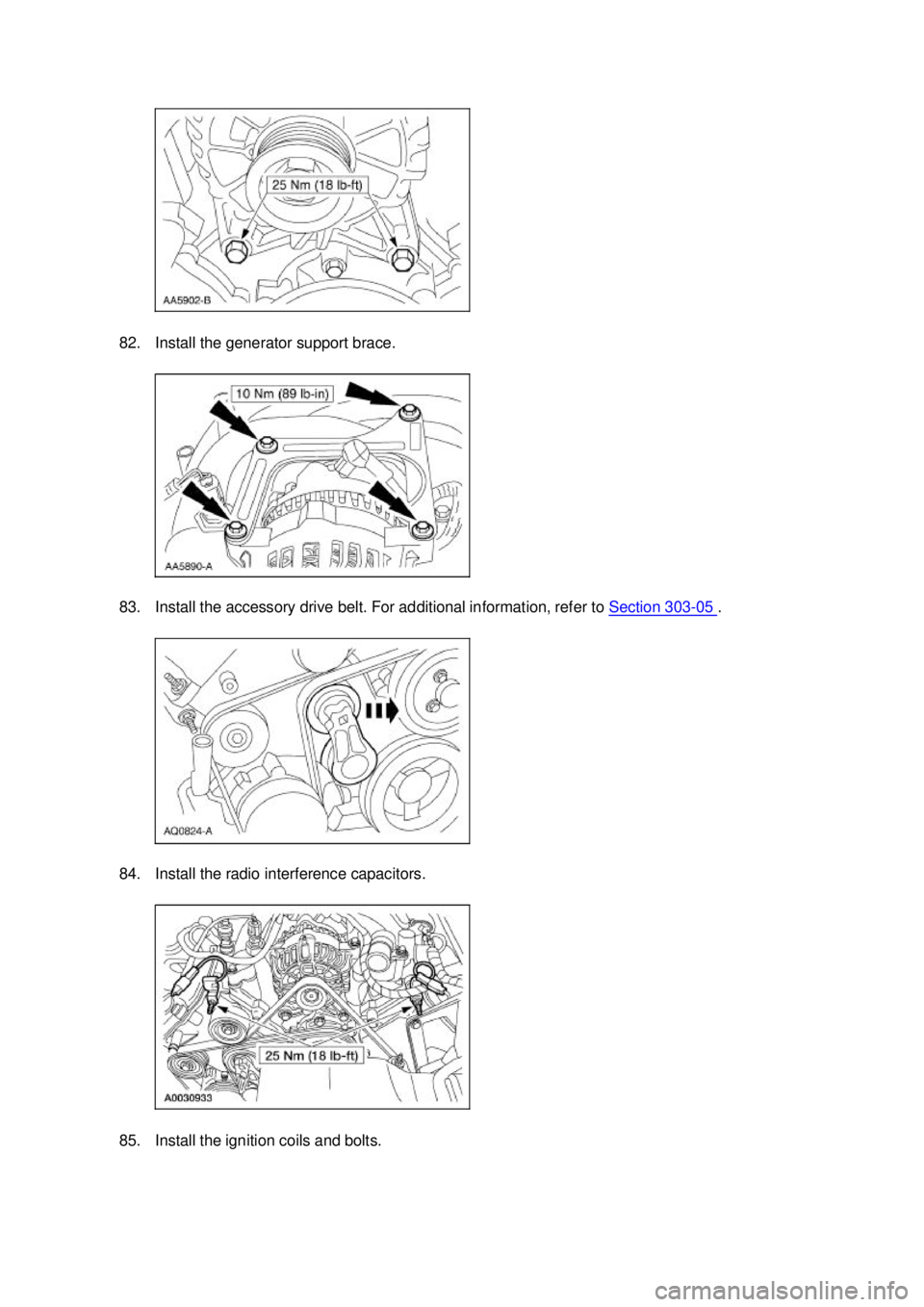

FORD MUSTANG 2003 Workshop Manual 82. Install the generator support brace. 83. Install the accessory drive belt. For additional information, refer to Section 303 - 05 . 84. Install the radio interference capacitors. 85. Install t

Page 1335 of 4378

FORD MUSTANG 2003 Workshop Manual 86. Position the throttle body and install the bolts, tighten in the sequence shown. 87. Connect the vacuum line to the fuel pressure sensor. 88. Connect the PCV hose. 89. Connect the PCV hose to t

Page 1336 of 4378

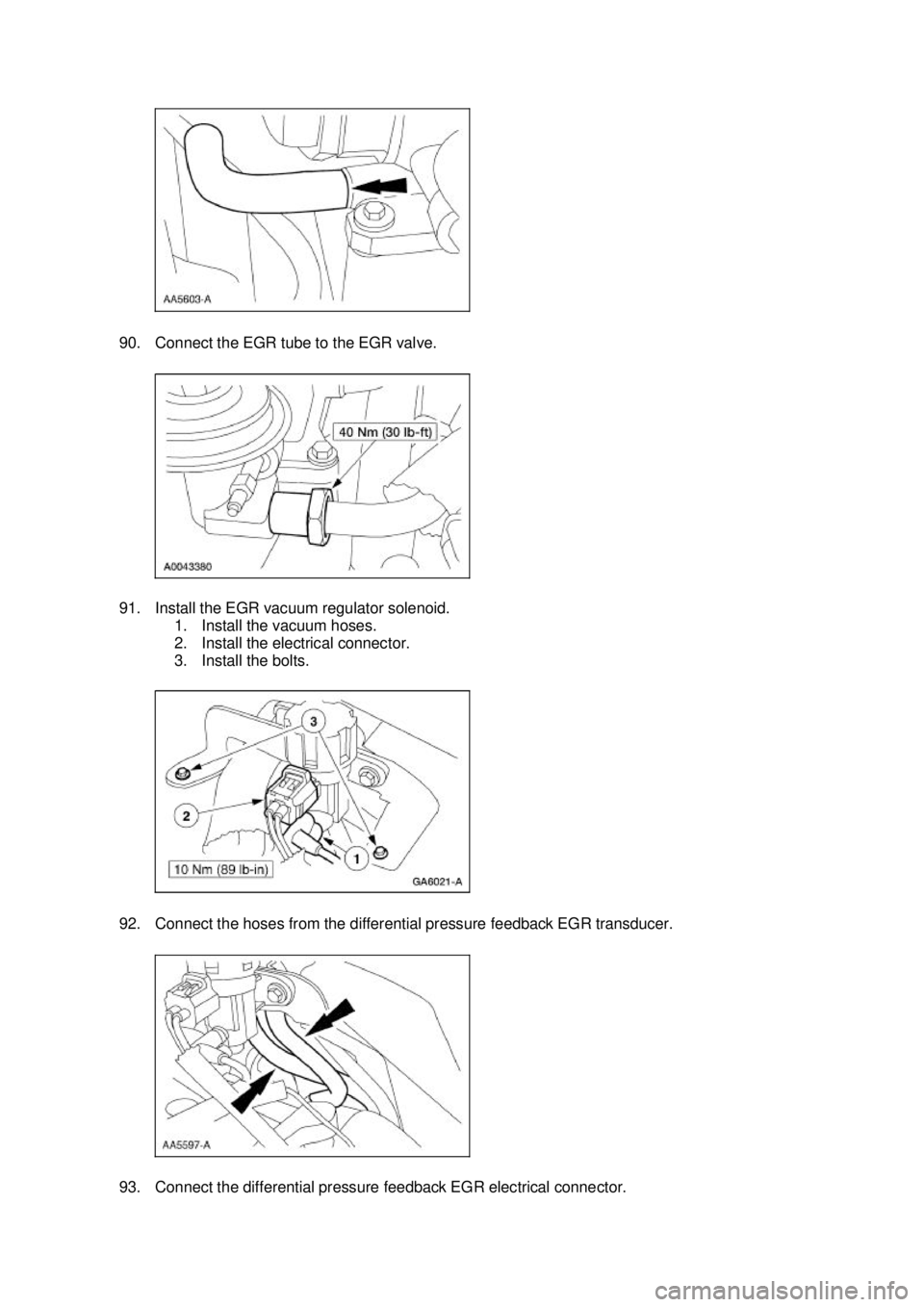

FORD MUSTANG 2003 Workshop Manual 90. Connect the EGR tube to the EGR valve. 91. Install the EGR vacuum regulator solenoid. 1. Install the vacuum hoses. 2. Install the electrical connector. 3. Install the bolts. 92. Connect the h
