Page 2961 of 4378

FORD MUSTANG 2003 Workshop Manual GENERAL PROCEDURES Fuel Tank Draining WARNING: Do not smoke or carry lighted tobacco or an open flame of any type when working on or near any fuel- related components. Highly flammable mixtures ar

Page 2962 of 4378

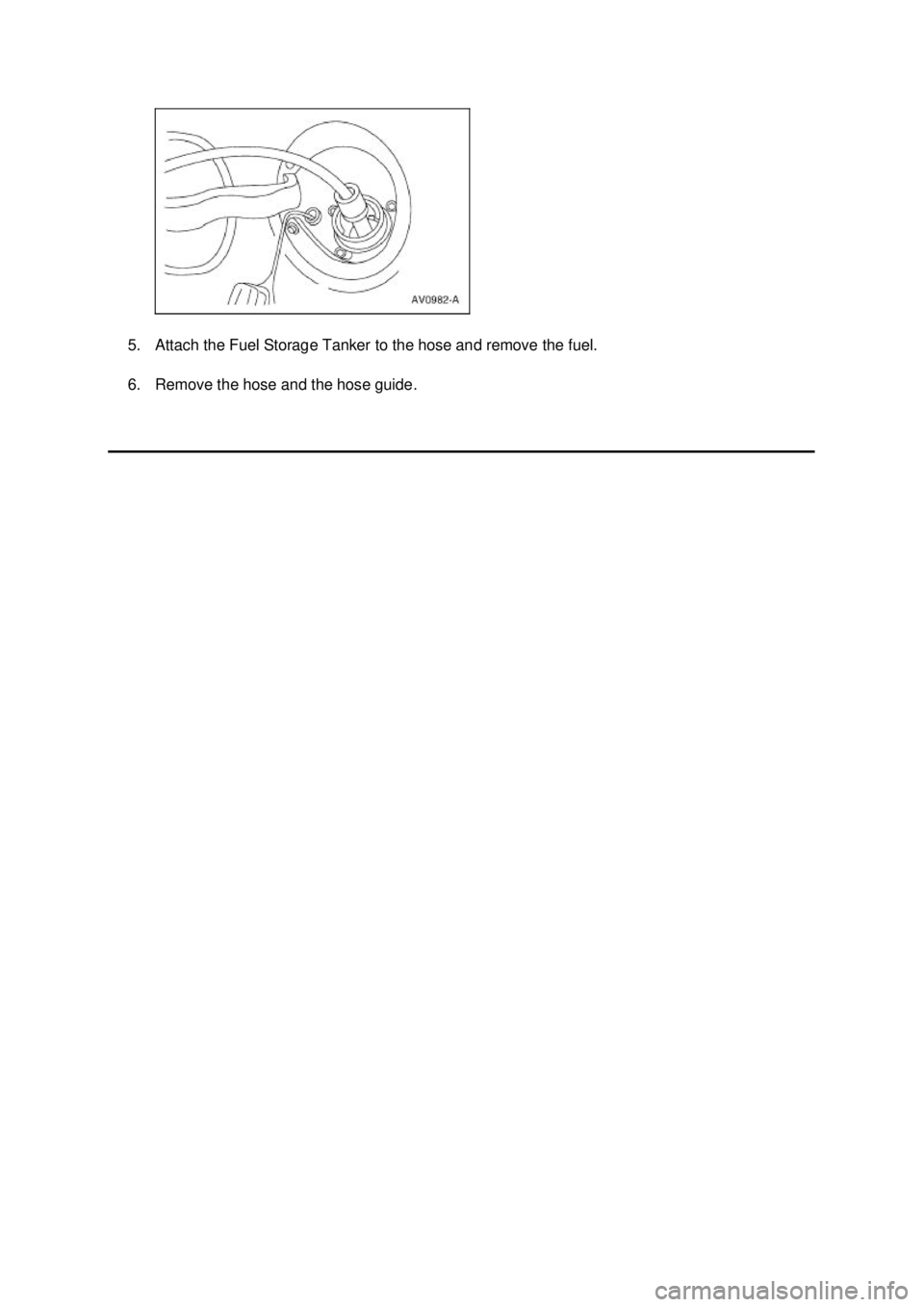

FORD MUSTANG 2003 Workshop Manual 5. Attach the Fuel Storage Tanker to the hose and remove the fuel. 6. Remove the hose and the hose guide. Klj . 2 ba 22003 Mustang Workshop Manual 18. 11. 2011file:///C:/Ford/2000 - 2004/tso

Page 2963 of 4378

FORD MUSTANG 2003 Workshop Manual GENERAL PROCEDURES Spring Lock Couplings Disconnect WARNING: Do not smoke or carry lighted tobacco or open flame of any type when working on or near any fuel- related components. Highly flammable

Page 2964 of 4378

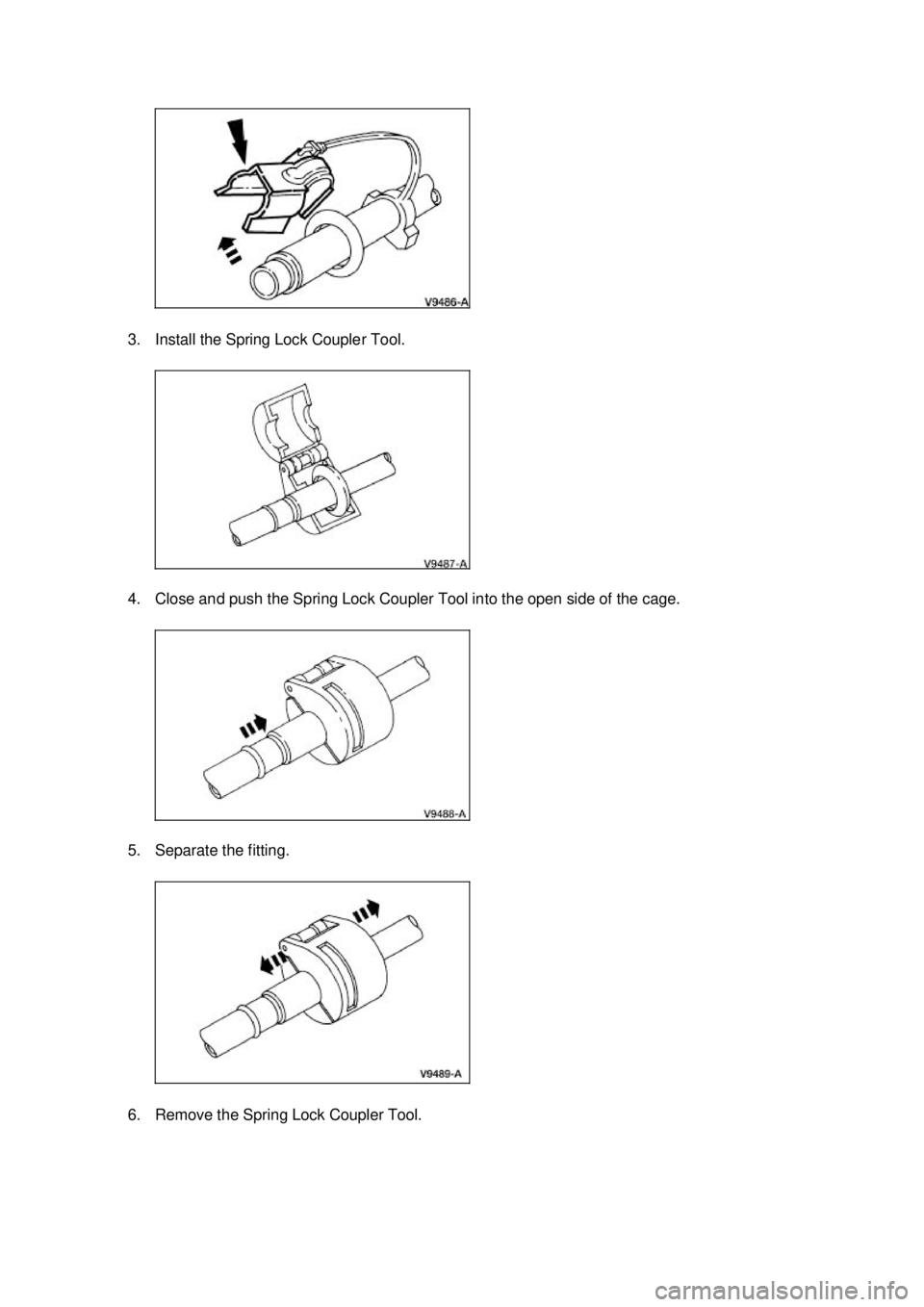

FORD MUSTANG 2003 Workshop Manual 3. Install the Spring Lock Coupler Tool. 4. Close and push the Spring Lock Coupler Tool into the open side of the cage. 5. Separate the fitting. 6. Remove the Spring Lock Coupler Tool. Klj . 2

Page 2965 of 4378

FORD MUSTANG 2003 Workshop Manual Connect 1. NOTE: Inspect and clean both the coupling ends. Lubricate the O- ring seals with clean engine oil. Connect the fitting. �zPull on the fitting to make sure it is fully engaged. �z Inst

Page 2966 of 4378

FORD MUSTANG 2003 Workshop Manual GENERAL PROCEDURES Fuel Line Fittings — Push Connect Disconnect WARNING: Do not smoke or carry lighted tobacco or open flame of any type when working on or near any fuel- related components. Hi

Page 2967 of 4378

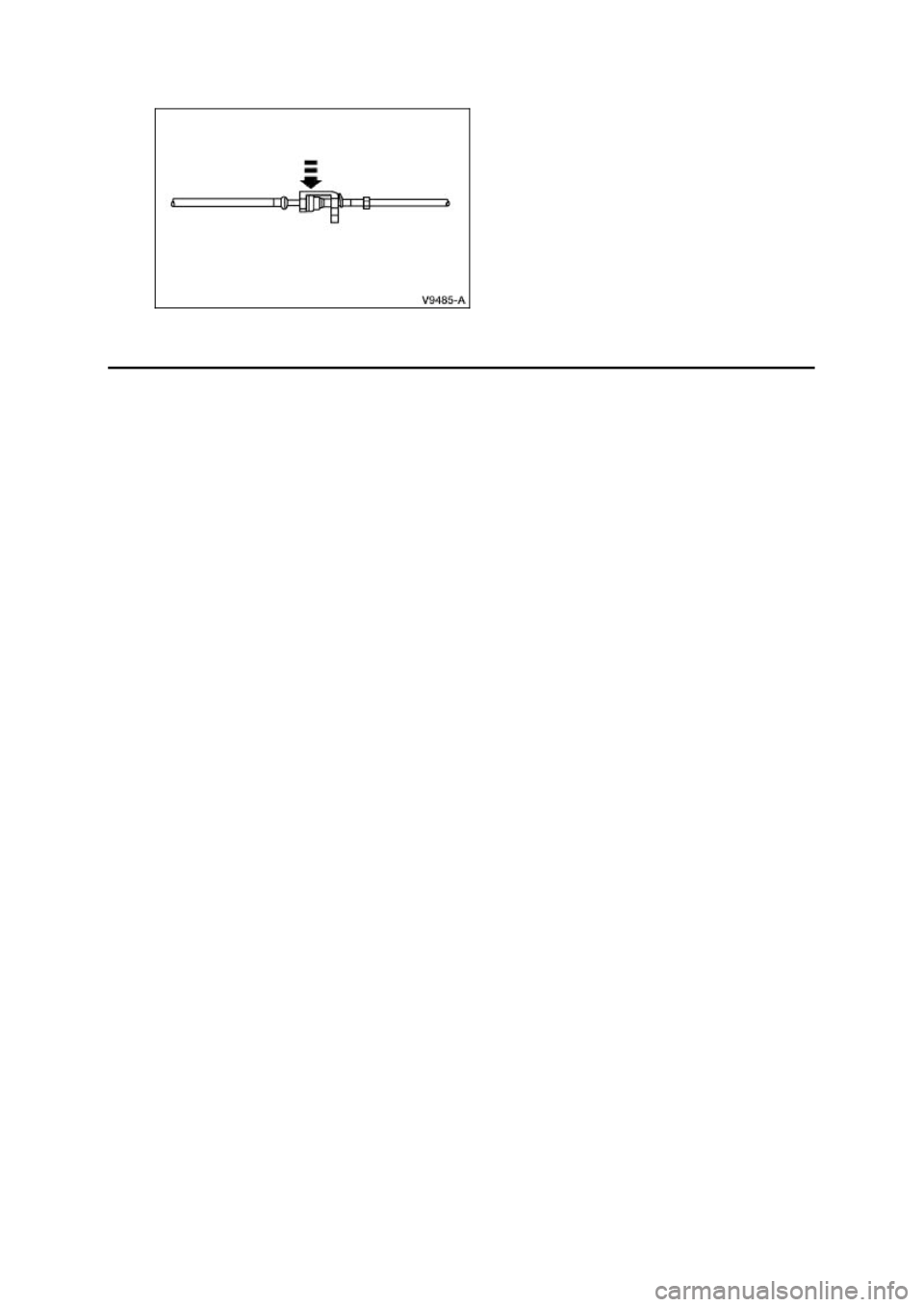

FORD MUSTANG 2003 Workshop Manual 4. Separate the fittings. �zClean and inspect the fittings for damage. Connect 1. NOTE: Lubricate the tube end with clean engine oil to ease assembly. Connect the fitting. �zAlign the tube to th

Page 2968 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 3 ba 32003 Mustang Workshop Manual 18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...
