Page 2209 of 4378

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION Powertrain Control Module (PCM) Removal 1. Disconnect the battery ground cable. For additional information, refer to Section 414 - 01 . 2. Remove the RH front door scuff

Page 2210 of 4378

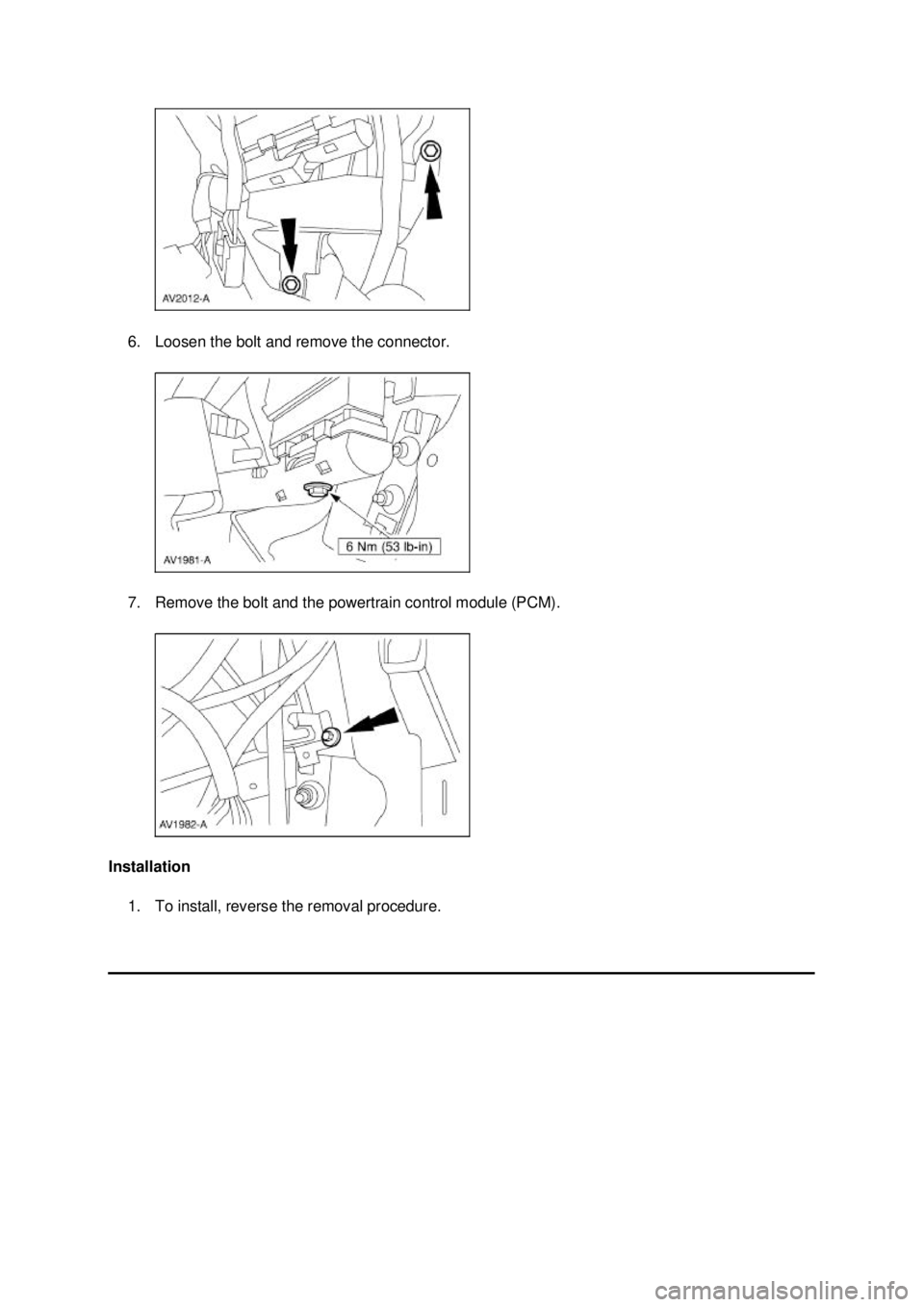

FORD MUSTANG 2003 Workshop Manual 6. Loosen the bolt and remove the connector. 7. Remove the bolt and the powertrain control module (PCM). Installation 1. To install, reverse the removal procedure. Klj . 2 ba 32003 Mustang

Page 2211 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 3 ba 32003 Mustang Workshop Manual 18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

Page 2212 of 4378

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION Throttle Position (TP) Sensor Removal NOTE: The 3.8L engine is shown; the 4.6L (2V) is similar. 1. Disconnect the battery ground cable. For additional information, refer

Page 2213 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 2 ba 22003 Mustang Workshop Manual 18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

Page 2214 of 4378

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION Throttle Position (TP) Sensor — Cobra Removal and Installation 1. Disconnect the throttle position (TP) sensor electrical connector. 2. Remove the bolts and the TP senso

Page 2215 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 2 ba 22003 Mustang Workshop Manual 18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

Page 2216 of 4378

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION Throttle Position (TP) Sensor — Mach I Removal and Installation 1. Remove the air intake scoop bracket. For additional information, refer to Section 303 - 12 . 2. Disc
