Page 1297 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 24 ba 242003 Mustang Workshop Manual 17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

Page 1298 of 4378

FORD MUSTANG 2003 Workshop Manual DISASSEMBLY AND ASSEMBLY OF SUBASSEMBLIES Cylinder Head Disassembly 1. Install the special tool. 2. Using the special tool, remove the roller followers. SECTION 303- 01B: Engine — 4.6L (2V) 20

Page 1299 of 4378

FORD MUSTANG 2003 Workshop Manual 3. Using the special tool, compress the valve spring. 4. Remove the valves. 1. Remove the valve spring retainer keys. 2. Remove the valve spring retainers. 3. Remove the valve spring. 4. Remove t

Page 1300 of 4378

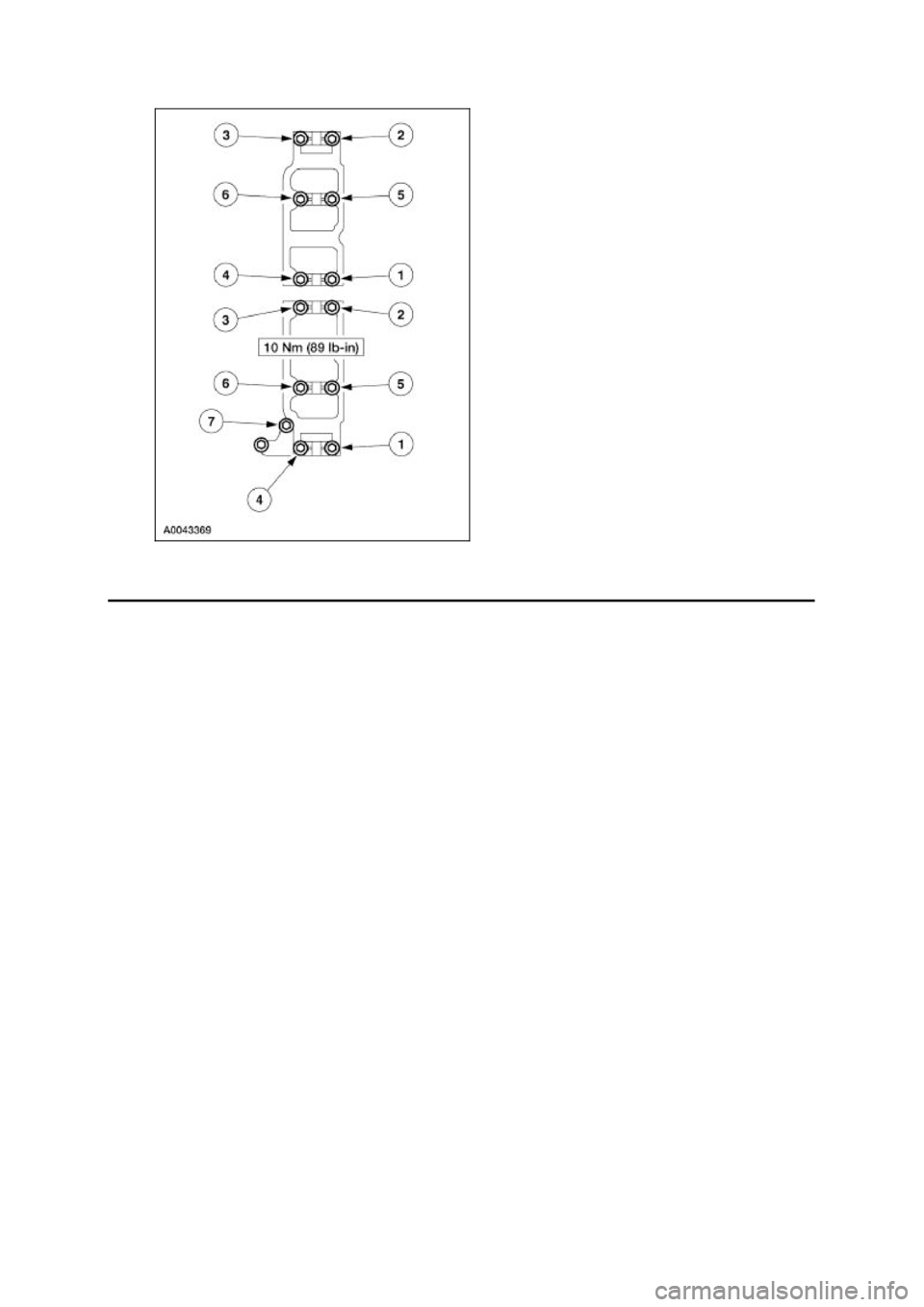

FORD MUSTANG 2003 Workshop Manual 7. Remove the camshaft (6250). 8. Remove the valve stem seals. Assembly 1. NOTE: Lubricate all moving parts with clean engine oil prior to assembly. To install, reverse the removal procedure. K

Page 1301 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 4 ba 42003 Mustang Workshop Manual 17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

Page 1302 of 4378

FORD MUSTANG 2003 Workshop Manual DISASSEMBLY AND ASSEMBLY OF SUBASSEMBLIES Piston Disassembly 1. Press the piston pin out of the connecting rod and piston assembly. 2. Remove the connecting rod from the piston. 3. Clean and insp

Page 1303 of 4378

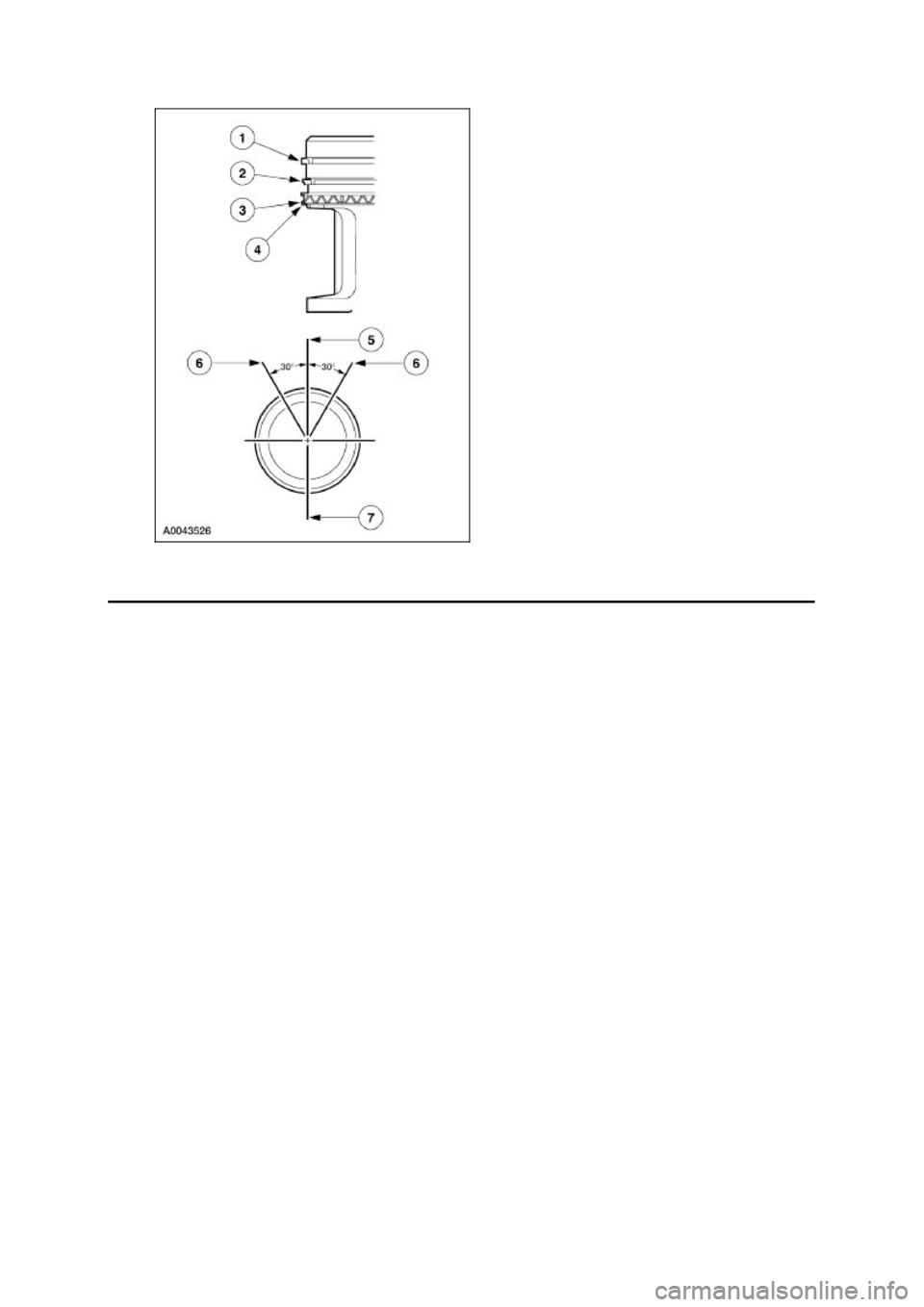

FORD MUSTANG 2003 Workshop Manual 2. Press the piston into the piston and connecting rod assembly. 3. Install the piston rings. 1. Using a suitable ring expander tool install the upper compression ring with the top side identificati

Page 1304 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 3 ba 32003 Mustang Workshop Manual 17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...
