Page 2081 of 4378

FORD MUSTANG 2003 Workshop Manual DESCRIPTION AND OPERATION Engine Ignition Eight separate ignition coils: �zare controlled by the powertrain control module (PCM). �z are mounted directly above each spark plug. �z are controlled

Page 2082 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 2 ba 22003 Mustang Workshop Manual 18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

Page 2083 of 4378

FORD MUSTANG 2003 Workshop Manual DIAGNOSIS AND TESTING Engine Ignition Refer to the Powertrain Control/Emissions Diagnosis (PC/ED) manual. SECTION 303- 07C: Engine Ignition — 4.6L (4V) 2003 Mustang Workshop Manual Klj . 1

Page 2084 of 4378

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION Ignition Coil- On-Plug Removal and Installation 1. Disconnect the battery ground cable. For additional information, refer to Section 414 - 01 . 2. Remove the air cleaner

Page 2085 of 4378

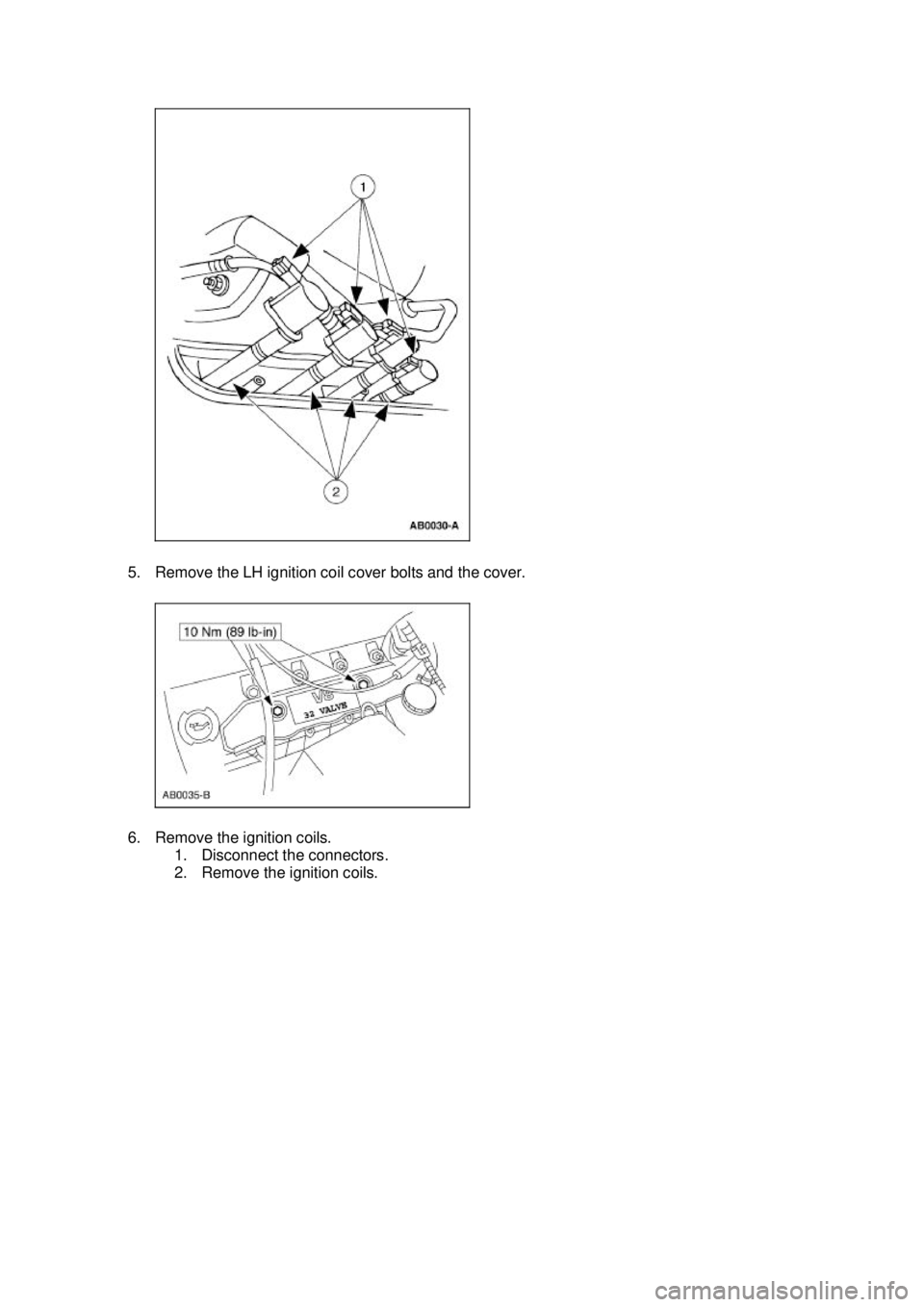

FORD MUSTANG 2003 Workshop Manual 5. Remove the LH ignition coil cover bolts and the cover. 6. Remove the ignition coils. 1. Disconnect the connectors. 2. Remove the ignition coils. Klj . 2 ba 32003 Mustang Workshop Manual

Page 2086 of 4378

FORD MUSTANG 2003 Workshop Manual 7. NOTE: Verify that the ignition coil spring is correctly located inside the ignition coil boot and that there is no damage to the tip of the boot. To install, reverse the removal procedure. �zAp

Page 2087 of 4378

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION Spark Plugs Removal and Installation 1. Remove the ignition coil- on-plug. For additional information, refer to Ignition Coil - On - Plug in this section. 2. NOTE: Use

Page 2088 of 4378

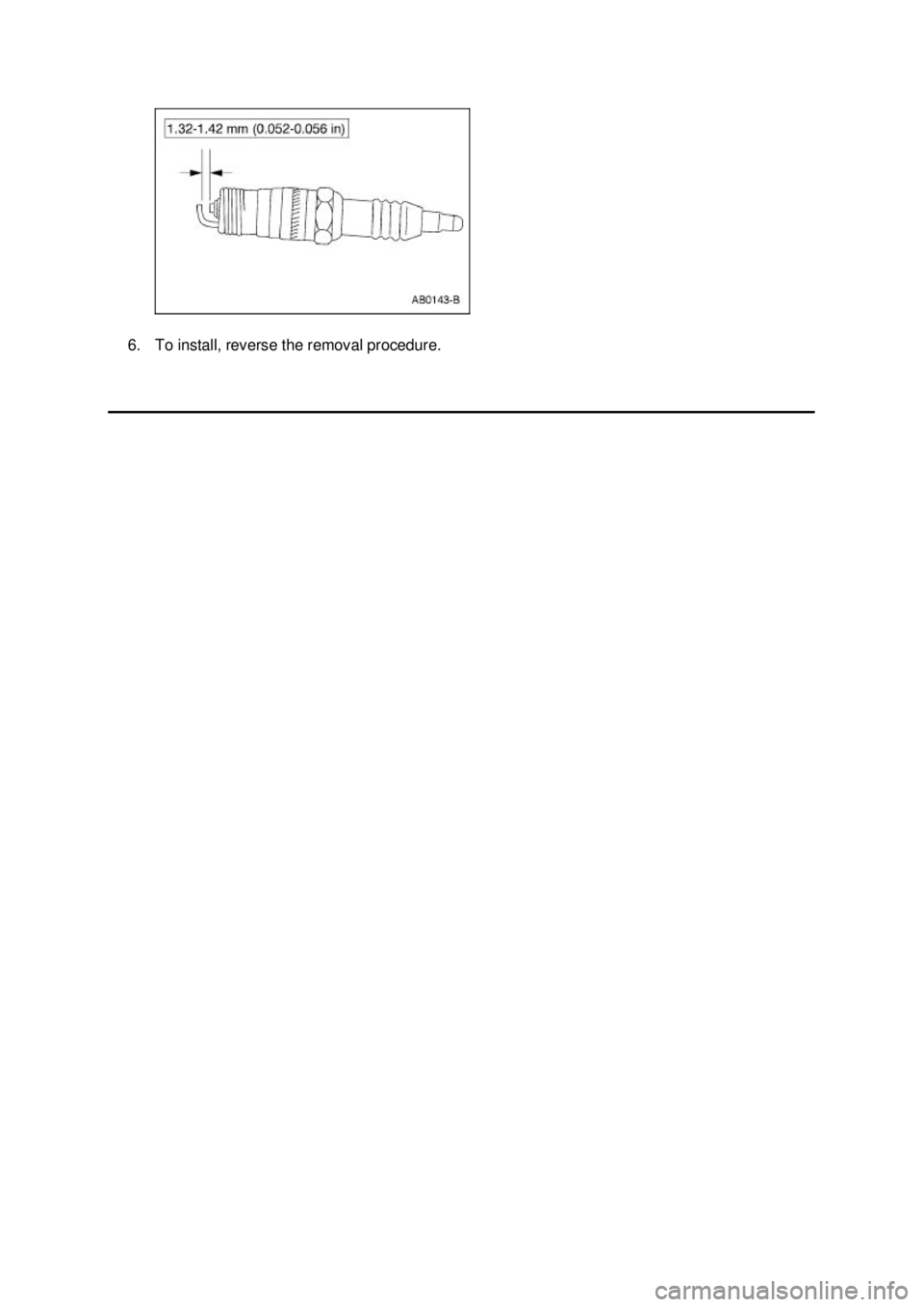

FORD MUSTANG 2003 Workshop Manual 6. To install, reverse the removal procedure. Klj . 2 ba 22003 Mustang Workshop Manual 18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...
