Page 1745 of 4378

FORD MUSTANG 2003 Workshop Manual 36. Index- mark the driveshaft flange and the rear axle pinion flange. 37. Remove the four bolts 38. Index- mark the driveshaft at the six oclock position. 39. CAUTION: the driveshaft flange fits

Page 1746 of 4378

FORD MUSTANG 2003 Workshop Manual NOTE: Do not rotate the driveshaft. Using a suitable tool, disconnect the driveshaft flange from the rear axle flange and remove the driveshaft. 40. Index- mark the transmission output shaft at th

Page 1747 of 4378

FORD MUSTANG 2003 Workshop Manual 43. Remove the three bolts and the starter. Automatic transmission vehicles 44. Remove the flywheel inspection cover. 45. Remove the torque converter nuts. All vehicles Klj . 11 ba 192003

Page 1748 of 4378

FORD MUSTANG 2003 Workshop Manual 46. Remove the nut and the wiring harness bracket. 47. Remove the nuts and position the wiring harness aside. 48. Disconnect the oil pressure sensor. 49. Remove the nut and the engine ground cable.

Page 1749 of 4378

FORD MUSTANG 2003 Workshop Manual 51. Disconnect and remove the lower hose from the radiator. 52. NOTE: Drain the power steering fluid into a suitable container. Disconnect the hose from the power steering reservoir. 53. Remove th

Page 1750 of 4378

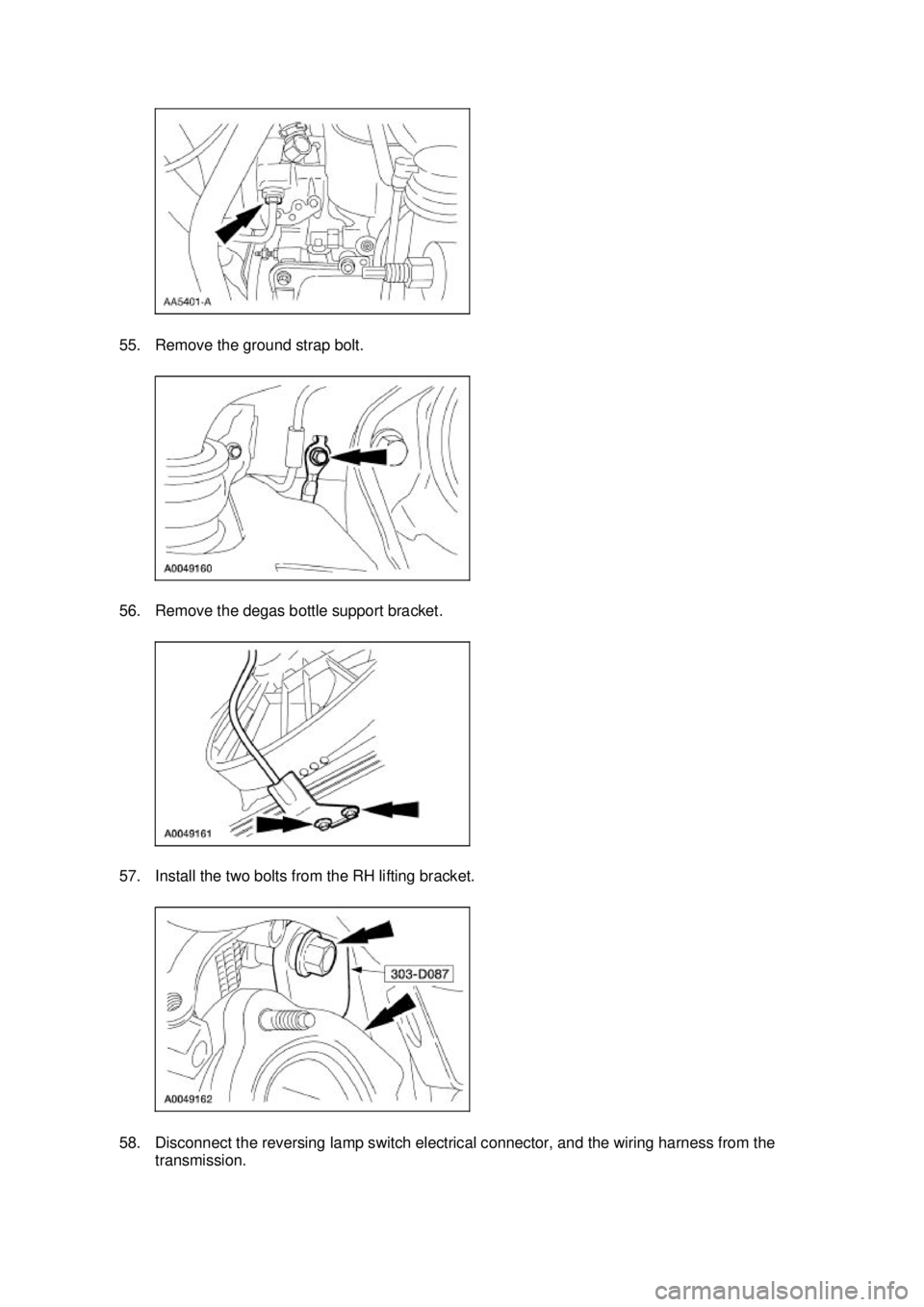

FORD MUSTANG 2003 Workshop Manual 55. Remove the ground strap bolt. 56. Remove the degas bottle support bracket. 57. Install the two bolts from the RH lifting bracket. 58. Disconnect the reversing lamp switch electrical connector,

Page 1751 of 4378

FORD MUSTANG 2003 Workshop Manual 59. Disconnect the output shaft speed (OSS) sensor electrical connector and detach the left and right oxygen sensor electrical connectors from the crossmember. Manual transmission vehicles 60. Remo

Page 1752 of 4378

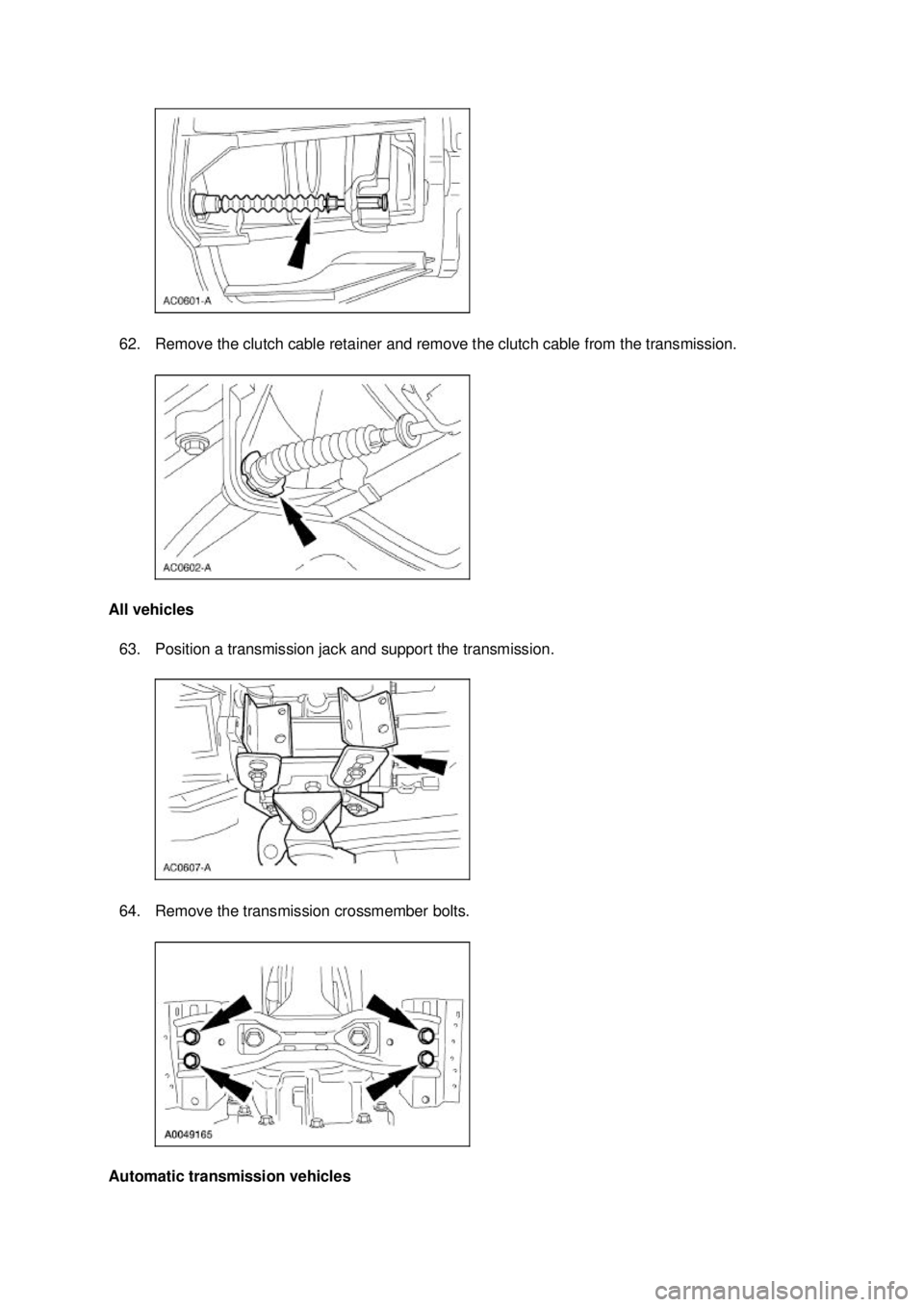

FORD MUSTANG 2003 Workshop Manual 62. Remove the clutch cable retainer and remove the clutch cable from the transmission. All vehicles 63. Position a transmission jack and support the transmission. 64. Remove the transmission cross
