Page 1369 of 4378

FORD MUSTANG 2003 Workshop Manual 9. Install the generator. For additional information, refer to Section 414 - 02 . 10. Raise the vehicle. for additional information, refer to Section 100 - 02 . 11. Install the power steering pu

Page 1370 of 4378

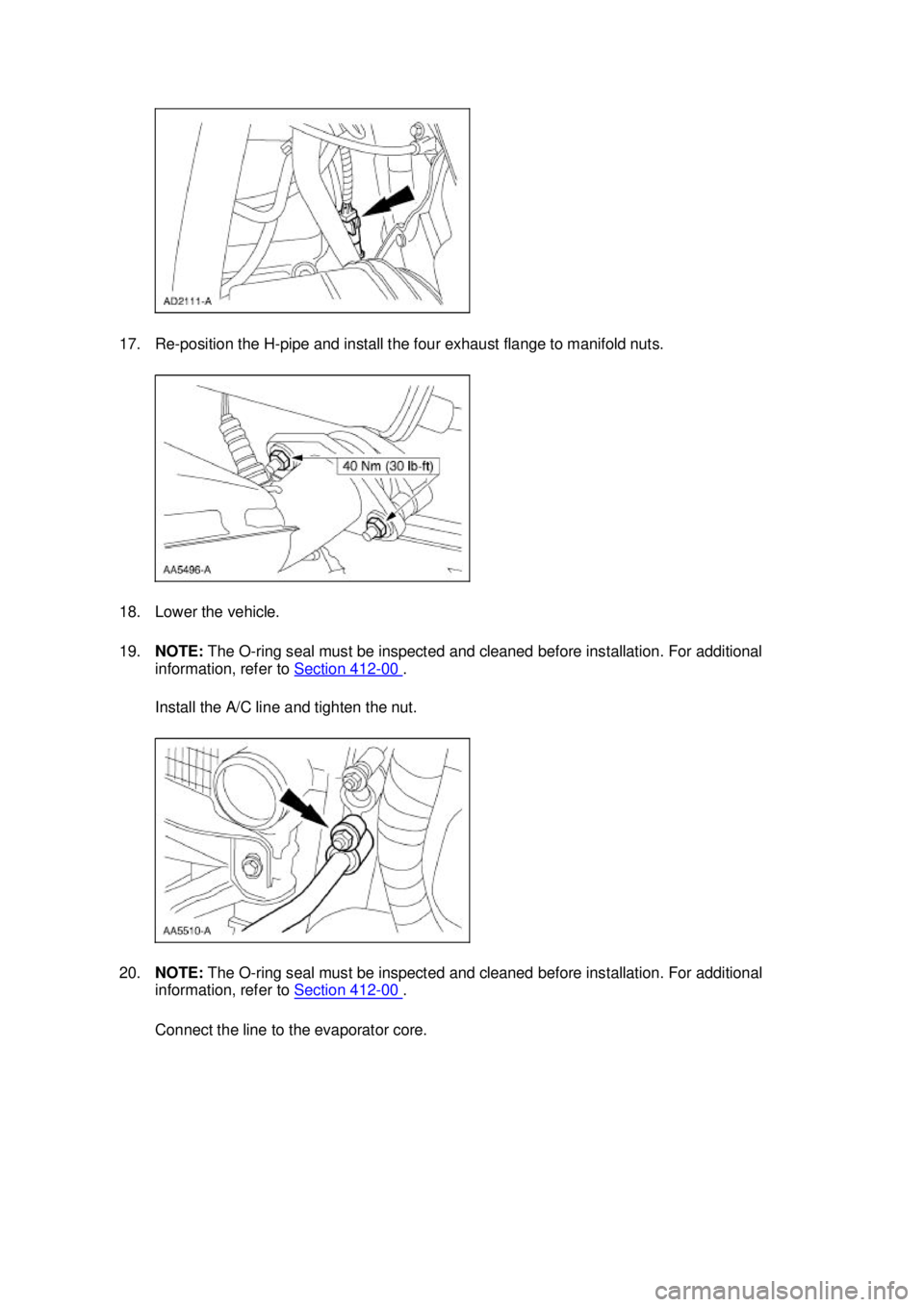

FORD MUSTANG 2003 Workshop Manual 17. Re- position the H- pipe and install the four exhaust flange to manifold nuts. 18. Lower the vehicle. 19. NOTE: The O-ring seal must be inspected and cleaned before installation. For additional

Page 1371 of 4378

FORD MUSTANG 2003 Workshop Manual 21. Install the safety clip. 22. NOTE: The O-ring seal must be inspected and cleaned before installation. For additional information, refer to Section 412 - 00 . Connect the line to the receiver

Page 1372 of 4378

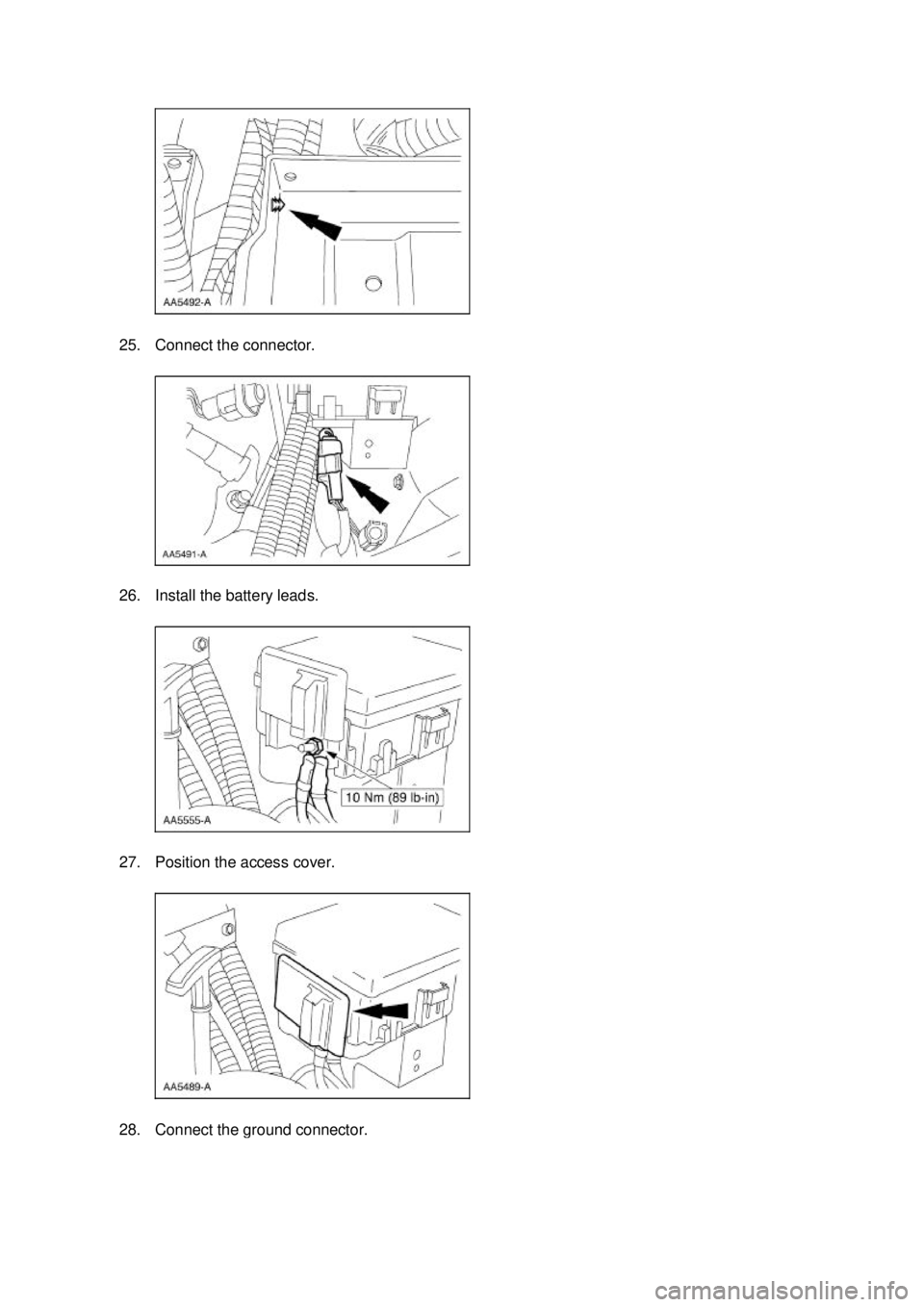

FORD MUSTANG 2003 Workshop Manual 25. Connect the connector. 26. Install the battery leads. 27. Position the access cover. 28. Connect the ground connector. Klj . 7 ba 132003 Mustang Workshop Manual 17. 11. 2011file:///C:/

Page 1373 of 4378

FORD MUSTANG 2003 Workshop Manual 29. Connect the connector. 30. Connect the fuse link. 31. Install and tighten the body ground. 32. Connect the power steering line. Klj . 8 ba 132003 Mustang Workshop Manual 17. 11. 2011fi

Page 1374 of 4378

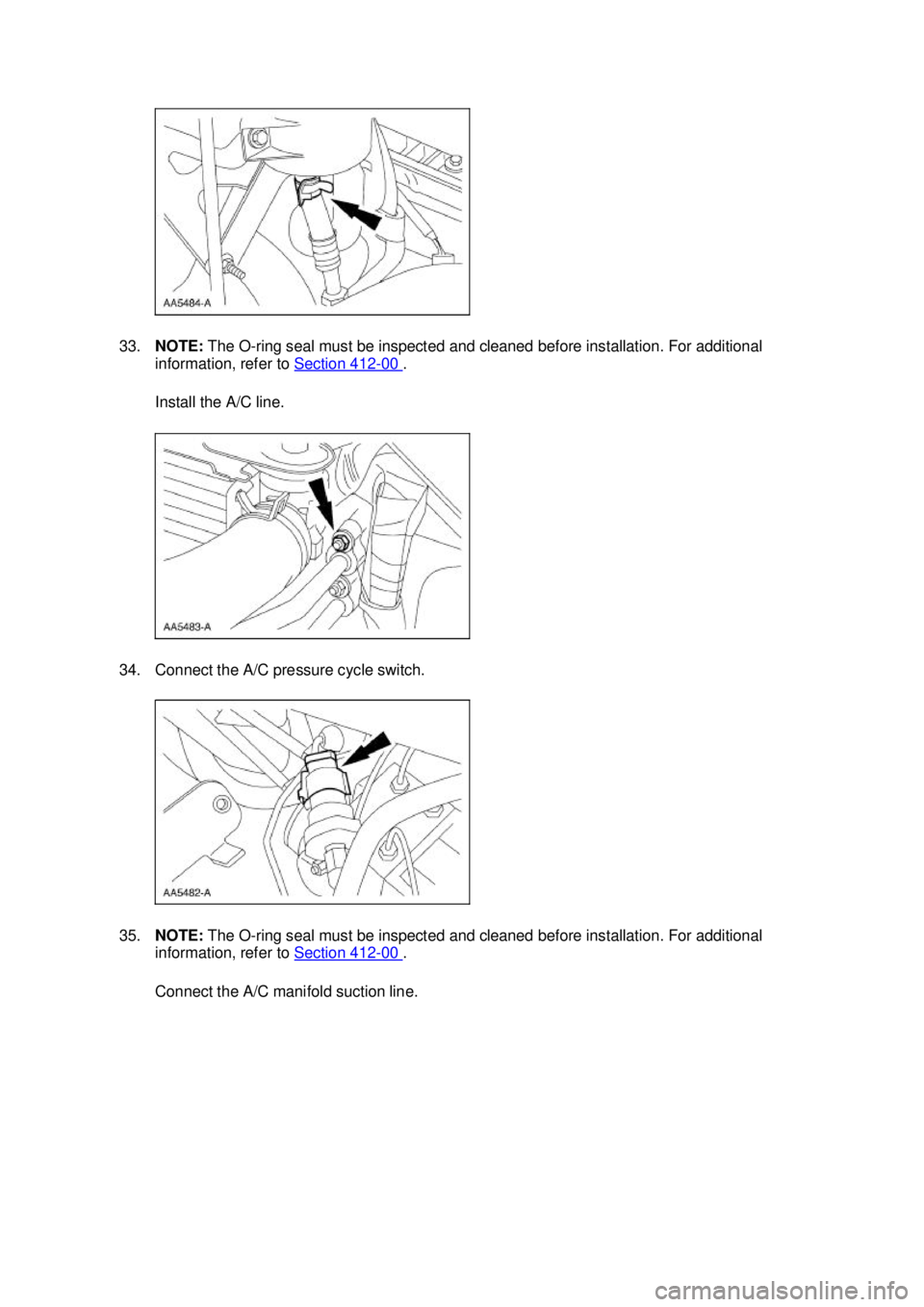

FORD MUSTANG 2003 Workshop Manual 33. NOTE: The O-ring seal must be inspected and cleaned before installation. For additional information, refer to Section 412 - 00 . Install the A/C line. 34. Connect the A/C pressure cycle swit

Page 1375 of 4378

FORD MUSTANG 2003 Workshop Manual 36. Install the safety clip to the manifold suction line. 37. Connect the electrical connector. 38. Connect the harness in three locations. 39. Connect the engine bulkhead connector. Klj . 10

Page 1376 of 4378

FORD MUSTANG 2003 Workshop Manual 40. Connect the heater water hoses. 41. Connect the climate control vacuum supply lines. 42. Position the cables and install the bracket. 43. Connect the throttle cable, speed control actuator cabl
