Page 1481 of 4378

FORD MUSTANG 2003 Workshop Manual 18. Install the two nuts. 19. Install the transmission. For additional information, refer to Section 308 - 03B . 20. Lower the vehicle. 21. Fill the engine crankcase with clean engine oil. 22. I

Page 1482 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 11 ba 112003 Mustang Workshop Manual 17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

Page 1483 of 4378

FORD MUSTANG 2003 Workshop Manual IN- VEHICLE REPAIR Flywheel Removal 1. Remove the clutch components. For additional information, refer to Section 308 - 01 . 2. Remove the bolts and the flywheel. Installation 1. To install, re

Page 1484 of 4378

FORD MUSTANG 2003 Workshop Manual IN- VEHICLE REPAIR Crankshaft Rear Seal with Retainer Plate Removal SECTION 303- 01C: Engine — Cobra 4.6L (4V) 2003 Mustang Workshop Manual Special Tool(s) Installer, Crankshaft Rear Oil Seal

Page 1485 of 4378

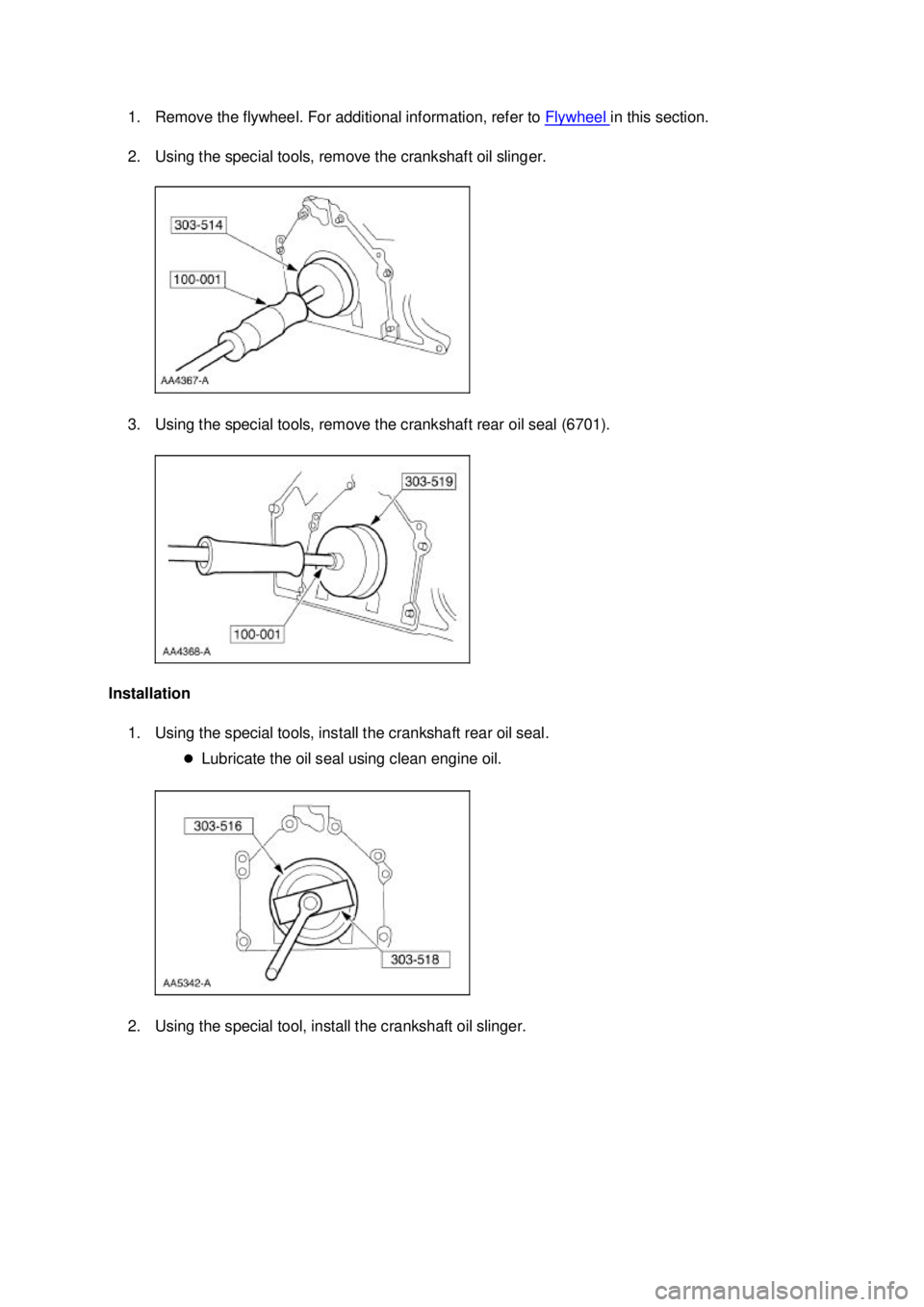

FORD MUSTANG 2003 Workshop Manual 1. Remove the flywheel. For additional information, refer to Flywheel in this section. 2. Using the special tools, remove the crankshaft oil slinger. 3. Using the special tools, remove the cranksh

Page 1486 of 4378

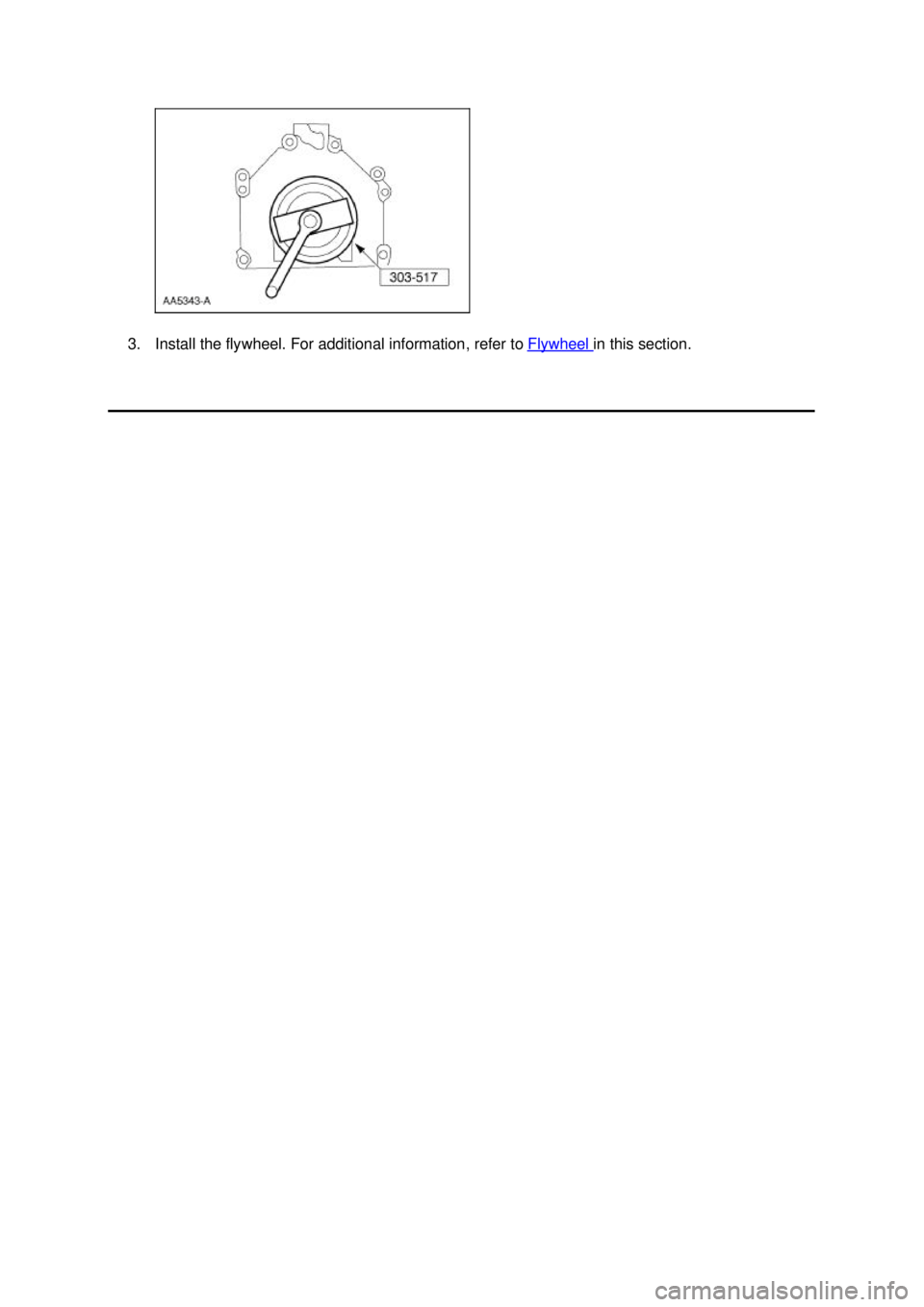

FORD MUSTANG 2003 Workshop Manual 3. Install the flywheel. For additional information, refer to Flywheel in this section. Klj . 3 ba 32003 Mustang Workshop Manual 17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S

Page 1487 of 4378

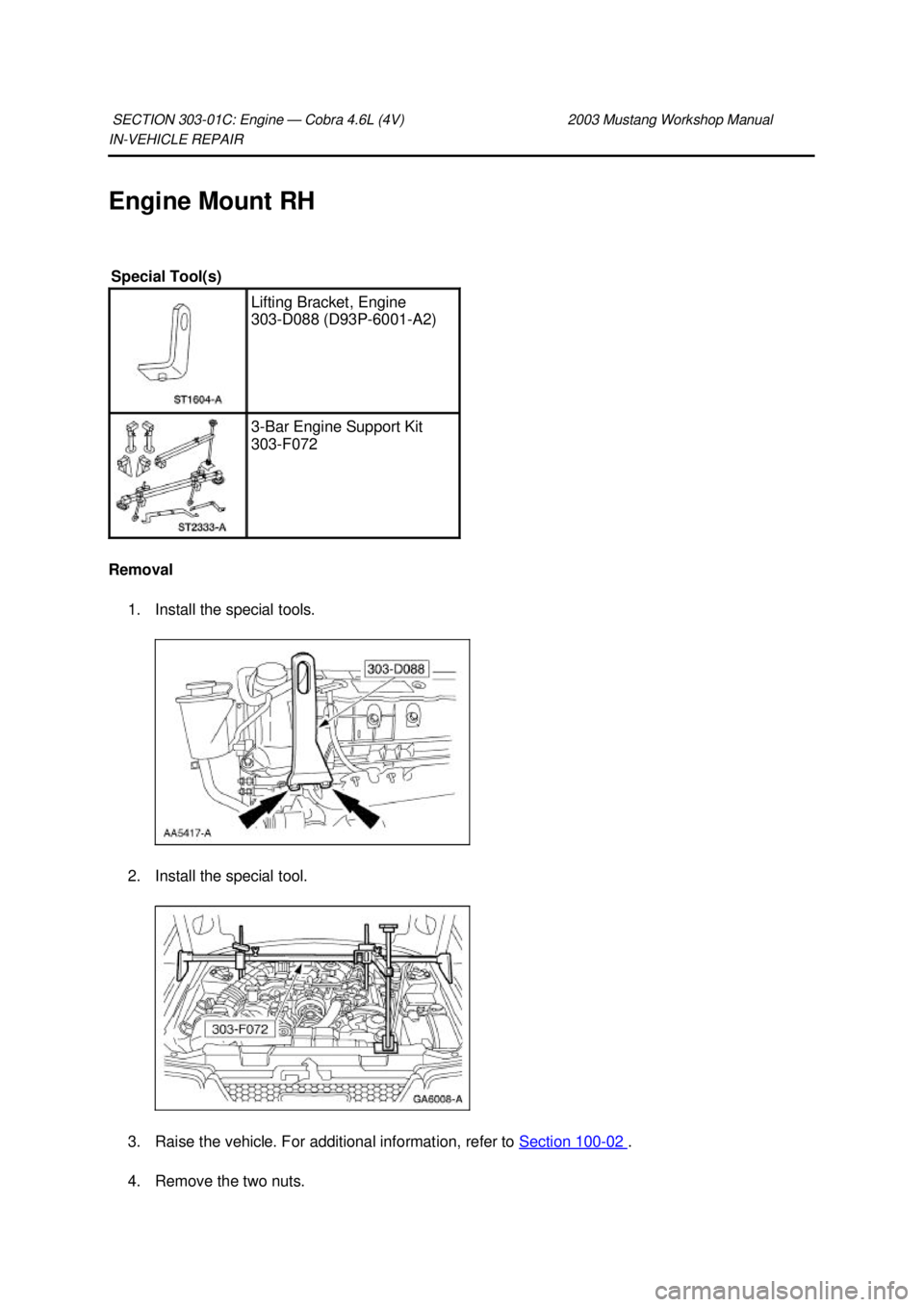

FORD MUSTANG 2003 Workshop Manual IN- VEHICLE REPAIR Engine Mount RH Removal 1. Install the special tools. 2. Install the special tool. 3. Raise the vehicle. For additional information, refer to Section 100 - 02 . 4. Remove th

Page 1488 of 4378

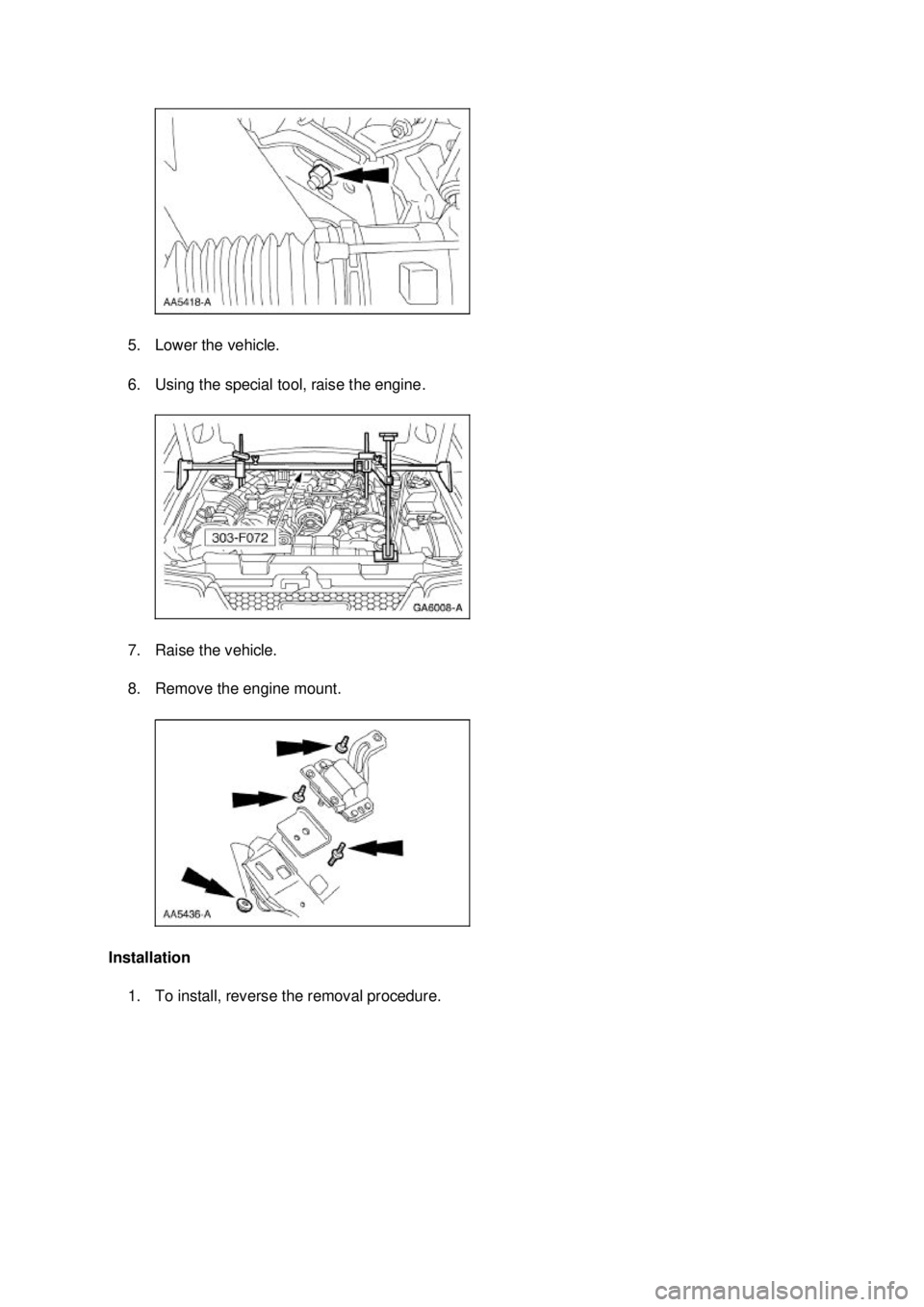

FORD MUSTANG 2003 Workshop Manual 5. Lower the vehicle. 6. Using the special tool, raise the engine. 7. Raise the vehicle. 8. Remove the engine mount. Installation 1. To install, reverse the removal procedure. Klj . 2 ba
