Page 1017 of 4378

FORD MUSTANG 2003 Workshop Manual 9. Install the support bracket. 10. Using the special tool, install the power steering pump pulley. 11. Install the drive belt. For additional information, refer to Section 303 - 05 . 12. Install

Page 1018 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 6 ba 62003 Mustang Workshop Manual 17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

Page 1019 of 4378

FORD MUSTANG 2003 Workshop Manual IN- VEHICLE REPAIR Cylinder Head RH Removal 1. Disconnect the battery negative cable. For additional information, refer to Section 414 - 01 . 2. Drain the engine cooling system. For additional i

Page 1020 of 4378

FORD MUSTANG 2003 Workshop Manual 10. Remove the three exhaust manifold studs. 11. NOTE: Discard the cylinder head gasket. NOTE: Record the location of the long bolts and the short bolts. Remove the cylinder head. Discard the cyl

Page 1021 of 4378

FORD MUSTANG 2003 Workshop Manual 3. CAUTION: Always use new bolts. NOTE: Lubricate the bolts with clean engine oil. Install new bolts. Refer to the location note made during removal and make sure the bolts are installed the corr

Page 1022 of 4378

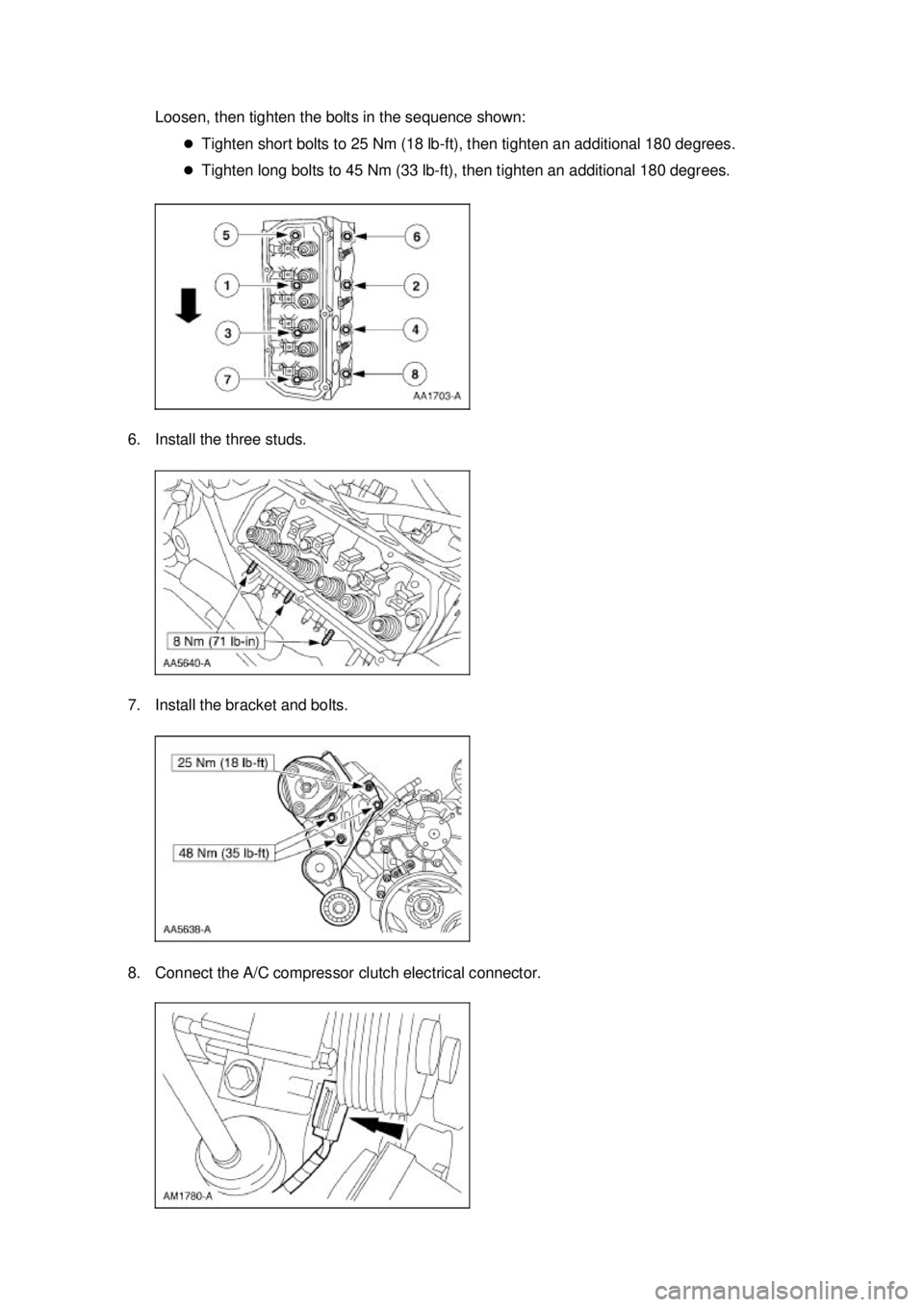

FORD MUSTANG 2003 Workshop Manual Loosen, then tighten the bolts in the sequence shown: �zTighten short bolts to 25 Nm (18 lb- ft), then tighten an additional 180 degrees. �z Tighten long bolts to 45 Nm (33 lb- ft), then tighten an

Page 1023 of 4378

FORD MUSTANG 2003 Workshop Manual 9. Connect the A/C manifold and tube assembly. For additional information, refer to Section 412 - 03 . 10. Install the accessory drive belt. For additional information, refer to Section 303 - 05

Page 1024 of 4378

FORD MUSTANG 2003 Workshop Manual IN- VEHICLE REPAIR Oil Level Indicator and Tube Removal and Installation 1. Remove the oil level indicator tube (6754). �zRemove the bolt. �z Remove the oil level indicator tube. �z Remove and d
