Page 1353 of 4378

FORD MUSTANG 2003 Workshop Manual 33. NOTE: The crankshaft pulley must be installed within four minutes of applying the sealant. Apply silicone gasket and sealant to the Woodruff key slot on the crankshaft pulley. 34. Using the spe

Page 1354 of 4378

FORD MUSTANG 2003 Workshop Manual 36. Install the RH engine mount. 37. NOTE: Only three bolts are required for installation. Install the power steering pump bolts. �zPosition the power steering pump. �z Install the bolts. 38. In

Page 1355 of 4378

FORD MUSTANG 2003 Workshop Manual 39. NOTE: Lubricate the camshaft roller followers using clean engine oil. NOTE: Position the cam lobe away from the camshaft roller follower location prior to installing each camshaft roller follo

Page 1356 of 4378

FORD MUSTANG 2003 Workshop Manual 43. NOTE: RH valve cover shown, LH similar. Install the valve covers. LH cylinder head 44. NOTE: Lubricate the O- ring seal with clean engine oil. Install a new O- ring. Klj . 16 ba 252

Page 1357 of 4378

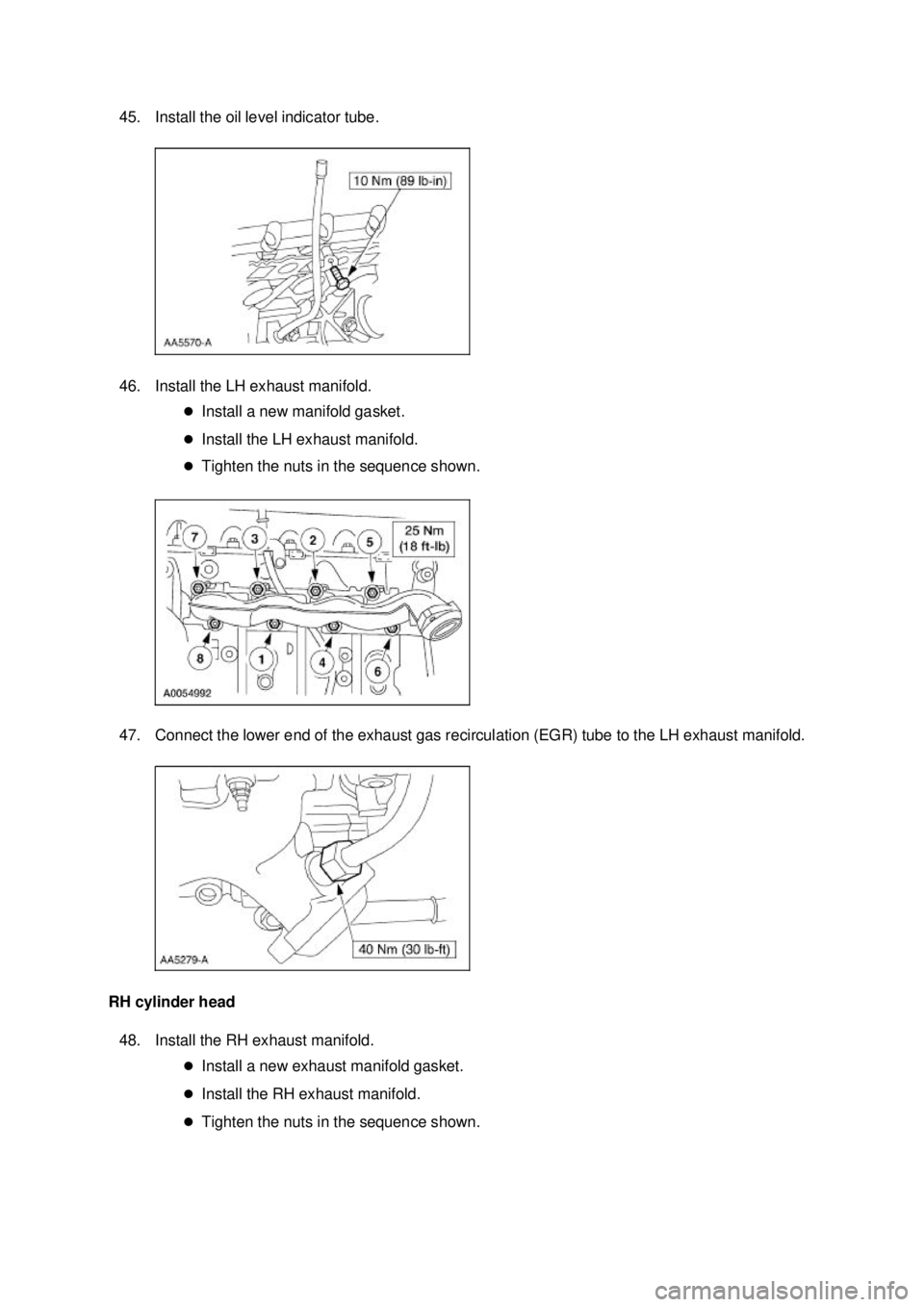

FORD MUSTANG 2003 Workshop Manual 45. Install the oil level indicator tube. 46. Install the LH exhaust manifold. �zInstall a new manifold gasket. �z Install the LH exhaust manifold. �z Tighten the nuts in the sequence shown. 47.

Page 1358 of 4378

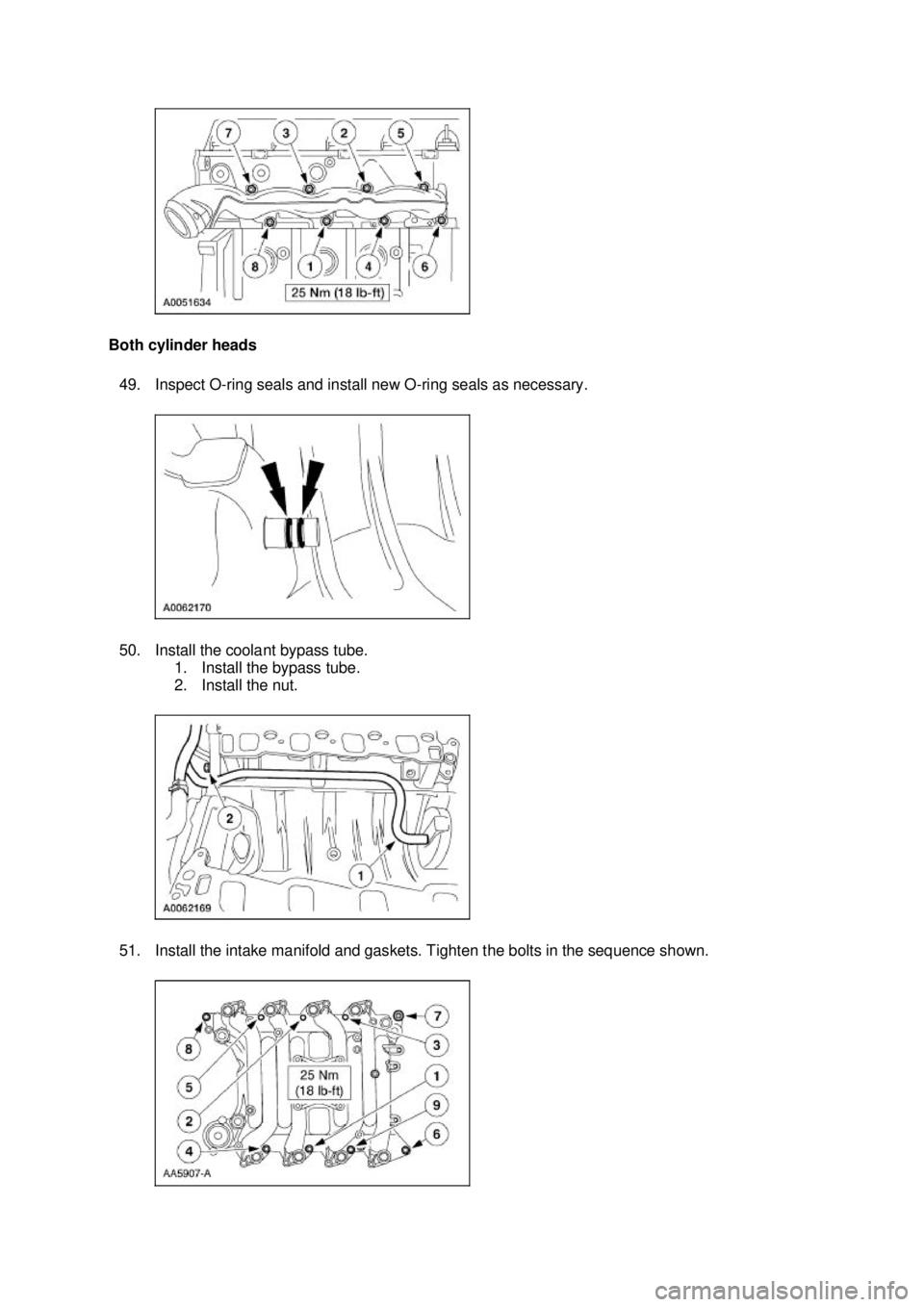

FORD MUSTANG 2003 Workshop Manual Both cylinder heads 49. Inspect O- ring seals and install new O- ring seals as necessary. 50. Install the coolant bypass tube. 1. Install the bypass tube. 2. Install the nut. 51. Install the inta

Page 1359 of 4378

FORD MUSTANG 2003 Workshop Manual 52. Install the thermostat and O- ring. �z Install a new O- ring as necessary. 53. Install the coolant outlet adapter. 54. Install the bolts and the generator. 55. Install the upper generator supp

Page 1360 of 4378

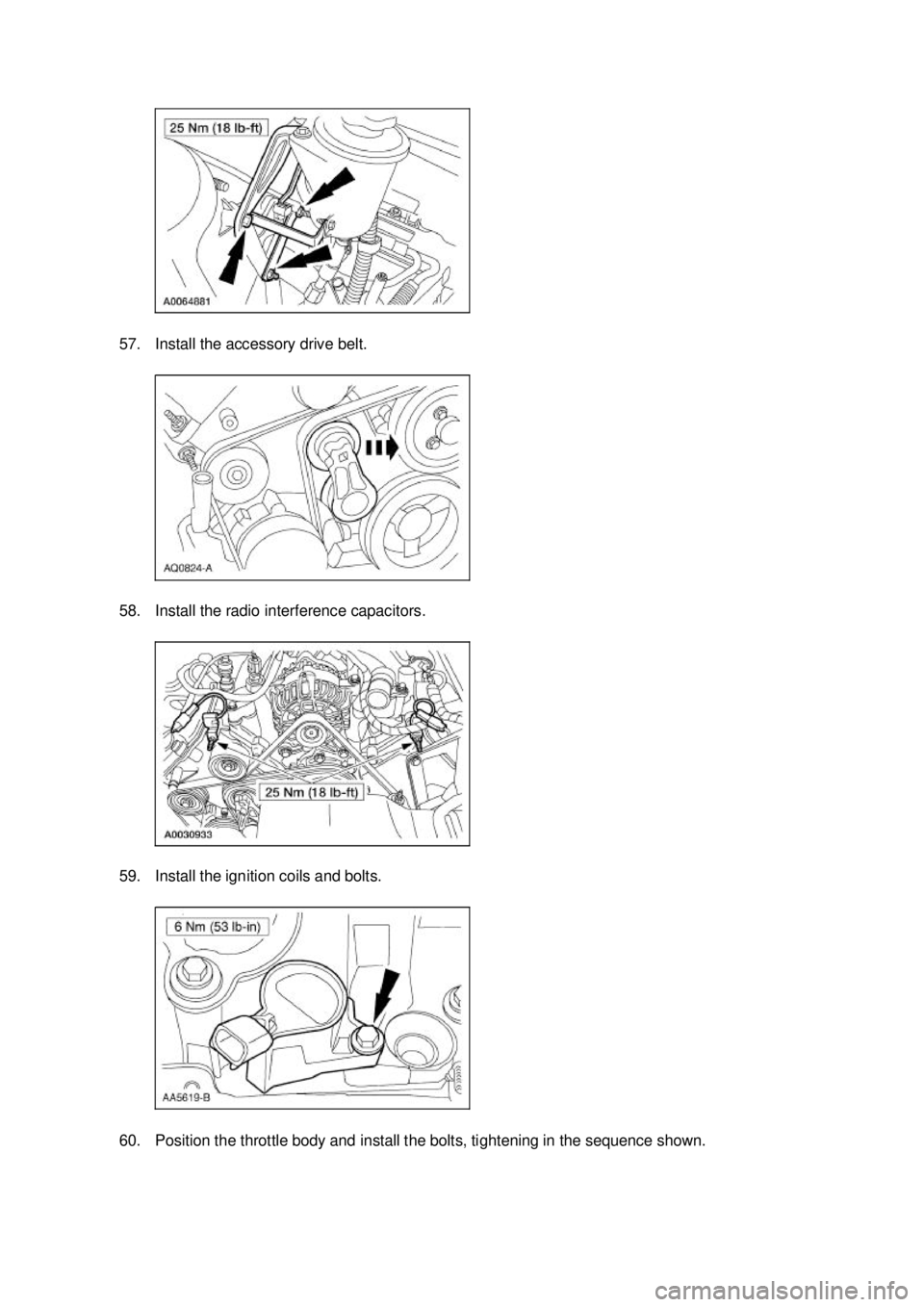

FORD MUSTANG 2003 Workshop Manual 57. Install the accessory drive belt. 58. Install the radio interference capacitors. 59. Install the ignition coils and bolts. 60. Position the throttle body and install the bolts, tightening in th
