Page 1561 of 4378

FORD MUSTANG 2003 Workshop Manual 28. Pre-position the camshafts. 1. Rotate the LH camshaft until the timing mark is approximately at 12 oclock. 2. Rotate the RH camshaft until the timing mark is approximately at 11 oclock. 29. I

Page 1562 of 4378

FORD MUSTANG 2003 Workshop Manual 30. CAUTION: Unless otherwise instructed, at no time when the timing chains are removed and the cylinder heads are installed is the crankshaft or camshaft to be rotated. Severe piston and valve dam

Page 1563 of 4378

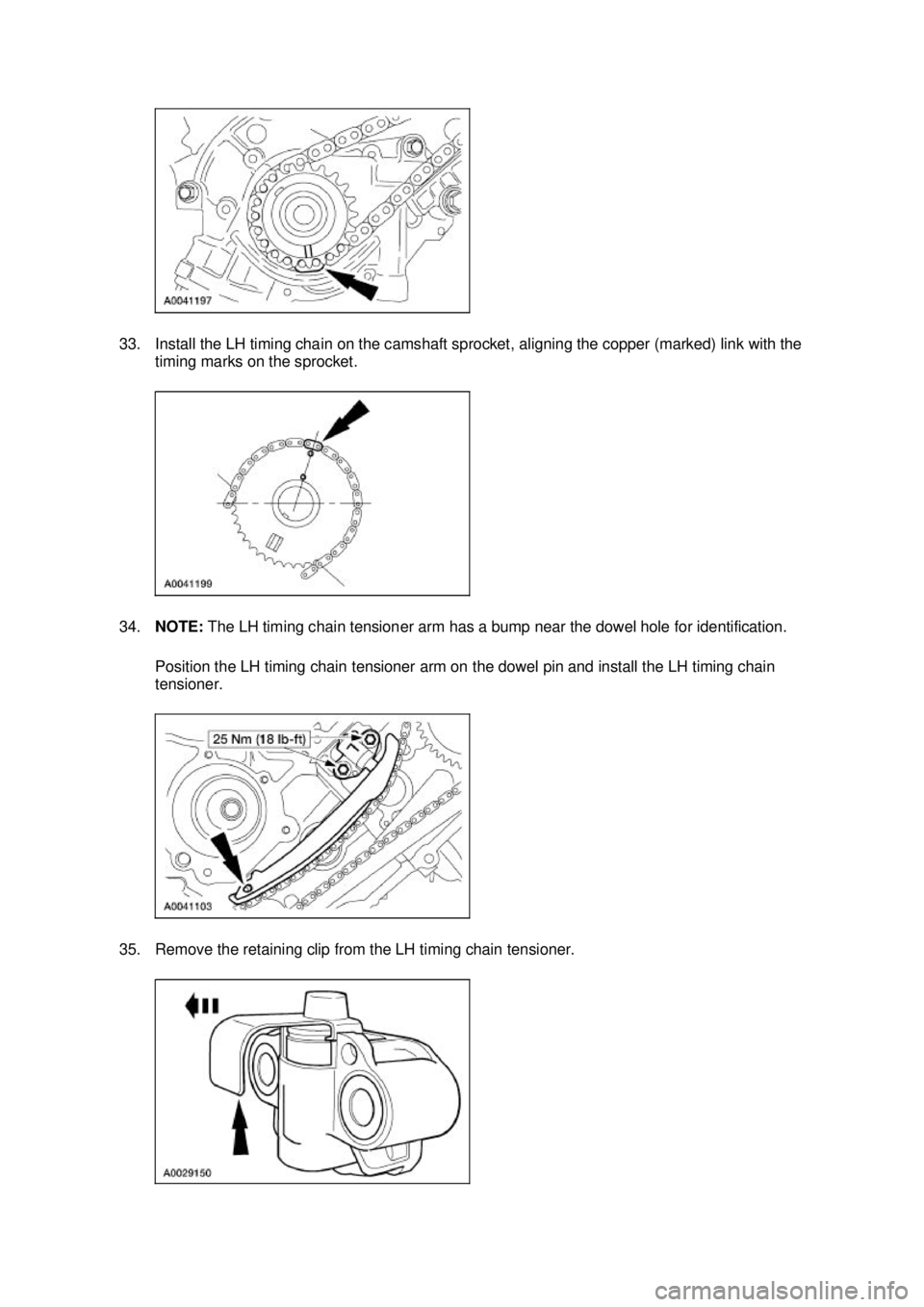

FORD MUSTANG 2003 Workshop Manual 33. Install the LH timing chain on the camshaft sprocket, aligning the copper (marked) link with the timing marks on the sprocket. 34. NOTE: The LH timing chain tensioner arm has a bump near the do

Page 1564 of 4378

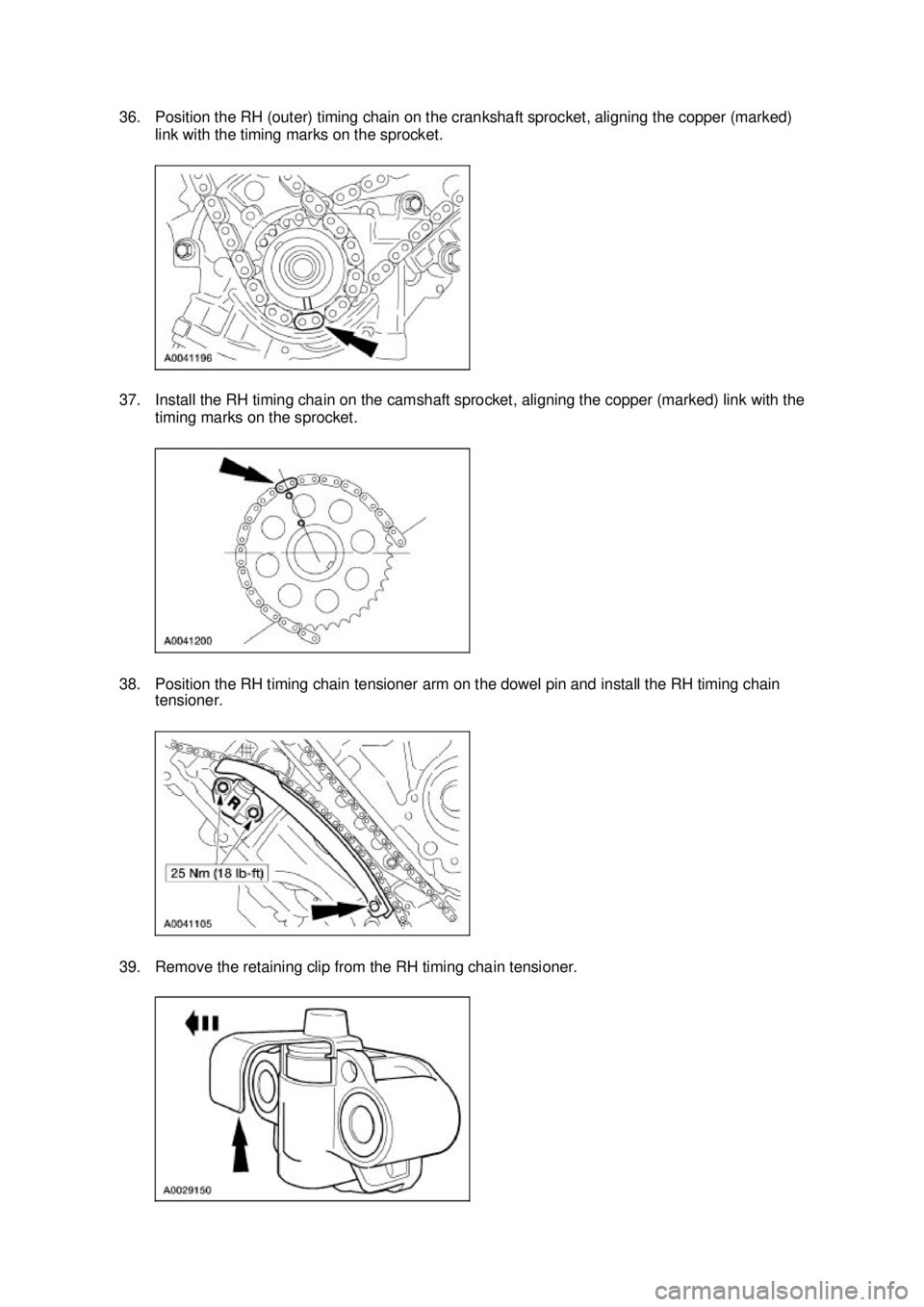

FORD MUSTANG 2003 Workshop Manual 36. Position the RH (outer) timing chain on the crankshaft sprocket, aligning the copper (marked) link with the timing marks on the sprocket. 37. Install the RH timing chain on the camshaft sprocket

Page 1565 of 4378

FORD MUSTANG 2003 Workshop Manual 40. As a post- check, make sure that the copper (marked) chain links are lined up with the dots on the crankshaft sprockets and the camshaft sprockets. 41. Remove the special tool. 42. NOTE: Make

Page 1566 of 4378

FORD MUSTANG 2003 Workshop Manual 44. Install the oil pan and gasket, and loosely install the bolts. 45. Tighten the bolts in the sequence shown, in two stages. �zStage 1: Tighten to 20 Nm (15 lb- ft). �z Stage 2: Rotate an additio

Page 1567 of 4378

FORD MUSTANG 2003 Workshop Manual 47. Install the engine front cover, the bolts and the studs, and tighten the fasteners in the sequence shown to 25 Nm (18 lb- ft). Item Part Number Description 1 N806177 Bolt, Hex Flange Head

Page 1568 of 4378

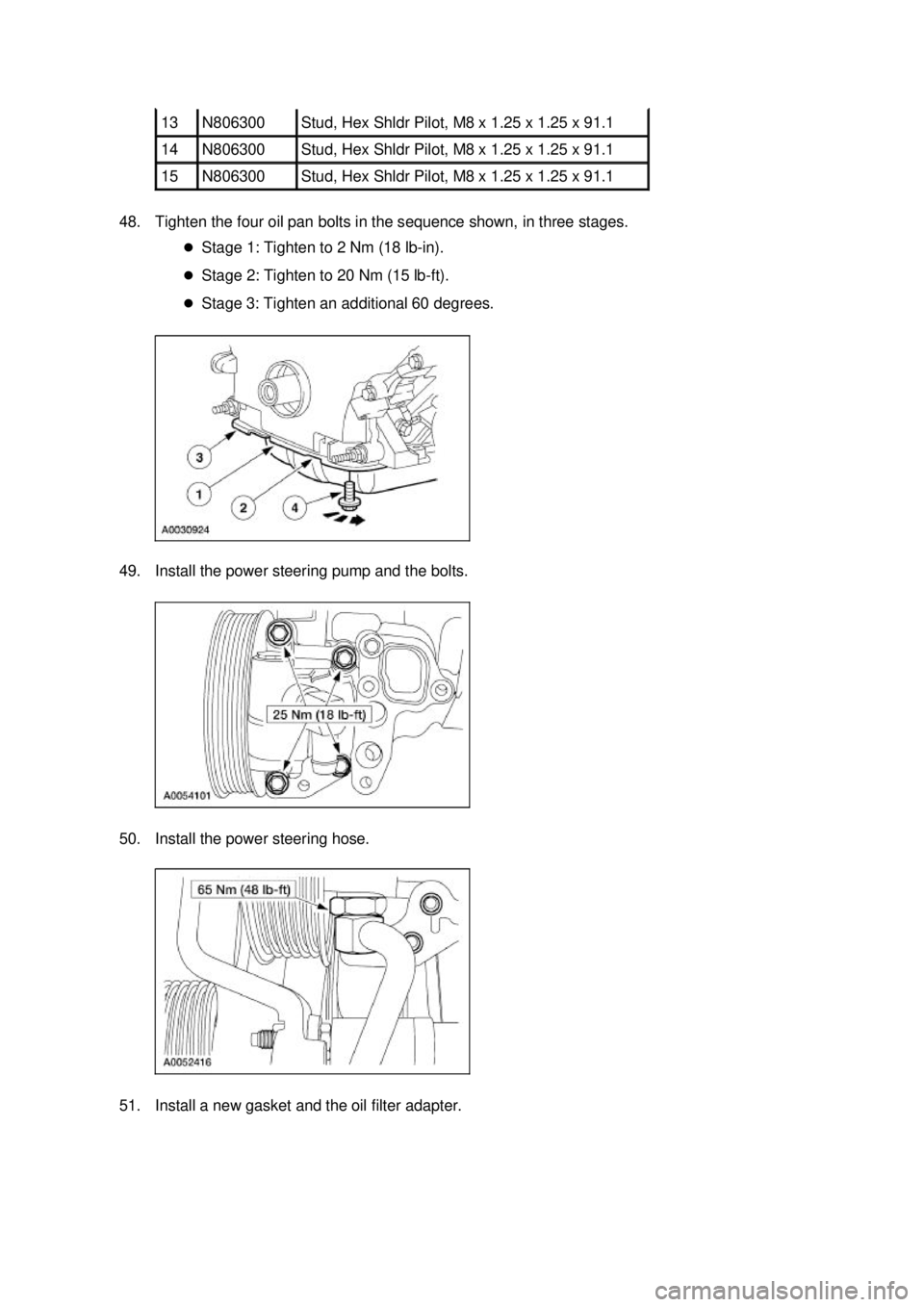

FORD MUSTANG 2003 Workshop Manual 48. Tighten the four oil pan bolts in the sequence shown, in three stages. �zStage 1: Tighten to 2 Nm (18 lb- in). �z Stage 2: Tighten to 20 Nm (15 lb- ft). �z Stage 3: Tighten an additional 60 deg
