Page 1001 of 4378

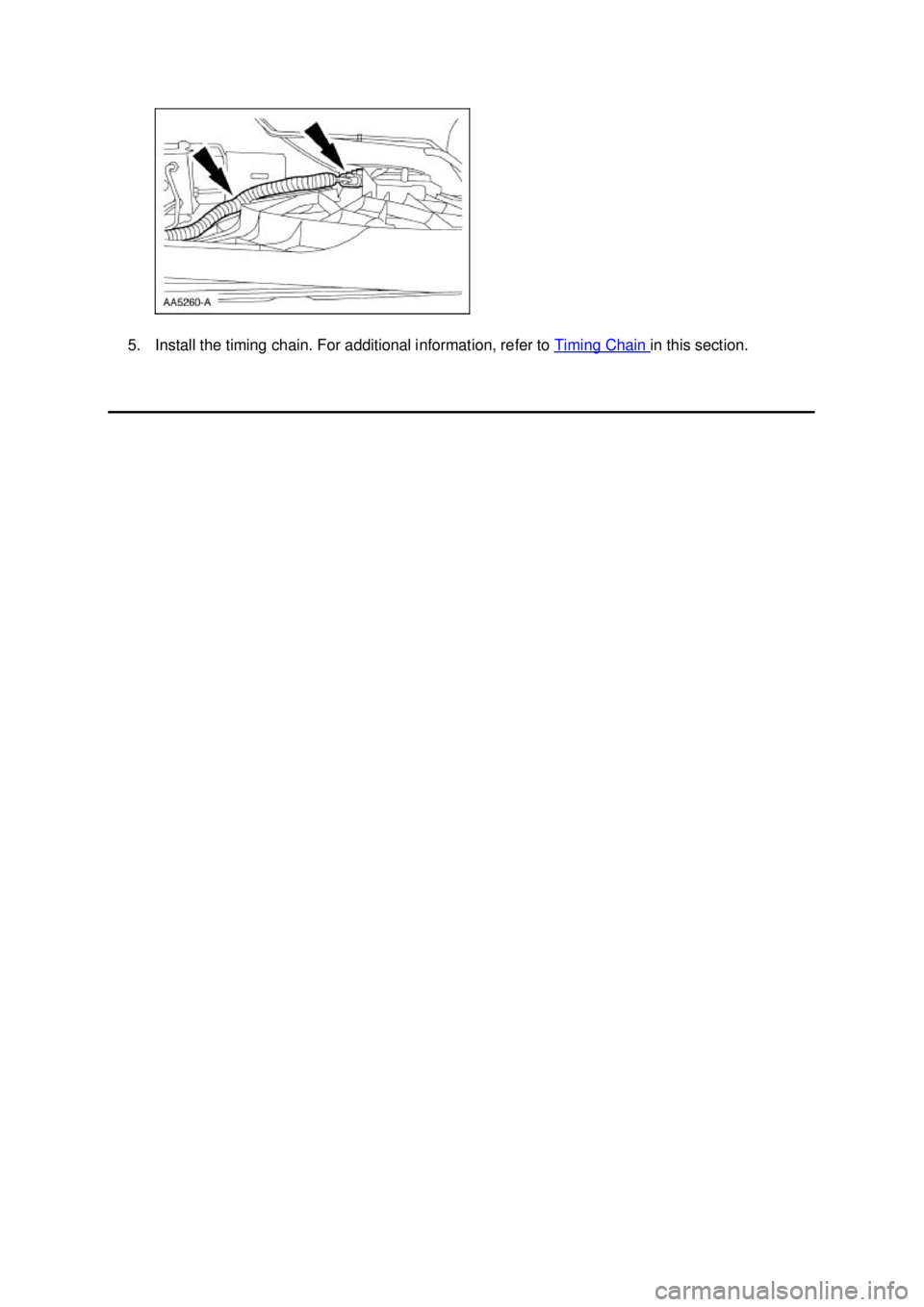

FORD MUSTANG 2003 Workshop Manual 5. Install the timing chain. For additional information, refer to Timing Chain in this section. Klj . 3 ba 32003 Mustang Workshop Manual 17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHE

Page 1002 of 4378

FORD MUSTANG 2003 Workshop Manual IN- VEHICLE REPAIR Timing Chain Removal 1. Remove the timing cover. For additional information, refer to Engine Front Cover in this section. 2. Remove the camshaft position sensor drive gear. 1

Page 1003 of 4378

FORD MUSTANG 2003 Workshop Manual 6. Remove the timing chain tensioner. 1. Remove the bolts. 2. Remove the timing chain tensioner. Installation 1. Install the timing chain tensioner. 1. Position the timing chain tensioner. 2. In

Page 1004 of 4378

FORD MUSTANG 2003 Workshop Manual 3. If necessary, retract the tensioner pad retracting mechanism. 1. Compress the tensioner pad retracting mechanism. 2. Insert a retaining pin. 4. Turn the camshaft sprocket so that the timing mark

Page 1005 of 4378

FORD MUSTANG 2003 Workshop Manual 7. Install the camshaft position sensor drive gear. 8. Remove the retaining pin. 9. Install the engine front cover. For additional information, refer to Engine Front Cover in this section. Kl

Page 1006 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 5 ba 52003 Mustang Workshop Manual 17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

Page 1007 of 4378

FORD MUSTANG 2003 Workshop Manual IN- VEHICLE REPAIR Exhaust Manifold — LH Removal 1. Raise and support the vehicle. For additional information, refer to Section 100 - 02 . 2. Remove the LH exhaust manifold flange nuts. 3. Re

Page 1008 of 4378

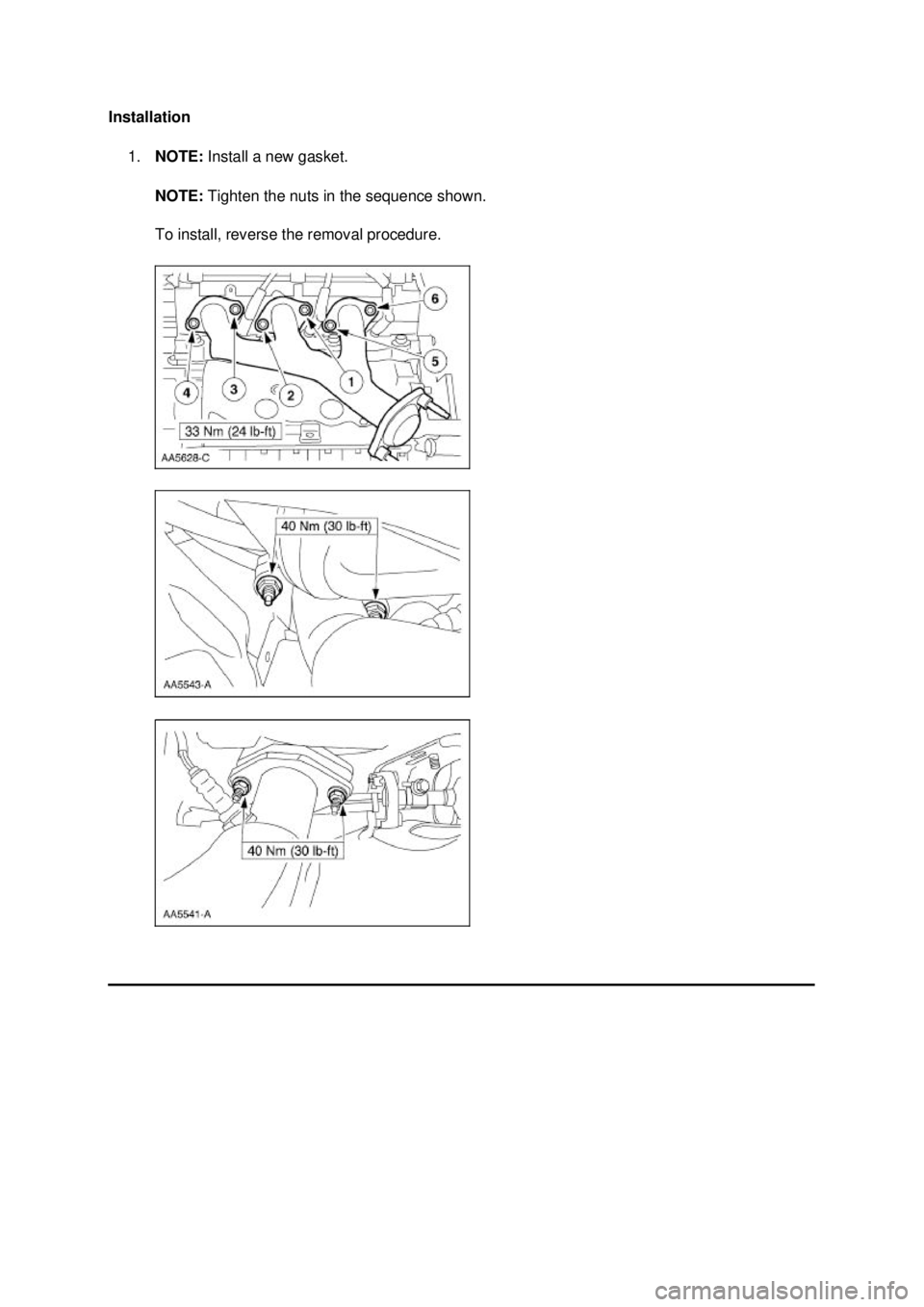

FORD MUSTANG 2003 Workshop Manual Installation 1. NOTE: Install a new gasket. NOTE: Tighten the nuts in the sequence shown. To install, reverse the removal procedure. Klj . 2 ba 32003 Mustang Workshop Manual 17. 11. 2011
