Page 1497 of 4378

FORD MUSTANG 2003 Workshop Manual 20. Disconnect the 16- pin and the 42-pin connectors. 21. Disconnect the vacuum hoses. 22. Separate the wiring harness from the dash panel. 23. Disconnect the heater hoses. 24. Disconnect the radi

Page 1498 of 4378

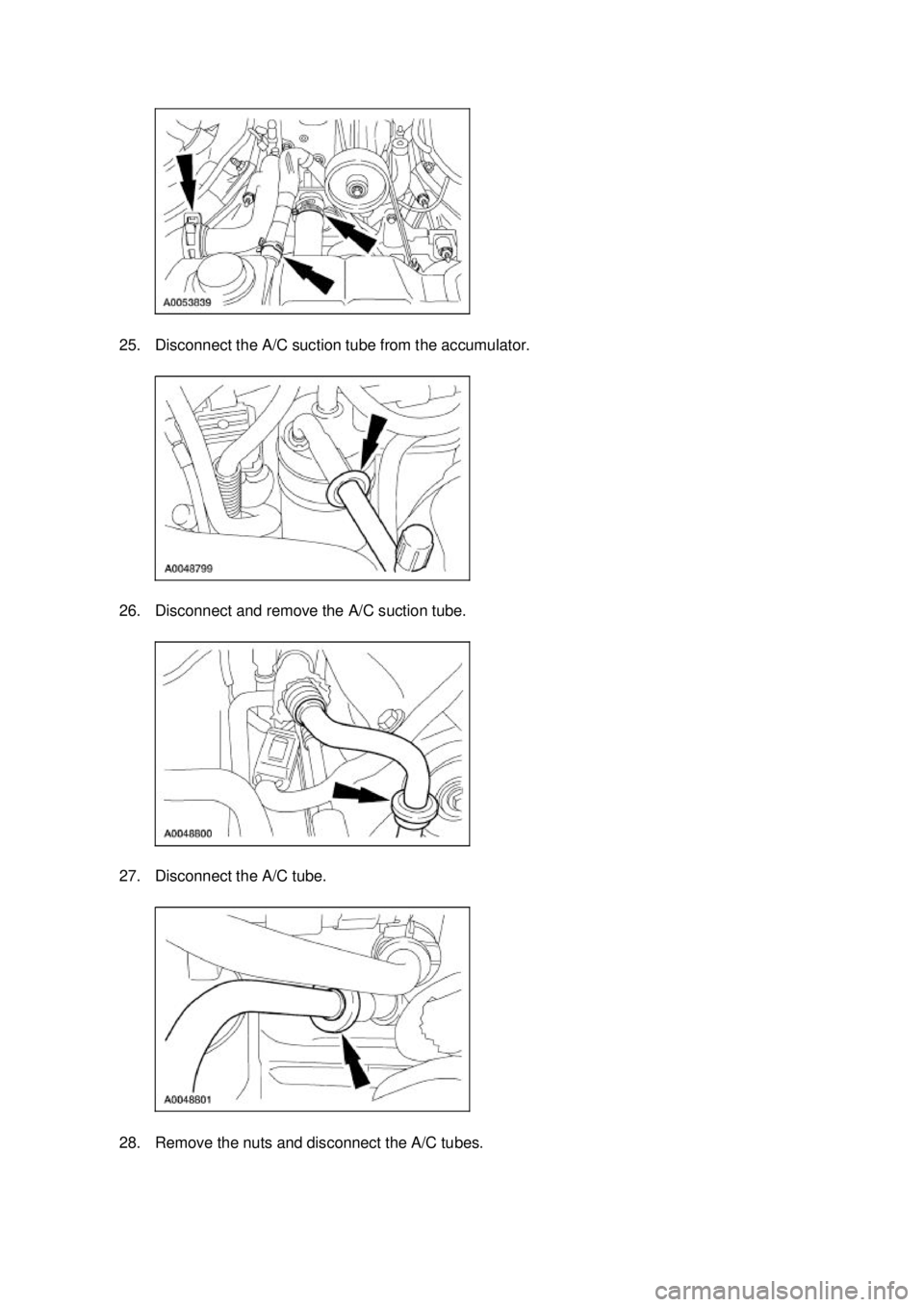

FORD MUSTANG 2003 Workshop Manual 25. Disconnect the A/C suction tube from the accumulator. 26. Disconnect and remove the A/C suction tube. 27. Disconnect the A/C tube. 28. Remove the nuts and disconnect the A/C tubes. Klj . 6

Page 1499 of 4378

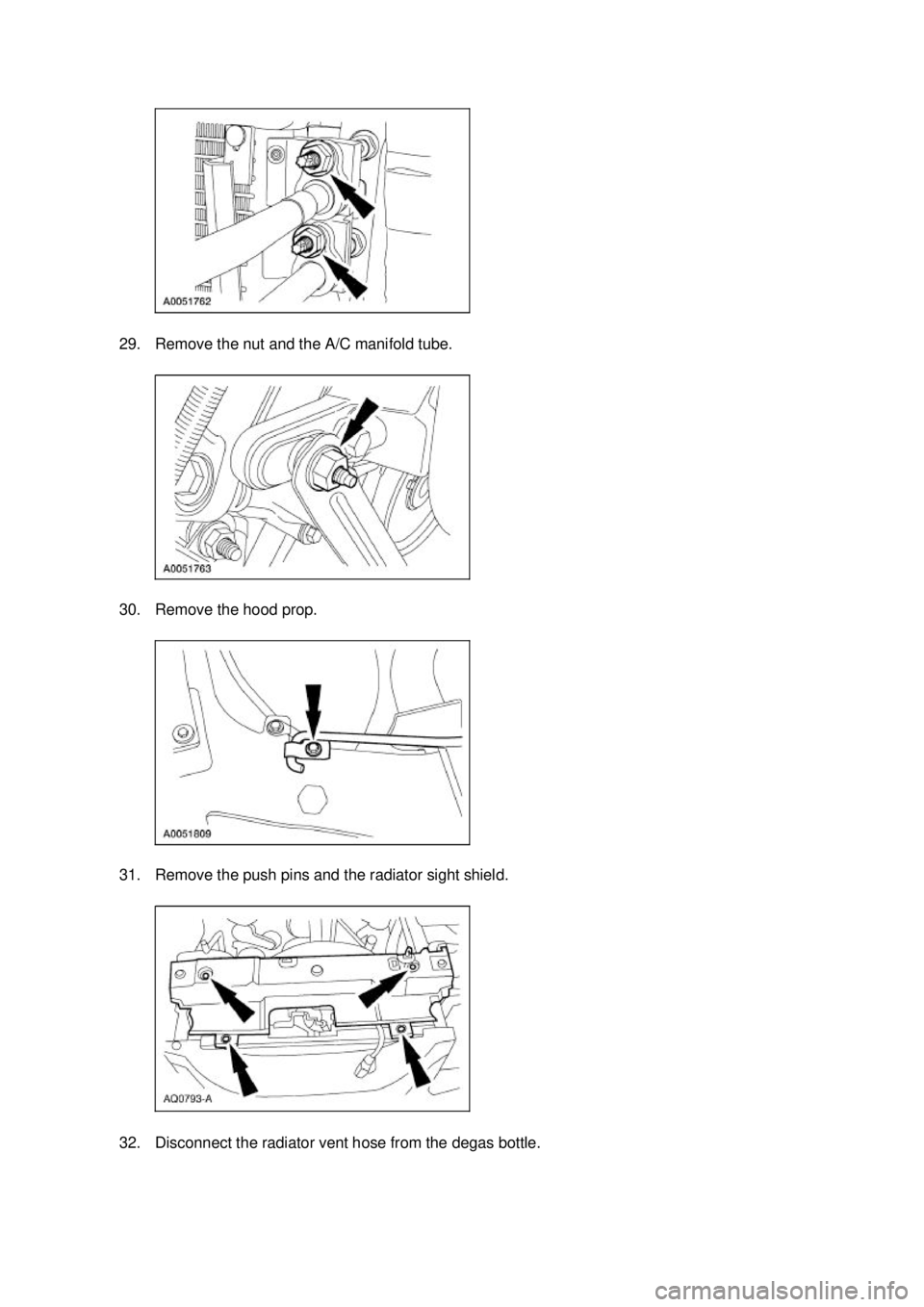

FORD MUSTANG 2003 Workshop Manual 29. Remove the nut and the A/C manifold tube. 30. Remove the hood prop. 31. Remove the push pins and the radiator sight shield. 32. Disconnect the radiator vent hose from the degas bottle. Klj

Page 1500 of 4378

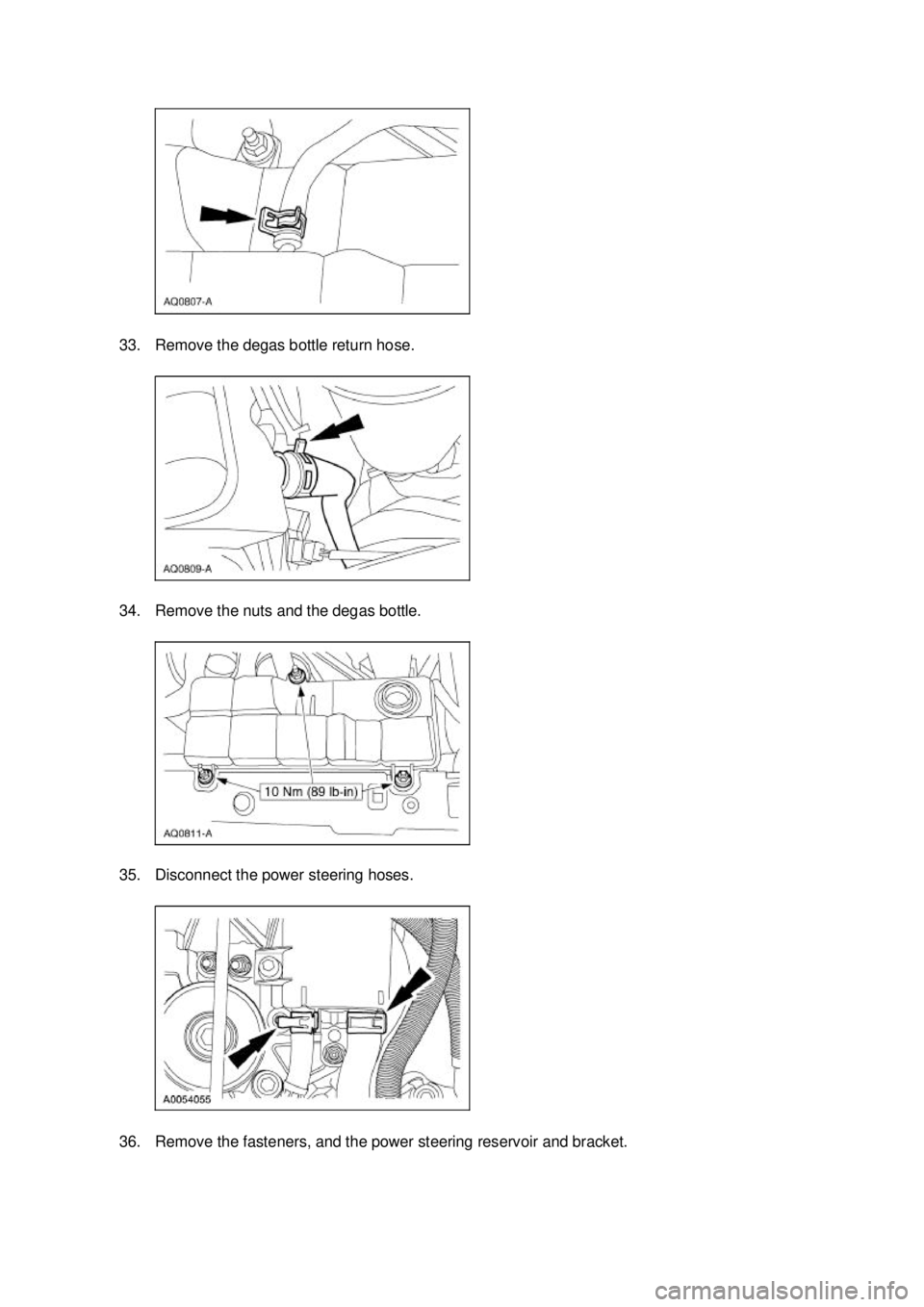

FORD MUSTANG 2003 Workshop Manual 33. Remove the degas bottle return hose. 34. Remove the nuts and the degas bottle. 35. Disconnect the power steering hoses. 36. Remove the fasteners, and the power steering reservoir and bracket.

Page 1501 of 4378

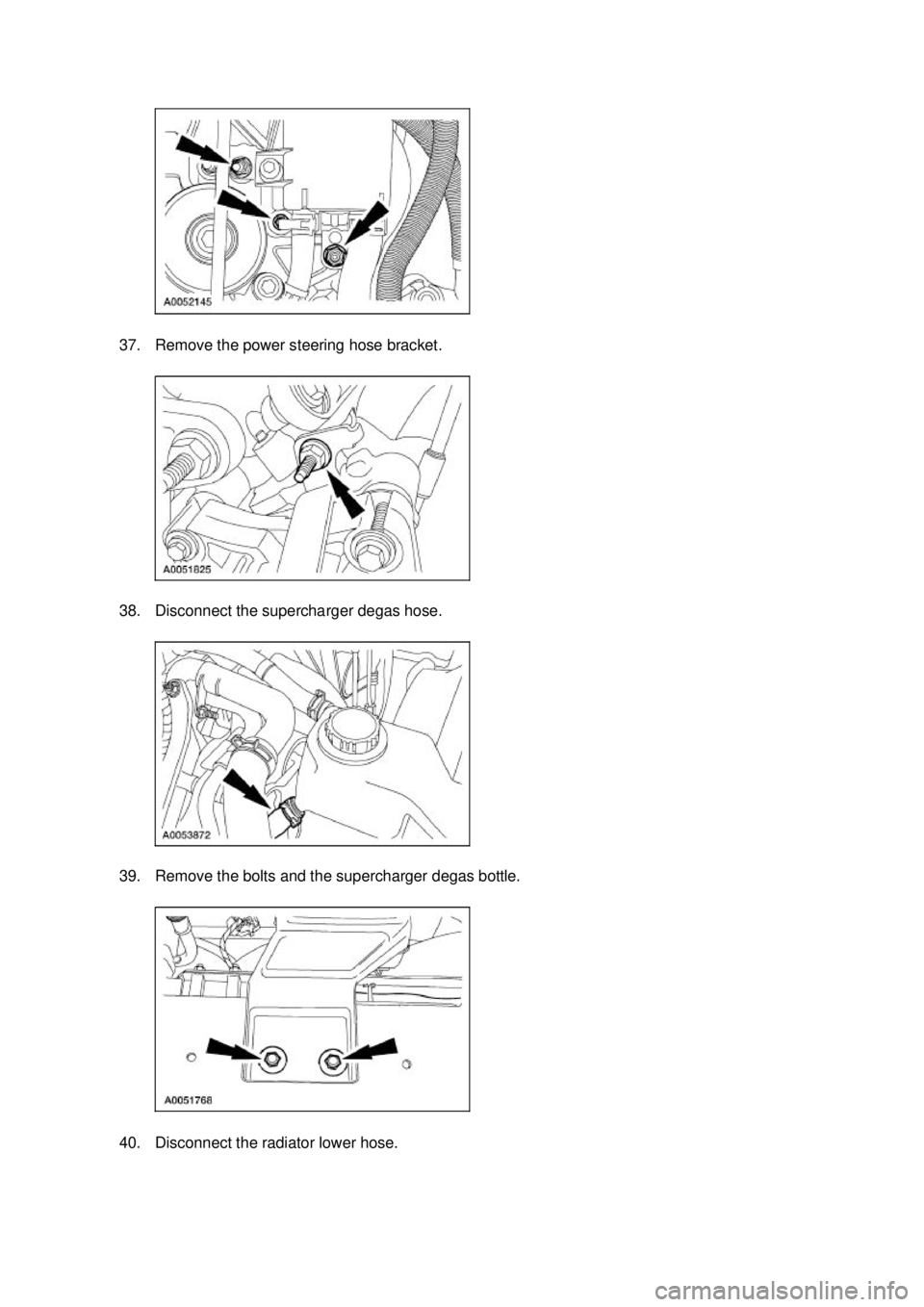

FORD MUSTANG 2003 Workshop Manual 37. Remove the power steering hose bracket. 38. Disconnect the supercharger degas hose. 39. Remove the bolts and the supercharger degas bottle. 40. Disconnect the radiator lower hose. Klj . 9

Page 1502 of 4378

FORD MUSTANG 2003 Workshop Manual 41. Disconnect the supercharger coolant hoses. 42. Disconnect the cooling fan electrical connector. 43. Remove the LH cooling fan shroud bolt. 44. Remove the RH cooling fan shroud bolt, and remove

Page 1503 of 4378

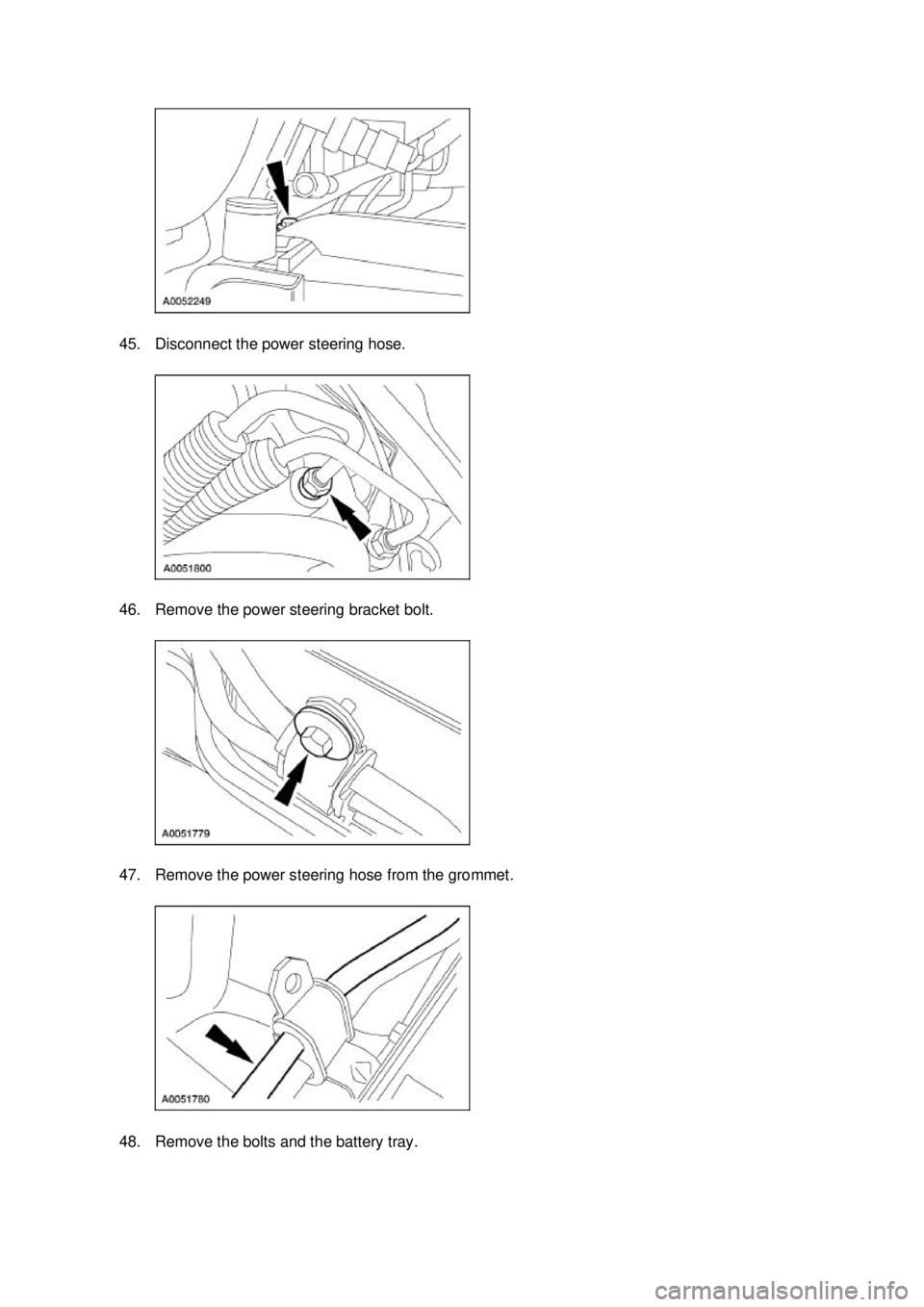

FORD MUSTANG 2003 Workshop Manual 45. Disconnect the power steering hose. 46. Remove the power steering bracket bolt. 47. Remove the power steering hose from the grommet. 48. Remove the bolts and the battery tray. Klj . 11 b

Page 1504 of 4378

FORD MUSTANG 2003 Workshop Manual 49. Remove the auxiliary crankshaft pulley. For additional information, refer to Crankshaft Pulley — Auxiliary in this section. 50. Remove the clutch. For additional information, refer to Sectio
