Page 1617 of 4378

FORD MUSTANG 2003 Workshop Manual 9 6268 Timing chain (2 reqd) 10 6K297 Timing chain guide 11 6268 Timing chain (2 reqd) 12 6M269 Timing chain tensioner 13 6L253 Timing chain tensioner arm 14 N605893 Bolt (4 reqd)

Page 1618 of 4378

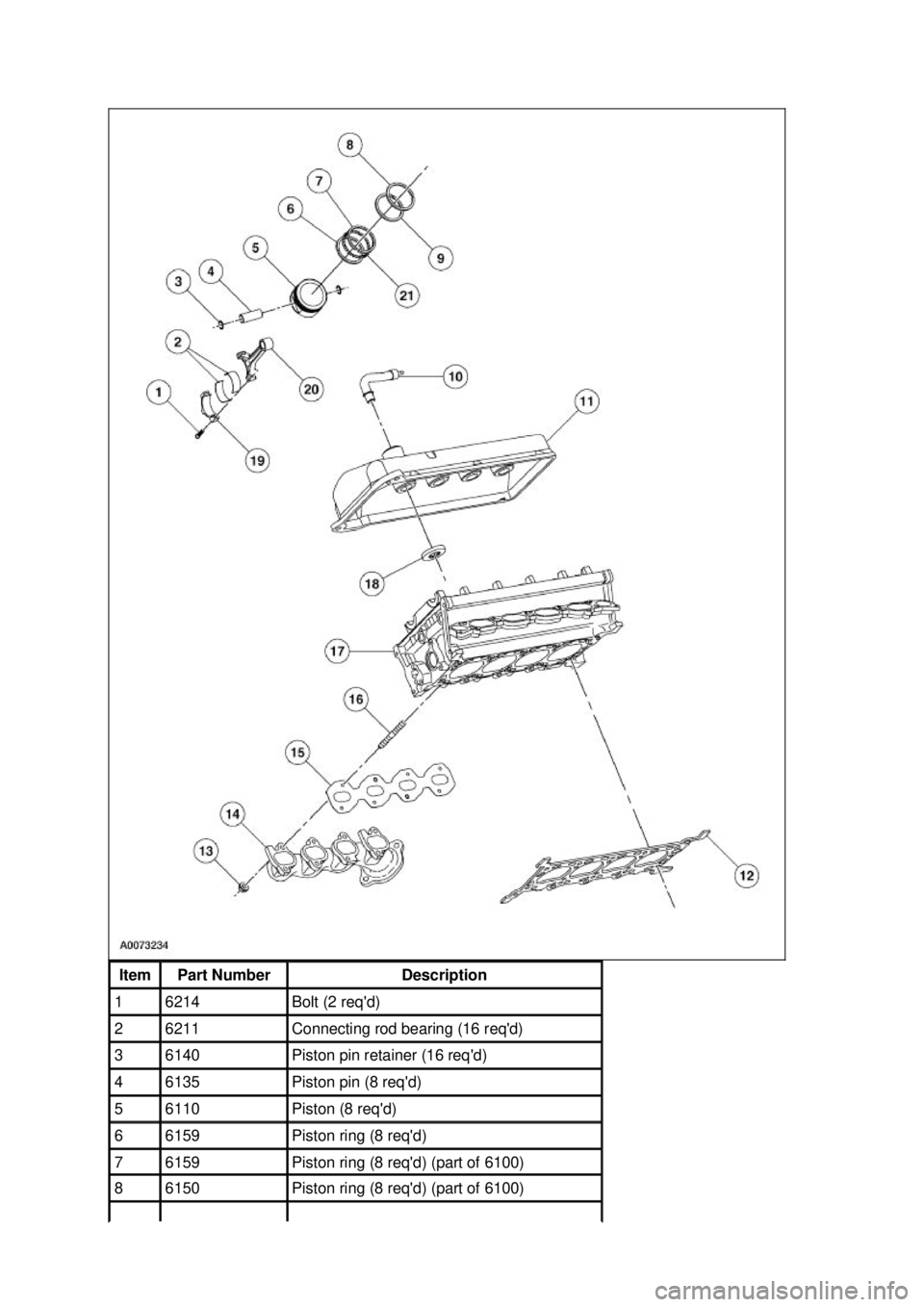

FORD MUSTANG 2003 Workshop Manual Item Part Number Description 1 6214 Bolt (2 reqd) 2 6211 Connecting rod bearing (16 reqd) 3 6140 Piston pin retainer (16 reqd) 4 6135 Piston pin (8 reqd) 5 6110 Piston (8 reqd)

Page 1619 of 4378

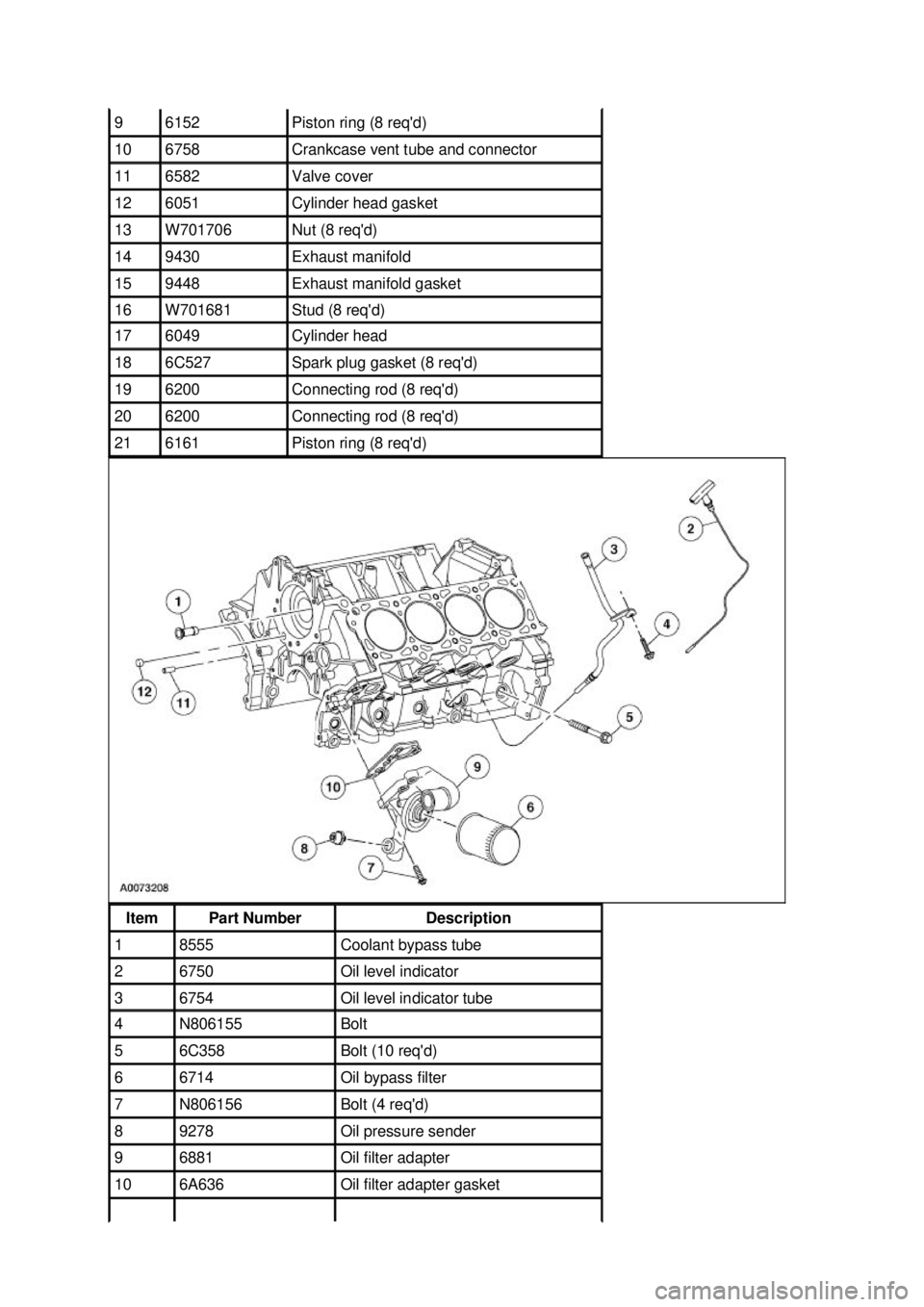

FORD MUSTANG 2003 Workshop Manual 9 6152 Piston ring (8 reqd) 10 6758 Crankcase vent tube and connector 11 6582 Valve cover 12 6051 Cylinder head gasket 13 W701706 Nut (8 reqd) 14 9430 Exhaust manifold 15 9448 Ex

Page 1620 of 4378

FORD MUSTANG 2003 Workshop Manual 11 N620482 Dowel 12 87836 Plug Item Part Number Description 1 N807198 Dowel pin (2 reqd) 2 N807309 Bolt 3 N807959 Bolt 4 18663 Heater water hose 5 W500110 Bolt (2 reqd) 6 12

Page 1621 of 4378

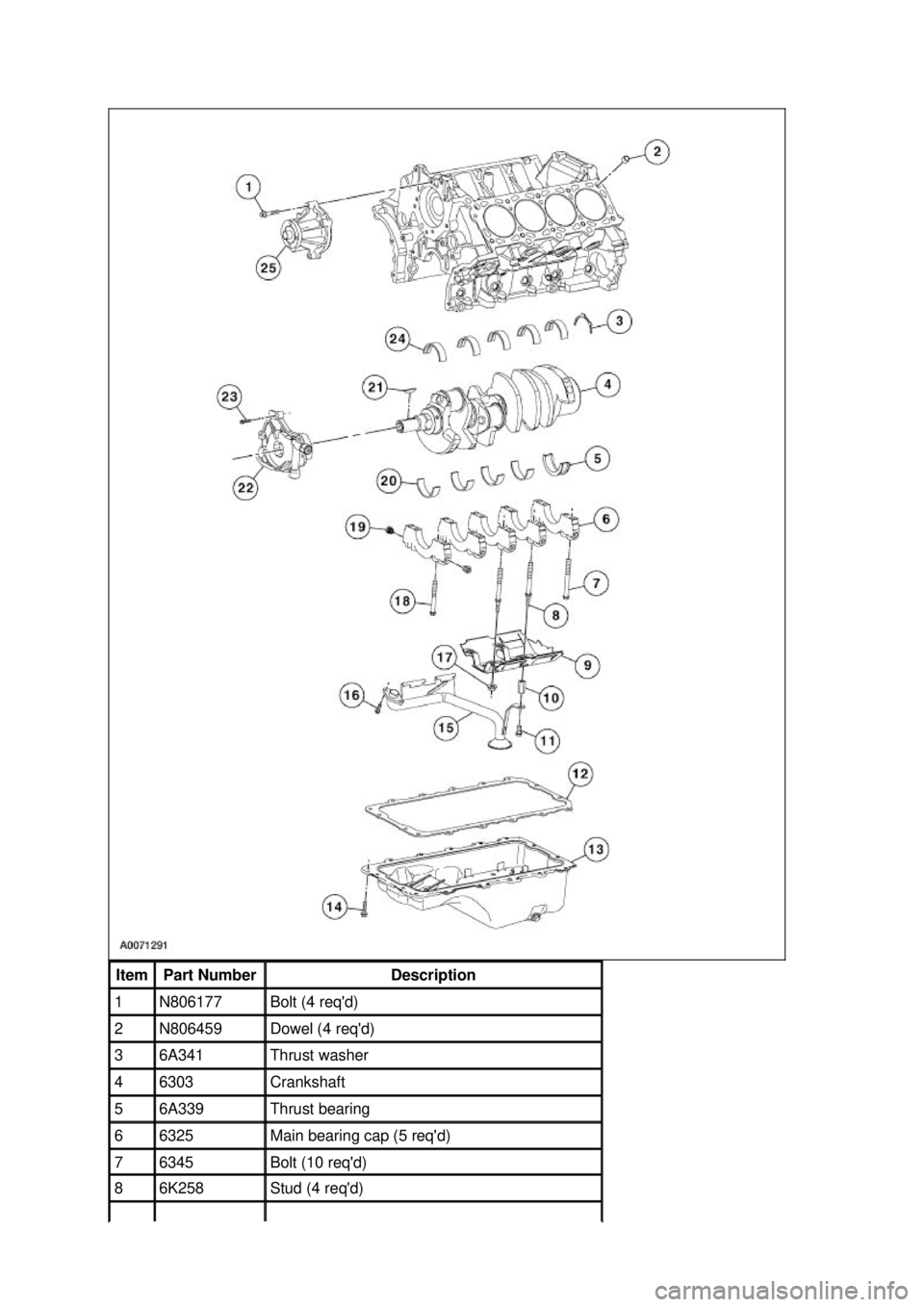

FORD MUSTANG 2003 Workshop Manual Item Part Number Description 1 N806177 Bolt (4 reqd) 2 N806459 Dowel (4 reqd) 3 6A341 Thrust washer 4 6303 Crankshaft 5 6A339 Thrust bearing 6 6325 Main bearing cap (5 reqd) 7

Page 1622 of 4378

FORD MUSTANG 2003 Workshop Manual 9 6687 Oil pan baffle 10 N806180 Spacer 11 N605904 Bolt 12 6710 Oil pan gasket 13 6675 Oil pan 14 W701240 Bolt (16 reqd) 15 6622 Oil pump screen pickup and tube 16 N806155 Bolt

Page 1623 of 4378

FORD MUSTANG 2003 Workshop Manual DIAGNOSIS AND TESTING Engine Refer to Section 303 - 00 for basic mechanical concerns or refer to the Powertrain Control/Emissions Diagnosis (PC/ED) manual for driveability concerns. SECTION 303-

Page 1624 of 4378

FORD MUSTANG 2003 Workshop Manual IN- VEHICLE REPAIR Intake Manifold — Upper Removal 1. Remove the air intake scoop bracket. For additonal information, refer to Section 303 - 12 . 2. Remove the air cleaner outlet tube. For add
