Page 2569 of 4378

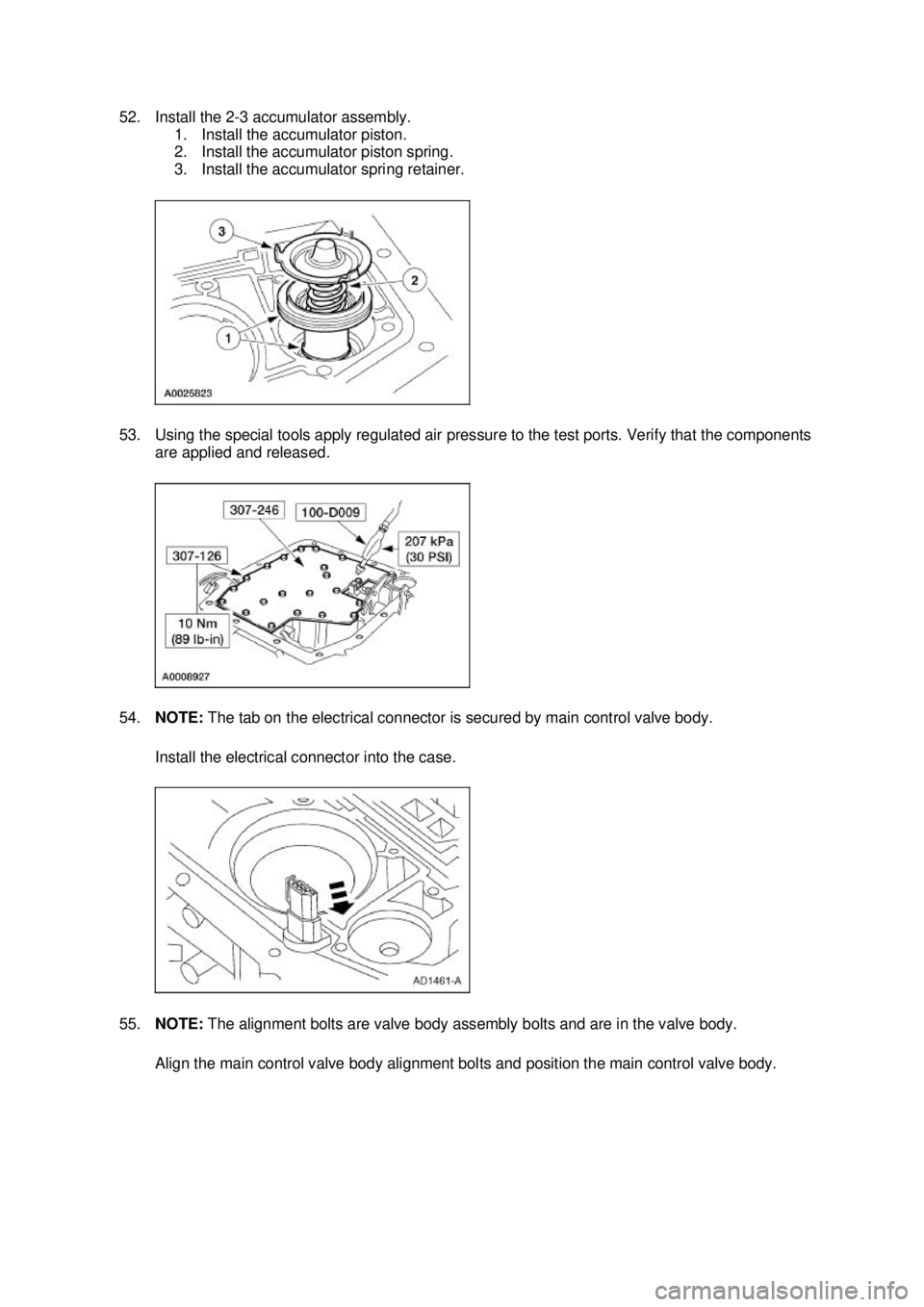

FORD MUSTANG 2003 Workshop Manual 52. Install the 2- 3 accumulator assembly. 1. Install the accumulator piston. 2. Install the accumulator piston spring. 3. Install the accumulator spring retainer. 53. Using the special tools appl

Page 2570 of 4378

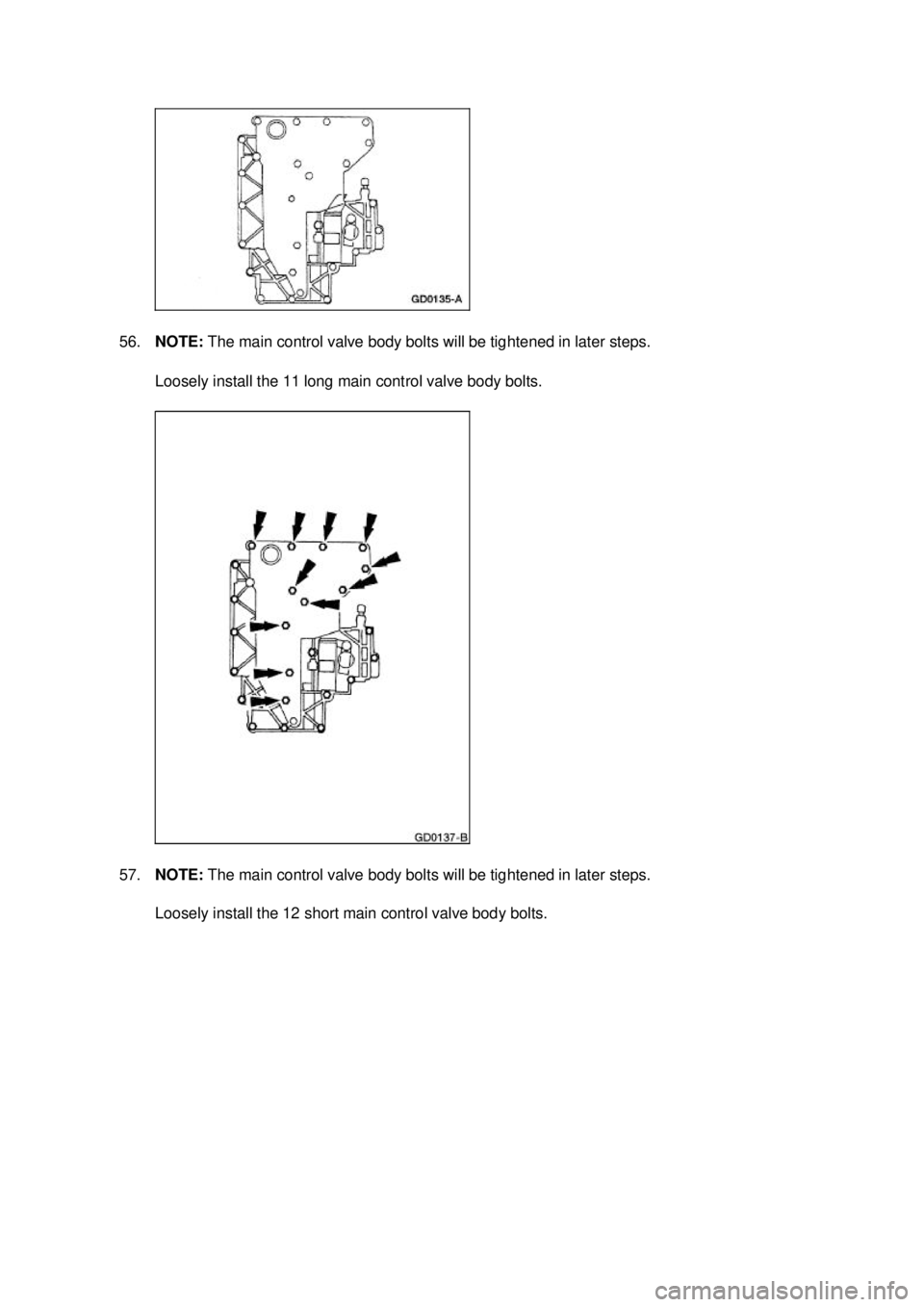

FORD MUSTANG 2003 Workshop Manual 56. NOTE: The main control valve body bolts will be tightened in later steps. Loosely install the 11 long main control valve body bolts. 57. NOTE: The main control valve body bolts will be tighten

Page 2571 of 4378

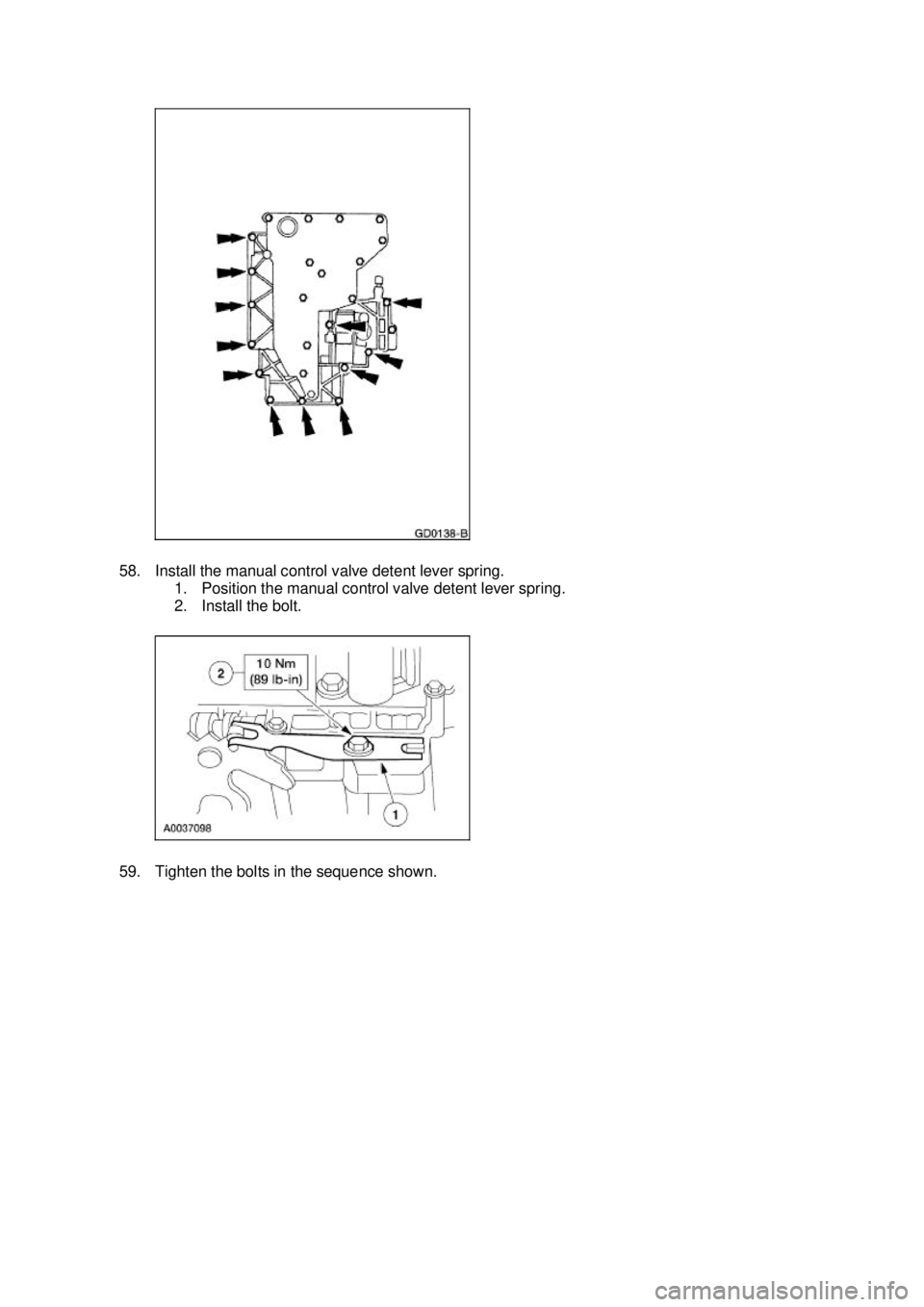

FORD MUSTANG 2003 Workshop Manual 58. Install the manual control valve detent lever spring. 1. Position the manual control valve detent lever spring. 2. Install the bolt. 59. Tighten the bolts in the sequence shown. Klj . 20

Page 2572 of 4378

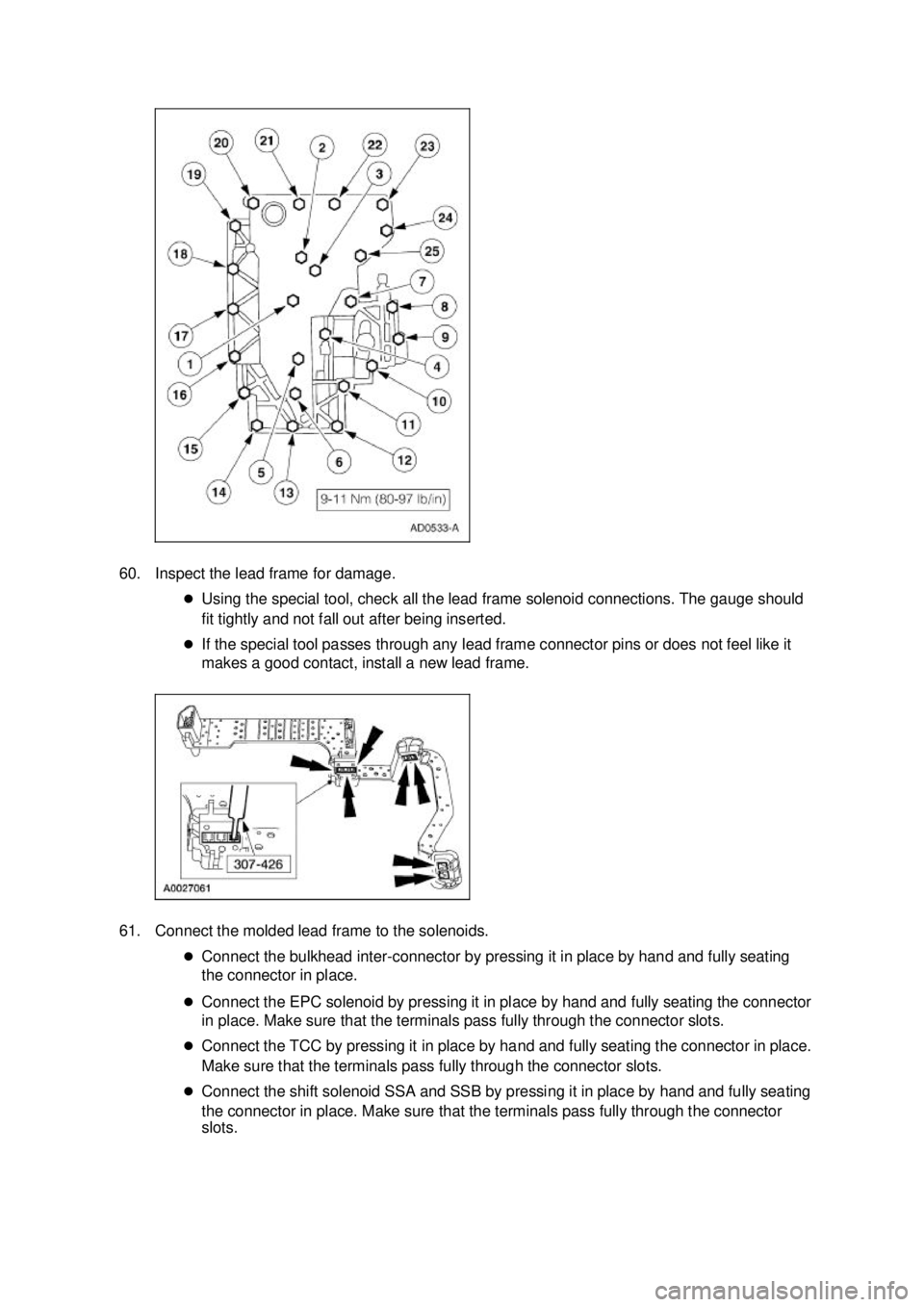

FORD MUSTANG 2003 Workshop Manual 60. Inspect the lead frame for damage. �zUsing the special tool, check all the lead frame solenoid connections. The gauge should fit tightly and not fall out after being inserted. �z If the special

Page 2573 of 4378

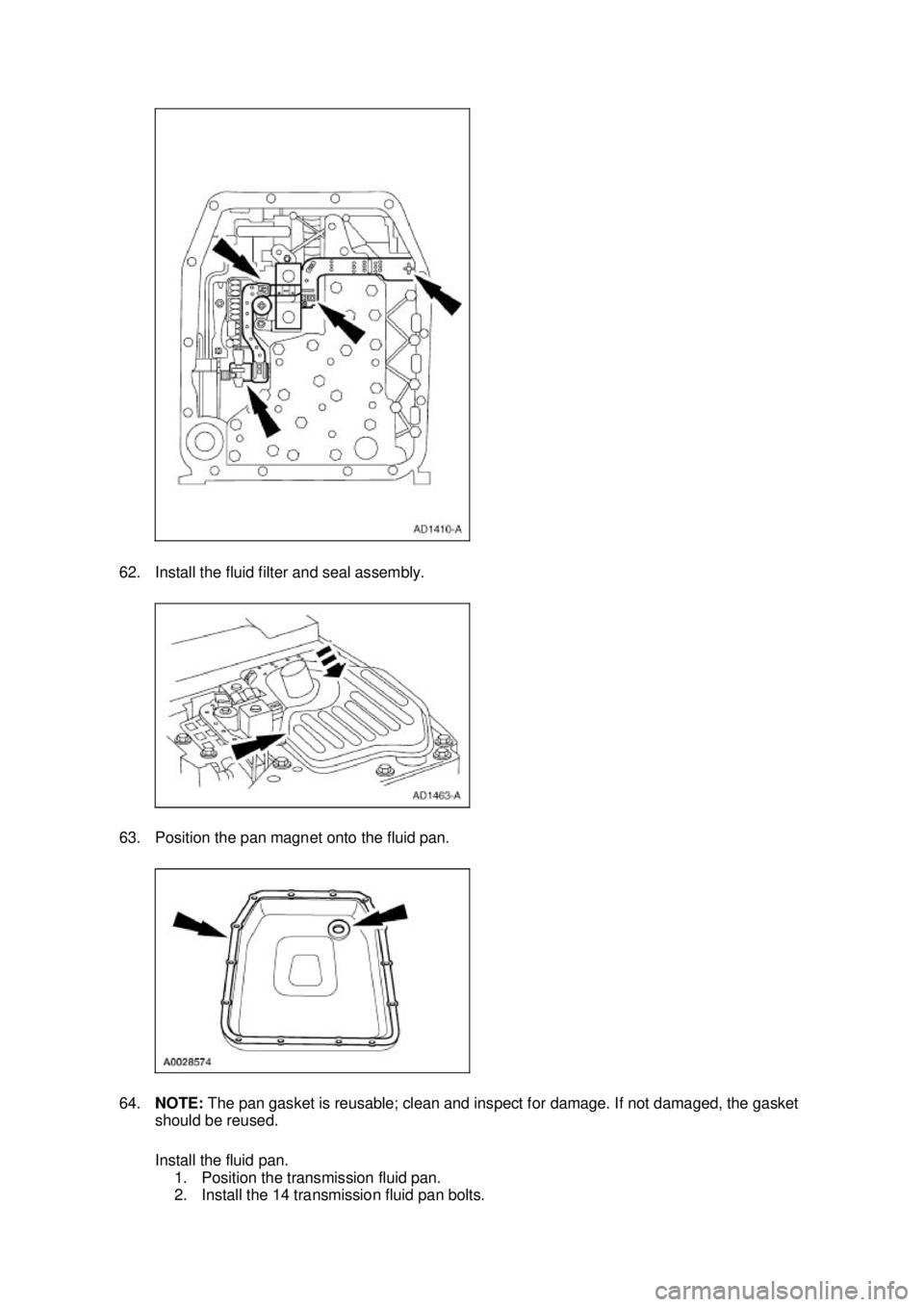

FORD MUSTANG 2003 Workshop Manual 62. Install the fluid filter and seal assembly. 63. Position the pan magnet onto the fluid pan. 64. NOTE: The pan gasket is reusable; clean and inspect for damage. If not damaged, the gasket shoul

Page 2574 of 4378

FORD MUSTANG 2003 Workshop Manual 65. Install the digital transmission range (TR) sensor. 1. Install the digital TR sensor. 2. Loosely install the digital TR bolts. 66. NOTE: The tool is designed to fit snugly. NOTE: Manual shif

Page 2575 of 4378

FORD MUSTANG 2003 Workshop Manual 68. Lightly lubricate the converter hub with clean automatic transmission fluid. 69. WARNING: The torque converter can fall out if the transmission is tipped. CAUTION: Make sure the converter hub

Page 2576 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 25 ba 252003 Mustang Workshop Manual 18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...
