Page 2657 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 2 ba 22003 Mustang Workshop Manual 18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...

Page 2658 of 4378

FORD MUSTANG 2003 Workshop Manual DESCRIPTION AND OPERATION Clutch The primary function of the clutch is to couple and uncouple engine power to the transmission upon driver command. For additional information, refer to Section 308

Page 2659 of 4378

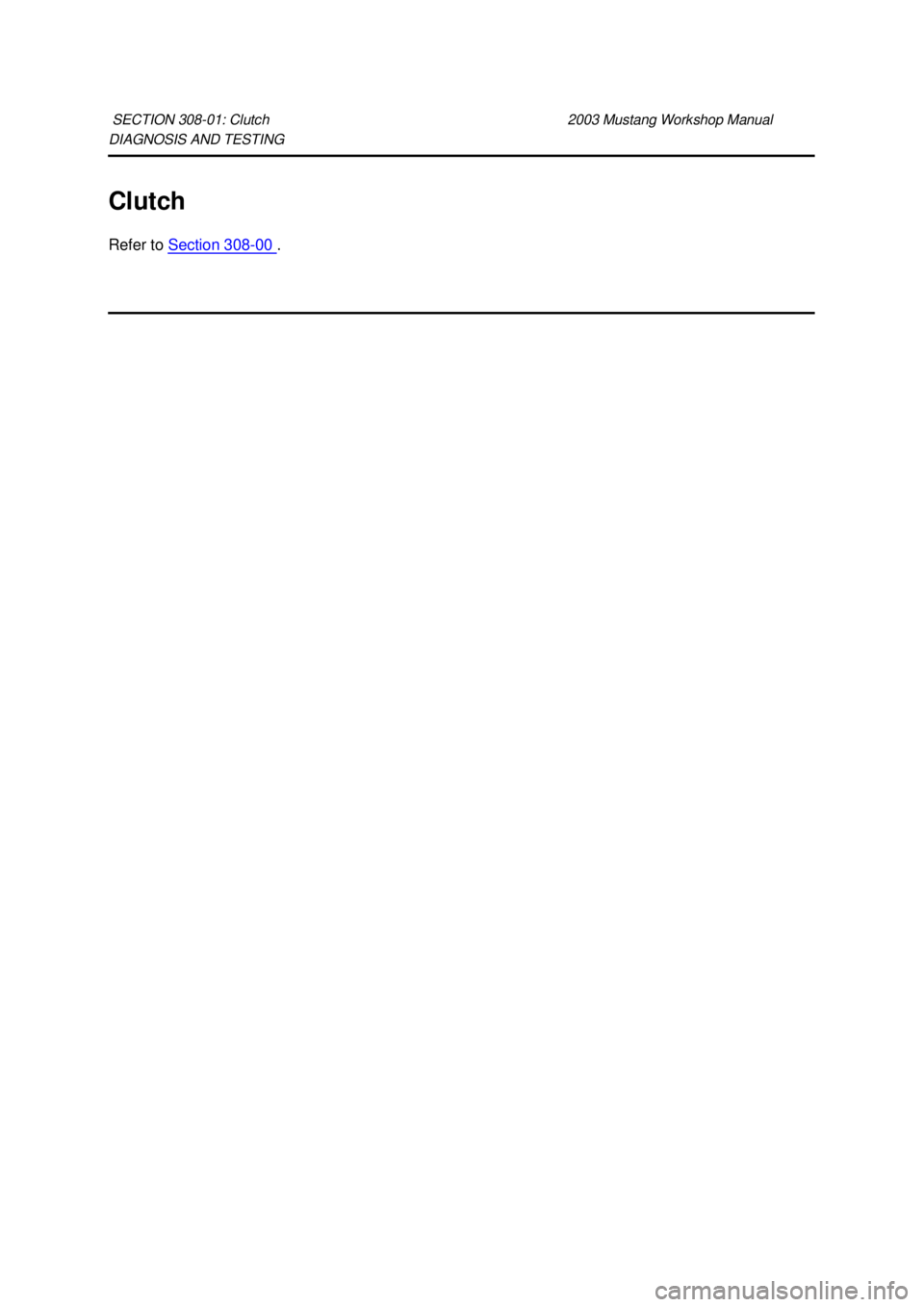

FORD MUSTANG 2003 Workshop Manual DIAGNOSIS AND TESTING Clutch Refer to Section 308 - 00 . SECTION 308- 01: Clutch 2003 Mustang Workshop Manual Klj . 1 ba 12003 Mustang Workshop Manual 18. 11. 2011file:///C:/Ford/2000 -

Page 2660 of 4378

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION Disc and Pressure Plate — 3.8L and 4.6L (2V) Engines 1. Remove the transmission. For additional information, refer to Section 308 - 03A (T5OD) or Section 308 - 03B (TR

Page 2661 of 4378

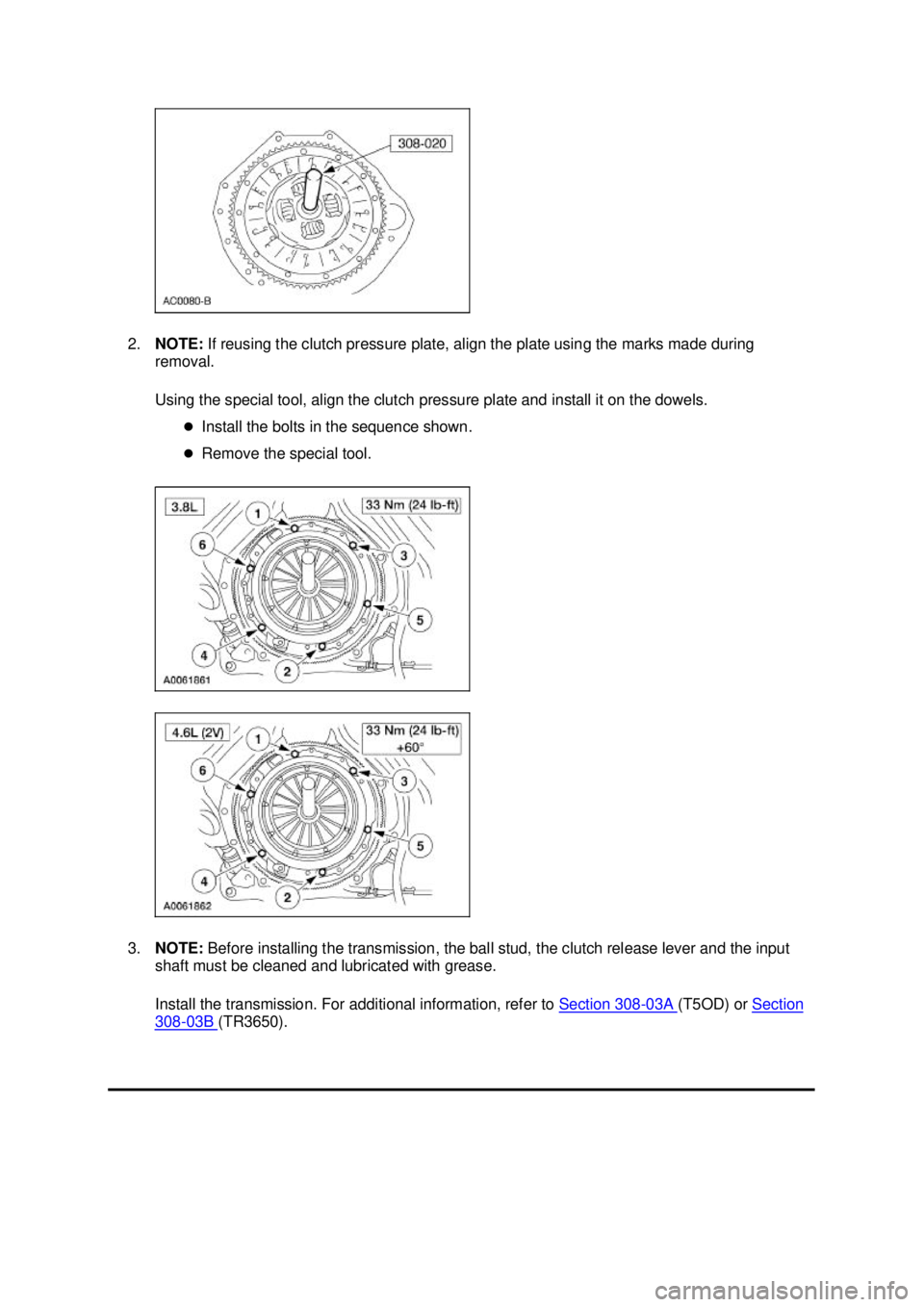

FORD MUSTANG 2003 Workshop Manual 2. NOTE: If reusing the clutch pressure plate, align the plate using the marks made during removal. Using the special tool, align the clutch pressure plate and install it on the dowels. �zInstall

Page 2662 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 3 ba 32003 Mustang Workshop Manual 18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...

Page 2663 of 4378

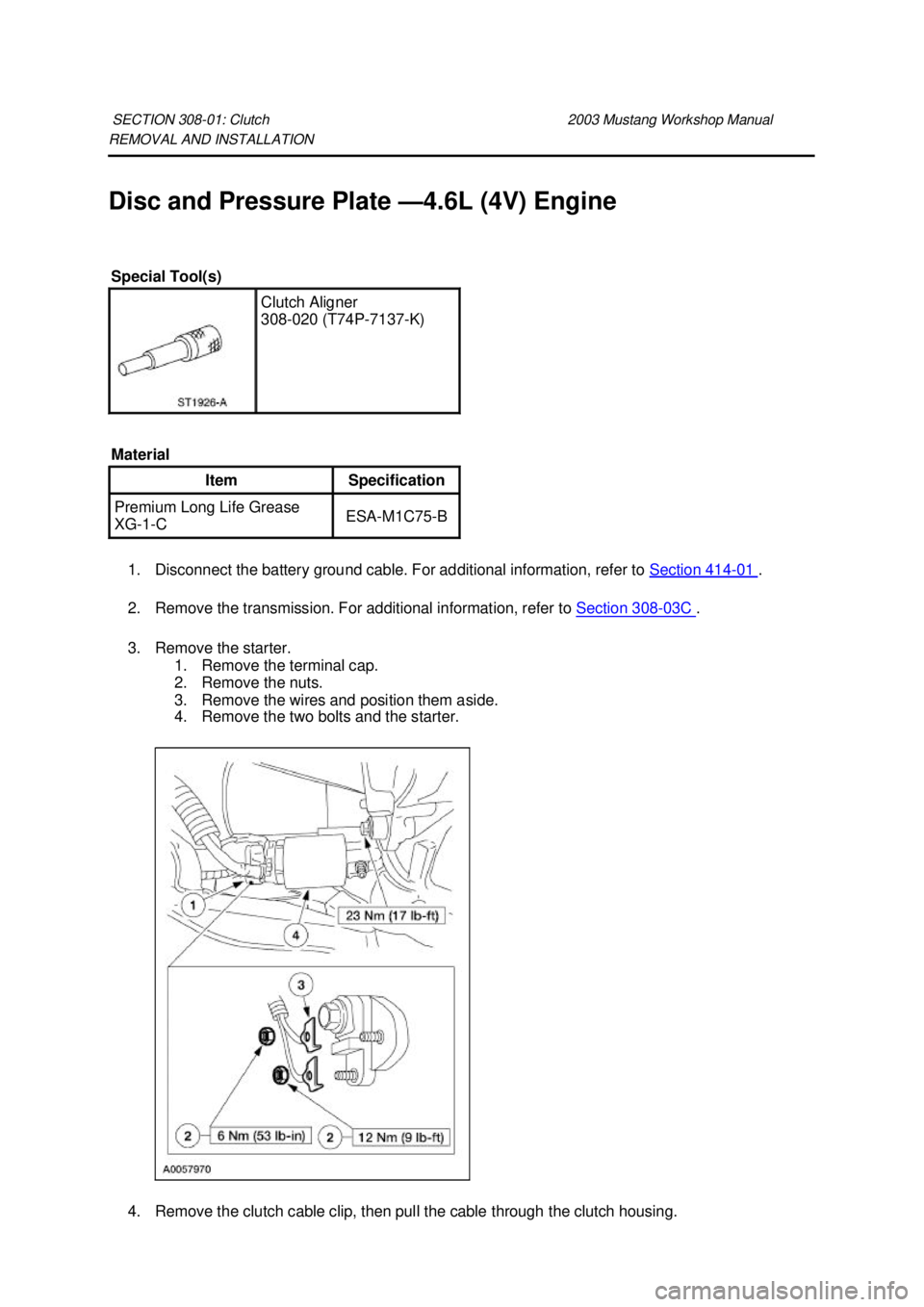

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION Disc and Pressure Plate — 4.6L (4V) Engine 1. Disconnect the battery ground cable. For additional information, refer to Section 414 - 01 . 2. Remove the transmission. F

Page 2664 of 4378

FORD MUSTANG 2003 Workshop Manual 5. Remove the two bolts and the inspection cover. 6. Remove the seven bolts and the clutch housing. 7. CAUTION: Loosen the bolts evenly to prevent damage to the pressure plate. NOTE: If the press
