Page 3905 of 4378

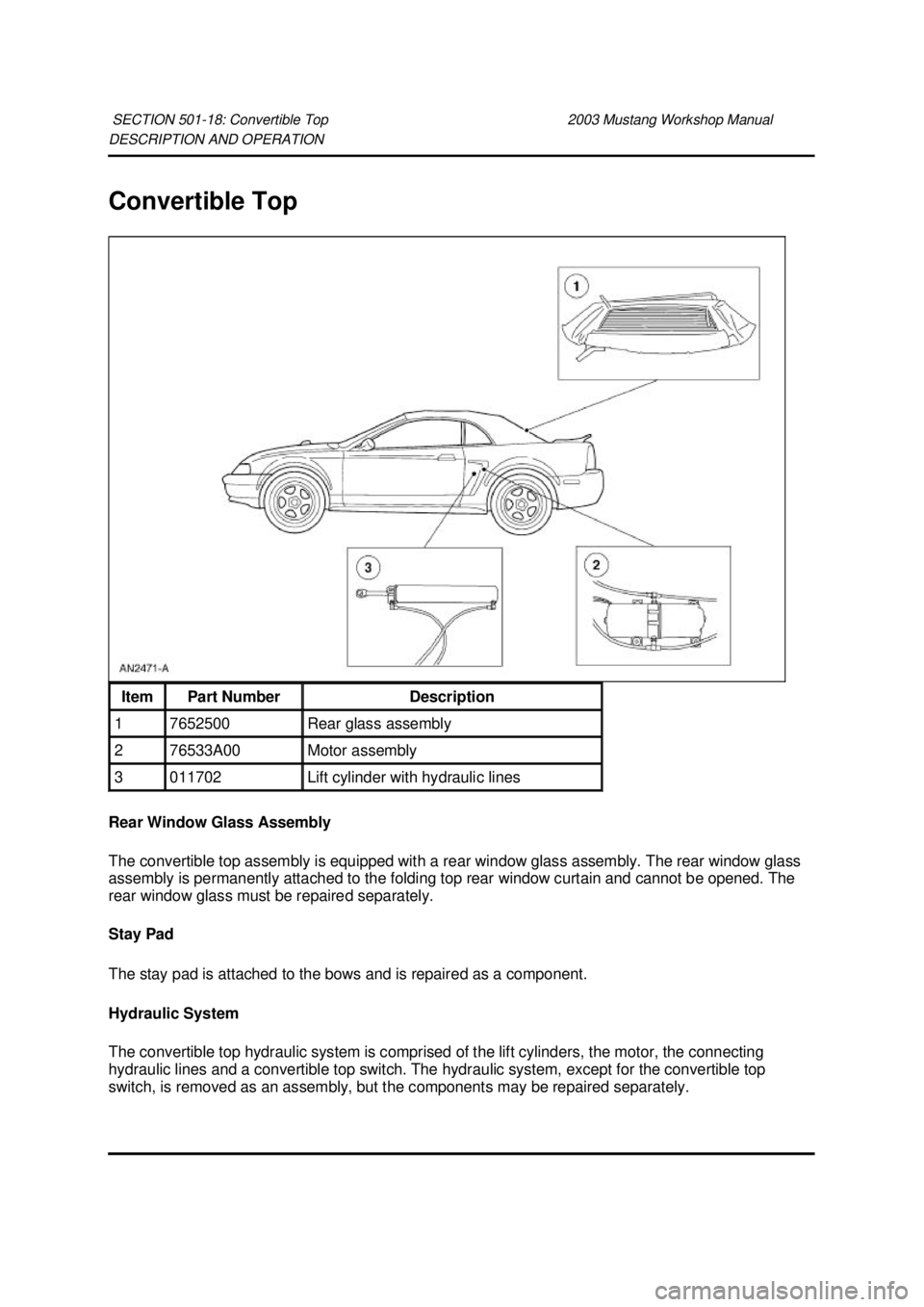

FORD MUSTANG 2003 Workshop Manual DESCRIPTION AND OPERATION Convertible Top Rear Window Glass Assembly The convertible top assembly is equipped with a rear window glass assembly. The rear window glass assembly is permanently attac

Page 3906 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 2 ba 22003 Mustang Workshop Manual 18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

Page 3907 of 4378

FORD MUSTANG 2003 Workshop Manual DIAGNOSIS AND TESTING Convertible Top Refer to Wiring Diagrams Cell 103 , for schematic and connector information. Principles of Operation The convertible top will only operate with the parking

Page 3908 of 4378

FORD MUSTANG 2003 Workshop Manual Symptom Chart PINPOINT TEST A: THE CONVERTIBLE TOP DOES NOT RAISE/LOWER SYMPTOM CHART Condition Possible Sources Action �z The convertible top does not raise/lower �z Convertible top switch.

Page 3909 of 4378

FORD MUSTANG 2003 Workshop Manual �z Is the voltage greater than 10 volts? A3 CHECK CIRCUIT 588 (VT) FOR AN OPEN �z Key in OFF position. �z Connect: Convertible Top Switch C3115. �z Disconnect: Raise Relay C4063. �z Key in ON pos

Page 3910 of 4378

FORD MUSTANG 2003 Workshop Manual circuit 588 (VT), harness side. �z Is the resistance less than 5 ohms? Top Switch in this section. TEST the system for normal operation. No REPAIR Circuit 588 (VT). TEST the system for norma

Page 3911 of 4378

FORD MUSTANG 2003 Workshop Manual �z Are the resistances greater than 10,000 ohms? A9 CHECK FOR PARKING BRAKE GROUND �z Measure the resistance between raise relay C4063 pin 86, circuit 977 (VT/WH), harness side and ground; and betw

Page 3912 of 4378

FORD MUSTANG 2003 Workshop Manual �z Is the resistance less than 5 ohms? A12 CHECK CIRCUIT 902 (YE) FOR AN OPEN �z Disconnect: Lower Relay C4064. �z Measure the resistance between lower relay C4064 pin 30, circuit 902 (YE), harnes
