Page 2969 of 4378

FORD MUSTANG 2003 Workshop Manual GENERAL PROCEDURES Fittings —R-Clip Disconnect WARNING: Do not smoke or carry lighted tobacco or open flame of any type when working on or near any fuel- related components. Highly flammable m

Page 2970 of 4378

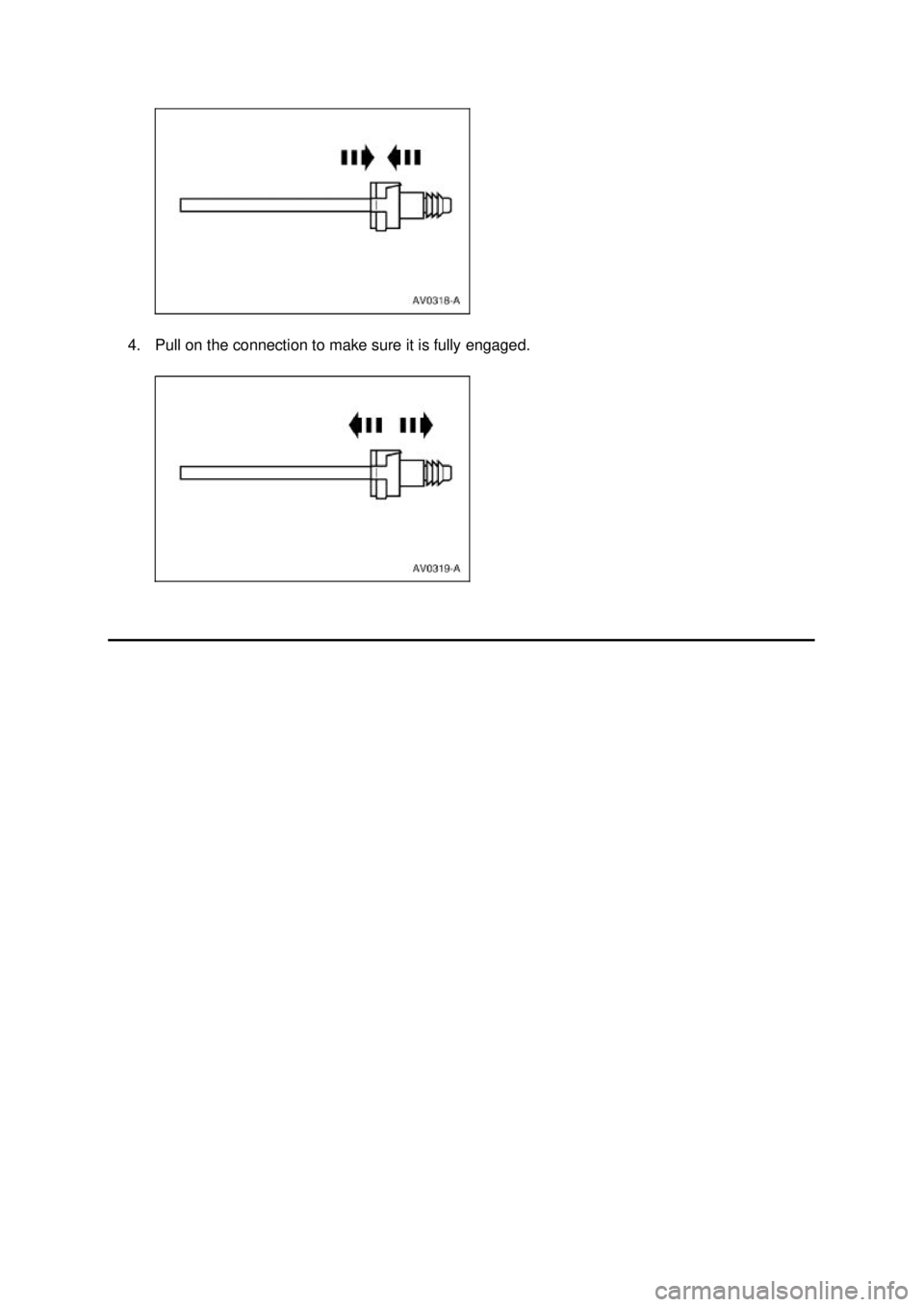

FORD MUSTANG 2003 Workshop Manual 4. Separate the fitting from the tube. Connect 1. NOTE: Apply a light coat of clean engine oil. Clean and inspect the fitting and the tube for damage. 2. Insert the R- clip into the fitting. 3.

Page 2971 of 4378

FORD MUSTANG 2003 Workshop Manual 4. Pull on the connection to make sure it is fully engaged. Klj . 3 ba 32003 Mustang Workshop Manual 18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...

Page 2972 of 4378

FORD MUSTANG 2003 Workshop Manual GENERAL PROCEDURES Fittings — Vapor Tube Disconnect 1. WARNING: The evaporative emission system contains fuel vapor and condensed fuel vapor. Although not present in large quantities, it still

Page 2973 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 2 ba 22003 Mustang Workshop Manual 18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...

Page 2974 of 4378

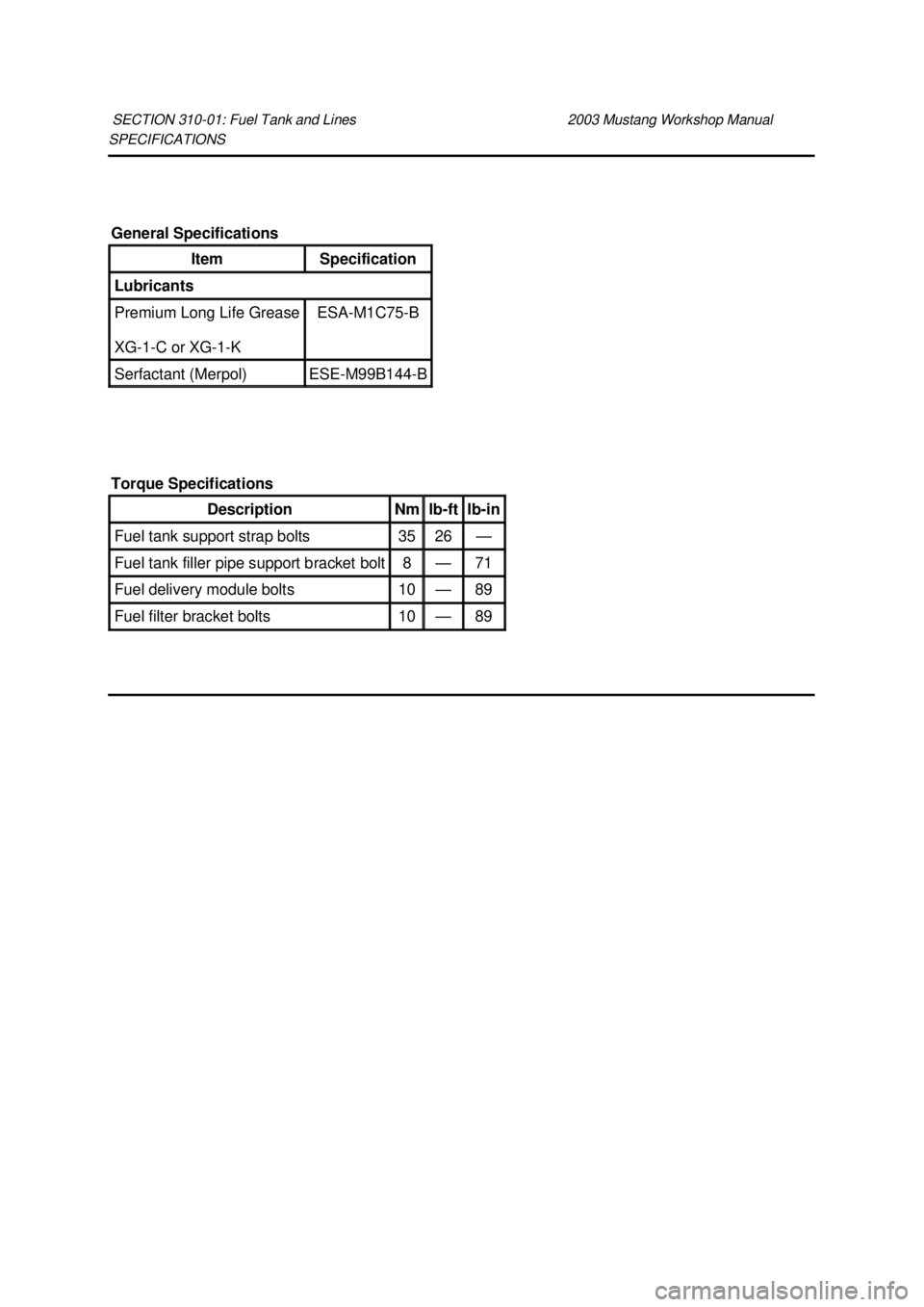

FORD MUSTANG 2003 Workshop Manual SPECIFICATIONS SECTION 310- 01: Fuel Tank and Lines 2003 Mustang Workshop Manual General Specifications Item Specification Lubricants Premium Long Life Grease XG -1-C or XG -1-K ESA- M1C75- B

Page 2975 of 4378

FORD MUSTANG 2003 Workshop Manual DESCRIPTION AND OPERATION Fuel Tank And Lines WARNING: Do not smoke, carry lighted tobacco or an open flame of any type when working on or near any fuel- related component. Highly flammable mixtur

Page 2976 of 4378

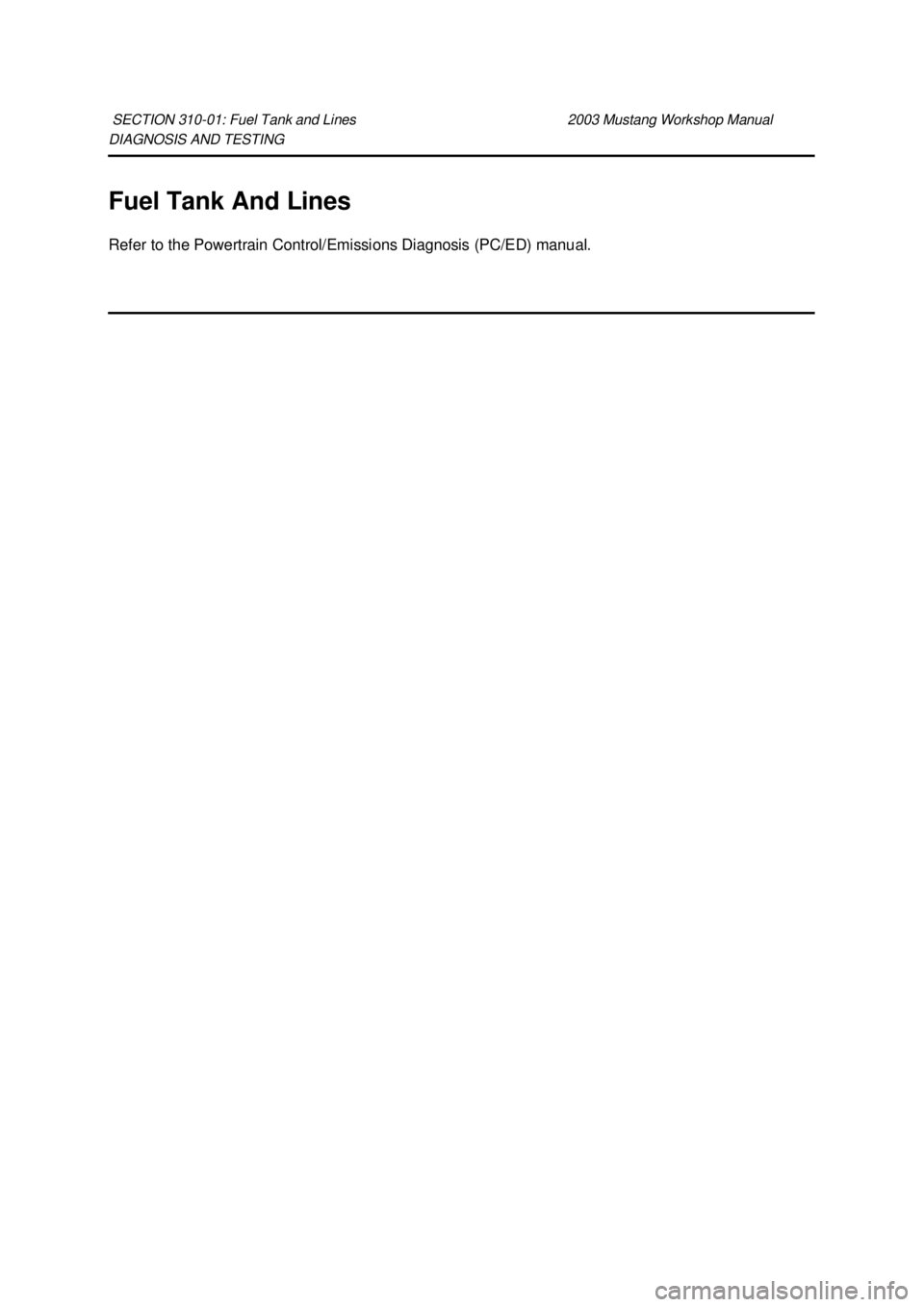

FORD MUSTANG 2003 Workshop Manual DIAGNOSIS AND TESTING Fuel Tank And Lines Refer to the Powertrain Control/Emissions Diagnosis (PC/ED) manual. SECTION 310- 01: Fuel Tank and Lines 2003 Mustang Workshop Manual Klj . 1 ba
