Page 425 of 4378

FORD MUSTANG 2003 Workshop Manual 6. Install the nut.
7.
NOTE: Clutch Pack Rebuild Kit F5AZ- 4947-A is available for this application.
Select and insert the thickest feeler gauge blade that will enter between the tool and the
diff

Page 426 of 4378

FORD MUSTANG 2003 Workshop Manual 11. Install the differential pinion gear and differential pinion thrust washer assemblies in the
differential case.
12. Using a soft- faced hammer, install the differential clutch spring.
13. Insta

Page 427 of 4378

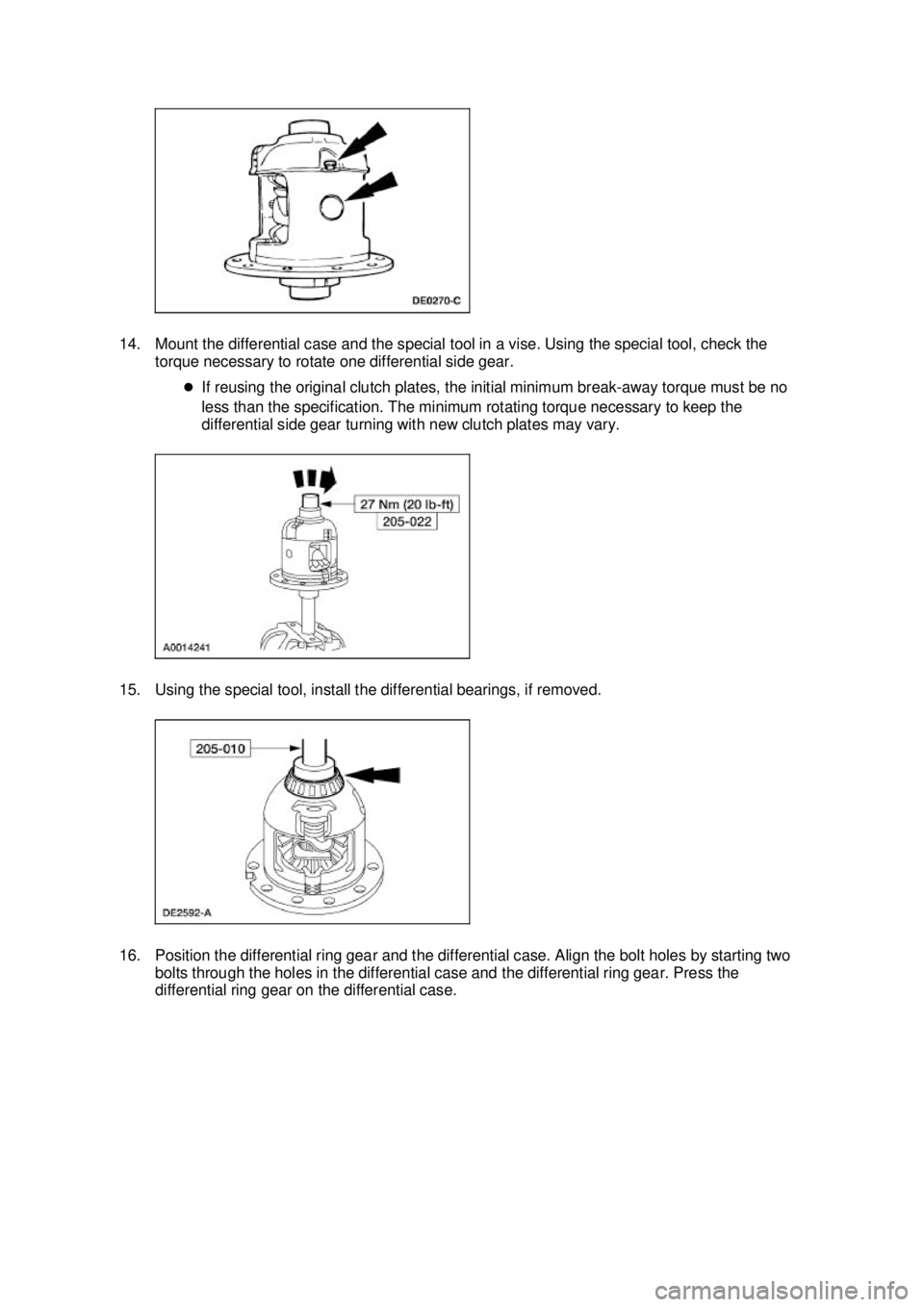

FORD MUSTANG 2003 Workshop Manual 14. Mount the differential case and the special tool in a vise. Using the special tool, check the
torque necessary to rotate one differential side gear.
�zIf reusing the original clutch plates, the

Page 428 of 4378

FORD MUSTANG 2003 Workshop Manual 17. Install the bolts.
�zApply Stud and Bearing Mount EOAZ-19554- BA or equivalent meeting Ford specification
WSK- M2G349- A1 to the bolt threads.
18. Install the differential assembly in the diffe

Page 429 of 4378

FORD MUSTANG 2003 Workshop Manual SPECIFICATIONS
SECTION 205-
02C: Rear Drive Axle/Differential — Ford 8.8-Inch IRS 2003 Mustang Workshop Manual General Specifications
Item Specification
Lubricants/Adhesive/Sealants
Premium L

Page 430 of 4378

FORD MUSTANG 2003 Workshop Manual a
Use Stud and Bearing Mount EOAZ-19554- BA or equivalent meeting Ford specification WSK-
M2G349- A1.
b With pinion flange yoke seal. Pinion nose crossmember nut 250 184 —
Toe link nut 47 3

Page 431 of 4378

FORD MUSTANG 2003 Workshop Manual DESCRIPTION AND OPERATION
Rear Drive Axle and Differential
SECTION 205-
02C: Rear Drive Axle/Differential — Ford 8.8-Inch IRS 2003 Mustang Workshop Manual Item Part
Number Description
1 406

Page 432 of 4378

FORD MUSTANG 2003 Workshop Manual �z
The differential housing (4010) consists of a cast aluminum housing and a cast aluminum
differential housing cover (4033). The differential housing cover uses silicone sealant as a
gasket.
�z Th

z
The differential housing (4010) consists of a cast aluminum housing and a cast aluminum
differential housing cover (4033). The differential housing cover uses silicone sealant as a
gasket.
z The hypoid- design gearset consists of a 8.8- inch differential ring gear and a drive pinion gear.
Two opposed pinion bearings (4621) (4630) support the drive pinion gear in the differential
housing.
z A differential drive pinion collapsible spacer (4662), located on the drive pinion gear shaft,
maintains pinion bearing preload. The pinion nut adjusts the preload.
z Differential bearing shims (4067), located between the differential bearing cups (4222) and the
differential housing, adjust the differential ring gear backlash and the differential bearing
preload.
z The differential case (4204) is a one- piece design with two openings to allow for assembly of
the internal components and lubricant flow. Two opposed differential bearings (4221) support
the differential case in the differential housing. Removable differential bearing caps retain the
differential assembly in the differential housing.
z Inside the differential case, the differential pinion shaft (4211) supports two differential pinion
gears (4215). The pinion gears engage the differential side gears (4236), to which the halfshafts 10 4033 Differential housing cover
11 4B416 Inboard CV joint stub shaft pilot bearing housing
seal
12 4B413 Inboard CV joint stub shaft pilot bearing
13 4010 Differential housing
14 4662 Differential drive pinion collapsible spacer
15 4670 Rear axle drive pinion shaft oil slinger
16 4851 Rear axle pinion flange
17 389546-
S100 Pinion nut
18 4859 Drive pinion oil seal deflector
19 4676 Rear axle drive pinion seal
20 4621 Pinion bearing
21 4616 Differential drive pinion bearing cup
22 56187-
S Bolt
23 — Drive pinion gear (part of 4209)
24 — Differential bearing cap
(part of 4010)
25 4628 Rear axle pinion bearing cup
26 4630 Pinion bearing
27 4663 Drive pinion bearing adjustment shim
28 4A321 Rear axle differential clutch shim
29 — Clutch plate (part of 4947)
30 — Clutch disc (part of 4947)
31 4236 Differential side gear
32 4214 Differential clutch spring
33 4215 Differential pinion gear
34 4947 Differential clutch pack Klj . 2 ba
32003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...
