Page 2721 of 4378

FORD MUSTANG 2003 Workshop Manual 2. Assemble the gear shifter forks. 1. Install the gear shift plate into the gear shifter fork. 2. Install the gear shift fork inserts. 3. NOTE: Position the narrow side of the C- shaped gear sele

Page 2722 of 4378

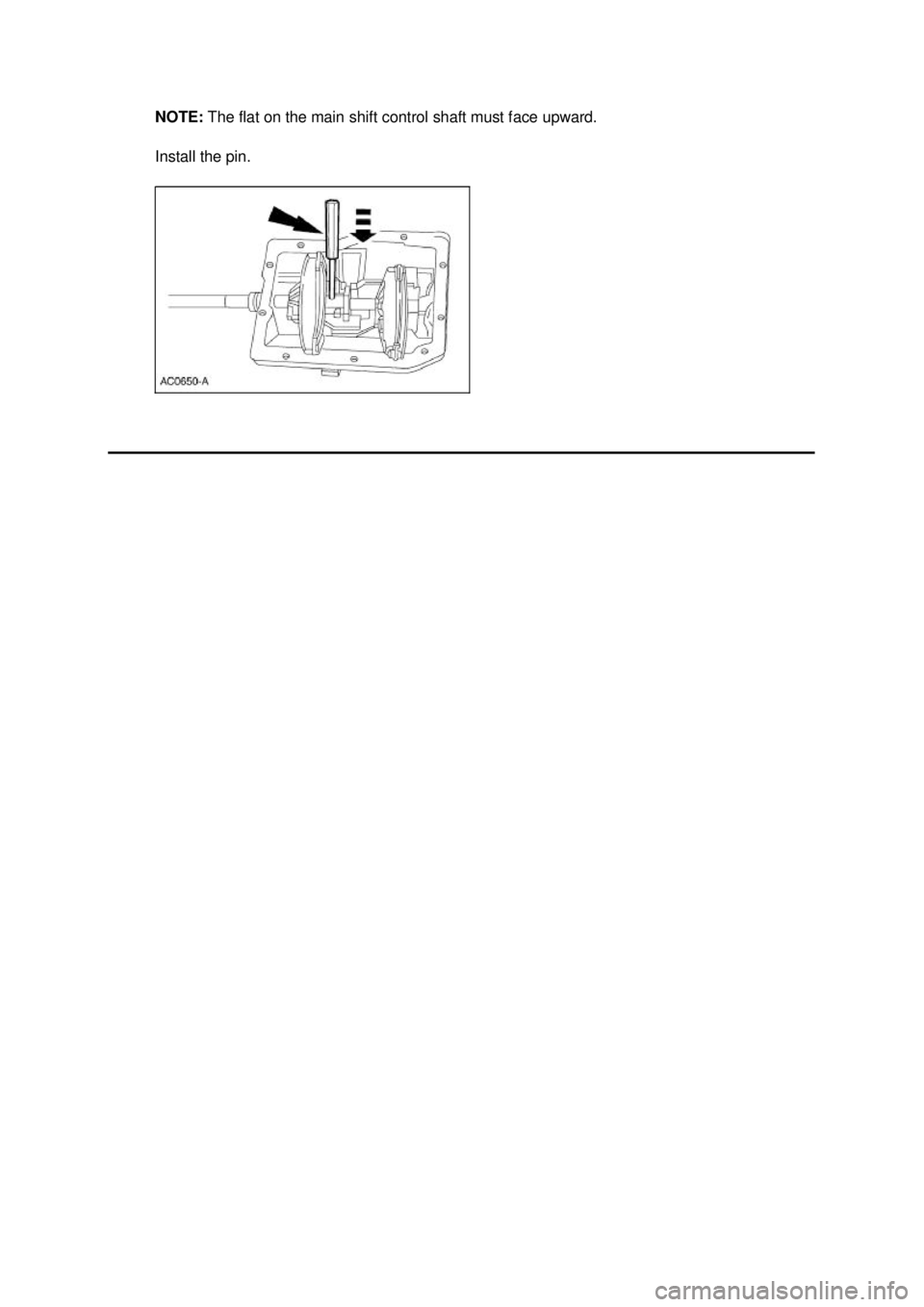

FORD MUSTANG 2003 Workshop Manual NOTE: The flat on the main shift control shaft must face upward. Install the pin. Klj . 4 ba 42003 Mustang Workshop Manual 18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~

Page 2723 of 4378

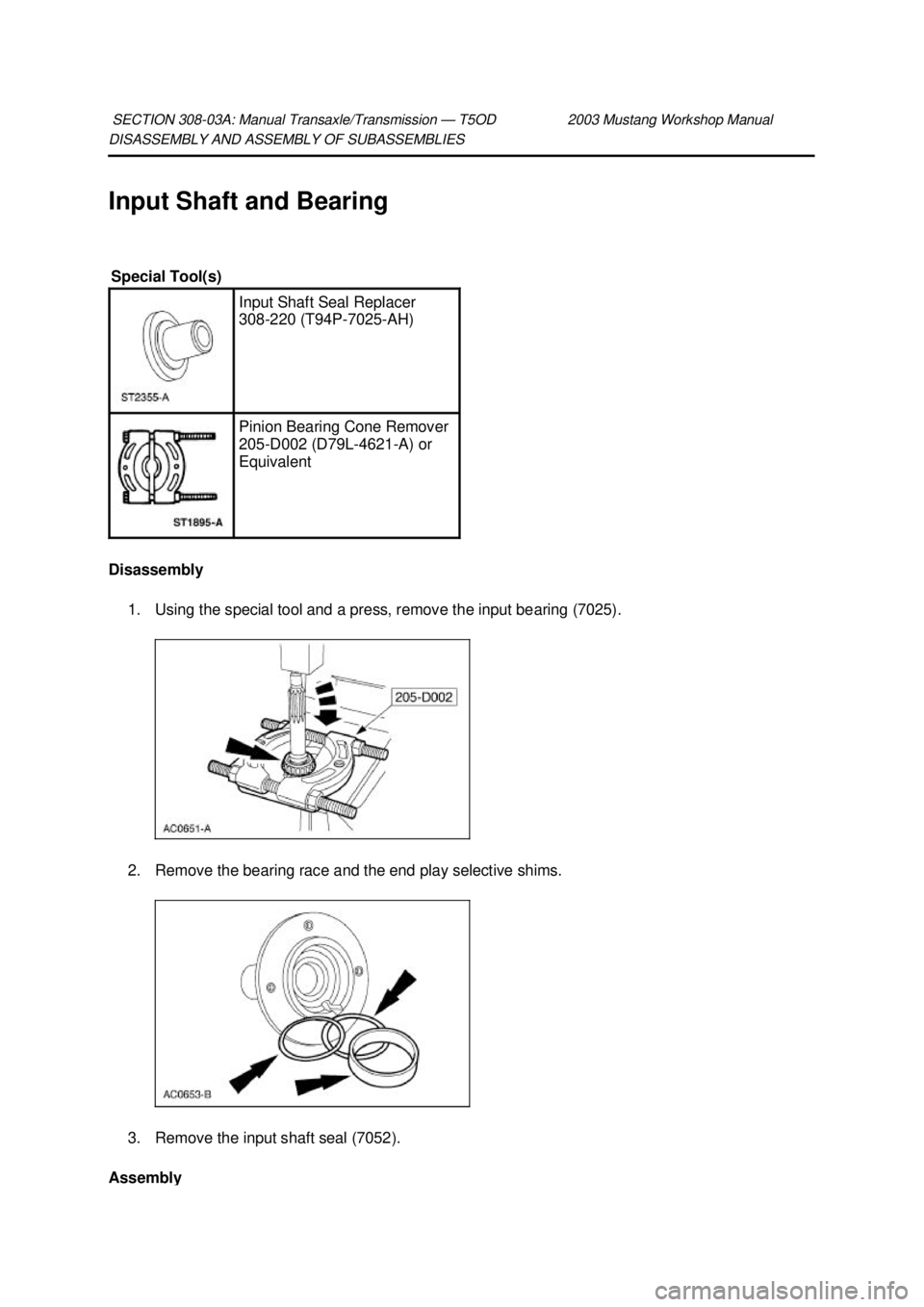

FORD MUSTANG 2003 Workshop Manual DISASSEMBLY AND ASSEMBLY OF SUBASSEMBLIES Input Shaft and Bearing Disassembly 1. Using the special tool and a press, remove the input bearing (7025). 2. Remove the bearing race and the end play se

Page 2724 of 4378

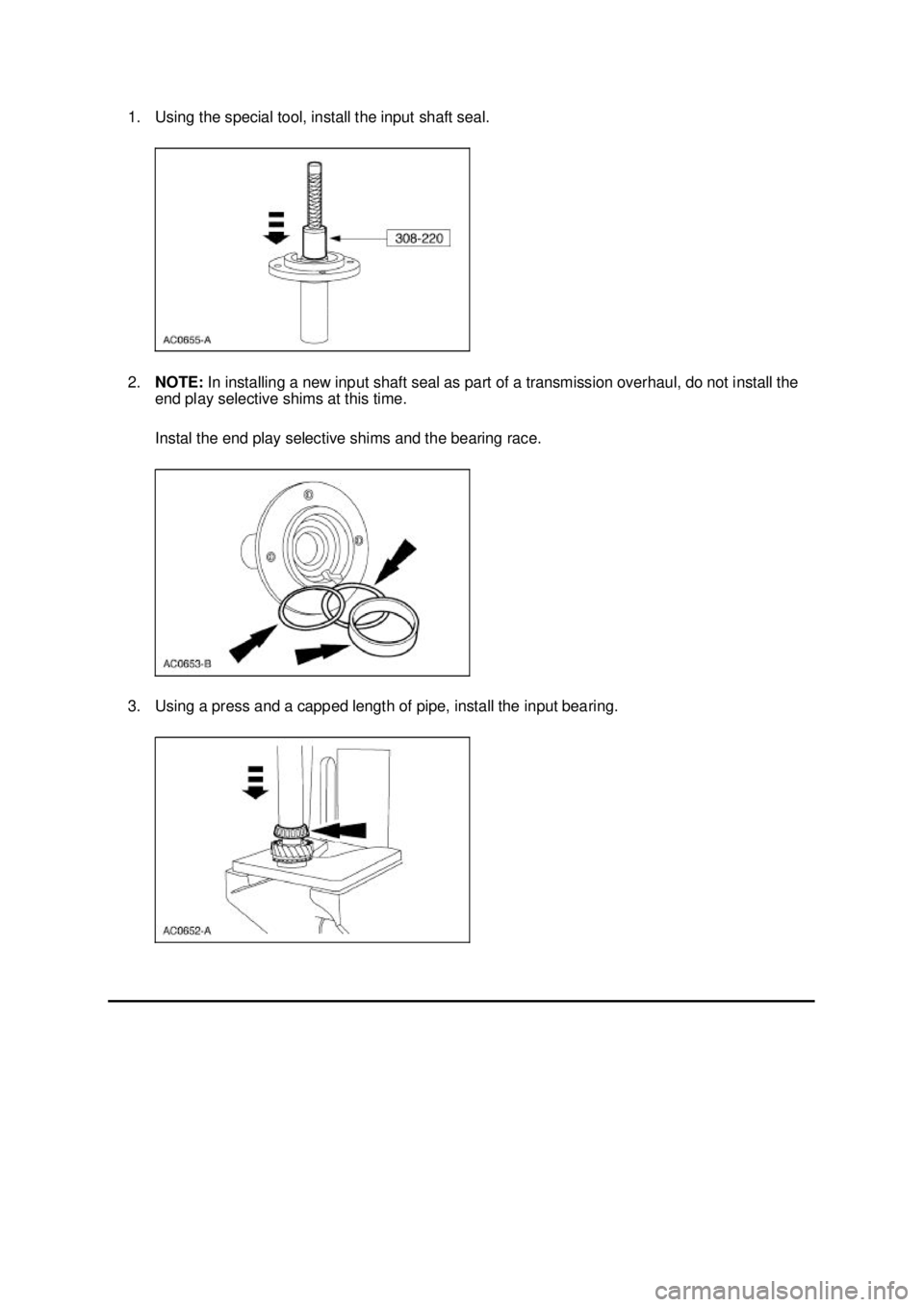

FORD MUSTANG 2003 Workshop Manual 1. Using the special tool, install the input shaft seal. 2. NOTE: In installing a new input shaft seal as part of a transmission overhaul, do not install the end play selective shims at this time.

Page 2725 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 3 ba 32003 Mustang Workshop Manual 18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...

Page 2726 of 4378

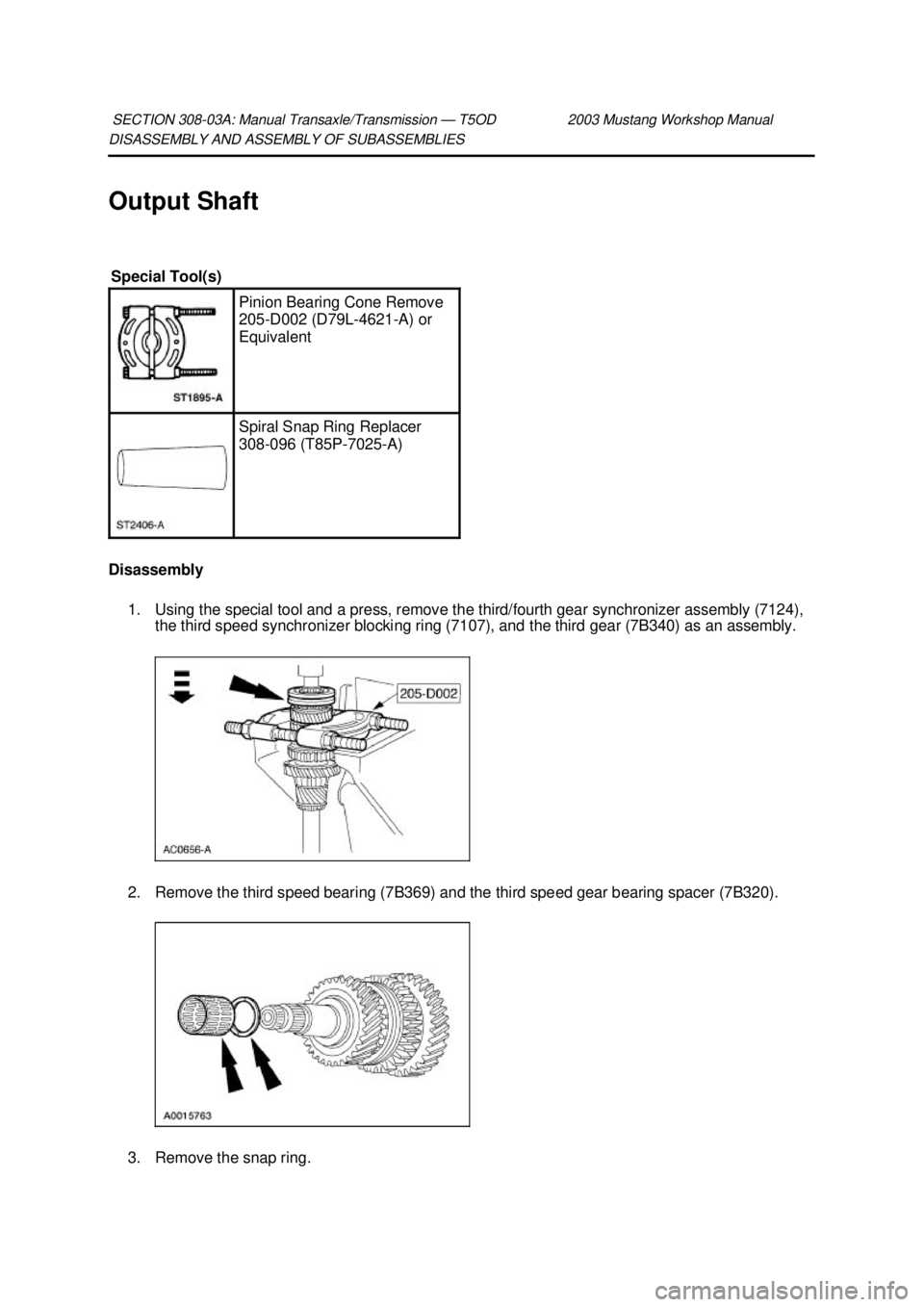

FORD MUSTANG 2003 Workshop Manual DISASSEMBLY AND ASSEMBLY OF SUBASSEMBLIES Output Shaft Disassembly 1. Using the special tool and a press, remove the third/fourth gear synchronizer assembly (7124), the third speed synchronizer bl

Page 2727 of 4378

FORD MUSTANG 2003 Workshop Manual 4. Using the special tool and a press, remove the fifth speed driven gear (7K316). 5. Remove the output shaft rear bearing (7065). 6. Remove the first gear (7100). 7. NOTE: The first gear bearing

Page 2728 of 4378

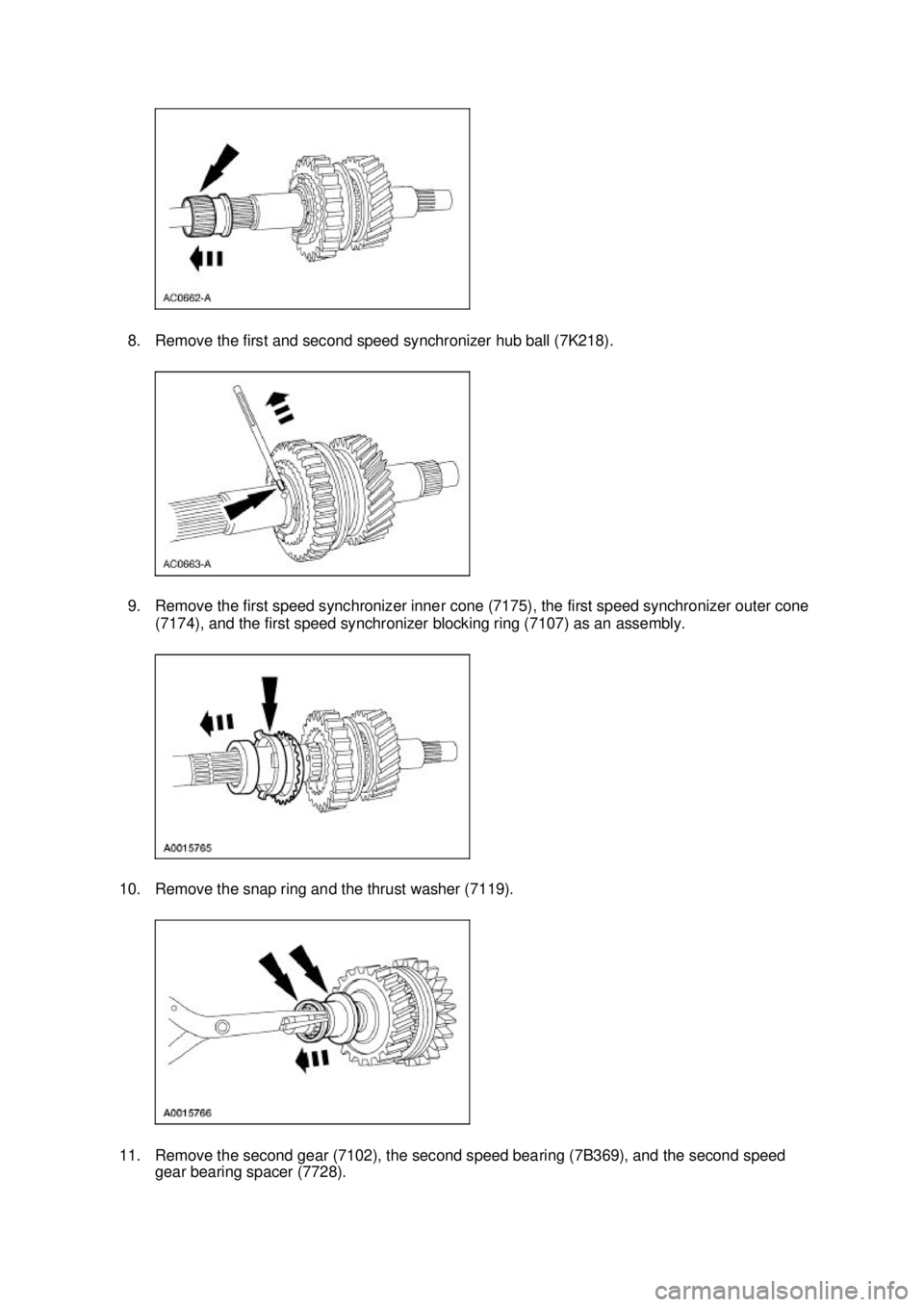

FORD MUSTANG 2003 Workshop Manual 8. Remove the first and second speed synchronizer hub ball (7K218). 9. Remove the first speed synchronizer inner cone (7175), the first speed synchronizer outer cone (7174), and the first speed sync
