Page 1641 of 4378

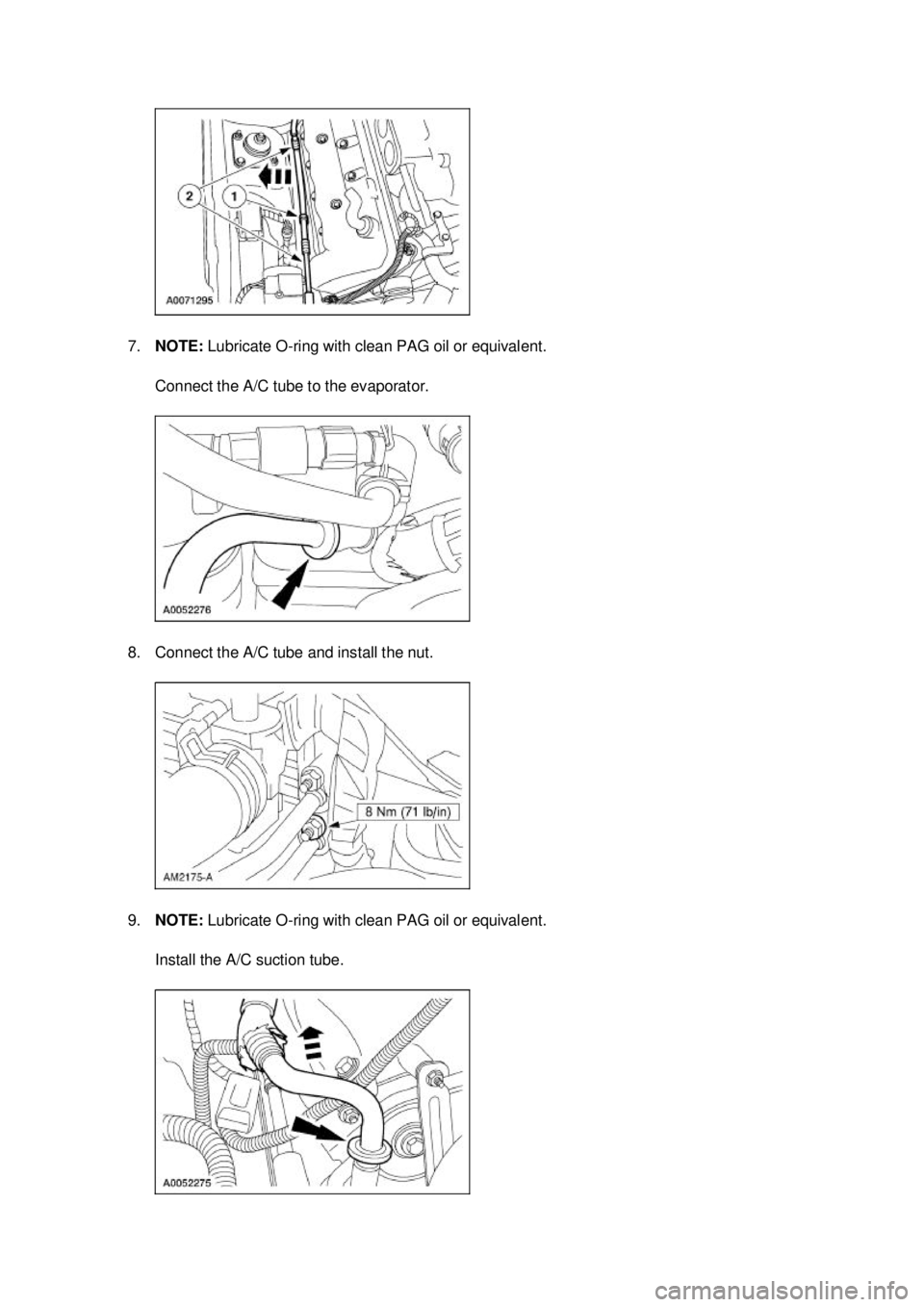

FORD MUSTANG 2003 Workshop Manual 7. NOTE: Lubricate O- ring with clean PAG oil or equivalent. Connect the A/C tube to the evaporator. 8. Connect the A/C tube and install the nut. 9. NOTE: Lubricate O- ring with clean PAG oil or

Page 1642 of 4378

FORD MUSTANG 2003 Workshop Manual 10. NOTE: Lubricate O- ring with clean PAG oil or equivalent. Connect the A/C suction tube to the accumulator. 11. Connect the heater hose. 12. Install the throttle body. For additional informatio

Page 1643 of 4378

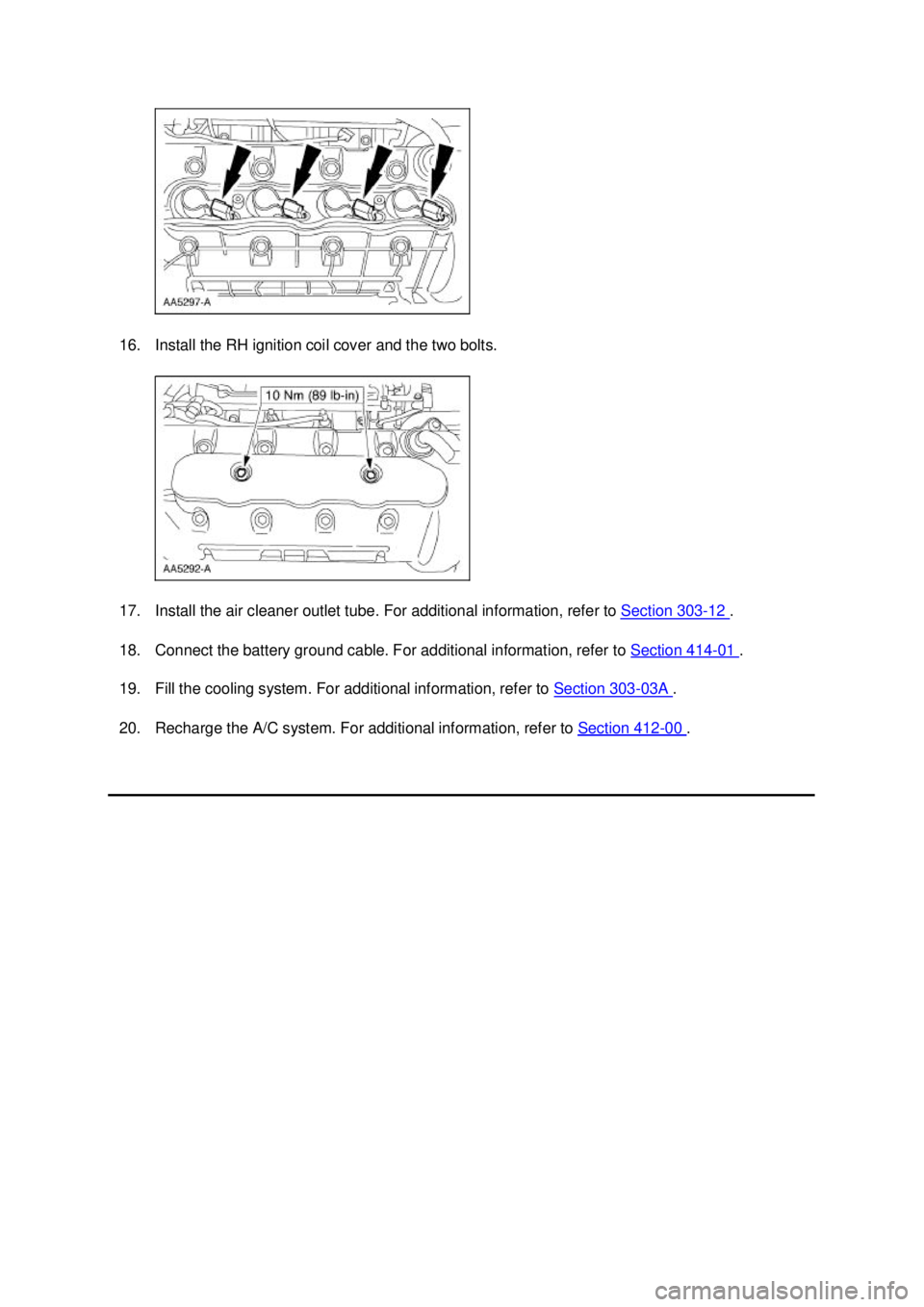

FORD MUSTANG 2003 Workshop Manual 16. Install the RH ignition coil cover and the two bolts. 17. Install the air cleaner outlet tube. For additional information, refer to Section 303 - 12 . 18. Connect the battery ground cable. For

Page 1644 of 4378

FORD MUSTANG 2003 Workshop Manual IN- VEHICLE REPAIR Valve Cover LH Removal All vehicles 1. Remove the air intake scoop. For additional information, refer to Section 303 - 12 . 2. Remove the Hydro- Boost brake booster. For addi

Page 1645 of 4378

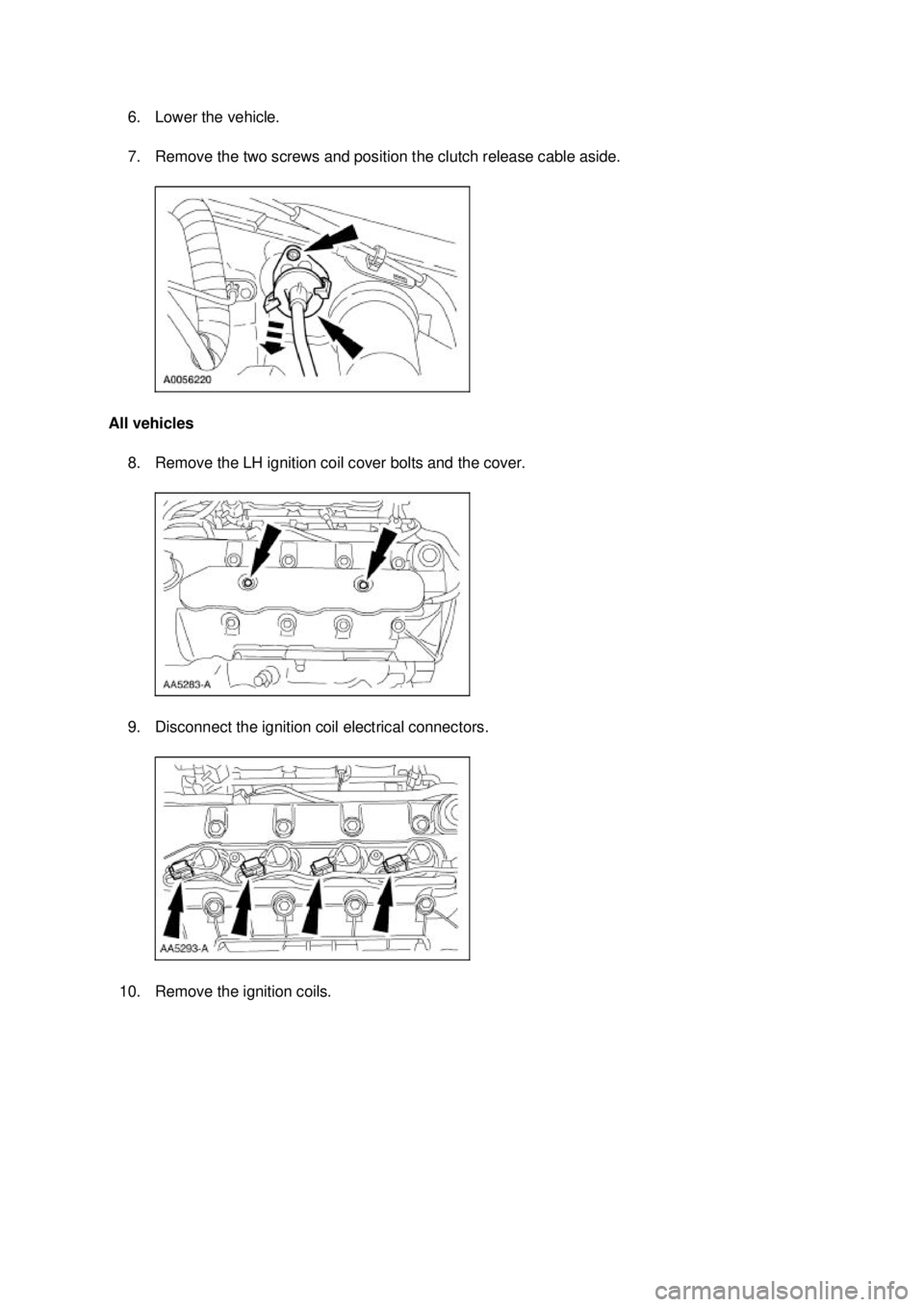

FORD MUSTANG 2003 Workshop Manual 6. Lower the vehicle. 7. Remove the two screws and position the clutch release cable aside. All vehicles 8. Remove the LH ignition coil cover bolts and the cover. 9. Disconnect the ignition coil e

Page 1646 of 4378

FORD MUSTANG 2003 Workshop Manual 11. Remove the bolt and position the oil level indicator tube aside. 12. Disconnect the positive crankcase ventilation (PCV) valve hose and the electrical connector. 13. Disconnect the wiring harnes

Page 1647 of 4378

FORD MUSTANG 2003 Workshop Manual 15. CAUTION: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges which make leak paths. Use a

Page 1648 of 4378

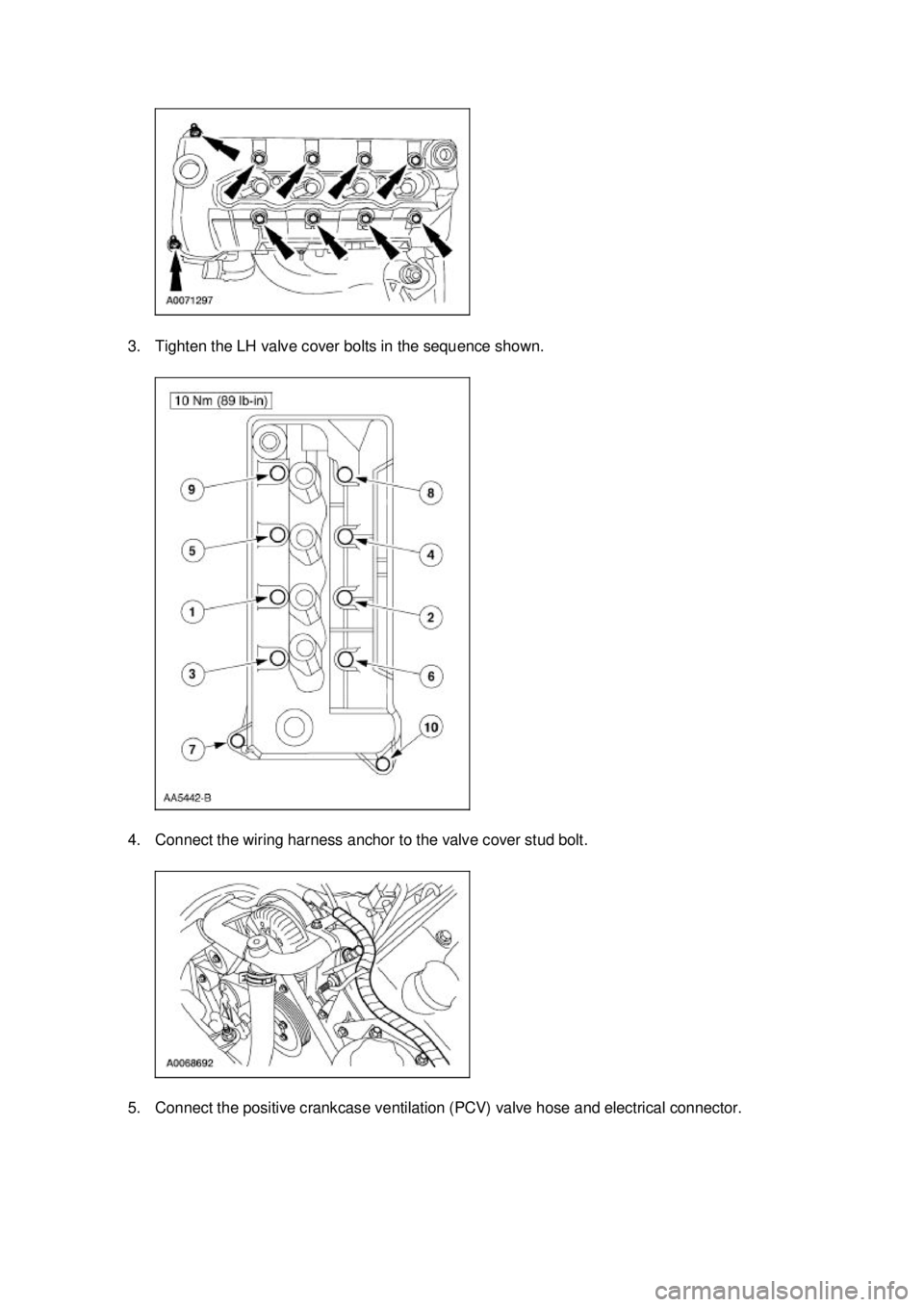

FORD MUSTANG 2003 Workshop Manual 3. Tighten the LH valve cover bolts in the sequence shown. 4. Connect the wiring harness anchor to the valve cover stud bolt. 5. Connect the positive crankcase ventilation (PCV) valve hose and elect
