Page 1505 of 4378

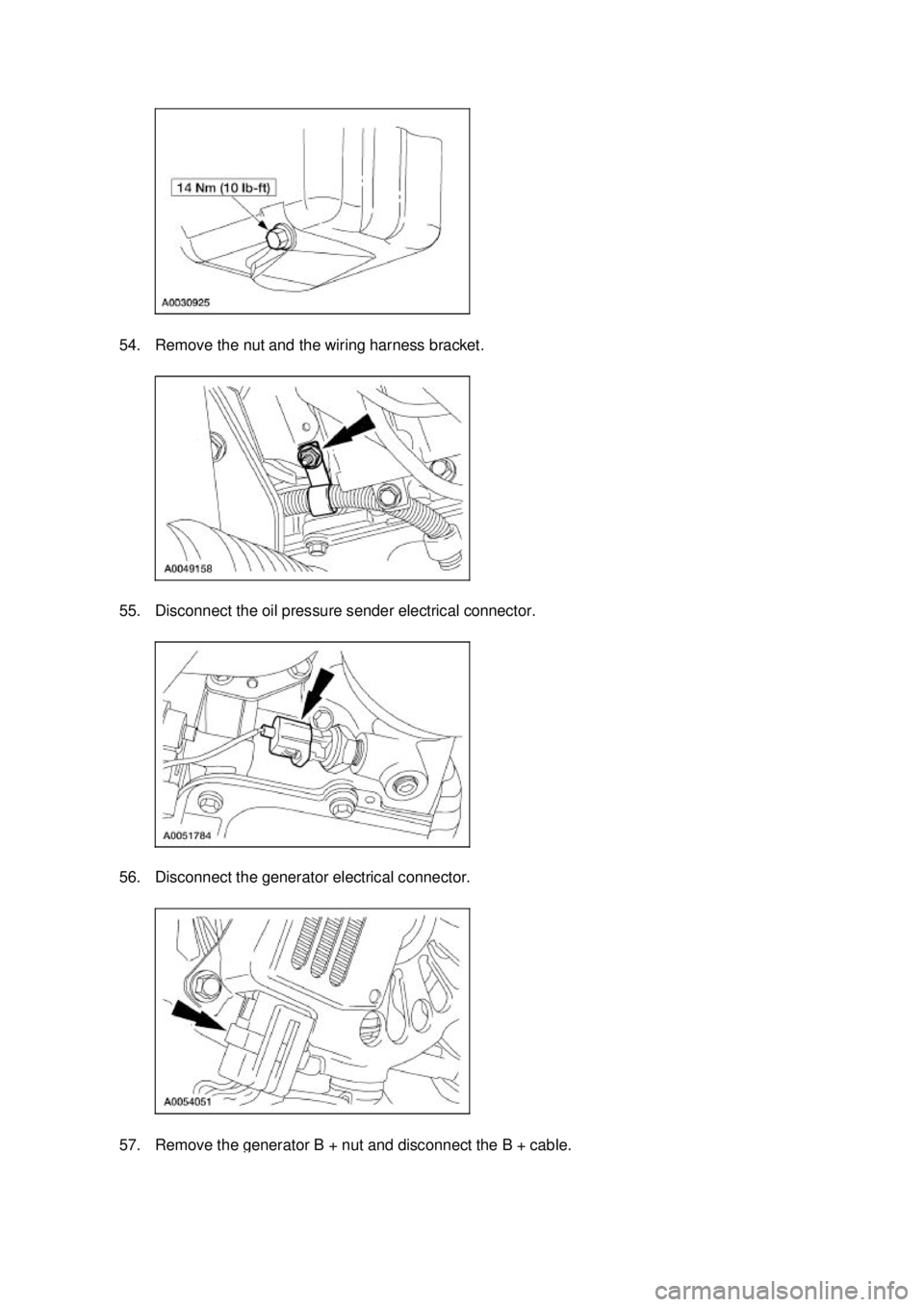

FORD MUSTANG 2003 Workshop Manual 54. Remove the nut and the wiring harness bracket. 55. Disconnect the oil pressure sender electrical connector. 56. Disconnect the generator electrical connector. 57. Remove the generator B + nut a

Page 1506 of 4378

FORD MUSTANG 2003 Workshop Manual 58. Remove the nut and the engine ground cable. 59. Disconnect the hose from the oil filter adapter. 60. Disconnect and remove the lower hose from the radiator. 61. Remove the ground strap bolt.

Page 1507 of 4378

FORD MUSTANG 2003 Workshop Manual 62. Remove the degas bottle support bracket. 63. NOTE: RH side shown, LH side similar. Remove the two engine mount nuts. 64. Lower the vehicle. 65. Remove the two screws and position the clutch c

Page 1508 of 4378

FORD MUSTANG 2003 Workshop Manual 66. NOTE: RH is shown LH is similar. Remove the right and left ignition coil covers. 67. Install the special tool. 68. Install the special tool. 69. Attach the special tool to a floor crane and t

Page 1509 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 17 ba 172003 Mustang Workshop Manual 17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

Page 1510 of 4378

FORD MUSTANG 2003 Workshop Manual DISASSEMBLY Engine SECTION 303- 01C: Engine — Cobra 4.6L (4V) 2003 Mustang Workshop Manual Special Tool(s) Slide Hammer 100- 001 (T50T-100- A) Remover, Crankshaft Vibration Damper 303- 009 (

Page 1511 of 4378

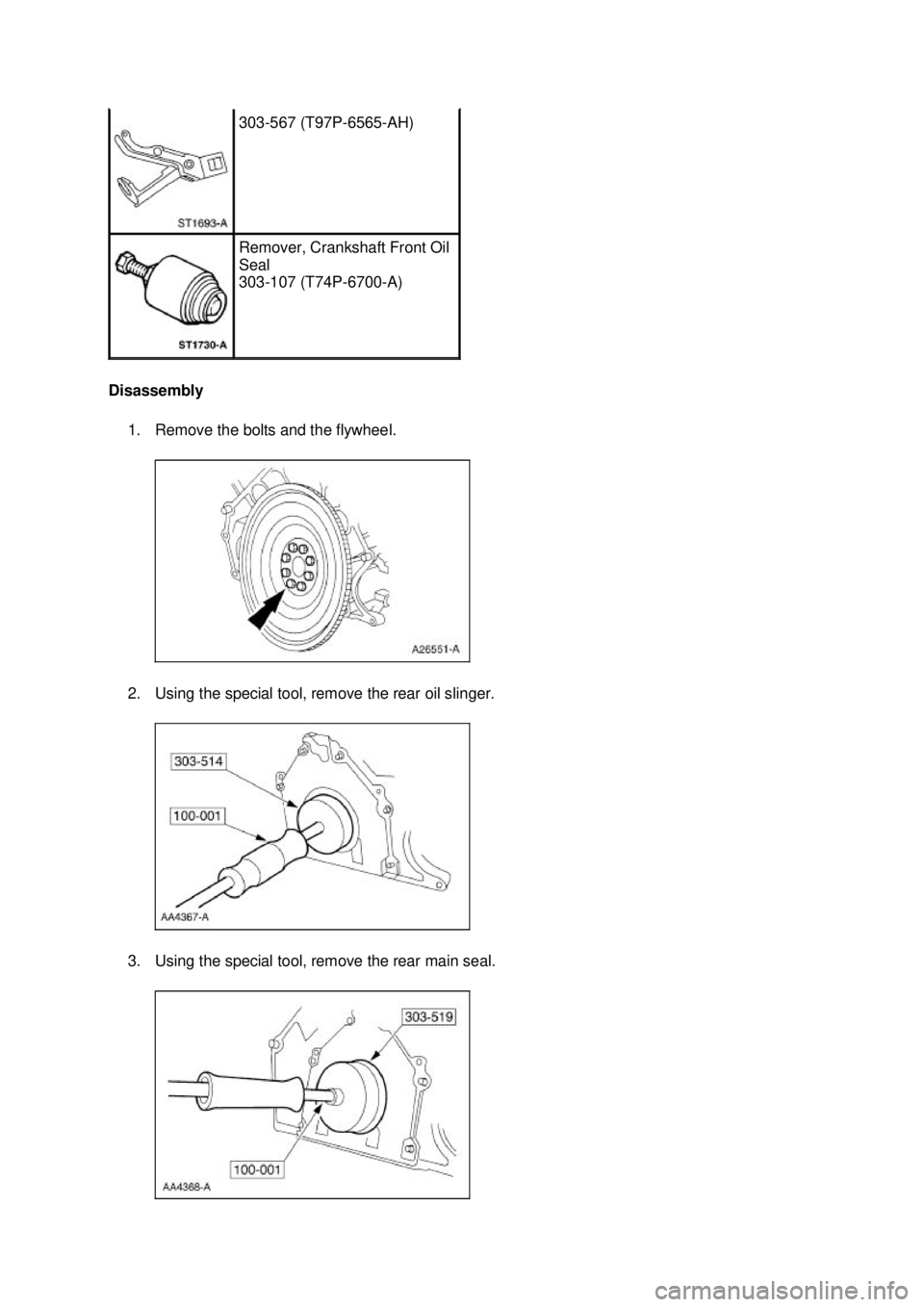

FORD MUSTANG 2003 Workshop Manual Disassembly 1. Remove the bolts and the flywheel. 2. Using the special tool, remove the rear oil slinger. 3. Using the special tool, remove the rear main seal. 303- 567 (T97P-6565- AH) Remover, C

Page 1512 of 4378

FORD MUSTANG 2003 Workshop Manual 4. Remove the bolts and the rear seal retainer plate. 5. Mount the engine on a workstand. 6. Remove the special tools. 7. Remove the drain plug and drain the engine coolant. 8. Disconnect the elec
