Page 2601 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 2 ba 22003 Mustang Workshop Manual 18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...

Page 2602 of 4378

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION Brake Shift Interlock Actuator Removal 1. Remove the shifter top control panel. 2. Disconnect the electrical connectors. 3. Remove the shifter bezel. 4. Remove the bulb

Page 2603 of 4378

FORD MUSTANG 2003 Workshop Manual 5. Disconnect the electrical connector. 6. CAUTION: Extra force may be needed to lift up on the handle. Do not to pull too far or damage to the overdrive cancel button may result, as the wires may

Page 2604 of 4378

FORD MUSTANG 2003 Workshop Manual 8. Disconnect the shift interlock cable. 9. Remove the instrument panel steering column cover. 1. Remove the screws. 2. Remove the instrument panel steering column cover. 10. Remove the instrument

Page 2605 of 4378

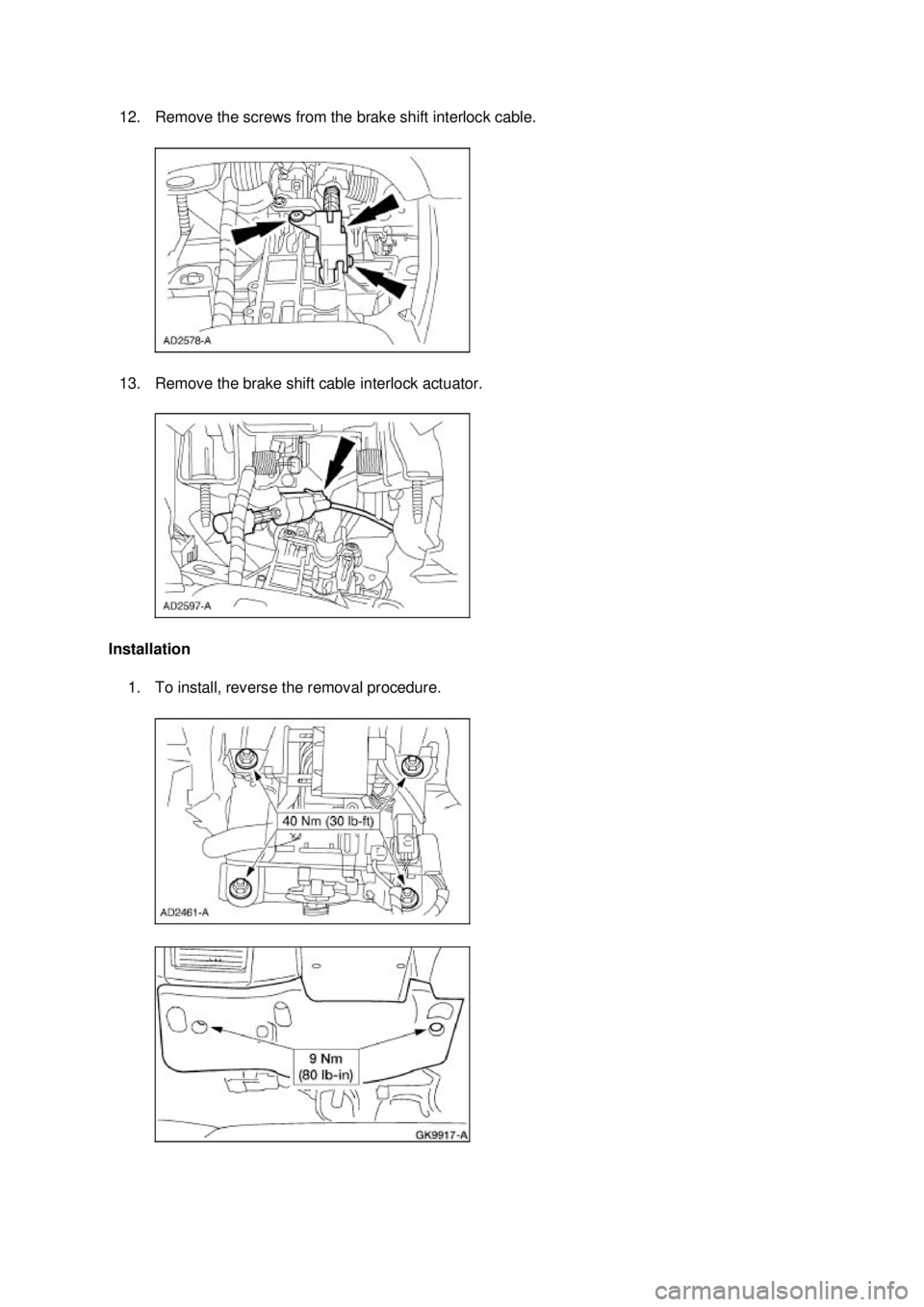

FORD MUSTANG 2003 Workshop Manual 12. Remove the screws from the brake shift interlock cable. 13. Remove the brake shift cable interlock actuator. Installation 1. To install, reverse the removal procedure. Klj . 4 ba 52003

Page 2606 of 4378

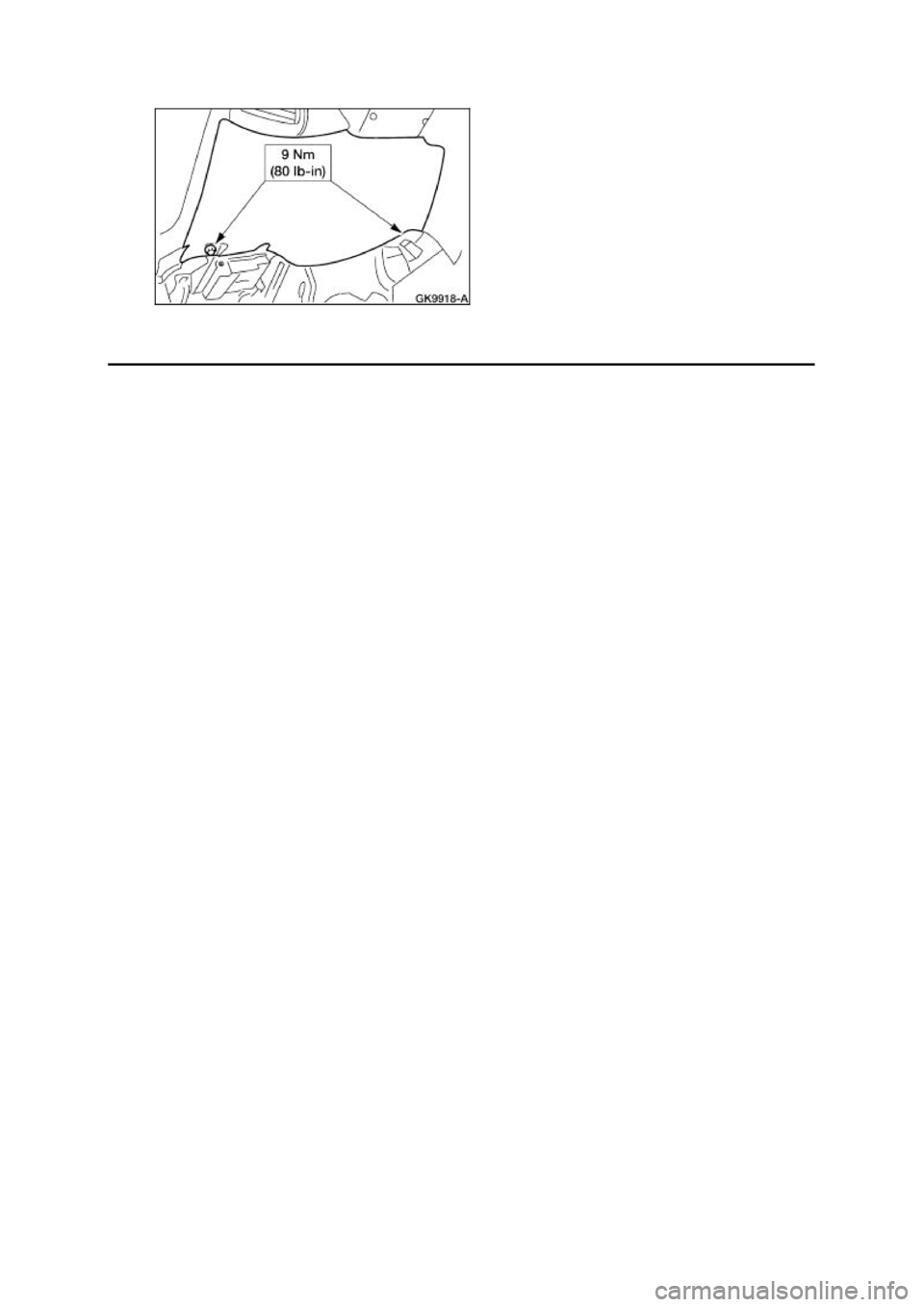

FORD MUSTANG 2003 Workshop Manual Klj . 5 ba 52003 Mustang Workshop Manual 18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...

Page 2607 of 4378

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION Cable and Bracket Removal 1. Raise the vehicle on a hoist. For additional information, refer to Section 100 - 02 . 2. Remove the cable shift from the shifter lever and b

Page 2608 of 4378

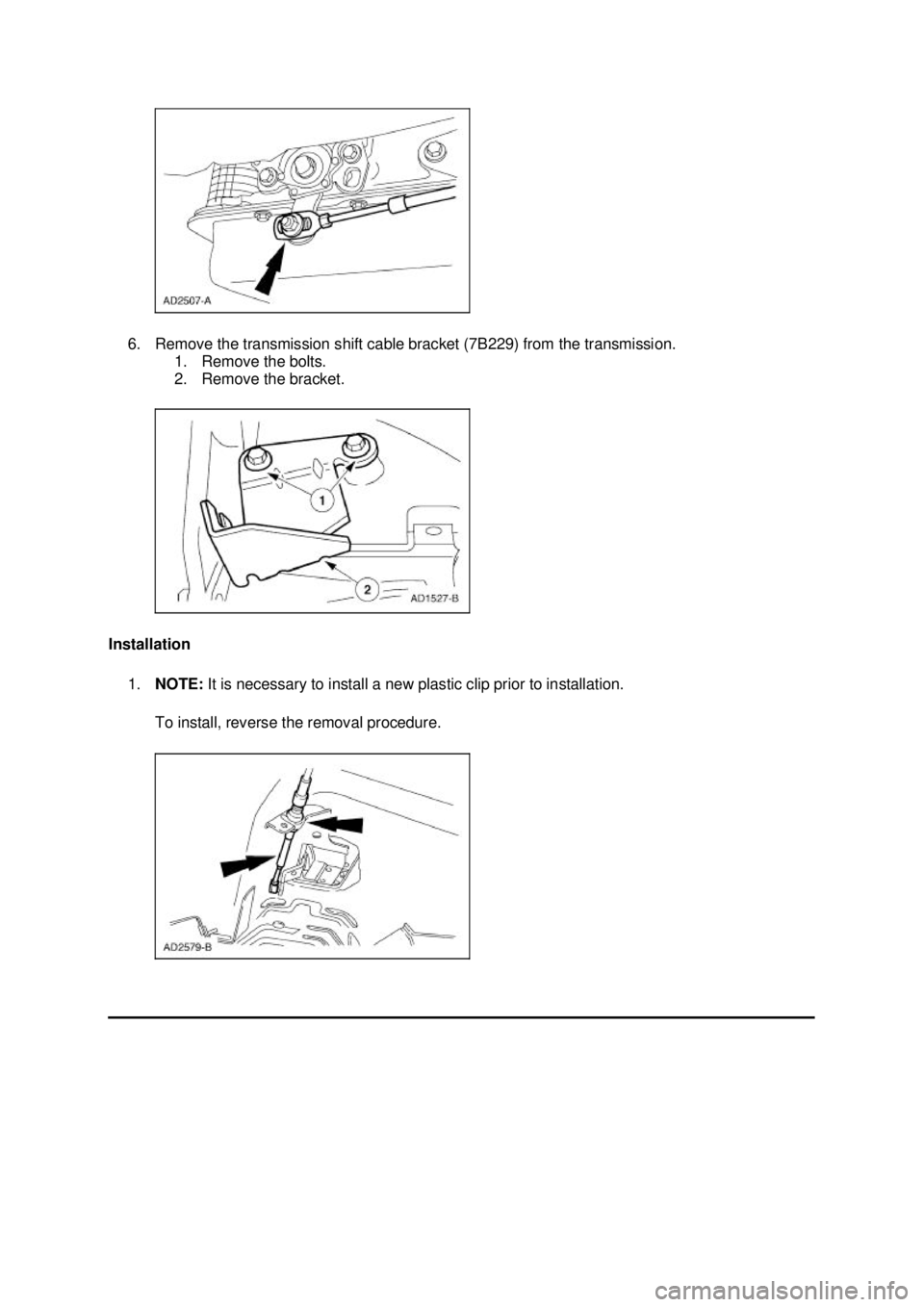

FORD MUSTANG 2003 Workshop Manual 6. Remove the transmission shift cable bracket (7B229) from the transmission. 1. Remove the bolts. 2. Remove the bracket. Installation 1. NOTE: It is necessary to install a new plastic clip prior
