Page 1257 of 4378

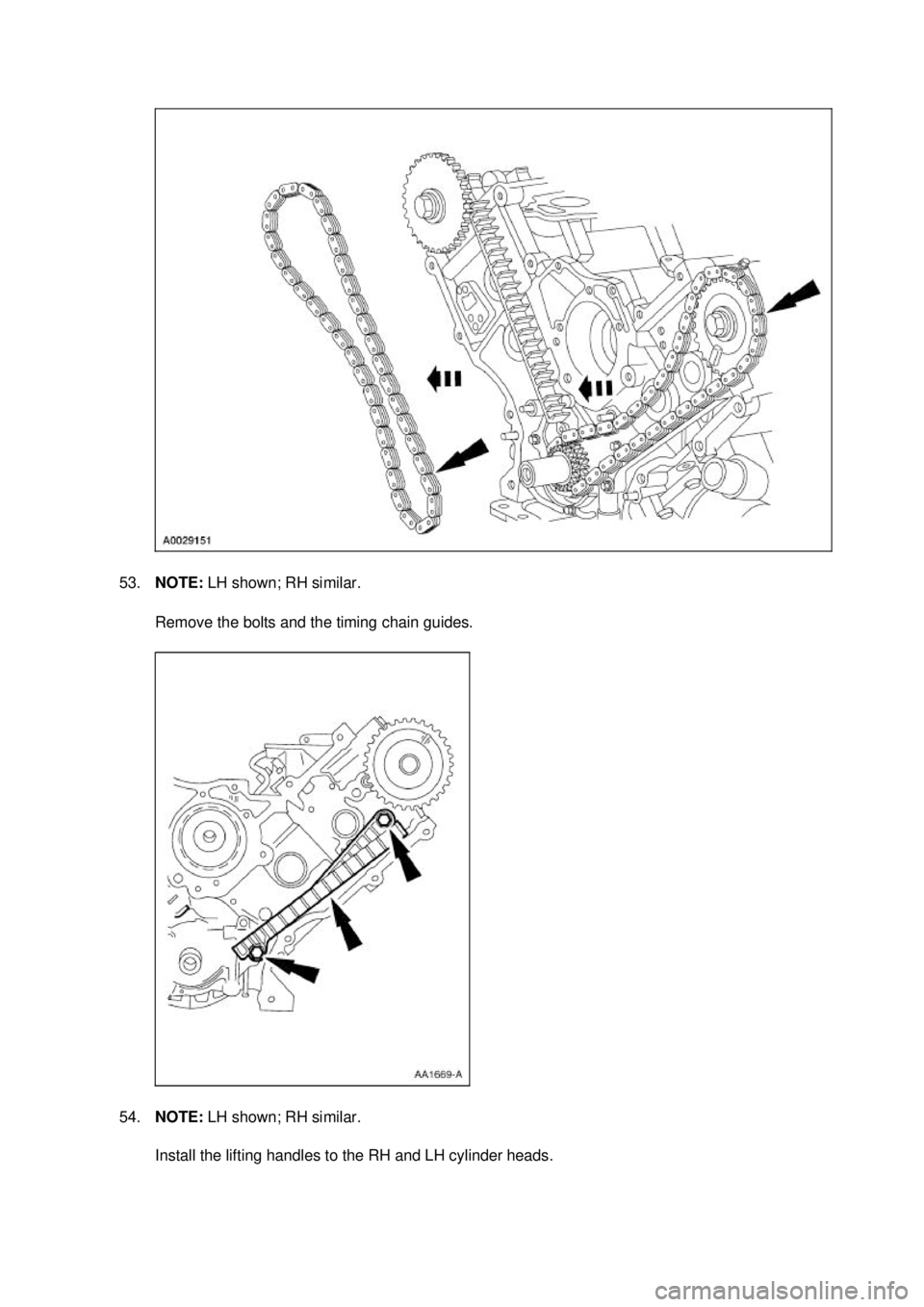

FORD MUSTANG 2003 Workshop Manual 53. NOTE: LH shown; RH similar. Remove the bolts and the timing chain guides. 54. NOTE: LH shown; RH similar. Install the lifting handles to the RH and LH cylinder heads. Klj . 17 ba 212

Page 1258 of 4378

FORD MUSTANG 2003 Workshop Manual 55. NOTE: The hydraulic lash adjusters must be reinstalled in their original locations. Record the hydraulic lash adjuster locations. Remove the hydraulic lash adjusters. RH cylinder head 56. CA

Page 1259 of 4378

FORD MUSTANG 2003 Workshop Manual LH cylinder head 57. CAUTION: The cylinder head must be cool before removing it from the engine. Cylinder head warpage can result if a warm or hot cylinder head is removed. CAUTION: Place clean s

Page 1260 of 4378

FORD MUSTANG 2003 Workshop Manual Both cylinder heads 58. CAUTION: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges that ma

Page 1261 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 21 ba 212003 Mustang Workshop Manual 17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

Page 1262 of 4378

FORD MUSTANG 2003 Workshop Manual REMOVAL Engine Removal 1. Remove the hood. 2. Remove the battery. For additional information, refer to Section 414 - 01 . 3. Remove the air cleaner and outlet tube. For additional information,

Page 1263 of 4378

FORD MUSTANG 2003 Workshop Manual 9. Disconnect the throttle cable, speed control actuator cable and the return spring. 10. Remove the bolts and position the cables and bracket out of the way. 11. Disconnect the climate control vacu

Page 1264 of 4378

FORD MUSTANG 2003 Workshop Manual 13. Disconnect the engine bulkhead connector. 14. Separate the harness in three locations. 15. Disconnect the electrical connector. 16. Remove the safety clip from the manifold suction tube. Kl
