Page 1241 of 4378

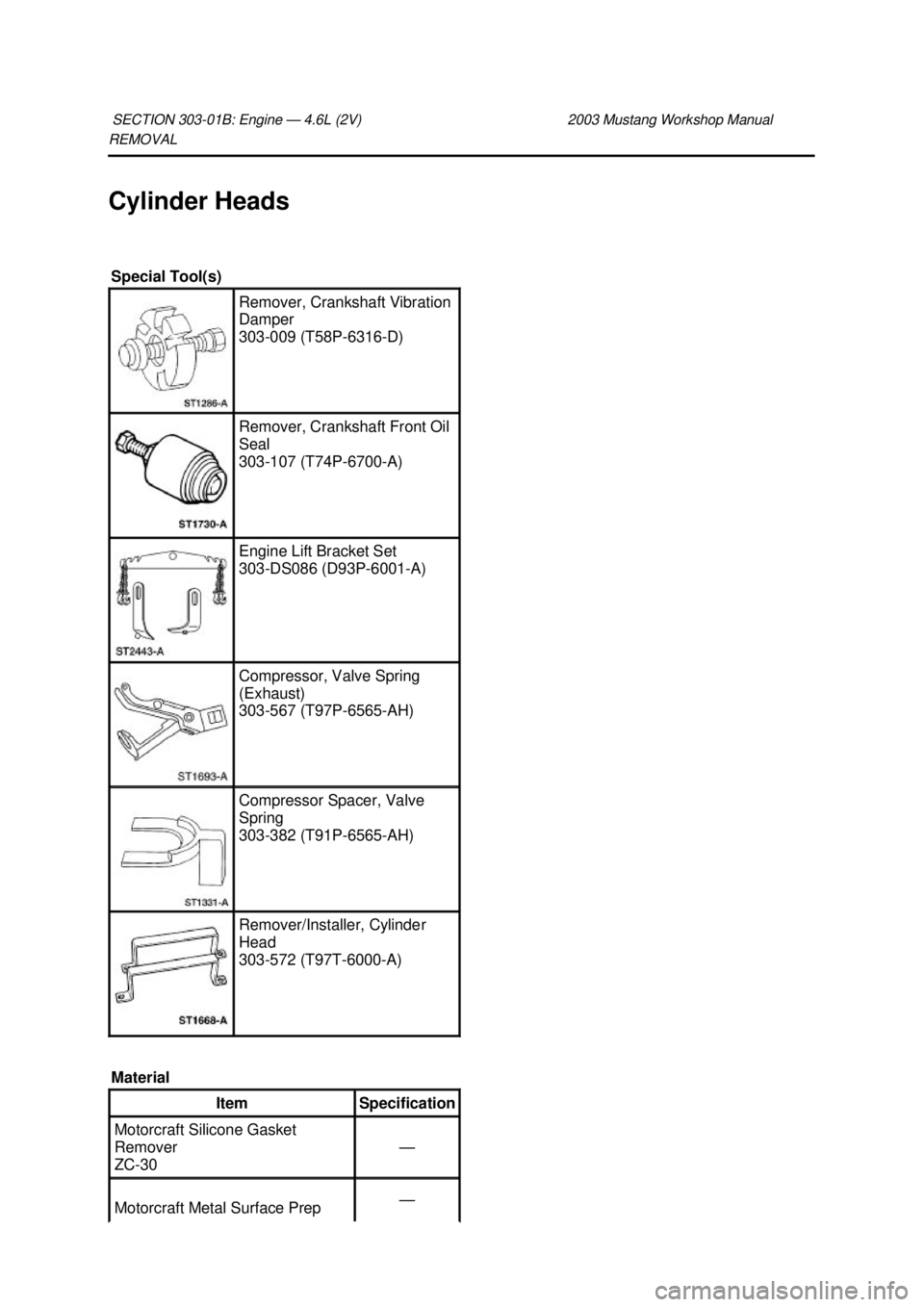

FORD MUSTANG 2003 Workshop Manual REMOVAL Cylinder Heads SECTION 303- 01B: Engine — 4.6L (2V) 2003 Mustang Workshop Manual Special Tool(s) Remover, Crankshaft Vibration Damper 303- 009 (T58P-6316- D) Remover, Crankshaft Front

Page 1242 of 4378

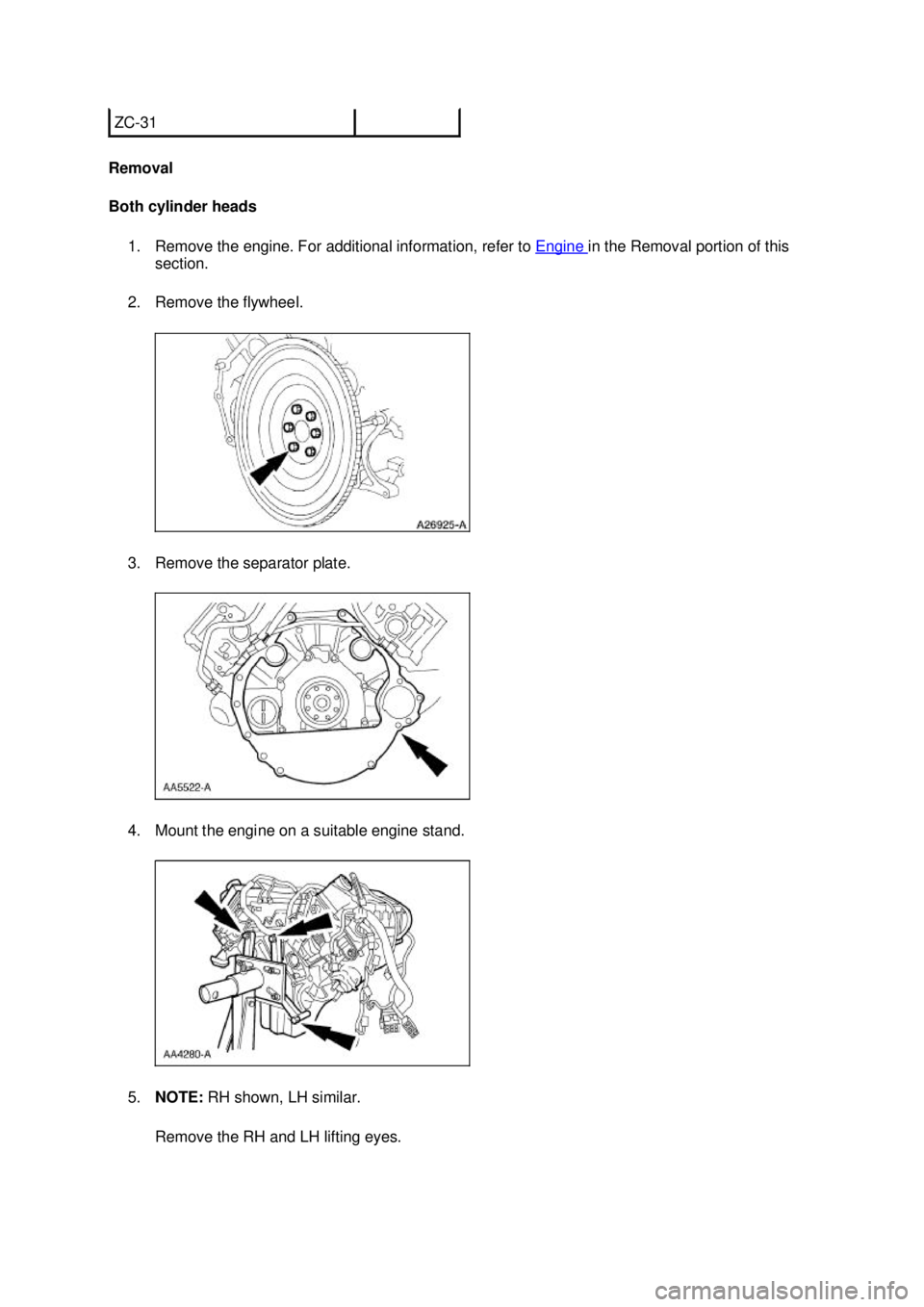

FORD MUSTANG 2003 Workshop Manual Removal Both cylinder heads 1. Remove the engine. For additional information, refer to Engine in the Removal portion of this section. 2. Remove the flywheel. 3. Remove the separator plate. 4.

Page 1243 of 4378

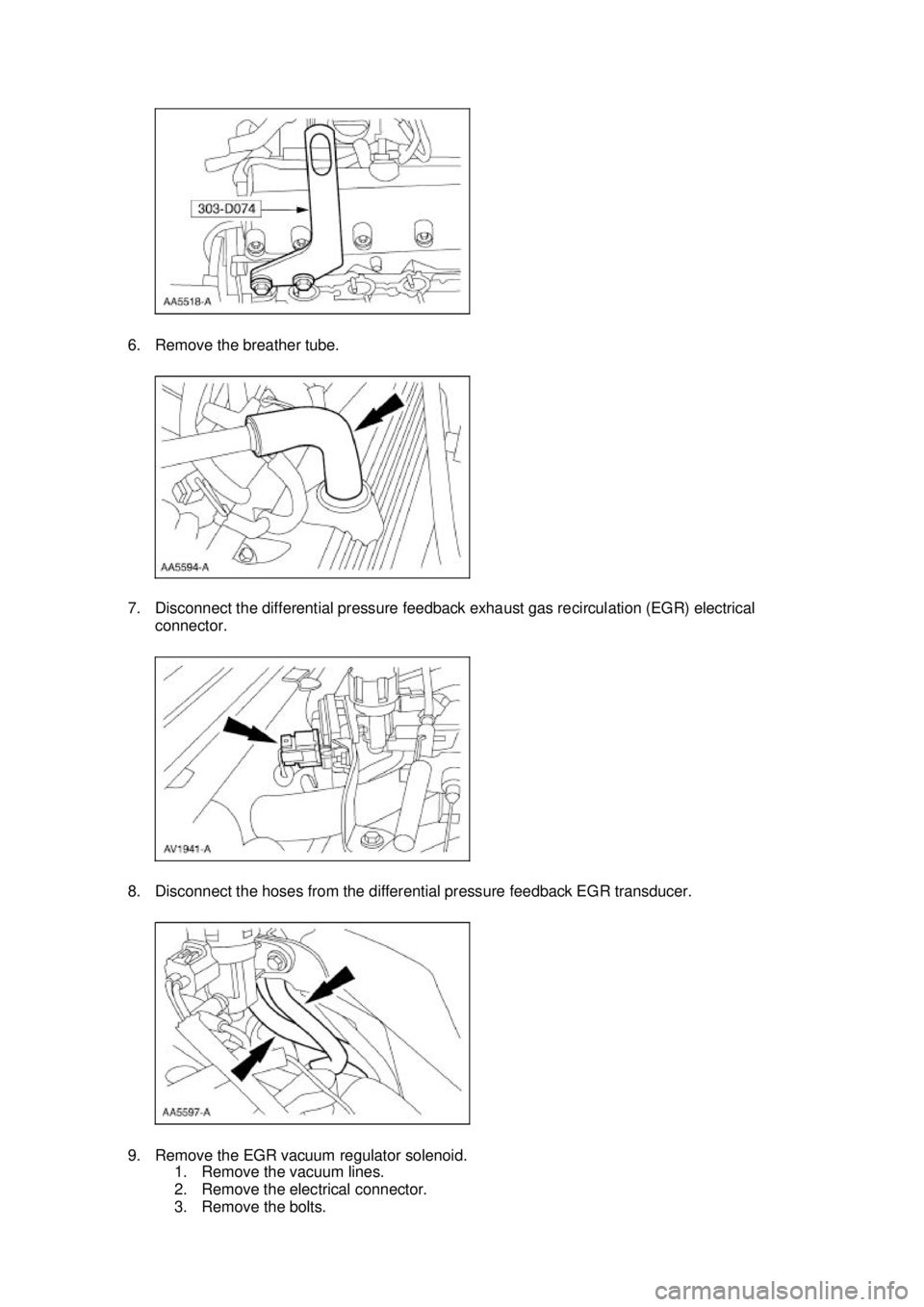

FORD MUSTANG 2003 Workshop Manual 6. Remove the breather tube. 7. Disconnect the differential pressure feedback exhaust gas recirculation (EGR) electrical connector. 8. Disconnect the hoses from the differential pressure feedback E

Page 1244 of 4378

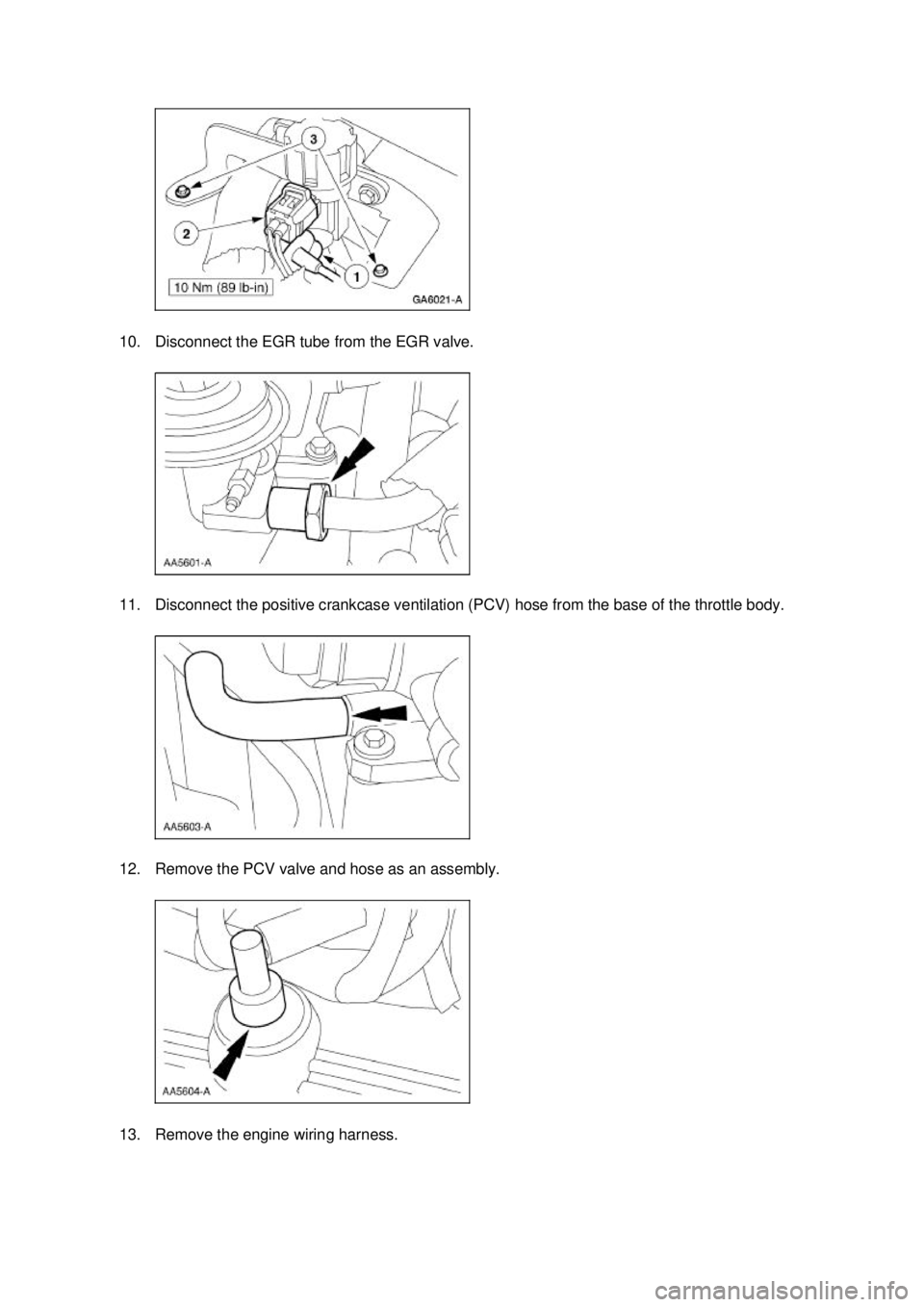

FORD MUSTANG 2003 Workshop Manual 10. Disconnect the EGR tube from the EGR valve. 11. Disconnect the positive crankcase ventilation (PCV) hose from the base of the throttle body. 12. Remove the PCV valve and hose as an assembly. 13

Page 1245 of 4378

FORD MUSTANG 2003 Workshop Manual 14. Disconnect the vacuum line from the fuel pressure sensor. Item Part Number Description 1 — To crankshaft position sensor 2 — To A/C compressor 3 — To radio ignition interference cap

Page 1246 of 4378

FORD MUSTANG 2003 Workshop Manual 15. Remove the throttle body bolts. 16. NOTE: The gasket is reusable if not damaged. Remove the throttle body and adapter as an assembly. �zInspect and clean the sealing surfaces. 17. Remove the

Page 1247 of 4378

FORD MUSTANG 2003 Workshop Manual 19. Remove the accessory drive belt. 20. Remove the power steering reservoir and bracket as an assembly. 1. Disconnect the supply line from the pump. 2. Remove the (3) bolts and the reservoir and b

Page 1248 of 4378

FORD MUSTANG 2003 Workshop Manual 23. Remove the coolant outlet adapter. 24. Remove the thermostat and O- ring. 25. Remove the bolts in the sequence shown, and remove the intake manifold. 26. Remove the intake manifold gaskets. K
