Page 1121 of 4378

FORD MUSTANG 2003 Workshop Manual 3. Remove the special tools. 4. Raise and support the vehicle. For additional information, refer to Section 100 - 02 . 5. Install the LH engine mount nut. 6. Install the RH engine mount nut. Veh

Page 1122 of 4378

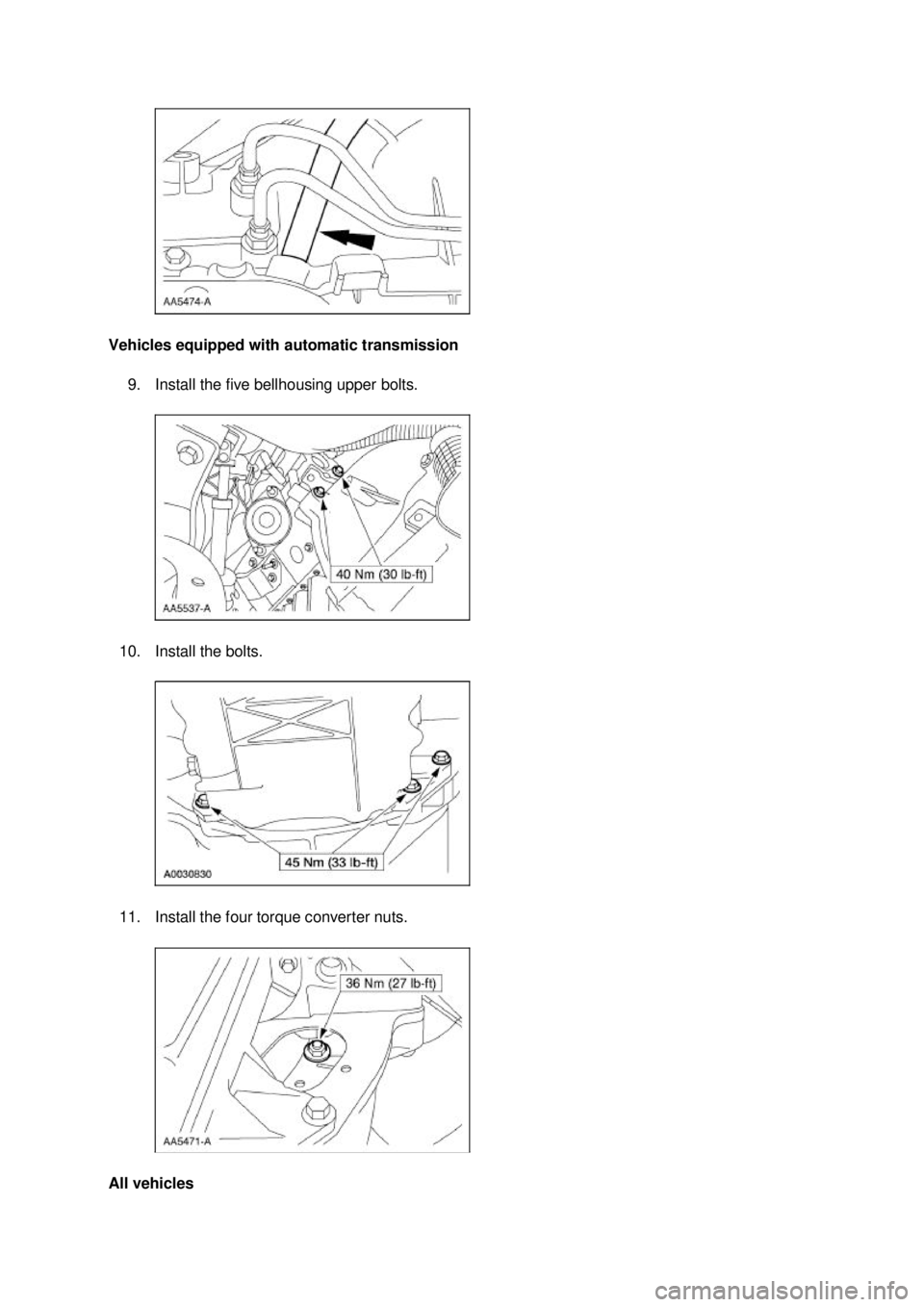

FORD MUSTANG 2003 Workshop Manual Vehicles equipped with automatic transmission 9. Install the five bellhousing upper bolts. 10. Install the bolts. 11. Install the four torque converter nuts. All vehicles Klj . 3 ba 10200

Page 1123 of 4378

FORD MUSTANG 2003 Workshop Manual 12. Install the access cover. 13. Install the oil pan drain plug. 14. Install the bracket. 15. Connect the engine ground strap. 16. Install the bracket. Klj . 4 ba 102003 Mustang Workshop

Page 1124 of 4378

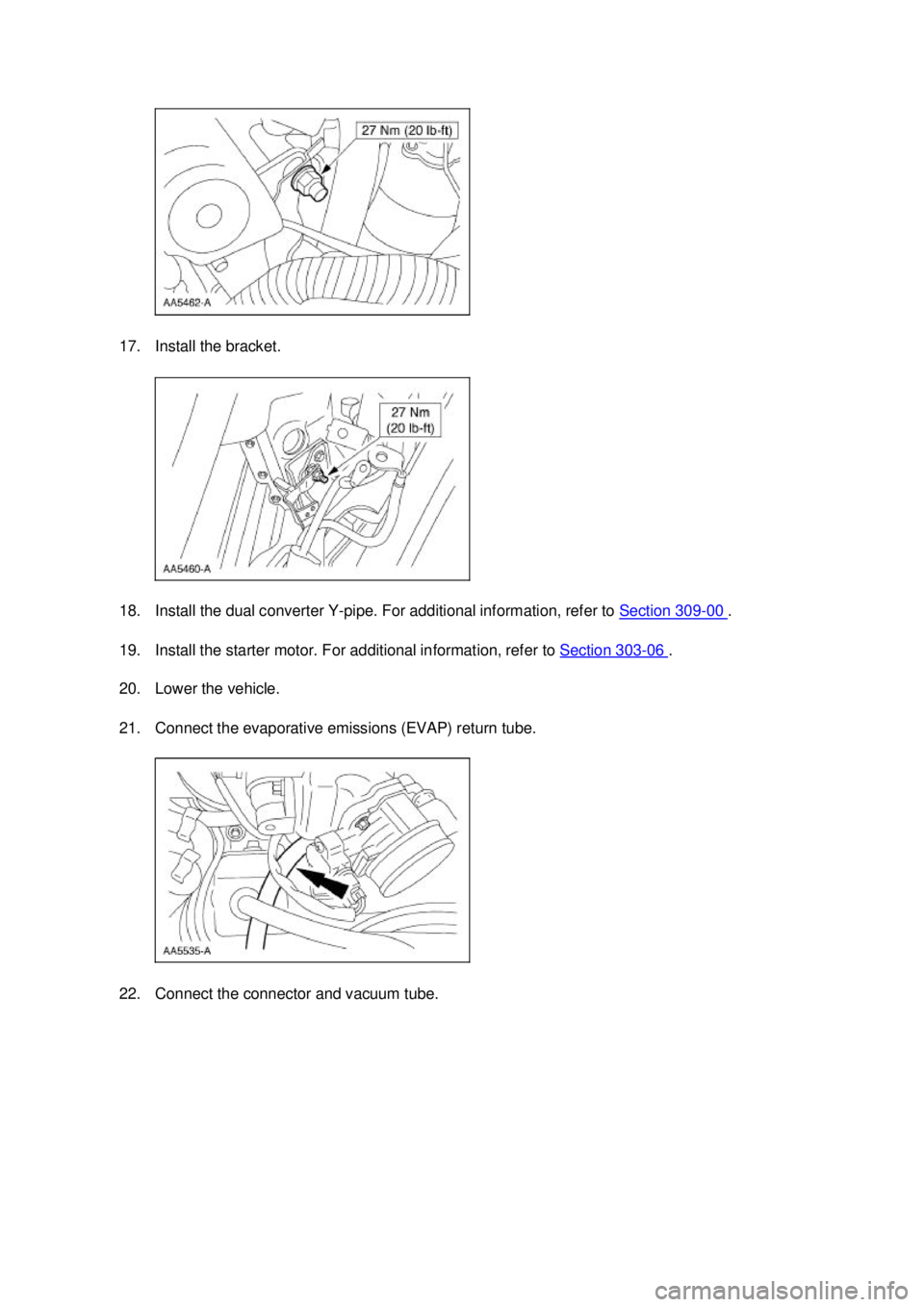

FORD MUSTANG 2003 Workshop Manual 17. Install the bracket. 18. Install the dual converter Y- pipe. For additional information, refer to Section 309 - 00 . 19. Install the starter motor. For additional information, refer to Sectio

Page 1125 of 4378

FORD MUSTANG 2003 Workshop Manual 23. Position the wiring harness. 24. Connect the following connectors: �z42- pin electrical connector �z 16-pin electrical connector �z 8-pin electrical connector �z A/C pressure switch 25. Conn

Page 1126 of 4378

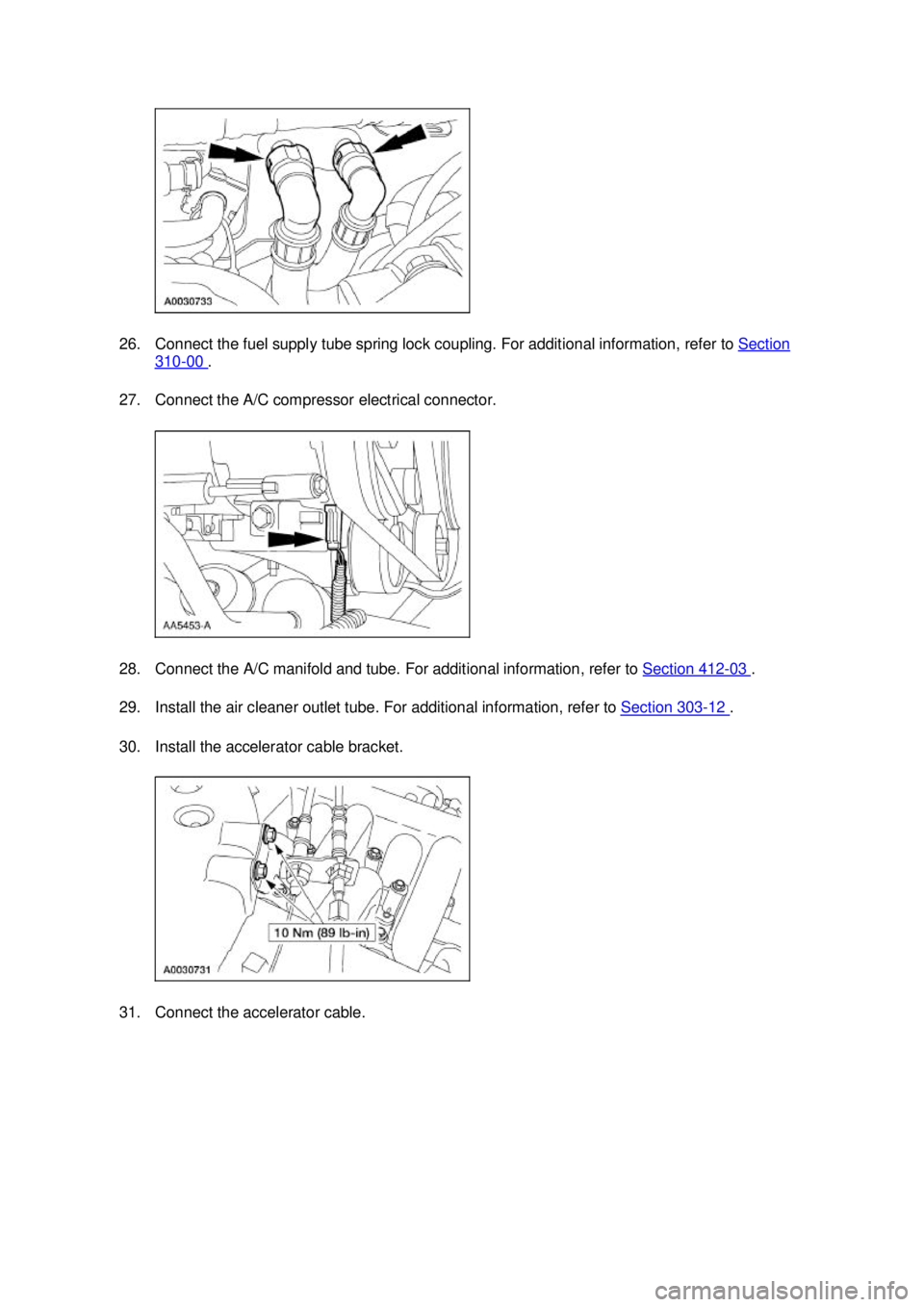

FORD MUSTANG 2003 Workshop Manual 26. Connect the fuel supply tube spring lock coupling. For additional information, refer to Section 310 - 00 . 27. Connect the A/C compressor electrical connector. 28. Connect the A/C manifold and

Page 1127 of 4378

FORD MUSTANG 2003 Workshop Manual 32. Install the radiator coolant recovery reservoir. 33. Connect the upper radiator hose. 34. Connect the lower radiator hose. 35. Connect the power steering pump. �zConnect the power steering ret

Page 1128 of 4378

FORD MUSTANG 2003 Workshop Manual �z Connect the power steering pressure tube. 36. Connect the generator electrical connections. 37. Connect the vacuum hose. 38. Install the hood. 39. Connect the hood ground strap. Klj . 9 b
