FORD MUSTANG 2003 Workshop Manual indication— Cobra only �zInstrument cluster. �z The LOW FUEL warning indicator is never/always on �z LOW FUEL warning indicator bulb. �z Standard corporate protocol (SCP) network. �z In

Page 3274 of 4378

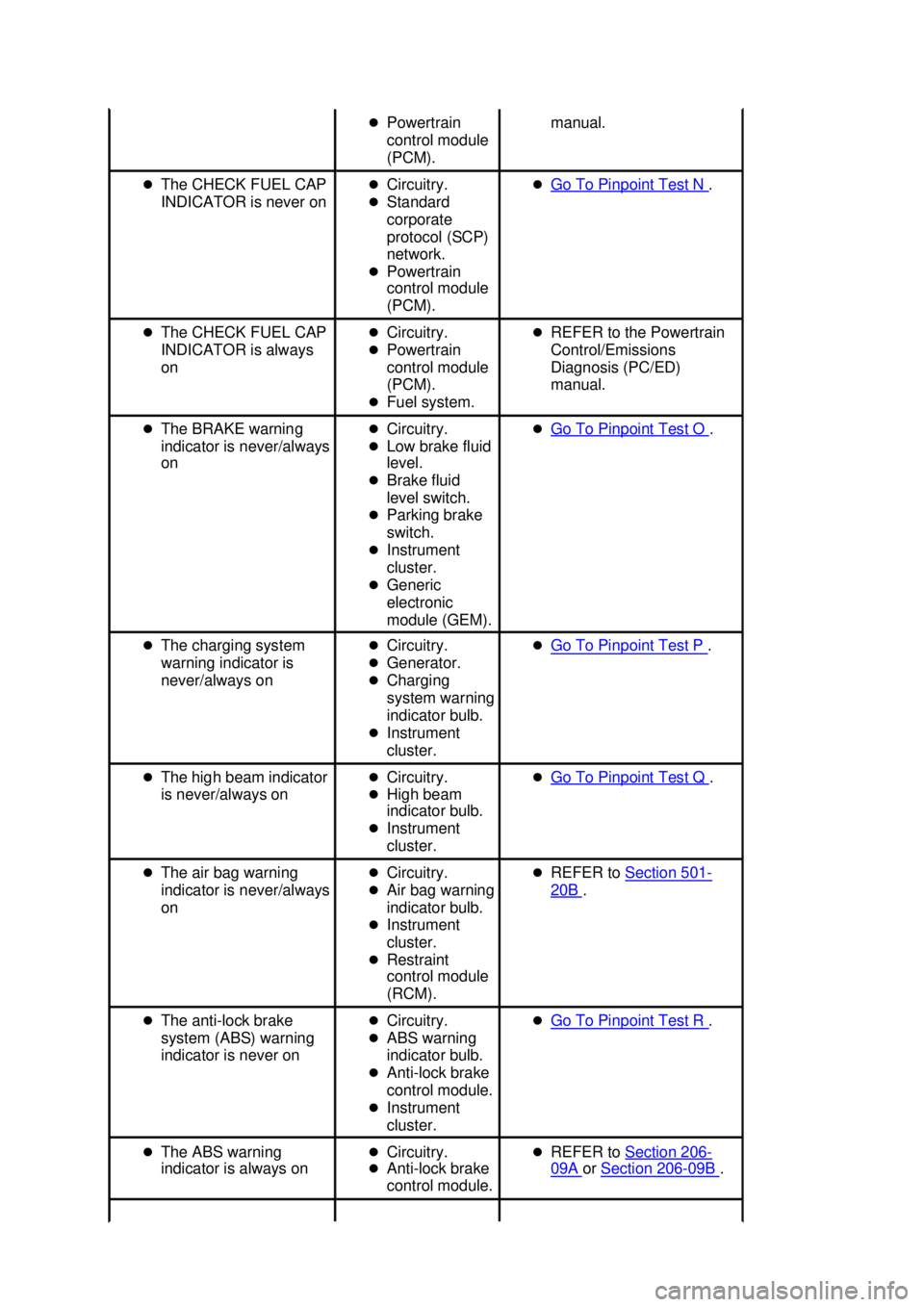

FORD MUSTANG 2003 Workshop Manual �z Powertrain control module (PCM). manual. �z The CHECK FUEL CAP INDICATOR is never on �z Circuitry. �z Standard corporate protocol (SCP) network. �z Powertrain control module (PCM). �z

Page 3275 of 4378

FORD MUSTANG 2003 Workshop Manual Pinpoint Tests PINPOINT TEST A: NO COMMUNICATION WITH THE INSTRUMENT CLUSTER �z The SERVICE ENGINE SOON indicator is never/always on �z Circuitry. �z SERVICE ENGINE SOON indicator bulb. �z

Page 3276 of 4378

FORD MUSTANG 2003 Workshop Manual A1 CHECK THE BATTERY POWER SUPPLY TO THE INSTRUMENT CLUSTER CAUTION: Use the correct probe adapter(s) when making measurements. Failure to use the correct probe adapter(s) may damage the connecto

Page 3277 of 4378

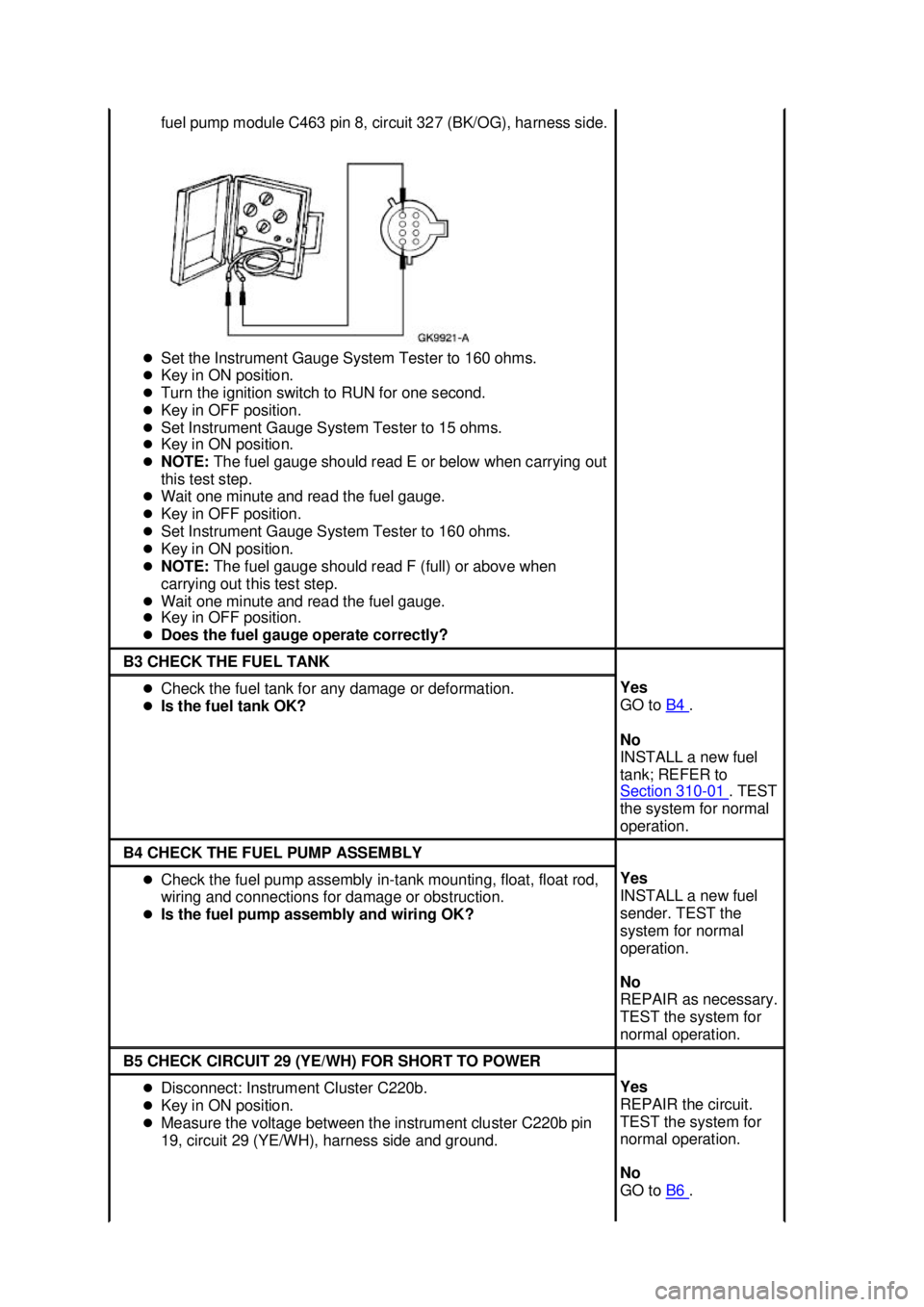

FORD MUSTANG 2003 Workshop Manual PINPOINT TEST B: INCORRECT FUEL GAUGE INDICATION A4 CHECK GROUND CIRCUIT 397 (BK/WH) FOR AN OPEN �z Key in OFF position. �z Measure the resistance between the instrument cluster C220b pin 20, circ

Page 3278 of 4378

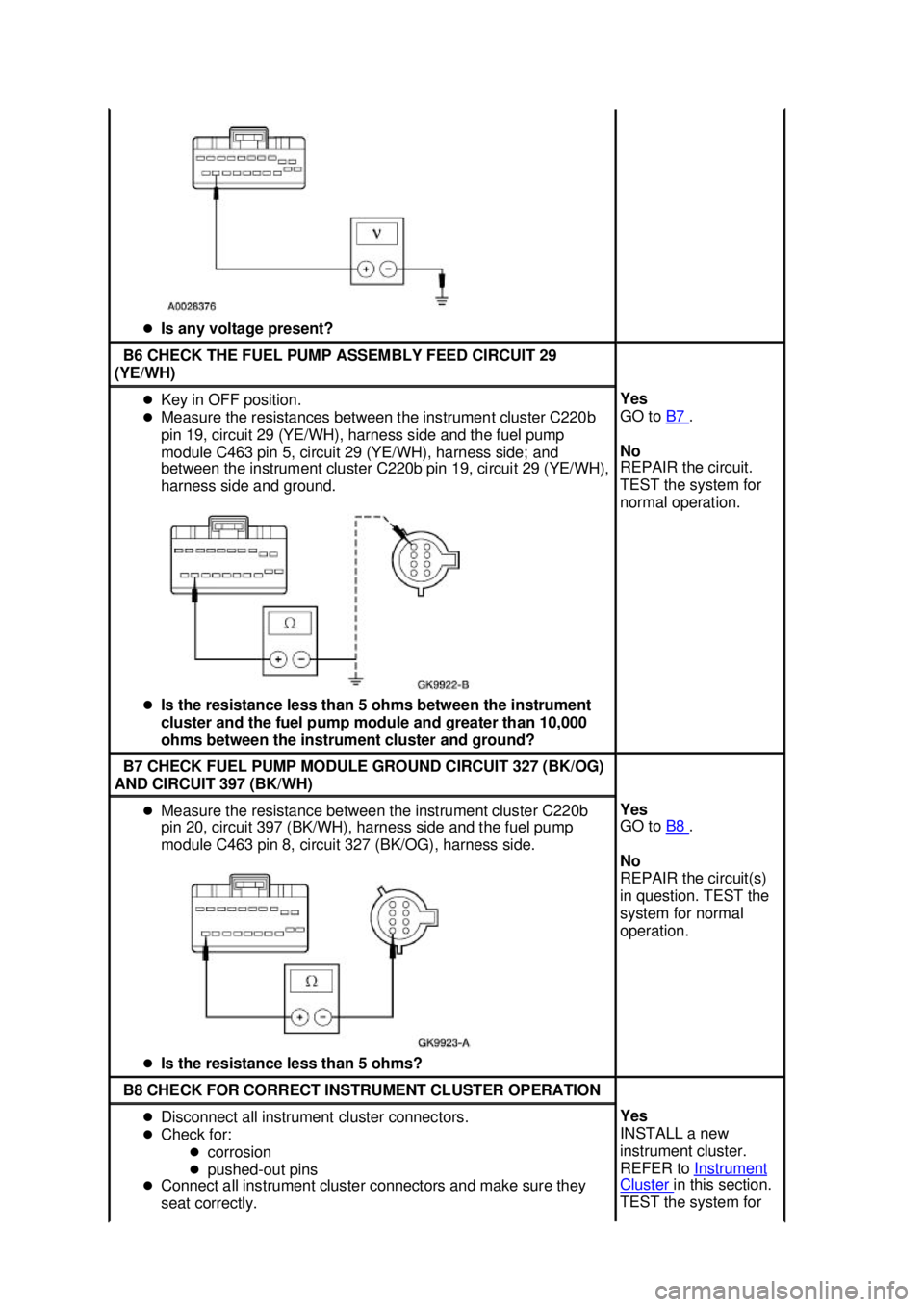

FORD MUSTANG 2003 Workshop Manual fuel pump module C463 pin 8, circuit 327 (BK/OG), harness side. �z Set the Instrument Gauge System Tester to 160 ohms. �z Key in ON position. �z Turn the ignition switch to RUN for one second. �z

Page 3279 of 4378

FORD MUSTANG 2003 Workshop Manual �z Is any voltage present? B6 CHECK THE FUEL PUMP ASSEMBLY FEED CIRCUIT 29 (YE/WH) �z Key in OFF position. �z Measure the resistances between the instrument cluster C220b pin 19, circuit 29 (YE/W

Page 3280 of 4378

FORD MUSTANG 2003 Workshop Manual PINPOINT TEST C: INCORRECT OIL PRESSURE GAUGE INDICATION �z Operate the system and verify the concern is still present. �z Is the concern still present? normal operation. No The system is opera
