Page 1289 of 4378

FORD MUSTANG 2003 Workshop Manual 47. Remove the water pump pulley. 1. Remove the water pump pulley bolts. 2. Remove the water pump pulley. 48. Remove the bolts and belt idler pulleys. 49. NOTE: The gasket can be reused if not da

Page 1290 of 4378

FORD MUSTANG 2003 Workshop Manual 50. Using the special tool, remove the front cover seal. 51. Remove the bolts, the studs, and the engine front cover. �zDiscard the gaskets. Clean and inspect the sealing surfaces. CAUTION: Since

Page 1291 of 4378

FORD MUSTANG 2003 Workshop Manual 53. Remove the RH and LH timing chain tensioner (RH shown, LH similar). 1. Remove the bolts. 2. Remove the timing chain tensioners. 3. Remove the timing chain tensioner arms. 54. CAUTION: Unless

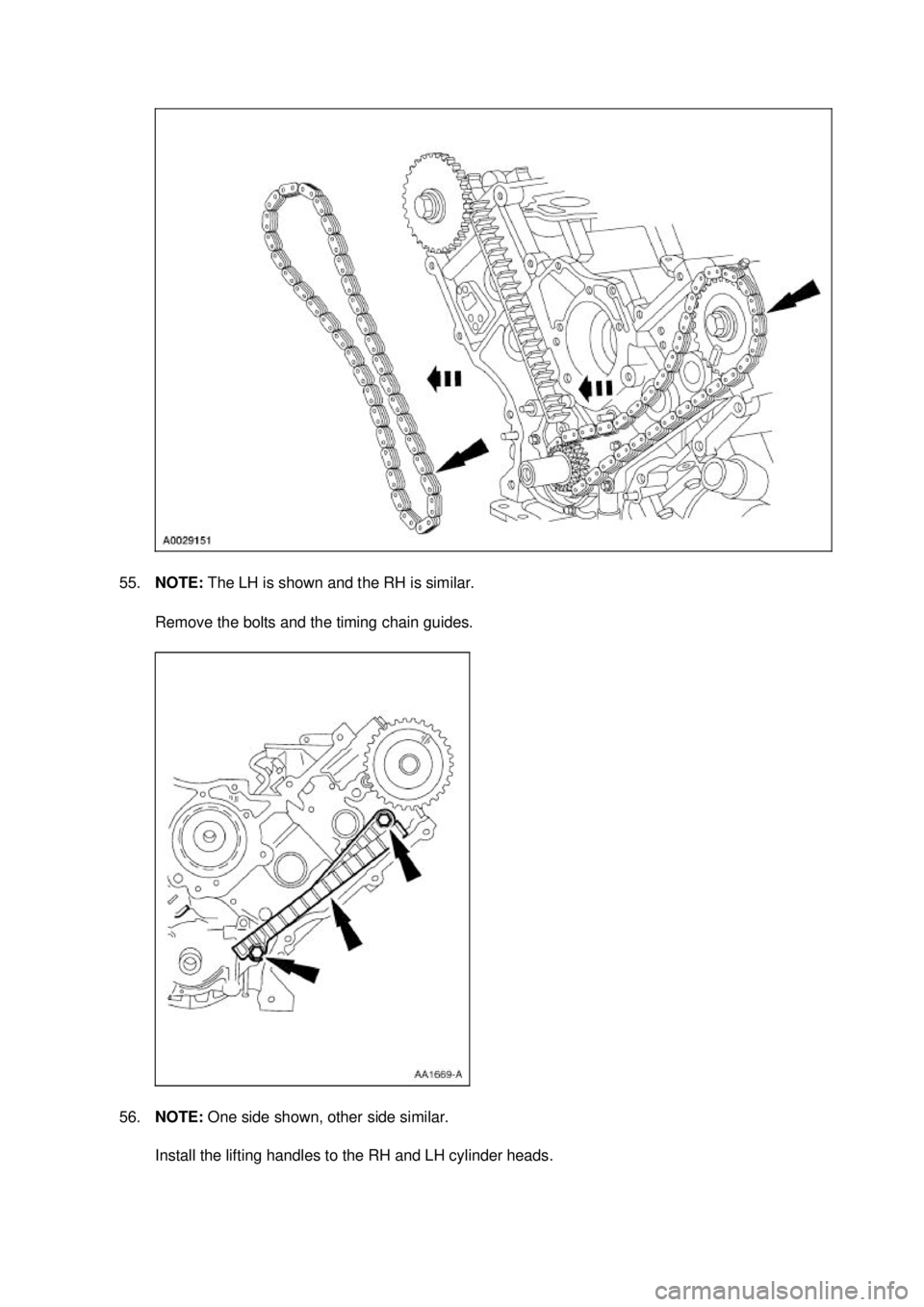

Page 1292 of 4378

FORD MUSTANG 2003 Workshop Manual 55. NOTE: The LH is shown and the RH is similar. Remove the bolts and the timing chain guides. 56. NOTE: One side shown, other side similar. Install the lifting handles to the RH and LH cylinder

Page 1293 of 4378

FORD MUSTANG 2003 Workshop Manual 57. CAUTION: New cylinder head bolts must be installed. They are tighten- to-yield designed and cannot be reused. CAUTION: Place cylinder head on cardboard or wood surface to prevent damage to th

Page 1294 of 4378

FORD MUSTANG 2003 Workshop Manual 60. Remove the oil pump. 61. CAUTION: Do not stamp the top of pistons, as ring land damage can occur. NOTE: Connecting rods and rod caps should be numbered to retain correct orientation. Remove t

Page 1295 of 4378

FORD MUSTANG 2003 Workshop Manual 62. CAUTION: Do not scratch cylinder walls or crankshaft journals with the connecting rod. NOTE: Before removing pistons, inspect the top of the cylinder bores. If necessary, remove the ridge or

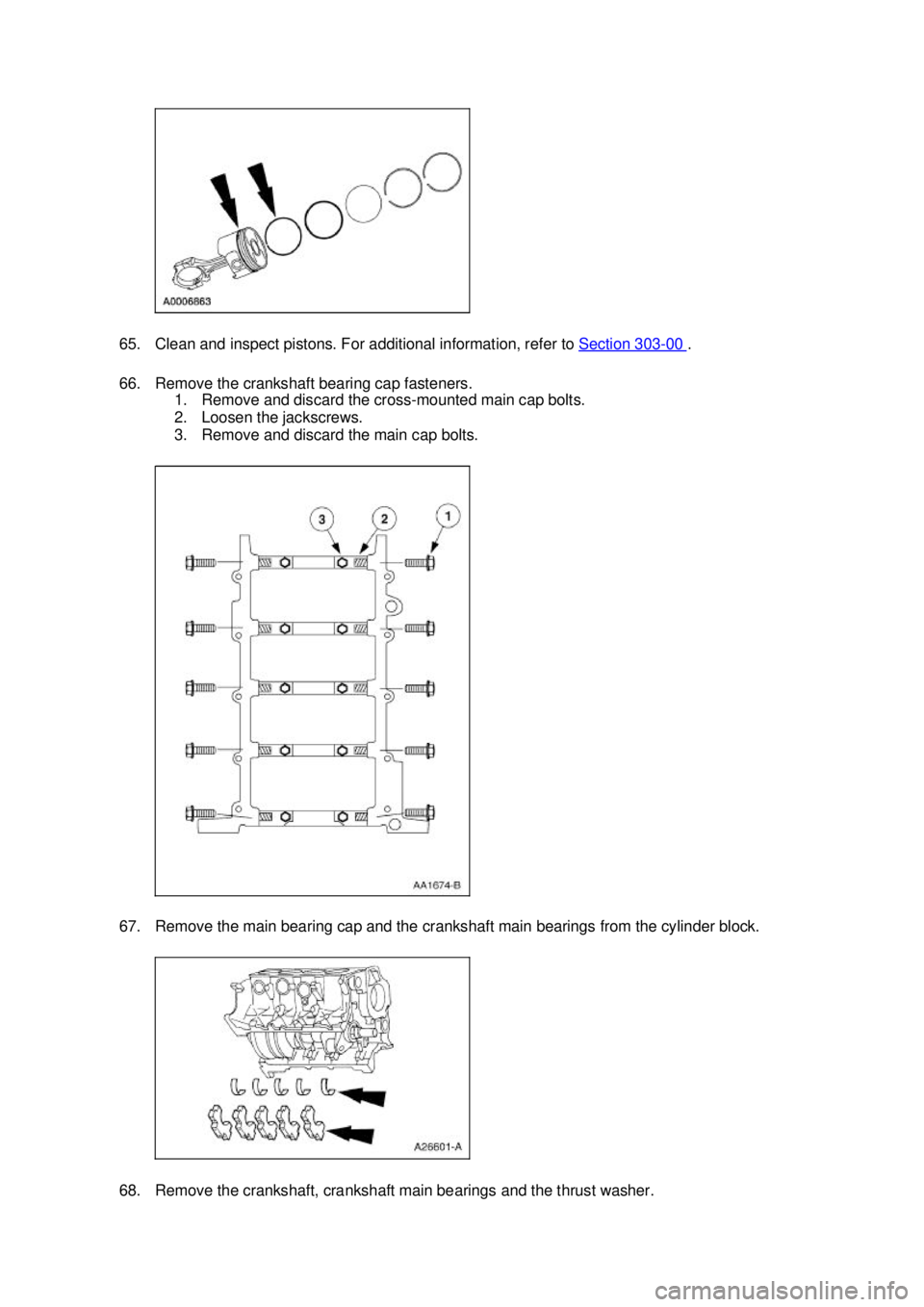

Page 1296 of 4378

FORD MUSTANG 2003 Workshop Manual 65. Clean and inspect pistons. For additional information, refer to Section 303 - 00 . 66. Remove the crankshaft bearing cap fasteners. 1. Remove and discard the cross- mounted main cap bolts. 2.
