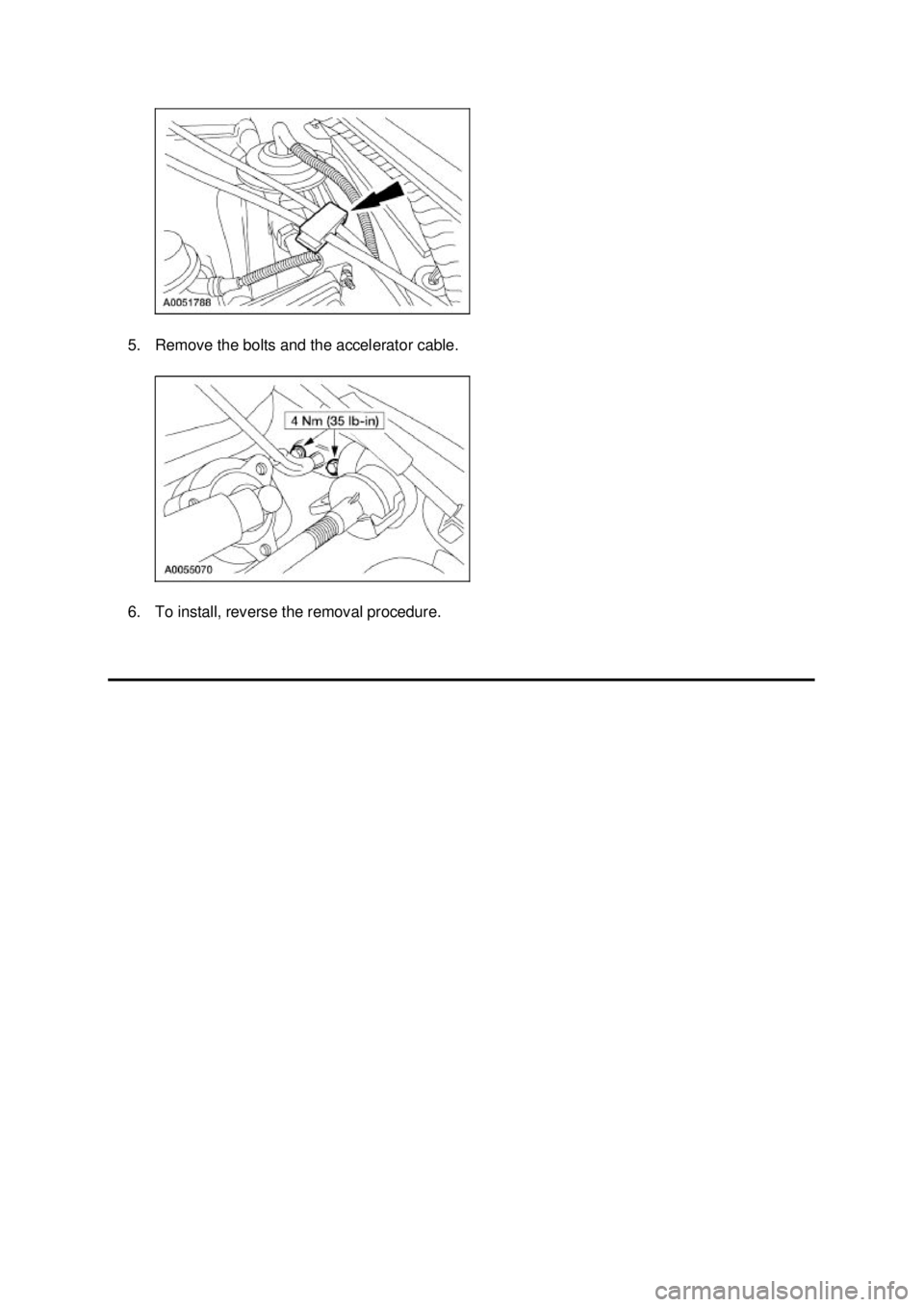

5. Remove the bolts and the accelerator cable.
6. To install, reverse the removal procedure. Klj . 2 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...
Page 3002 of 4378
REMOVAL AND INSTALLATION

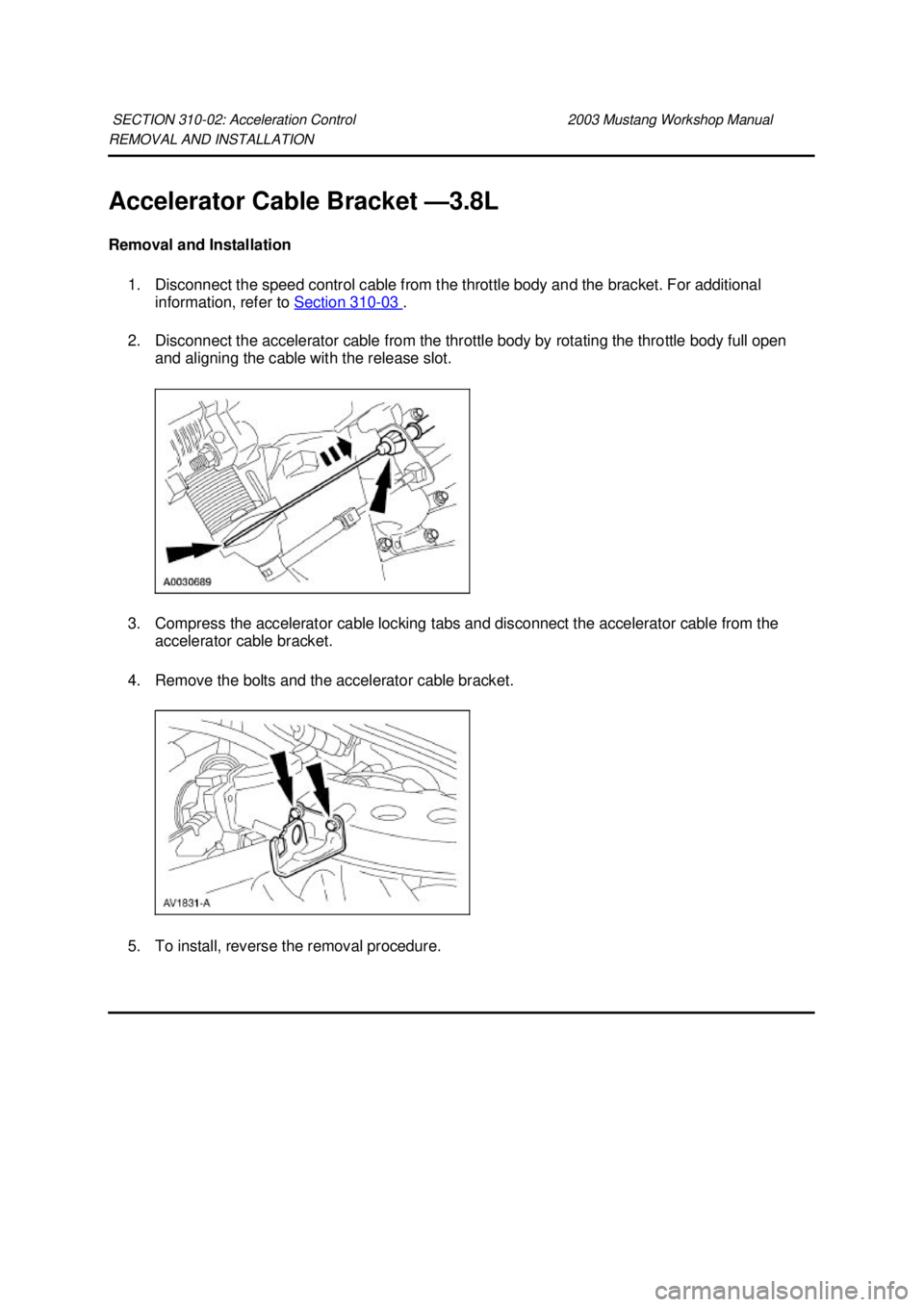

Accelerator Cable Bracket —
3.8L
Removal and Installation 1. Disconnect the speed control cable from the throttle body and the bracket. For additional information, refer to Section 310 - 03 .
2. Disconnect the accelerator cable from the throttle body by rotating the throttle body full open and aligning the cable with the release slot.
3. Compress the accelerator cable locking tabs and disconnect the accelerator cable from the accelerator cable bracket.
4. Remove the bolts and the accelerator cable bracket.
5. To install, reverse the removal procedure.
SECTION 310-
02: Acceleration Control 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...
Page 3003 of 4378
Klj . 2 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...
Page 3004 of 4378
REMOVAL AND INSTALLATION

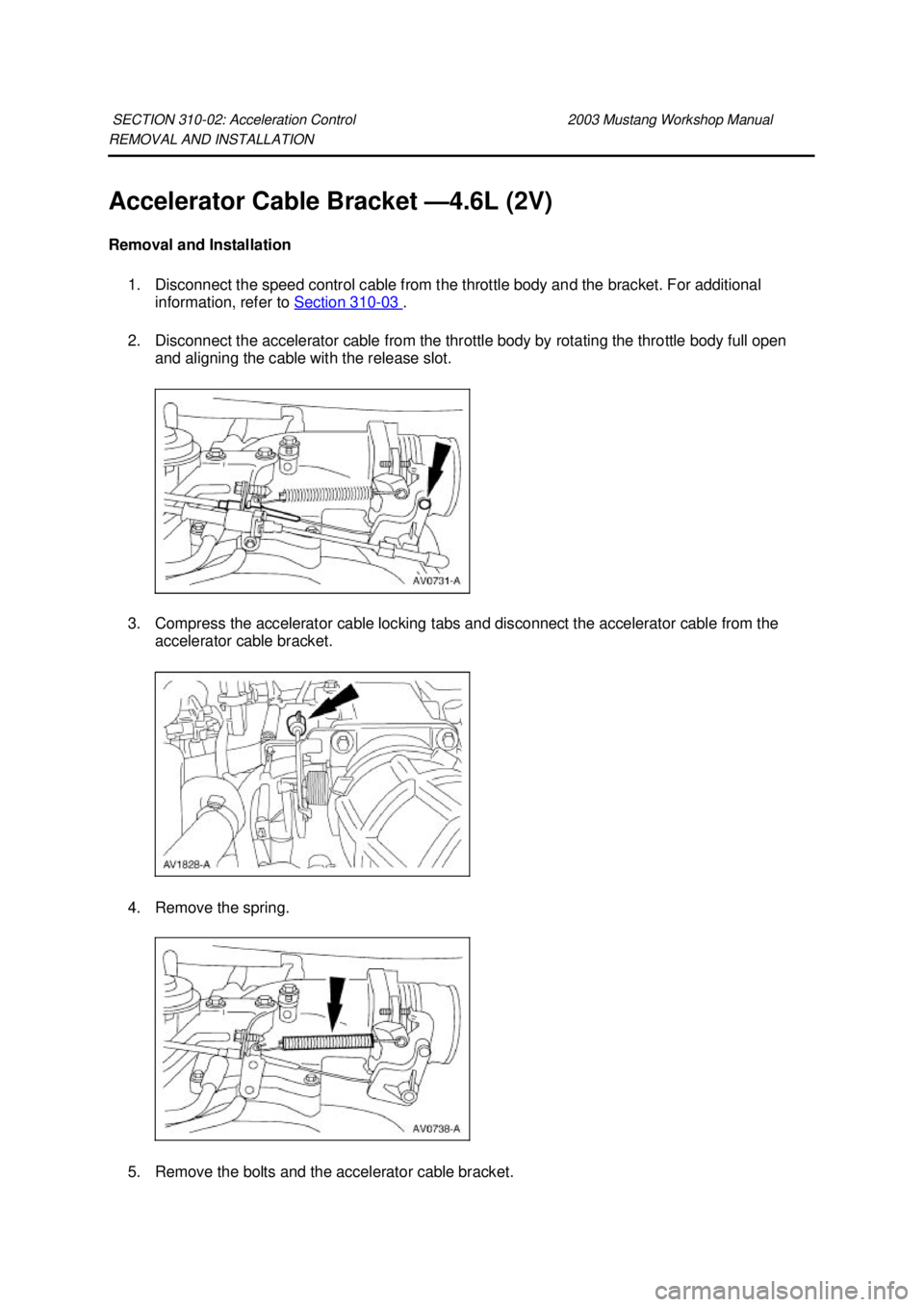

Accelerator Cable Bracket —
4.6L (2V)
Removal and Installation 1. Disconnect the speed control cable from the throttle body and the bracket. For additional information, refer to Section 310 - 03 .
2. Disconnect the accelerator cable from the throttle body by rotating the throttle body full open and aligning the cable with the release slot.
3. Compress the accelerator cable locking tabs and disconnect the accelerator cable from the accelerator cable bracket.
4. Remove the spring.
5. Remove the bolts and the accelerator cable bracket.
SECTION 310-
02: Acceleration Control 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...
Page 3005 of 4378

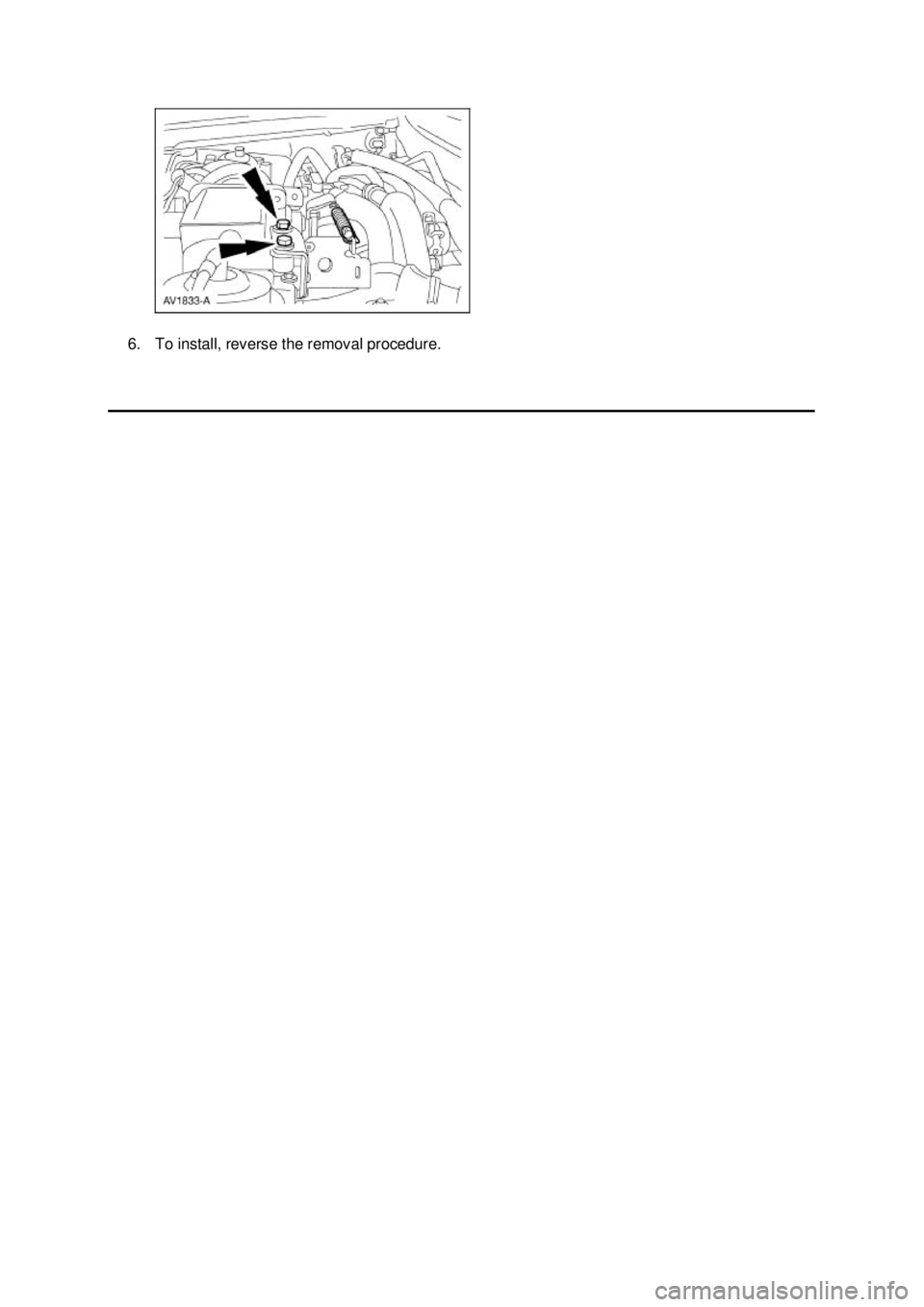

6. To install, reverse the removal procedure. Klj . 2 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...
Page 3006 of 4378
REMOVAL AND INSTALLATION
Accelerator Cable Bracket —
Supercharged Engine
Removal and Installation 1. Disconnect the accelerator cable and speed control cable.
2. Depress the tabs and disconnect the accelerator cable and speed control cable from the accelerator cable bracket
3. Remove the bolts and the accelerator cable bracket.
4. To install, reverse the removal procedure.
SECTION 310-
02: Acceleration Control 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...
Page 3007 of 4378
Klj . 2 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...
Page 3008 of 4378

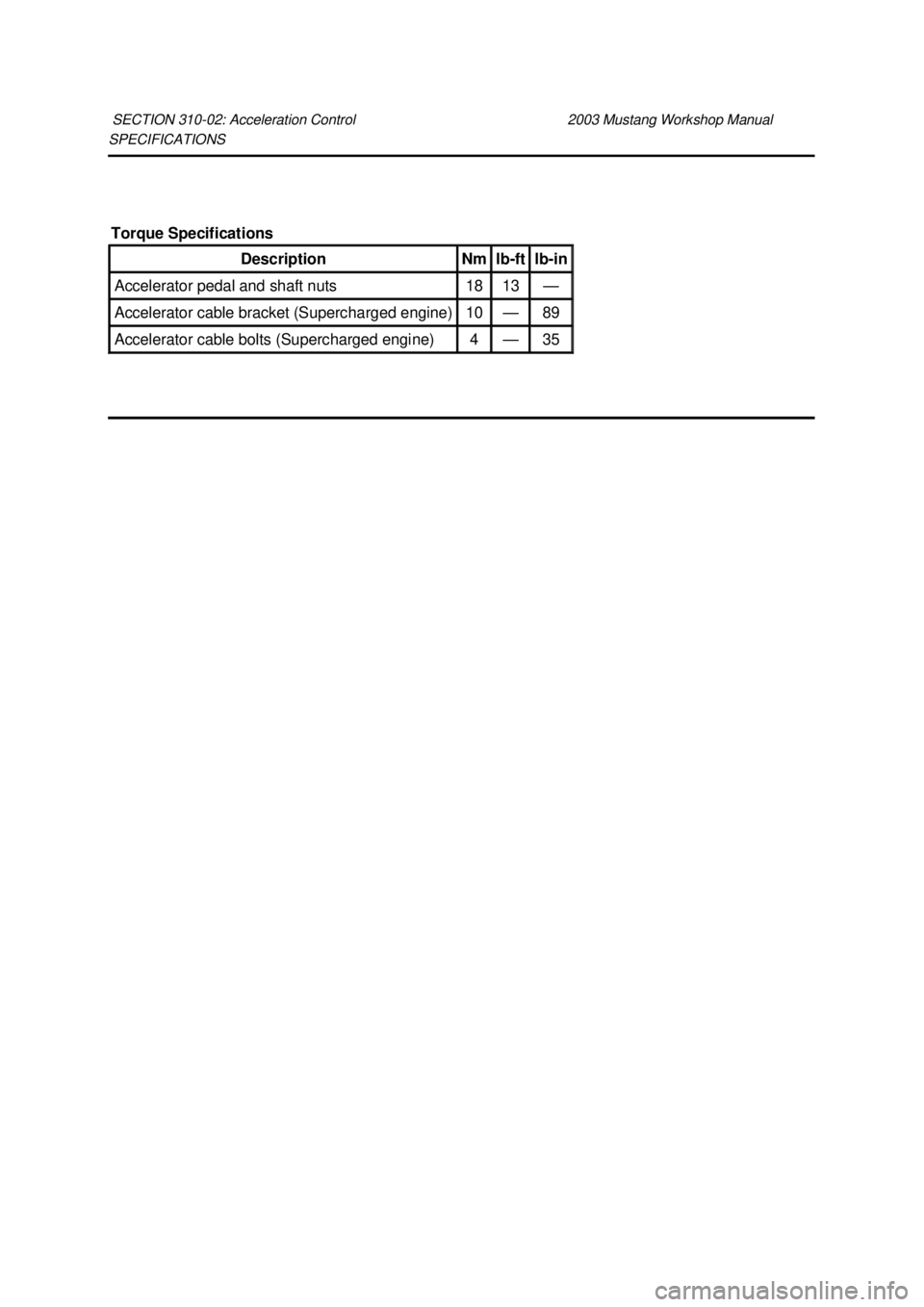

SPECIFICATIONS
SECTION 310-
02: Acceleration Control 2003 Mustang Workshop Manual Torque Specifications
Description Nm lb-
ft lb-
in Accelerator pedal and shaft nuts 18 13 —
Accelerator cable bracket (Supercharged engine) 10 — 89
Accelerator cable bolts (Supercharged engine) 4 — 35 Klj . 1 ba
