Page 2465 of 4378

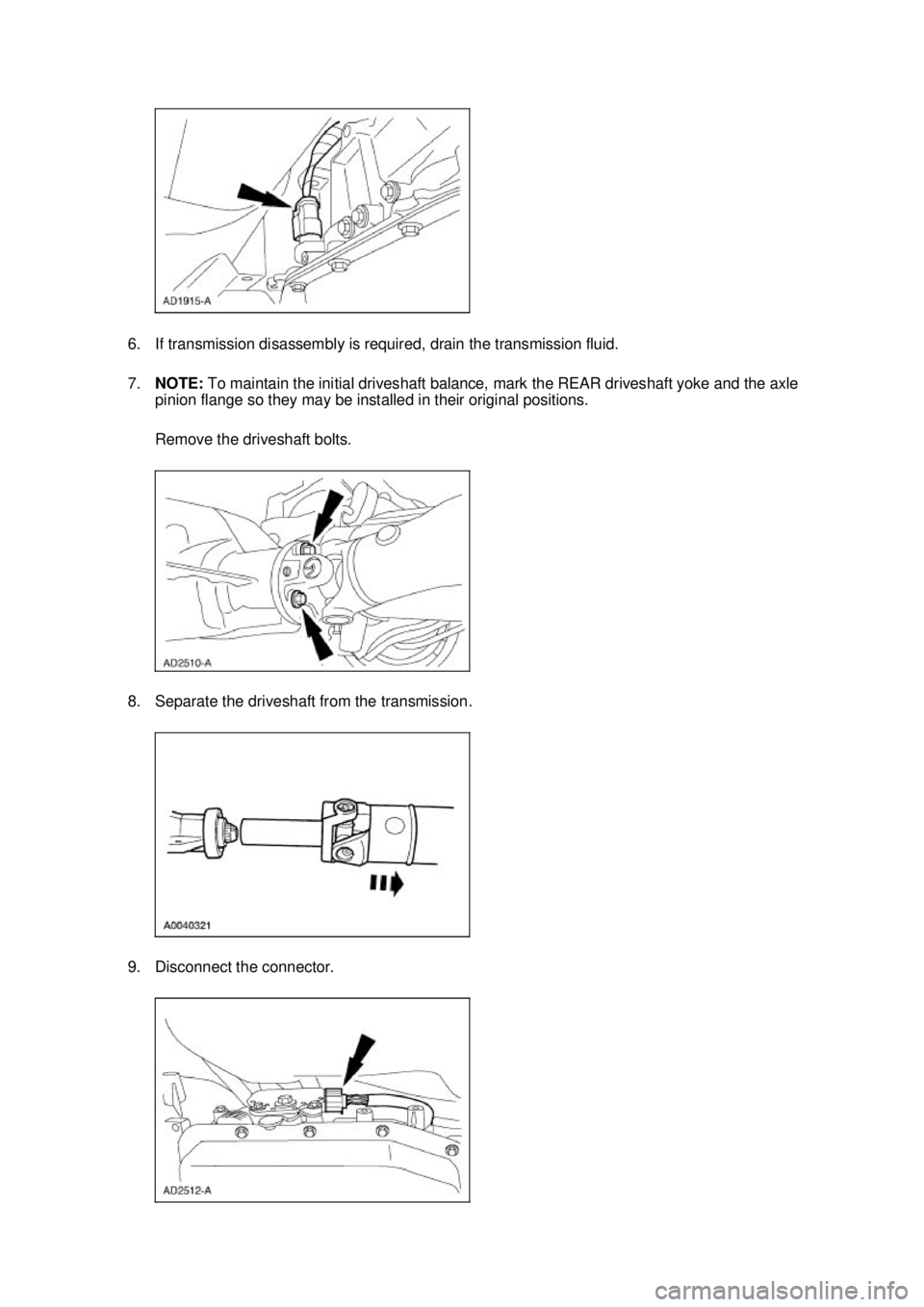

FORD MUSTANG 2003 Workshop Manual 6. If transmission disassembly is required, drain the transmission fluid. 7. NOTE: To maintain the initial driveshaft balance, mark the REAR driveshaft yoke and the axle pinion flange so they may b

Page 2466 of 4378

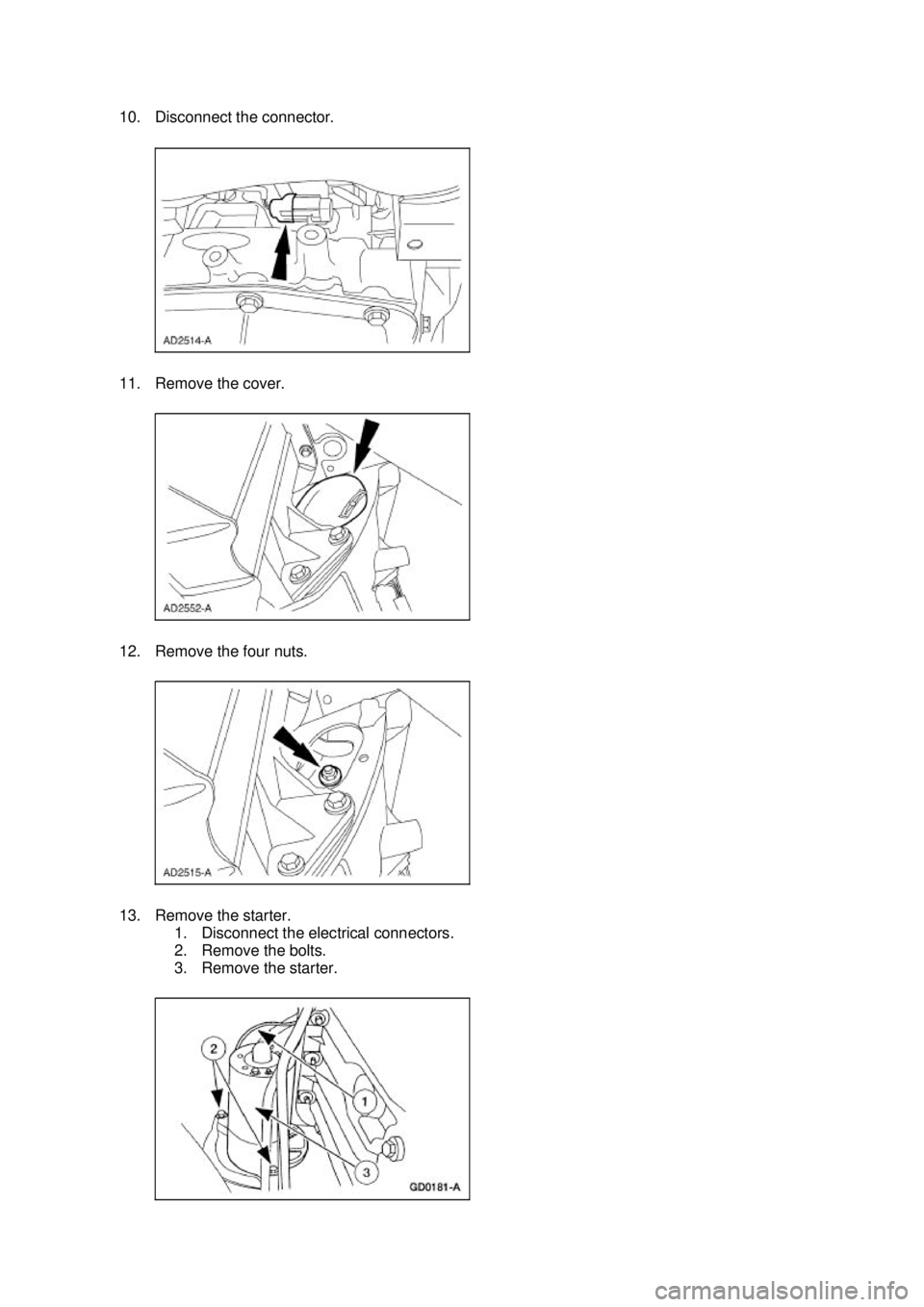

FORD MUSTANG 2003 Workshop Manual 10. Disconnect the connector. 11. Remove the cover. 12. Remove the four nuts. 13. Remove the starter. 1. Disconnect the electrical connectors. 2. Remove the bolts. 3. Remove the starter. Klj

Page 2467 of 4378

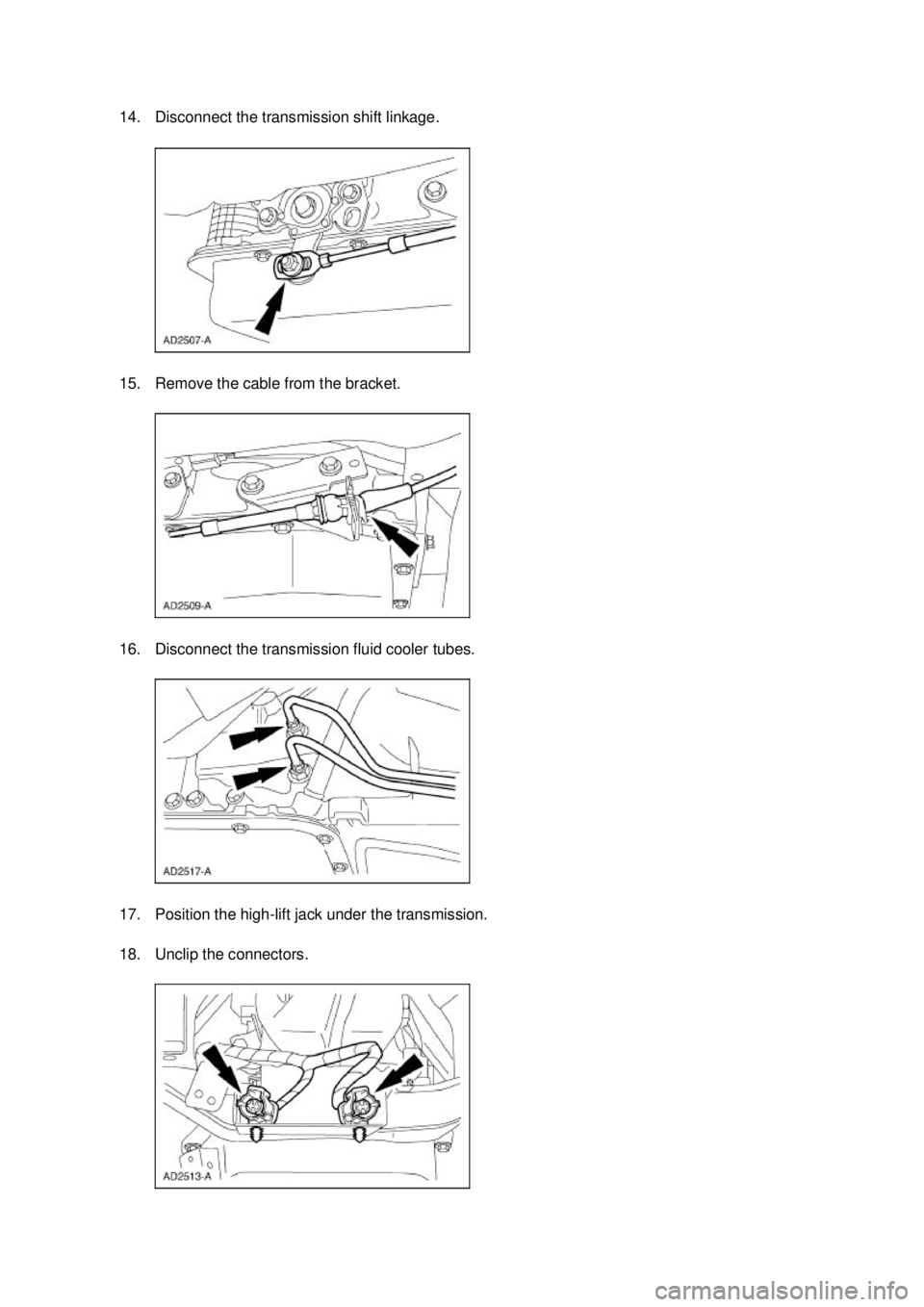

FORD MUSTANG 2003 Workshop Manual 14. Disconnect the transmission shift linkage. 15. Remove the cable from the bracket. 16. Disconnect the transmission fluid cooler tubes. 17. Position the high- lift jack under the transmission. 1

Page 2468 of 4378

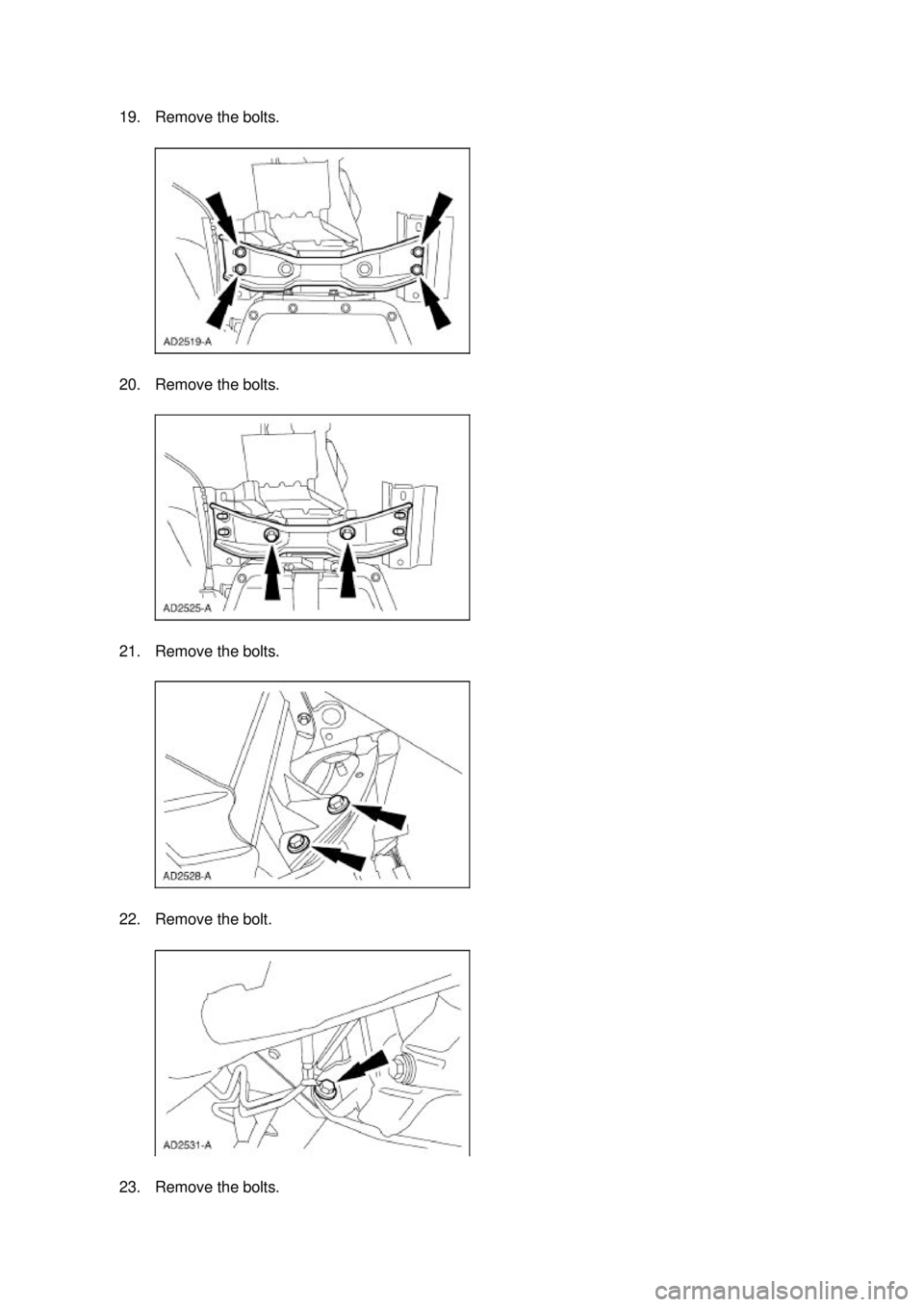

FORD MUSTANG 2003 Workshop Manual 19. Remove the bolts. 20. Remove the bolts. 21. Remove the bolts. 22. Remove the bolt. 23. Remove the bolts. Klj . 5 ba 72003 Mustang Workshop Manual 18. 11. 2011file:///C:/Ford/2000 - 20

Page 2469 of 4378

FORD MUSTANG 2003 Workshop Manual 24. Unclip the harness. 25. WARNING: The torque converter is heavy and may result in injury if it falls out of the transmission. Secure the torque converter in the transmission. Using the special

Page 2470 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 7 ba 72003 Mustang Workshop Manual 18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...

Page 2471 of 4378

FORD MUSTANG 2003 Workshop Manual DISASSEMBLY Transmission SECTION 307- 01: Automatic Transaxle/Transmission 2003 Mustang Workshop Manual Special Tool(s) Slide Hammer 100- 001 (T50T-100- A) Holding Fixture, Transmission 307- 00

Page 2472 of 4378

FORD MUSTANG 2003 Workshop Manual 1. Remove the special tool. 2. Using the special tools, remove torque converter. 3. Using the special tool, mount the transmission to the bench. 307- 309 (T94P-77001- BH) Retainer, Torque Converte
