Page 1769 of 4378

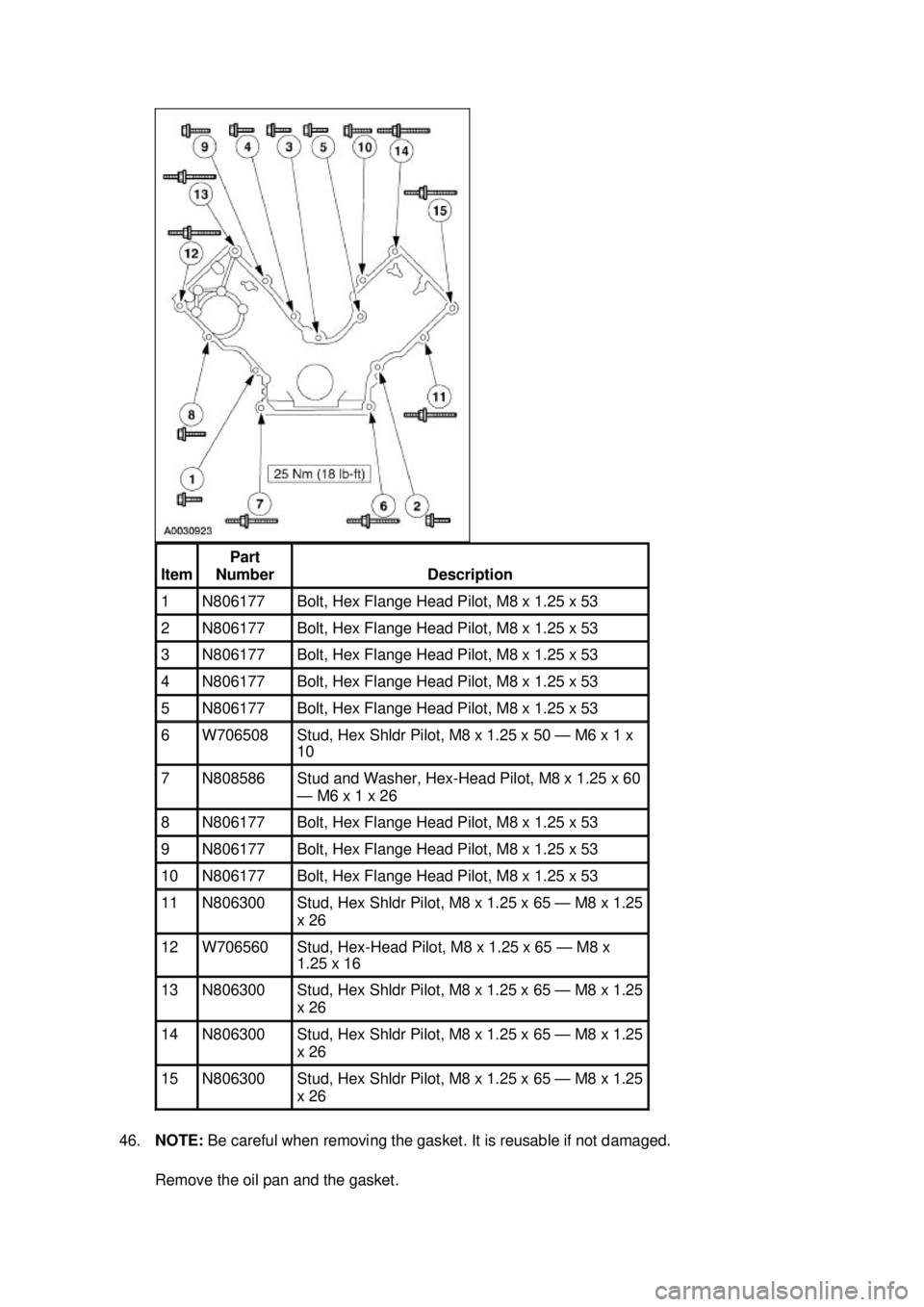

FORD MUSTANG 2003 Workshop Manual 46. NOTE: Be careful when removing the gasket. It is reusable if not damaged. Remove the oil pan and the gasket. Item Part Number Description 1 N806177 Bolt, Hex Flange Head Pilot, M8 x 1.25

Page 1770 of 4378

FORD MUSTANG 2003 Workshop Manual 47. Remove the CKP sensor pulse wheel. 48. Using the special tool, remove the 32 roller followers. 49. Remove the bolts and the RH and LH timing chain tensioners. 50. Remove the RH and LH timing ch

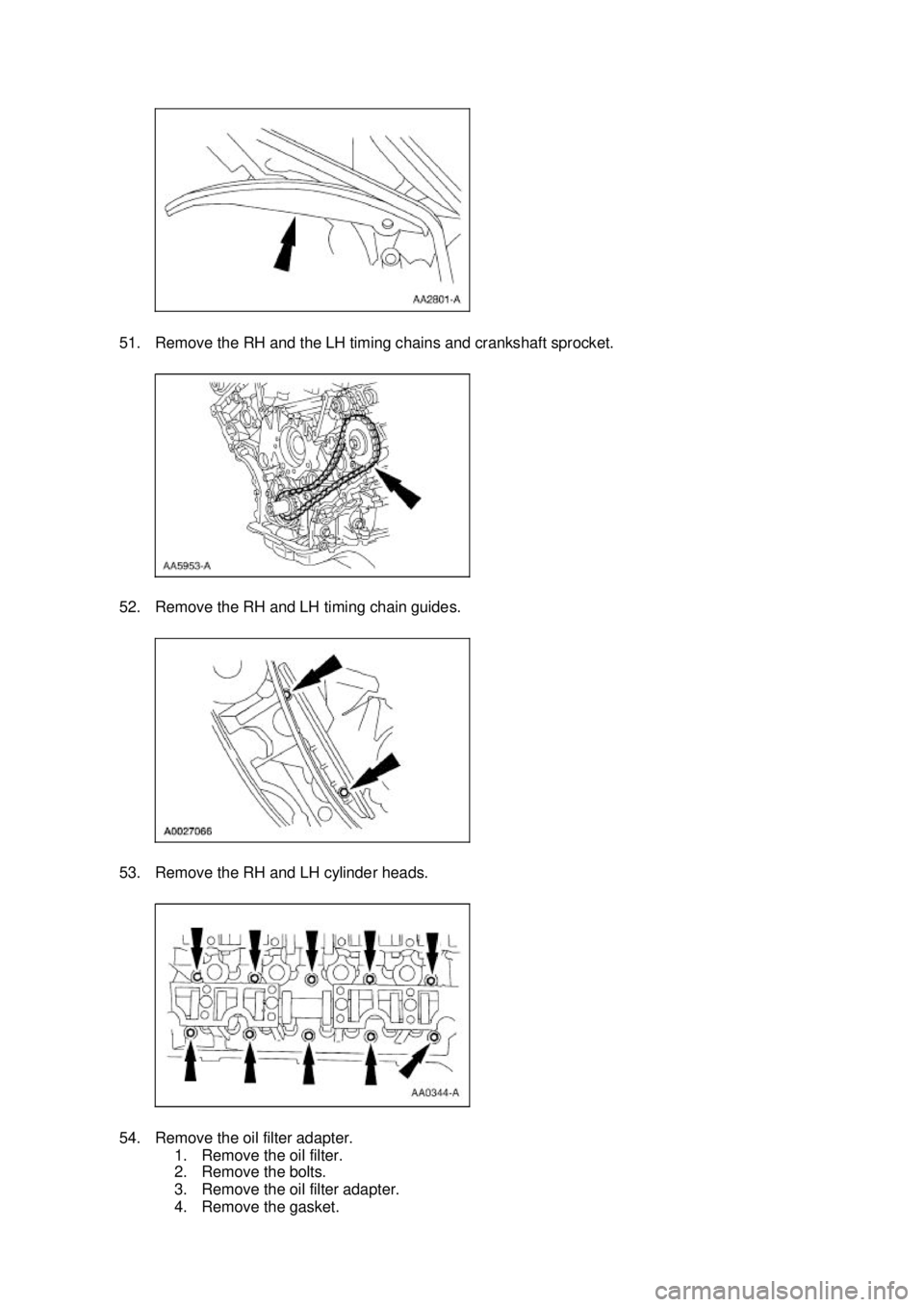

Page 1771 of 4378

FORD MUSTANG 2003 Workshop Manual 51. Remove the RH and the LH timing chains and crankshaft sprocket. 52. Remove the RH and LH timing chain guides. 53. Remove the RH and LH cylinder heads. 54. Remove the oil filter adapter. 1. Rem

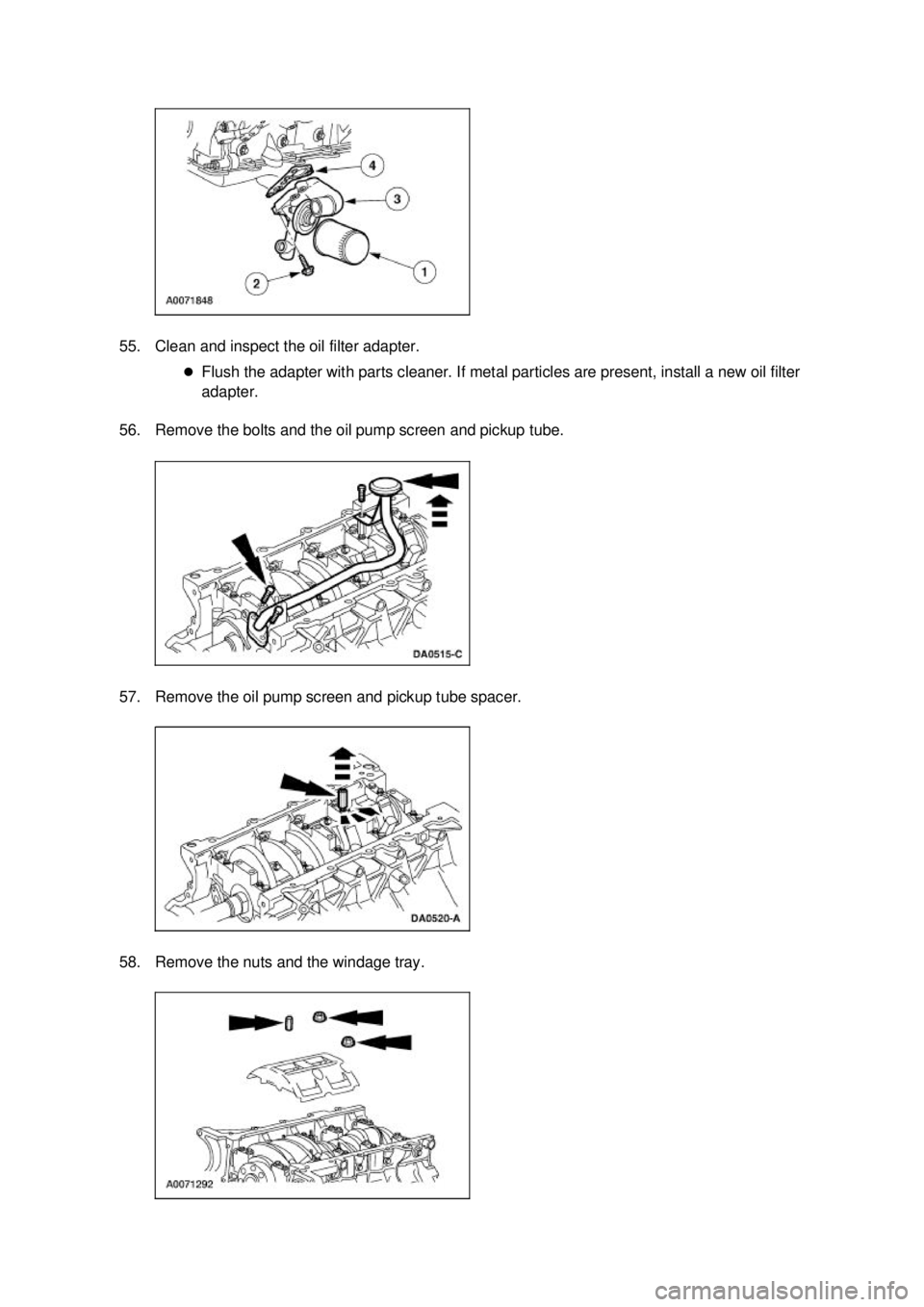

Page 1772 of 4378

FORD MUSTANG 2003 Workshop Manual 55. Clean and inspect the oil filter adapter. �zFlush the adapter with parts cleaner. If metal particles are present, install a new oil filter adapter. 56. Remove the bolts and the oil pump screen

Page 1773 of 4378

FORD MUSTANG 2003 Workshop Manual 59. Remove the LH engine mount. 60. Remove the RH engine mount. 61. Remove the bolts and the oil pump. 62. CAUTION: Do not stamp the top of pistons, as ring land damage can occur. NOTE: Connecti

Page 1774 of 4378

FORD MUSTANG 2003 Workshop Manual 63. CAUTION: Do not scratch the cylinder walls or crankshaft journals with the connecting rod. NOTE: Before removing pistons, inspect the top of the cylinder bores. If necessary, remove the ridge

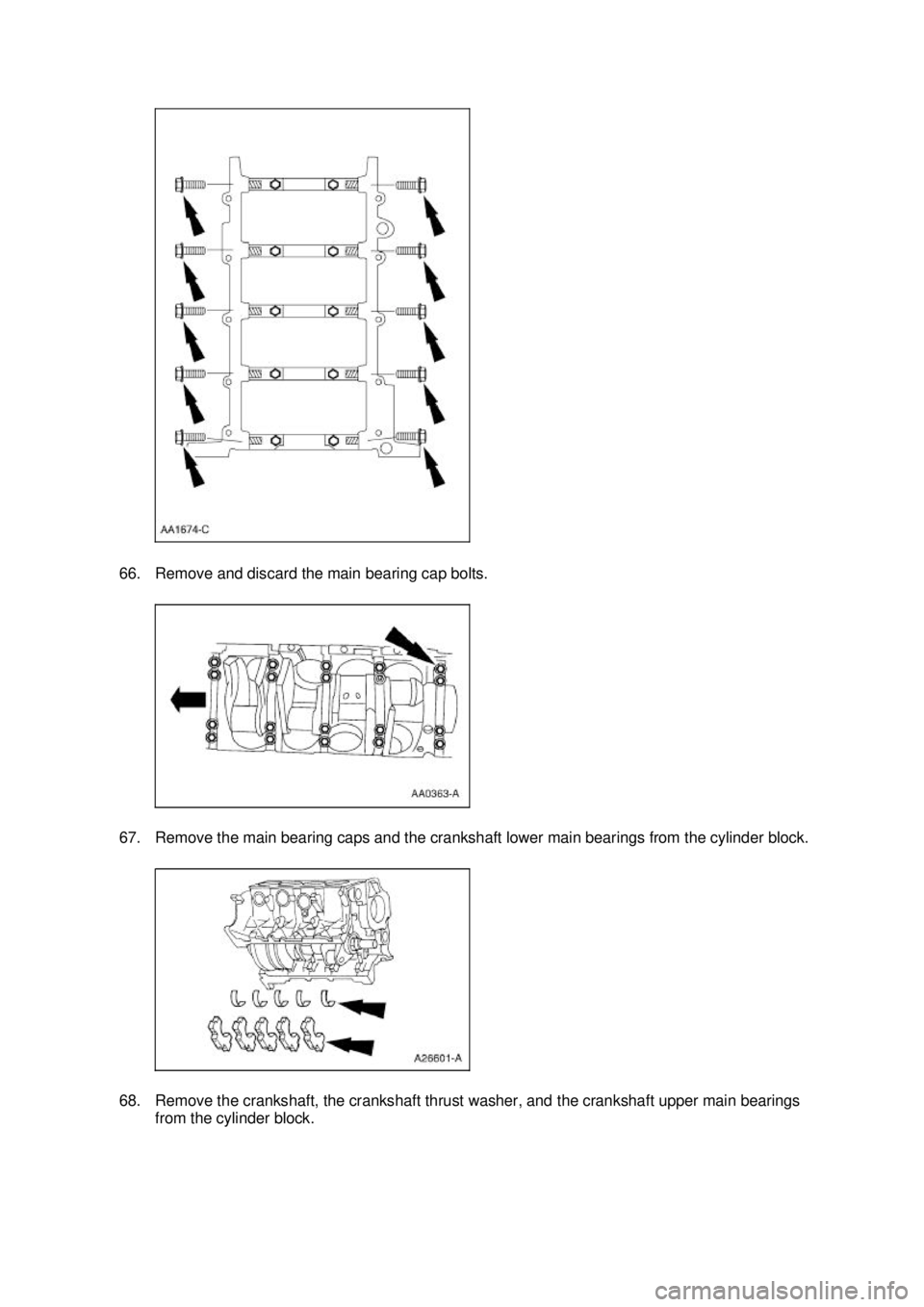

Page 1775 of 4378

FORD MUSTANG 2003 Workshop Manual 66. Remove and discard the main bearing cap bolts. 67. Remove the main bearing caps and the crankshaft lower main bearings from the cylinder block. 68. Remove the crankshaft, the crankshaft thrust w

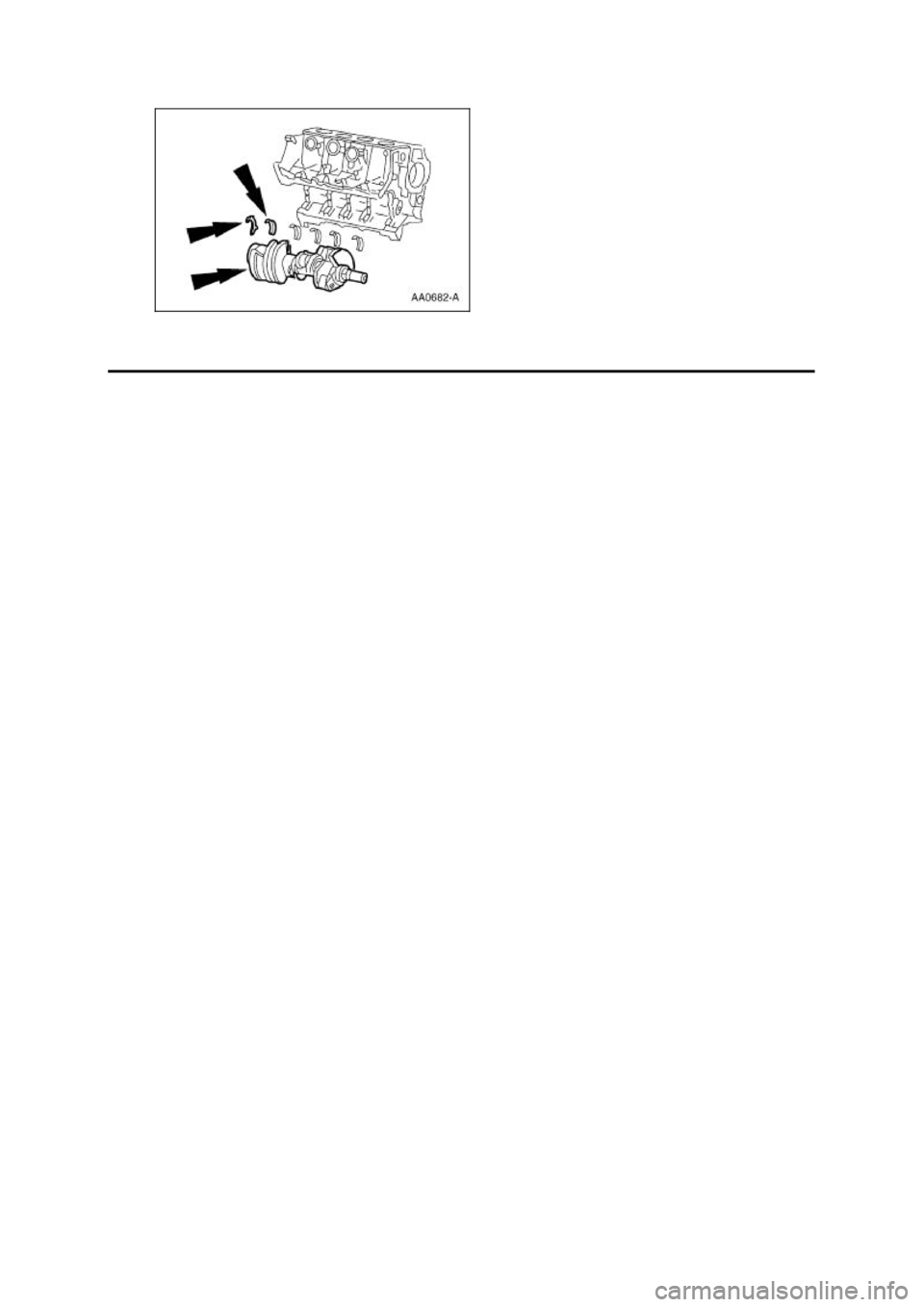

Page 1776 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 21 ba 212003 Mustang Workshop Manual 17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...
