Page 2441 of 4378

FORD MUSTANG 2003 Workshop Manual IN- VEHICLE REPAIR Manual Control Lever Shaft and Seal Removal 1. Drain the transmission fluid and remove the fluid pan and filter. For additional information, refer to Fluid Pan, Gasket and Filte

Page 2442 of 4378

FORD MUSTANG 2003 Workshop Manual �z Remove the bolts. �z Remove the digital TR sensor. 5. Remove the manual control valve detent lever spring. 1. Remove the bolt. 2. Remove the manual control valve detent lever spring. 6. NOTE:

Page 2443 of 4378

FORD MUSTANG 2003 Workshop Manual 8. Remove the parking lever actuating rod. 1. Remove the manual valve detent lever. 2. Remove the parking lever actuating rod. 9. CAUTION: Use care not to damage the manual control lever shaft bor

Page 2444 of 4378

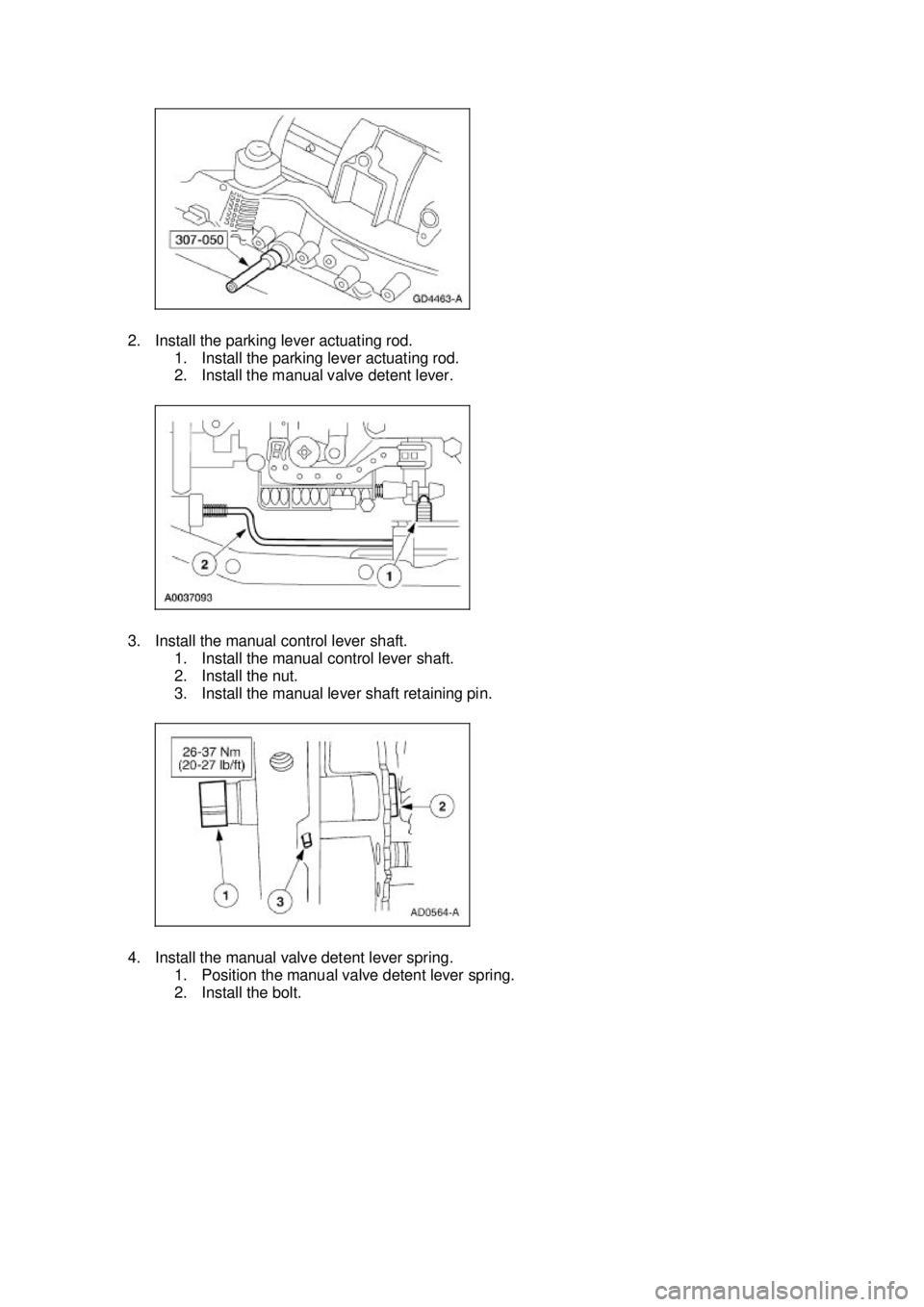

FORD MUSTANG 2003 Workshop Manual 2. Install the parking lever actuating rod. 1. Install the parking lever actuating rod. 2. Install the manual valve detent lever. 3. Install the manual control lever shaft. 1. Install the manual c

Page 2445 of 4378

FORD MUSTANG 2003 Workshop Manual 5. Install the digital TR sensor. 1. Install the digital TR sensor. 2. Loosely install the bolts. 6. NOTE: The tool is designed to fit snug. NOTE: Manual shift lever shaft must be in the neutral

Page 2446 of 4378

FORD MUSTANG 2003 Workshop Manual 8. With manual lever in overdrive, connect the shift control cable. 9. Install the digital TR sensor electrical connector. 10. Install the filter and transmission fluid pan. For additional informati

Page 2447 of 4378

FORD MUSTANG 2003 Workshop Manual IN- VEHICLE REPAIR Digital Transmission Range (TR) Sensor Removal 1. Disconnect the battery ground cable. For additional information, refer to Section 414 - 01 . 2. Raise and support the vehicle

Page 2448 of 4378

FORD MUSTANG 2003 Workshop Manual Installation 1. Install the digital TR sensor and loosely install the bolts. 2. NOTE: The tool is designed to fit snugly. NOTE: Manual shift lever shaft must be in the neutral position. Using th
