FORD MUSTANG 2003 Workshop Manual 1. Using the special tool and a press, remove the countershaft bearing assembly (7F431). 2. CAUTION: Failure to correctly support the case (7005) during bearing race removal will result in permanen

Page 2738 of 4378

FORD MUSTANG 2003 Workshop Manual 3. CAUTION: Failure to correctly support the case during bearing race installation will result in permanent distortion of the case. Using the special tools and a press, install the bearing race. 4

Page 2739 of 4378

FORD MUSTANG 2003 Workshop Manual DISASSEMBLY AND ASSEMBLY OF SUBASSEMBLIES Synchronizers Disassembly NOTE: This procedure applies to all synchronizer assemblies (7124). The synchronizers are slightly different in design. Notatio

Page 2740 of 4378

FORD MUSTANG 2003 Workshop Manual positioned over the hub inserts. 2. CAUTION: Match the alignment marks made during disassembly. The sleeve and the hub have an extremely close fit. Hold the sleeve and hub square to prevent jamming

Page 2741 of 4378

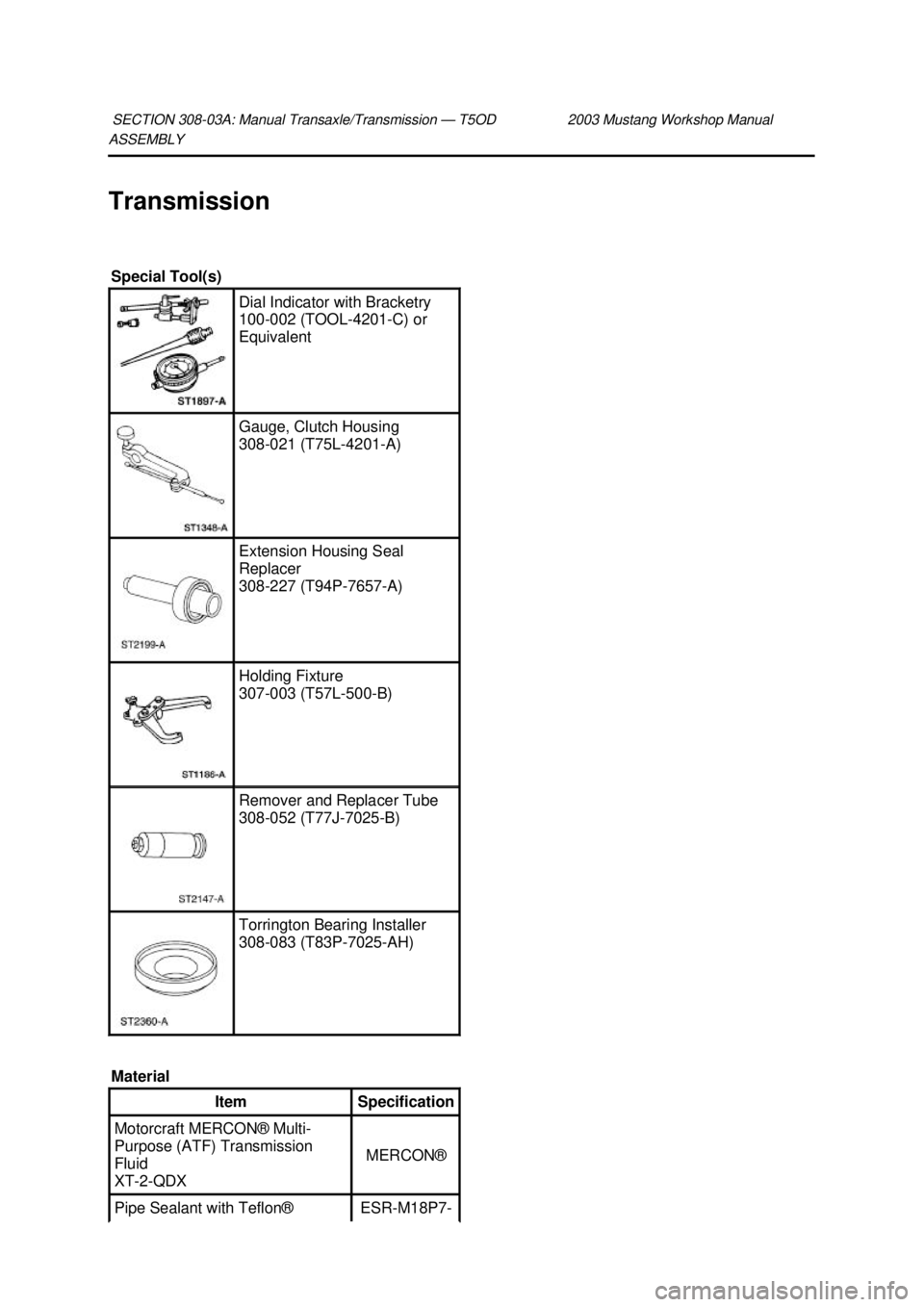

FORD MUSTANG 2003 Workshop Manual ASSEMBLY Transmission SECTION 308- 03A: Manual Transaxle/Transmission — T5OD 2003 Mustang Workshop Manual Special Tool(s) Dial Indicator with Bracketry 100- 002 (TOOL- 4201-C) or Equivalent G

Page 2742 of 4378

FORD MUSTANG 2003 Workshop Manual 1. Soak the blocking rings in transmission fluid for ten minutes. 2. Position the countershaft cluster gear in the case. 3. CAUTION: Failure to correctly support the case during bearing installatio

Page 2743 of 4378

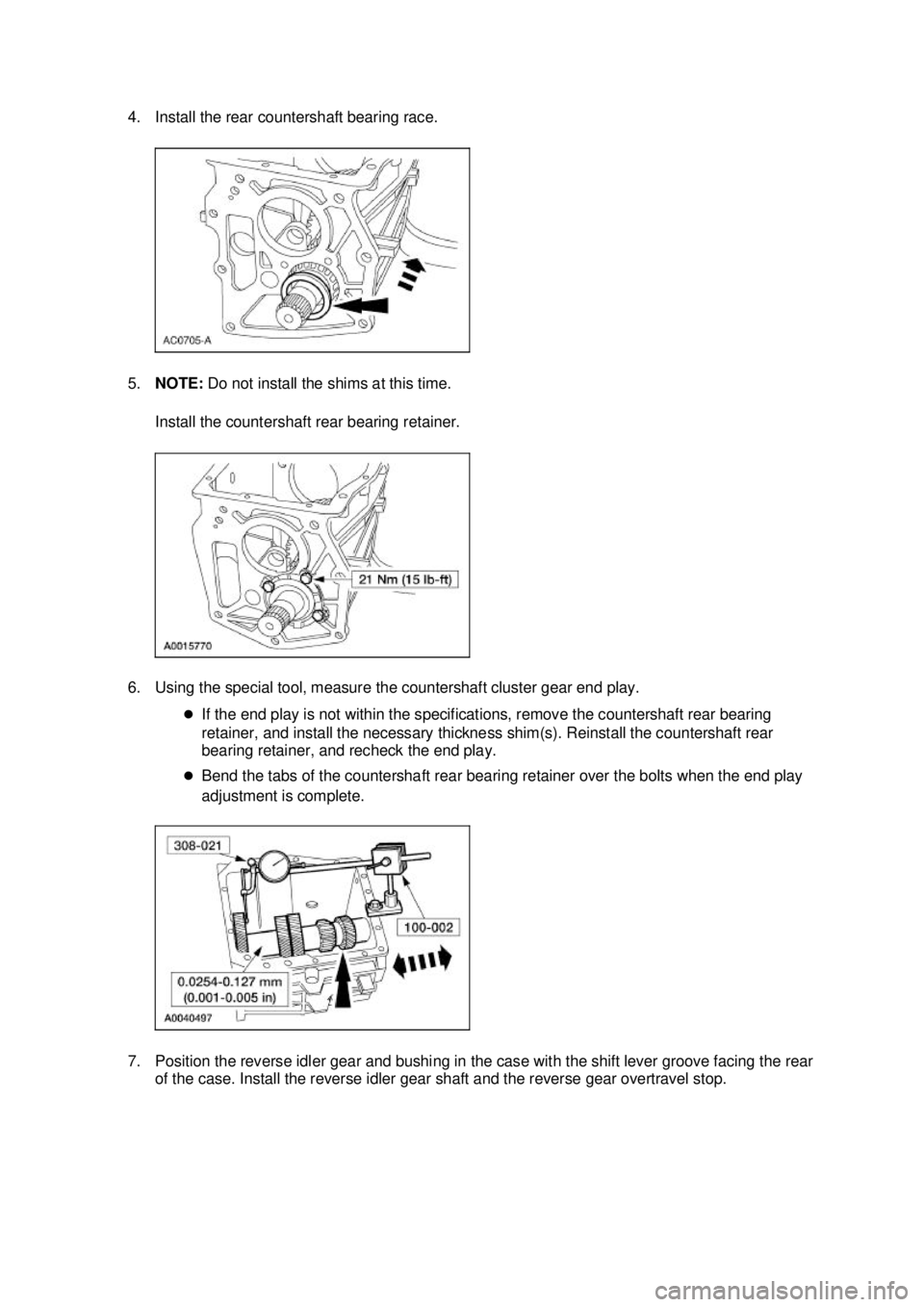

FORD MUSTANG 2003 Workshop Manual 4. Install the rear countershaft bearing race. 5. NOTE: Do not install the shims at this time. Install the countershaft rear bearing retainer. 6. Using the special tool, measure the countershaft c

Page 2744 of 4378

FORD MUSTANG 2003 Workshop Manual 8. Install the pin. 9. Align the reverse gearshift lever, the reverse shift fork, and the reverse positioning spring. 10. NOTE: Observe the reverse positioning spring rotation. The spring must rota
