Page 1113 of 4378

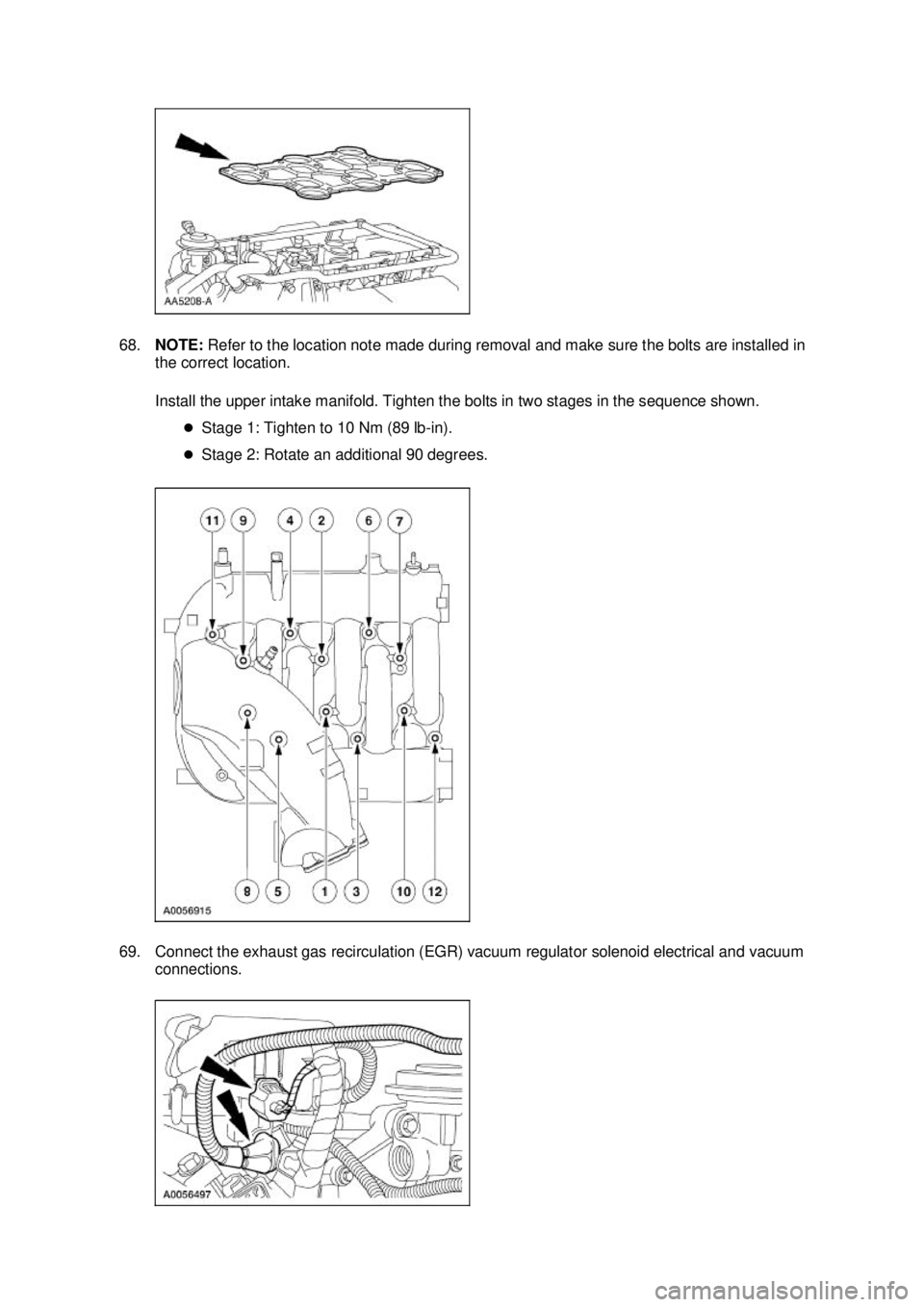

FORD MUSTANG 2003 Workshop Manual 68. NOTE: Refer to the location note made during removal and make sure the bolts are installed in the correct location. Install the upper intake manifold. Tighten the bolts in two stages in the seq

Page 1114 of 4378

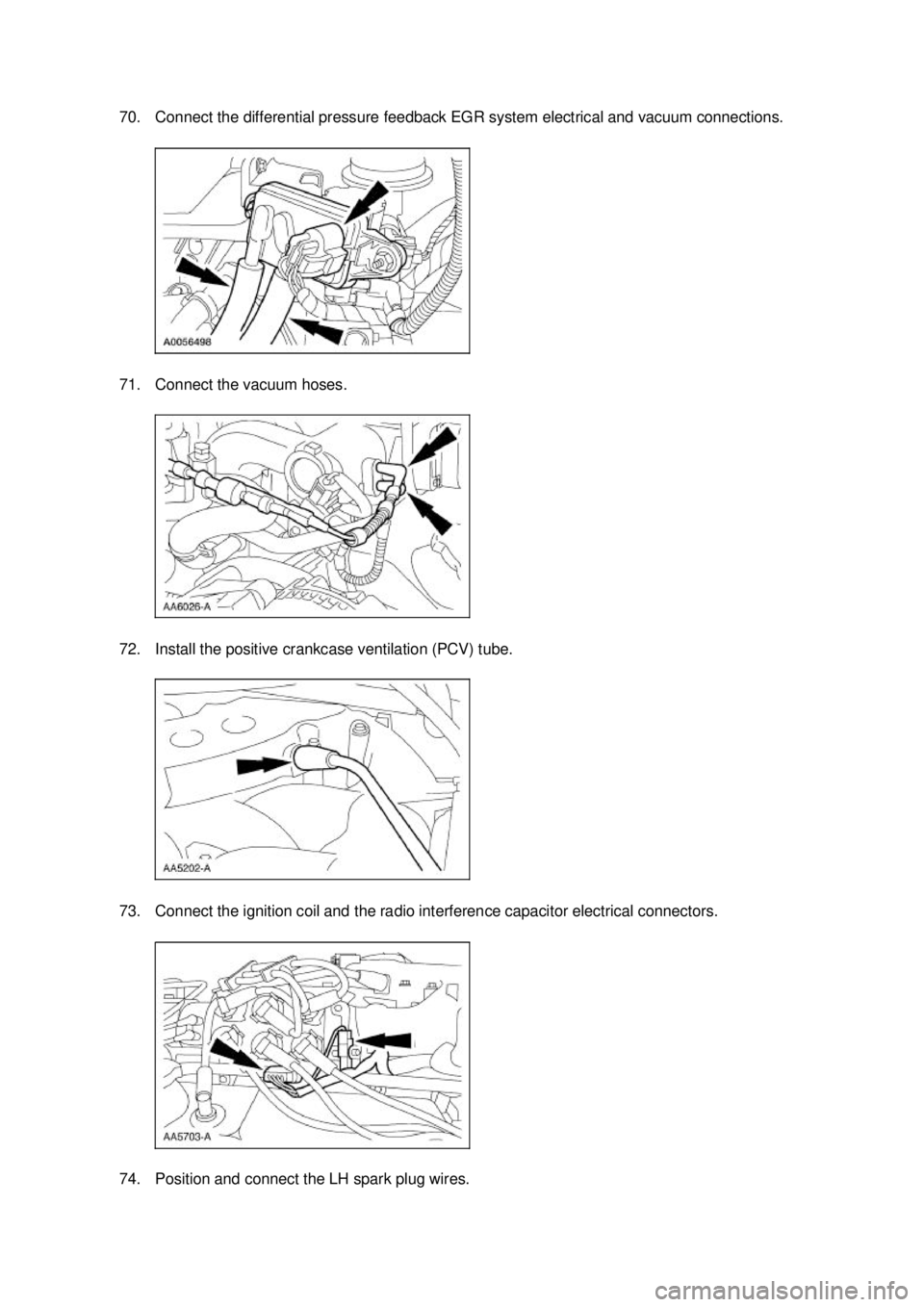

FORD MUSTANG 2003 Workshop Manual 70. Connect the differential pressure feedback EGR system electrical and vacuum connections. 71. Connect the vacuum hoses. 72. Install the positive crankcase ventilation (PCV) tube. 73. Connect the

Page 1115 of 4378

FORD MUSTANG 2003 Workshop Manual 75. Position and connect the RH spark plug wires. 76. Connect the idle air control (IAC) valve and the throttle position (TP) sensor electrical connectors. 77. Install the RH exhaust manifold. �zI

Page 1116 of 4378

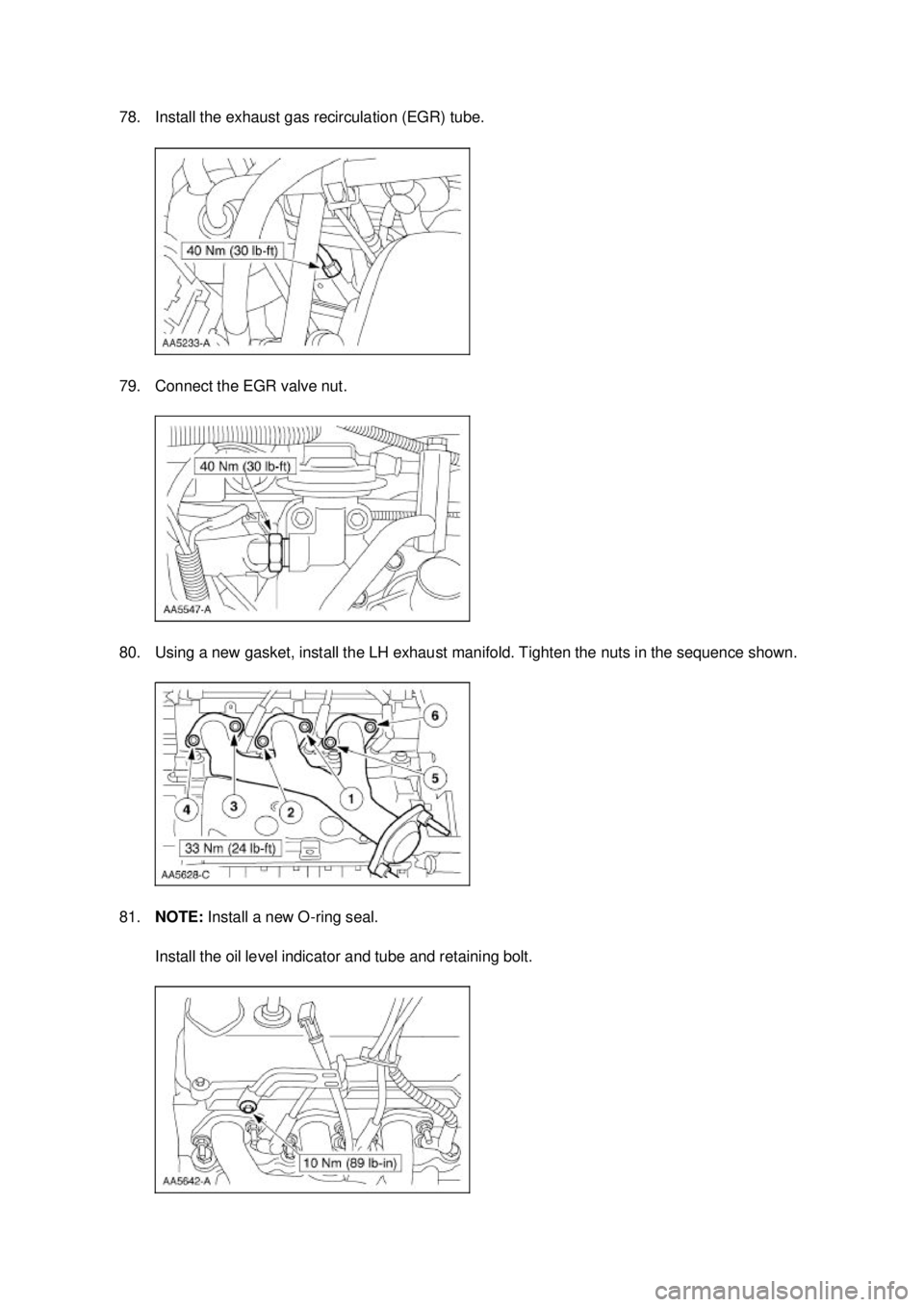

FORD MUSTANG 2003 Workshop Manual 78. Install the exhaust gas recirculation (EGR) tube. 79. Connect the EGR valve nut. 80. Using a new gasket, install the LH exhaust manifold. Tighten the nuts in the sequence shown. 81. NOTE: Inst

Page 1117 of 4378

FORD MUSTANG 2003 Workshop Manual 82. Install the special tool. 83. Install the special tool. 84. Install the RH engine support insulator. 85. Install the LH engine support insulator. 86. Remove the engine from the stand. Klj

Page 1118 of 4378

FORD MUSTANG 2003 Workshop Manual 87. NOTE: Lubricate the crankshaft rear seal lips with clean engine oil prior to installation. Assemble the special tools and the crankshaft rear seal. 88. Install the special tools on the rear of

Page 1119 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 28 ba 282003 Mustang Workshop Manual 17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

Page 1120 of 4378

FORD MUSTANG 2003 Workshop Manual INSTALLATION Engine Installation All vehicles 1. Install the separator plate and the flywheel. 2. Using the special tools, position the engine in the vehicle. SECTION 303- 01A: Engine — 3.8L
