FORD MUSTANG 2003 Workshop Manual Klj . 3 ba 32003 Mustang Workshop Manual 18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...

Page 2898 of 4378

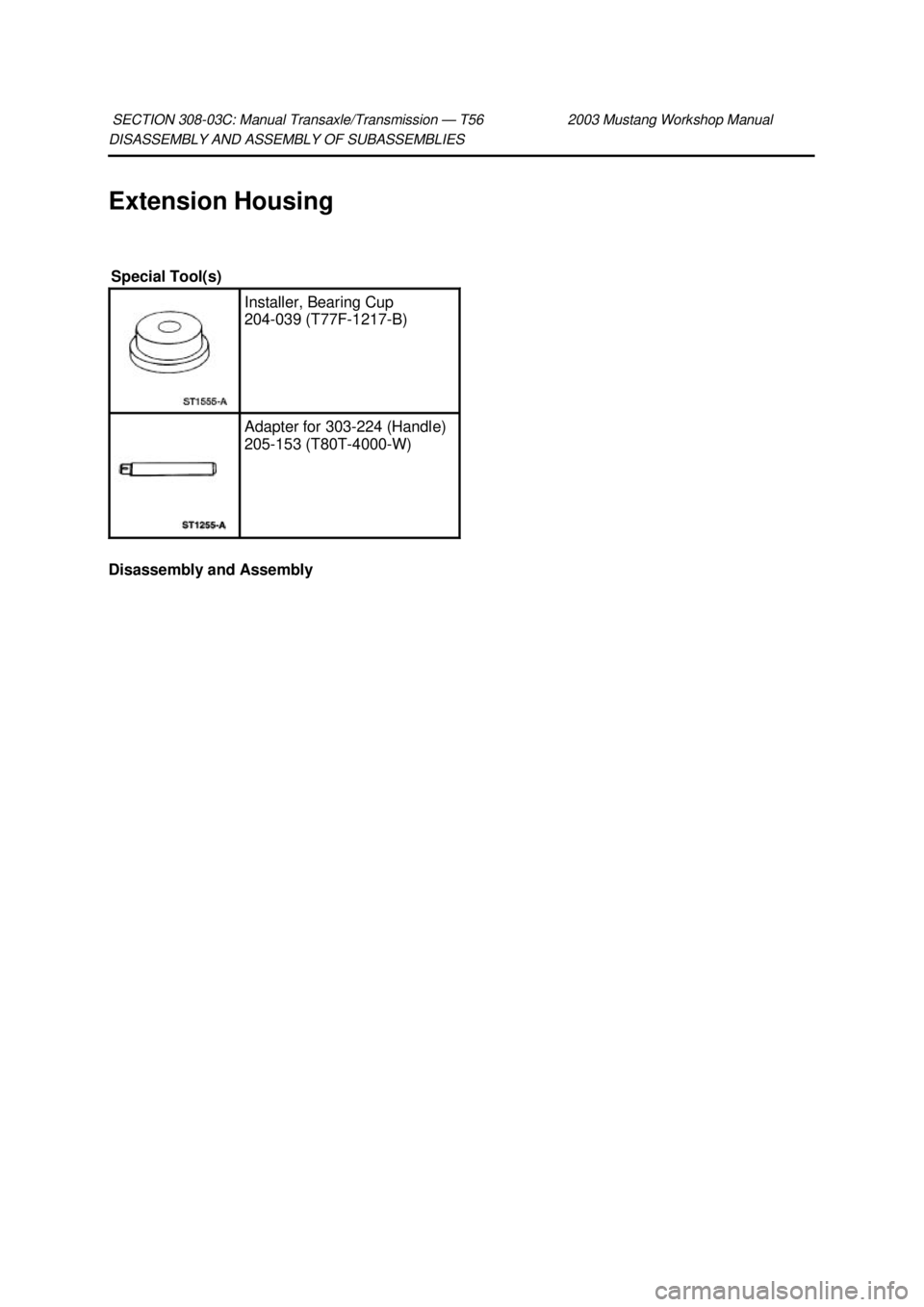

FORD MUSTANG 2003 Workshop Manual DISASSEMBLY AND ASSEMBLY OF SUBASSEMBLIES Extension Housing Disassembly and Assembly SECTION 308- 03C: Manual Transaxle/Transmission — T56 2003 Mustang Workshop Manual Special Tool(s) Installer

Page 2899 of 4378

FORD MUSTANG 2003 Workshop Manual Item Part Number Description 1 — Countershaft extension bearing cup 2 — Countershaft extension bearing shim 3 — Fluid funnel 4 — Case plug 5 — Reverse idler shaft bracket 6 —

Page 2900 of 4378

FORD MUSTANG 2003 Workshop Manual 1. Remove the bolt and the output shaft speed (OSS) sensor. 2. Remove the bolt and the reverse lockout solenoid. 3. Remove the bolts and the reverse idler shaft bracket. 4. Remove the reverse idler

Page 2901 of 4378

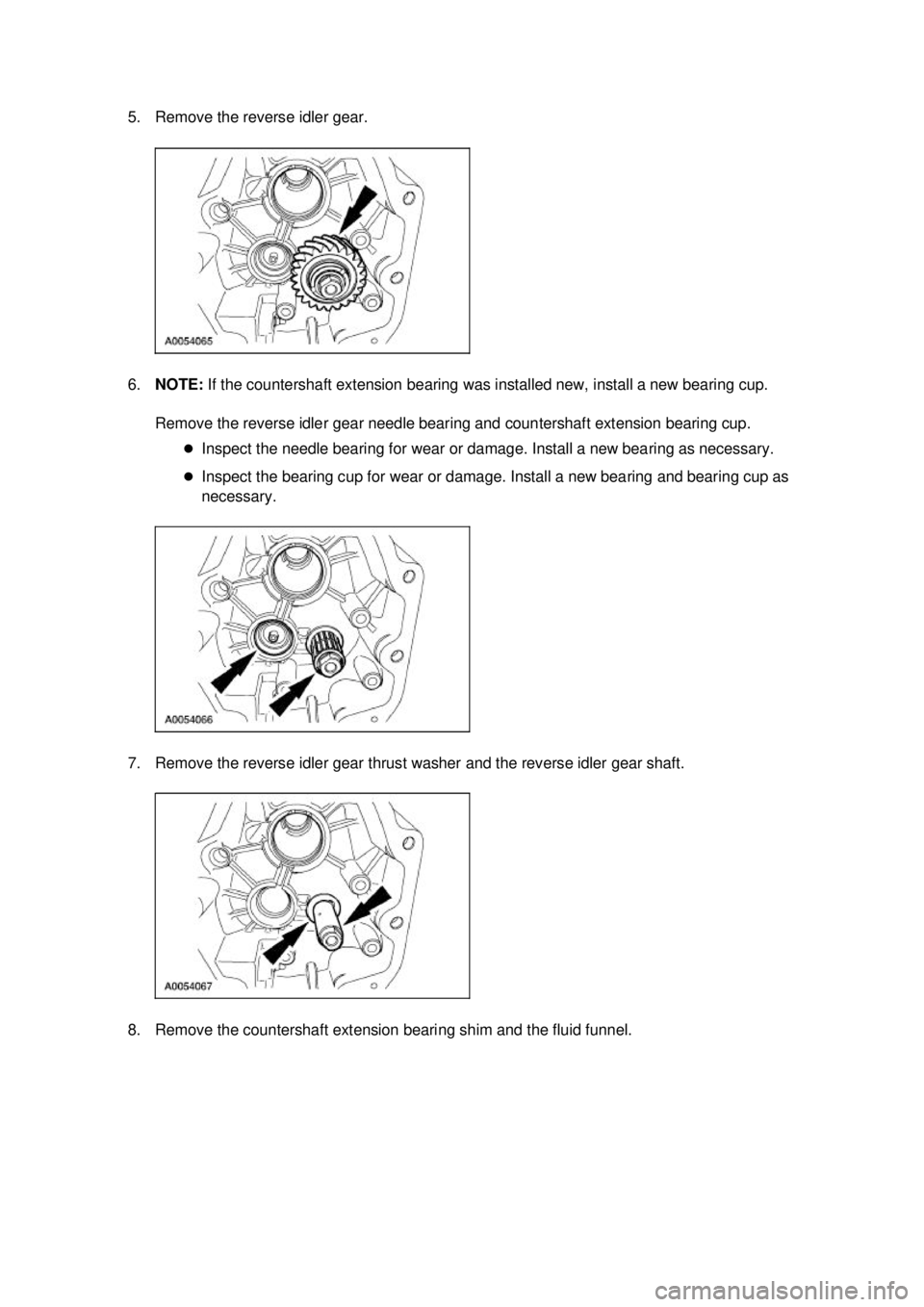

FORD MUSTANG 2003 Workshop Manual 5. Remove the reverse idler gear. 6. NOTE: If the countershaft extension bearing was installed new, install a new bearing cup. Remove the reverse idler gear needle bearing and countershaft extensio

Page 2902 of 4378

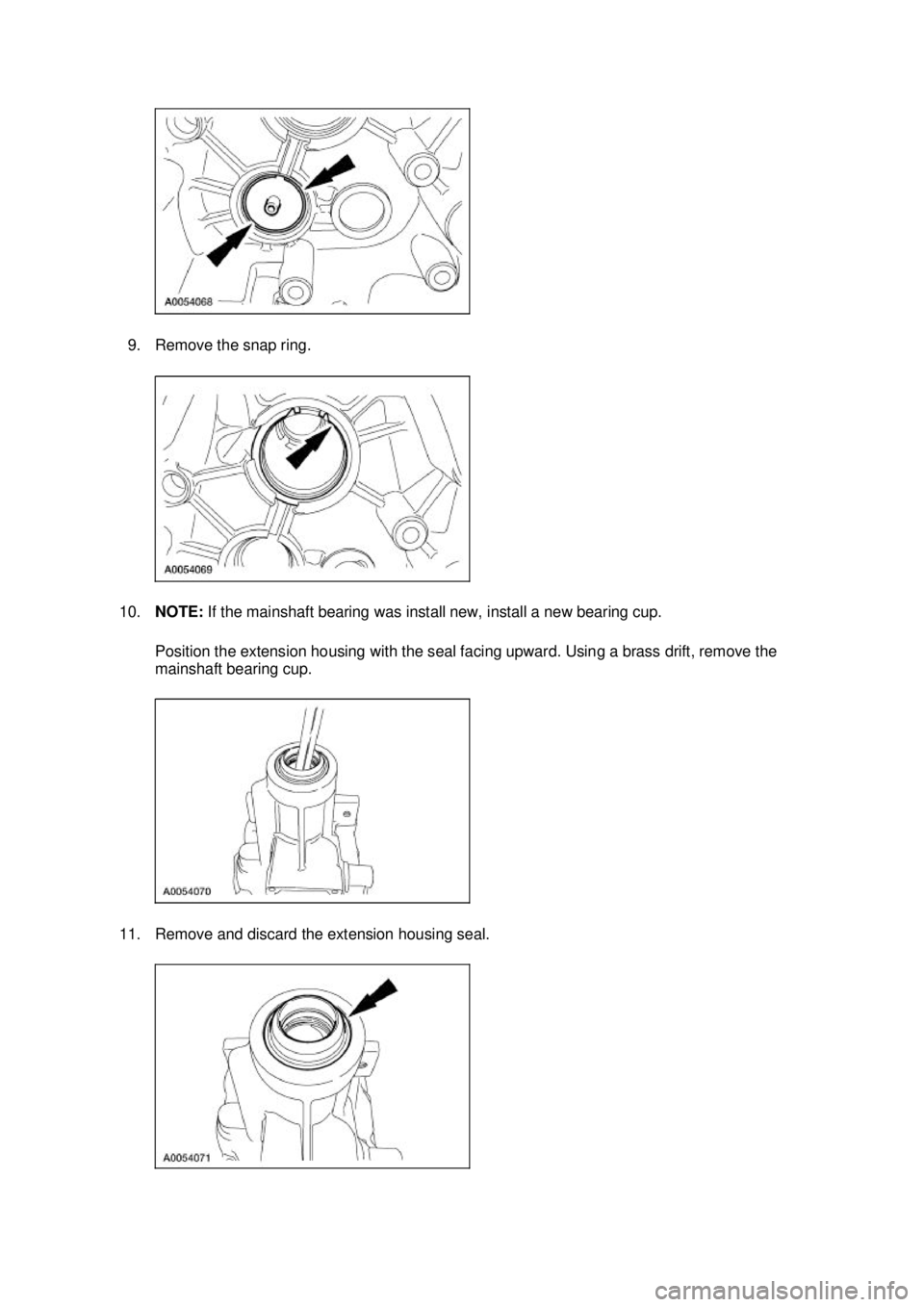

FORD MUSTANG 2003 Workshop Manual 9. Remove the snap ring. 10. NOTE: If the mainshaft bearing was install new, install a new bearing cup. Position the extension housing with the seal facing upward. Using a brass drift, remove the

Page 2903 of 4378

FORD MUSTANG 2003 Workshop Manual 12. WARNING: Make sure protective eye wear is in place. Clean the housing with solvent and dry with compressed air. Clean and check the sealing surface for nicks or scratches. Inspect the housing f

Page 2904 of 4378

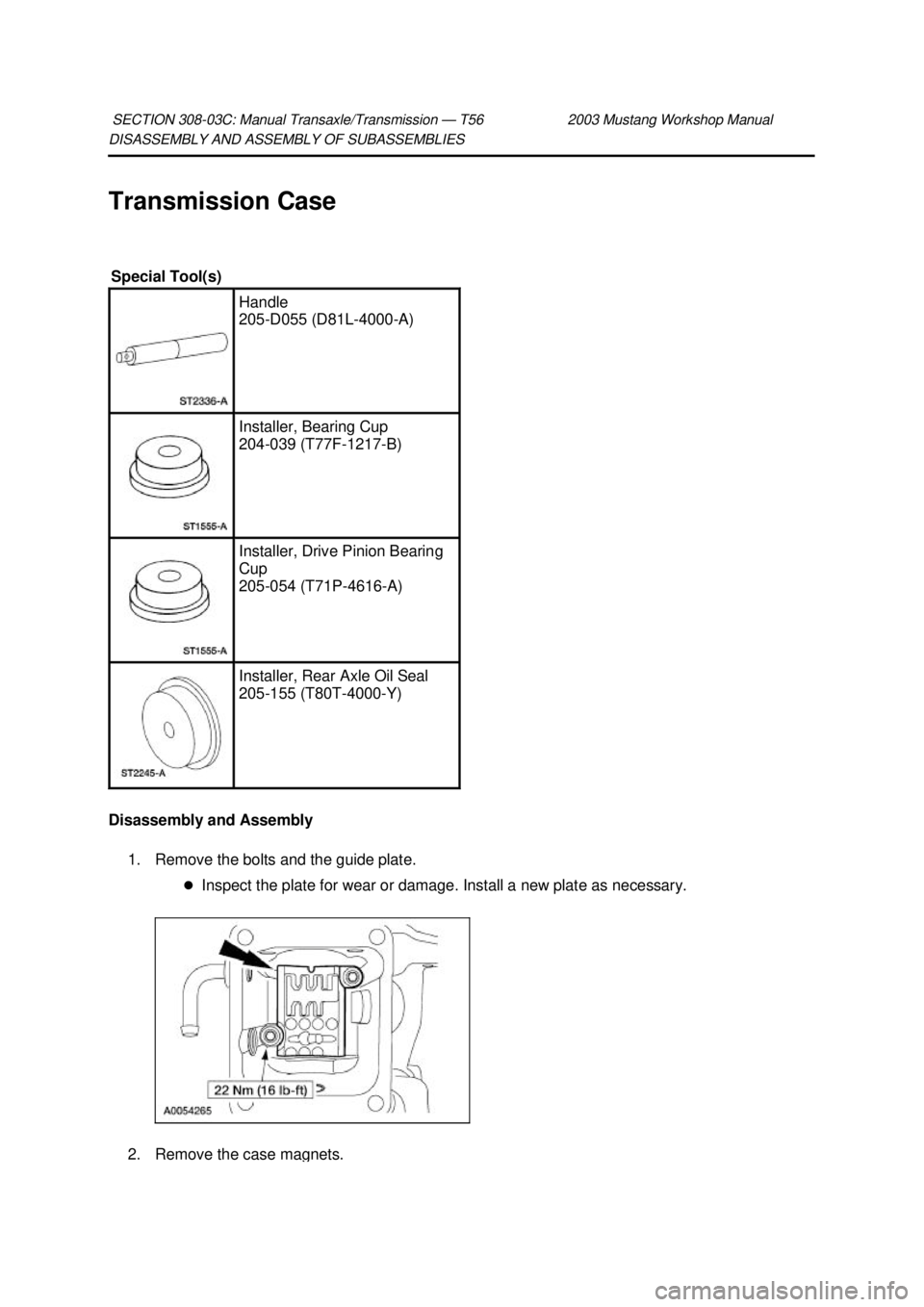

FORD MUSTANG 2003 Workshop Manual DISASSEMBLY AND ASSEMBLY OF SUBASSEMBLIES Transmission Case Disassembly and Assembly 1. Remove the bolts and the guide plate. �zInspect the plate for wear or damage. Install a new plate as necessa
