Page 665 of 4378

FORD MUSTANG 2003 Workshop Manual 3. Install the rear axle shaft bearing, refer to Section 205 - 02A . Klj . 3 ba 32003 Mustang Workshop Manual 17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

Page 666 of 4378

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION Hydraulic Control Unit Removal 1. Disconnect the battery ground cable(14301). 2. Disconnect the anti- lock-brake control module electrical connector. 3. NOTE: The 4 whee

Page 667 of 4378

FORD MUSTANG 2003 Workshop Manual 6. Remove the pump motor electrical connector. 7. Remove the anti- lock-brake control module screws. 8. Remove the anti- lock-brake control module from the HCU. Installation 1. NOTE: The brake sy

Page 668 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 3 ba 32003 Mustang Workshop Manual 17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

Page 669 of 4378

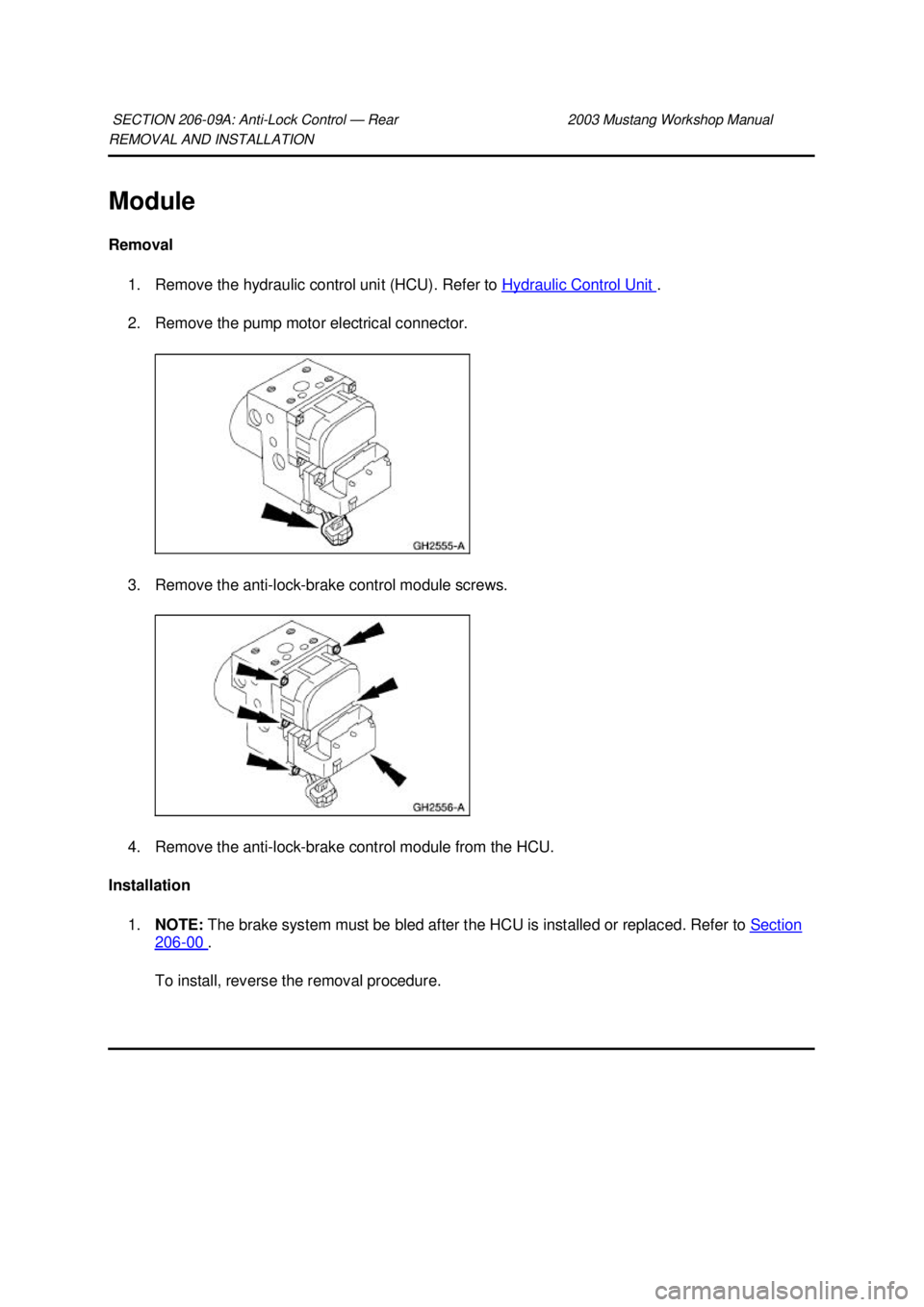

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION Module Removal 1. Remove the hydraulic control unit (HCU). Refer to Hydraulic Control Unit . 2. Remove the pump motor electrical connector. 3. Remove the anti- lock-bra

Page 670 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 2 ba 22003 Mustang Workshop Manual 17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

Page 671 of 4378

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION Sensor — Front Removal 1. Remove the wheel and tire assembly. For additional information, refer to Section 204 - 04 . 2. Remove the inner fender splash shield. 1. Rem

Page 672 of 4378

FORD MUSTANG 2003 Workshop Manual Installation 1. To install, reverse the removal procedure. Klj . 2 ba 32003 Mustang Workshop Manual 17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...
