Page 4137 of 4378

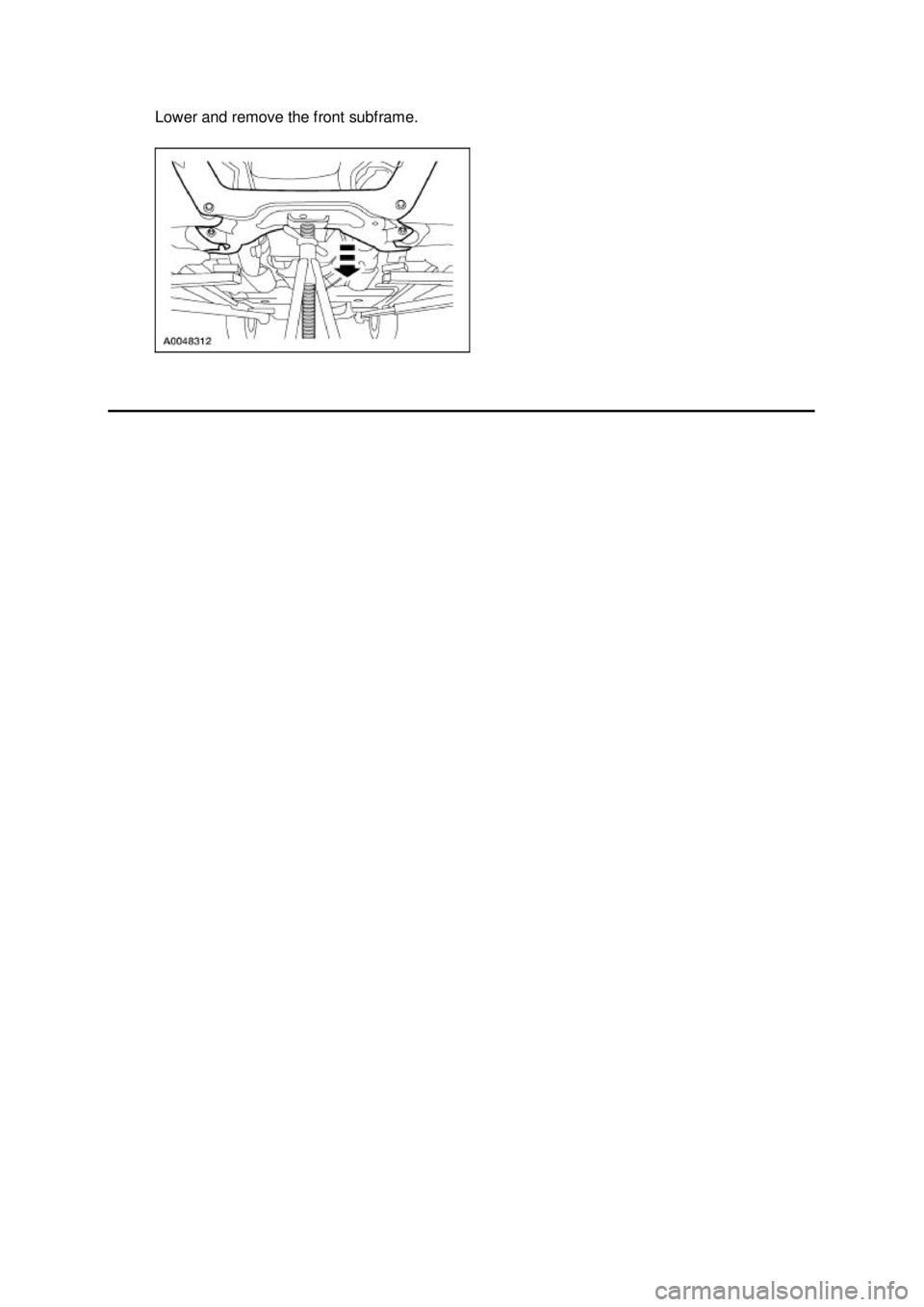

FORD MUSTANG 2003 Workshop Manual Lower and remove the front subframe. Klj . 4 ba 42003 Mustang Workshop Manual 18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

Page 4138 of 4378

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION Front Subframe — 4.6L (4V) Engine Removal and Installation All vehicles 1. Remove the steering gear. For additional information, refer to Section 211 - 02 . 2. Remove

Page 4139 of 4378

FORD MUSTANG 2003 Workshop Manual 6. Install the special tool. 7. Install the special tool. 8. Raise and support the vehicle. 9. Remove the two engine mount nuts. 10. Lower the vehicle. 11. Using the special tool, raise and suppo

Page 4140 of 4378

FORD MUSTANG 2003 Workshop Manual 12. Raise the vehicle. 13. Support the front subframe. 14. Remove the four front subframe lower bolts. 15. Remove the four front subframe upper bolts. 16. NOTE: Two technicians are needed to carr

Page 4141 of 4378

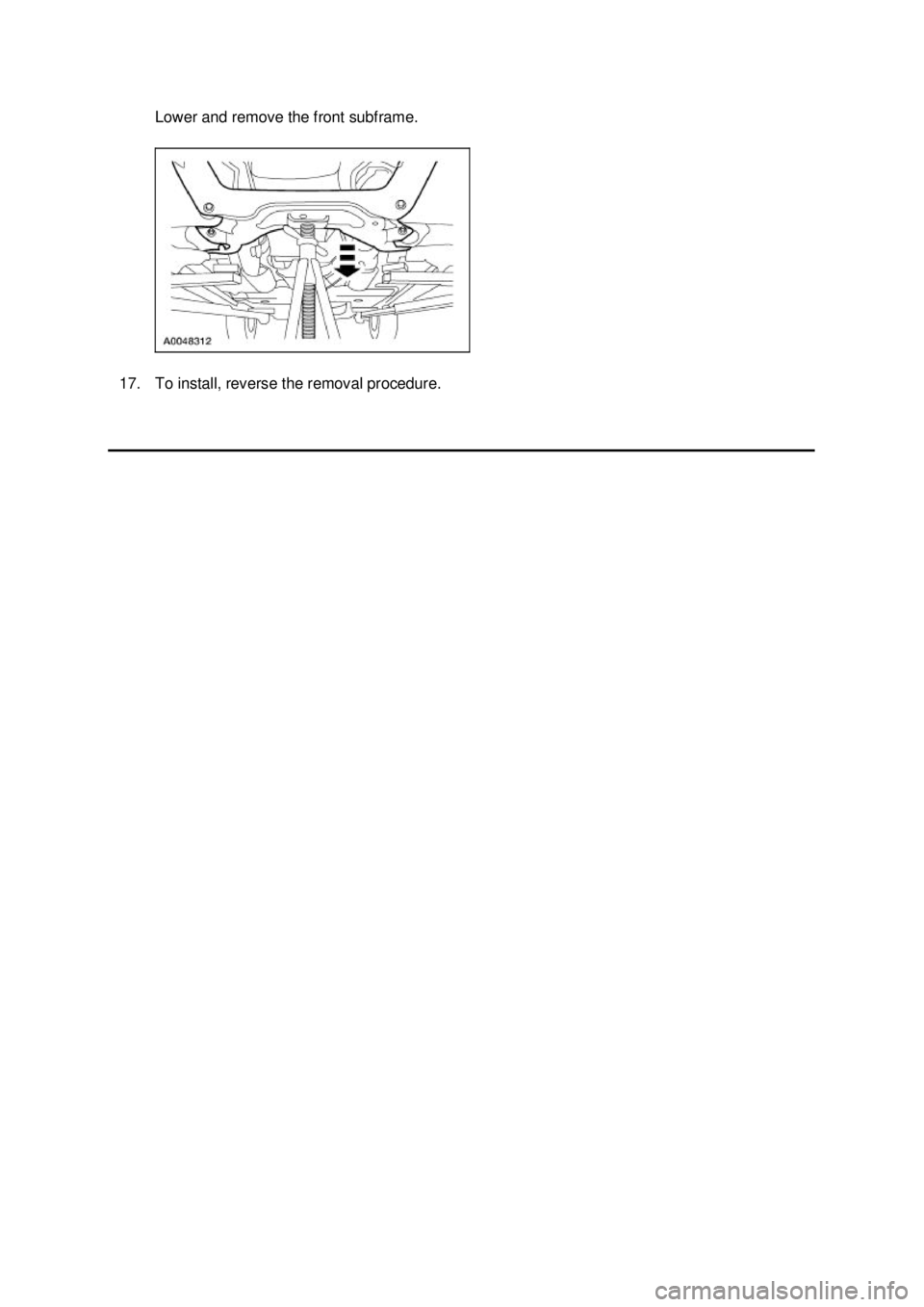

FORD MUSTANG 2003 Workshop Manual Lower and remove the front subframe. 17. To install, reverse the removal procedure. Klj . 4 ba 42003 Mustang Workshop Manual 18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us

Page 4142 of 4378

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION Rear Subframe Removal and Installation CAUTION: Suspension fasteners are critical parts because they affect performance of vital components and systems and their failure

Page 4143 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 2 ba 22003 Mustang Workshop Manual 18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

Page 4144 of 4378

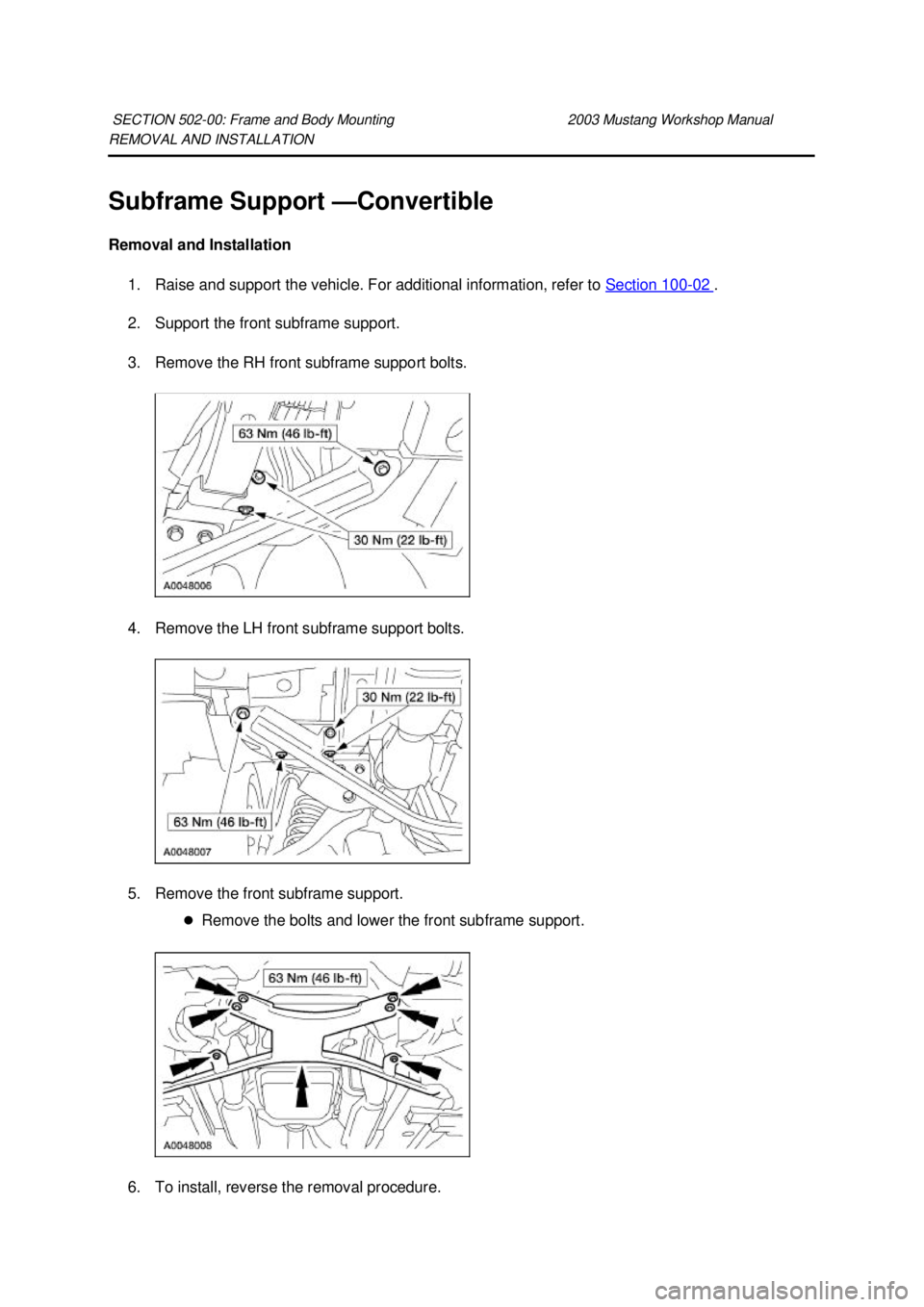

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION Subframe Support —Convertible Removal and Installation 1. Raise and support the vehicle. For additional information, refer to Section 100 - 02 . 2. Support the front s
