Page 3697 of 4378

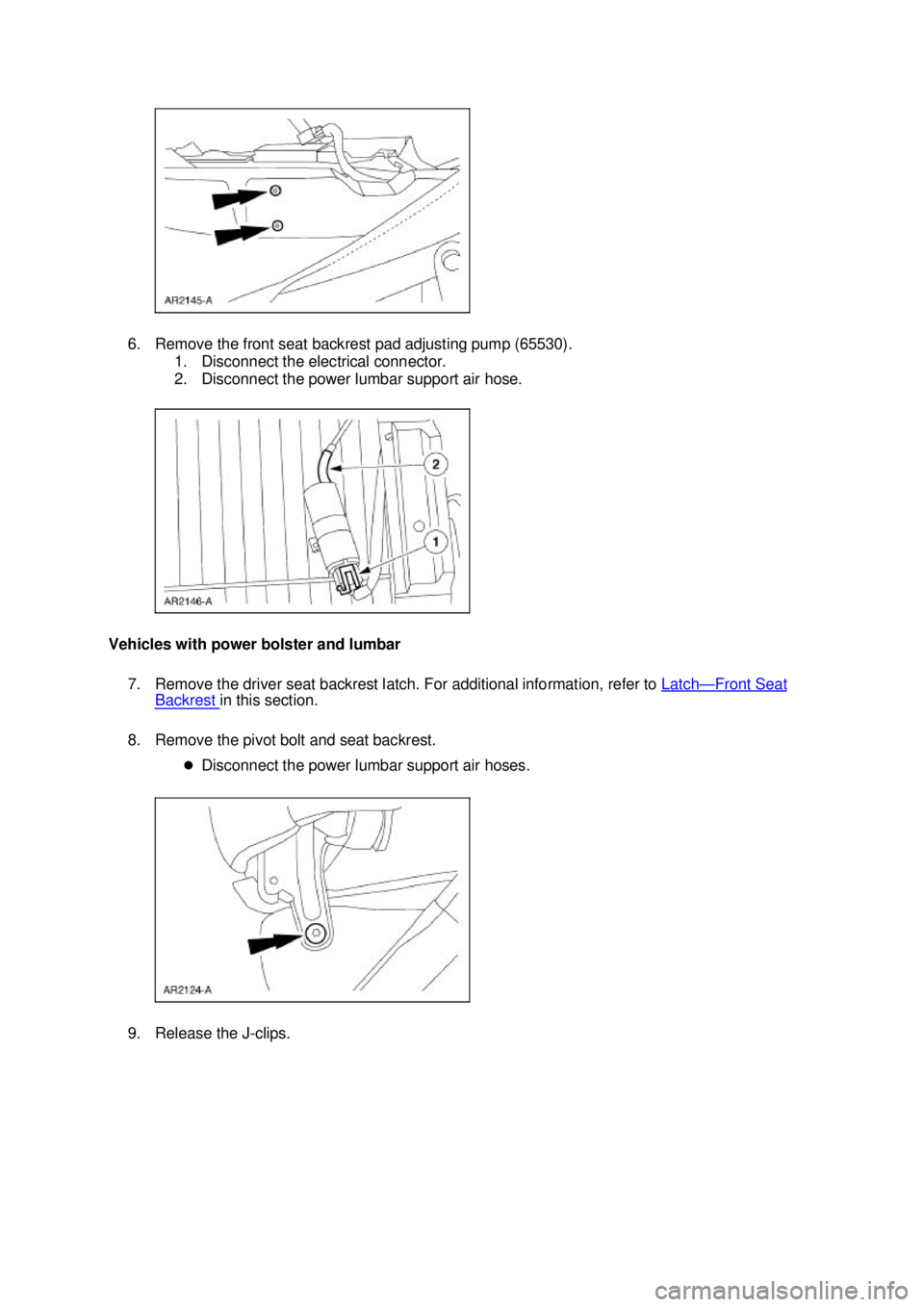

FORD MUSTANG 2003 Workshop Manual 6. Remove the front seat backrest pad adjusting pump (65530). 1. Disconnect the electrical connector. 2. Disconnect the power lumbar support air hose. Vehicles with power bolster and lumbar 7. Rem

Page 3698 of 4378

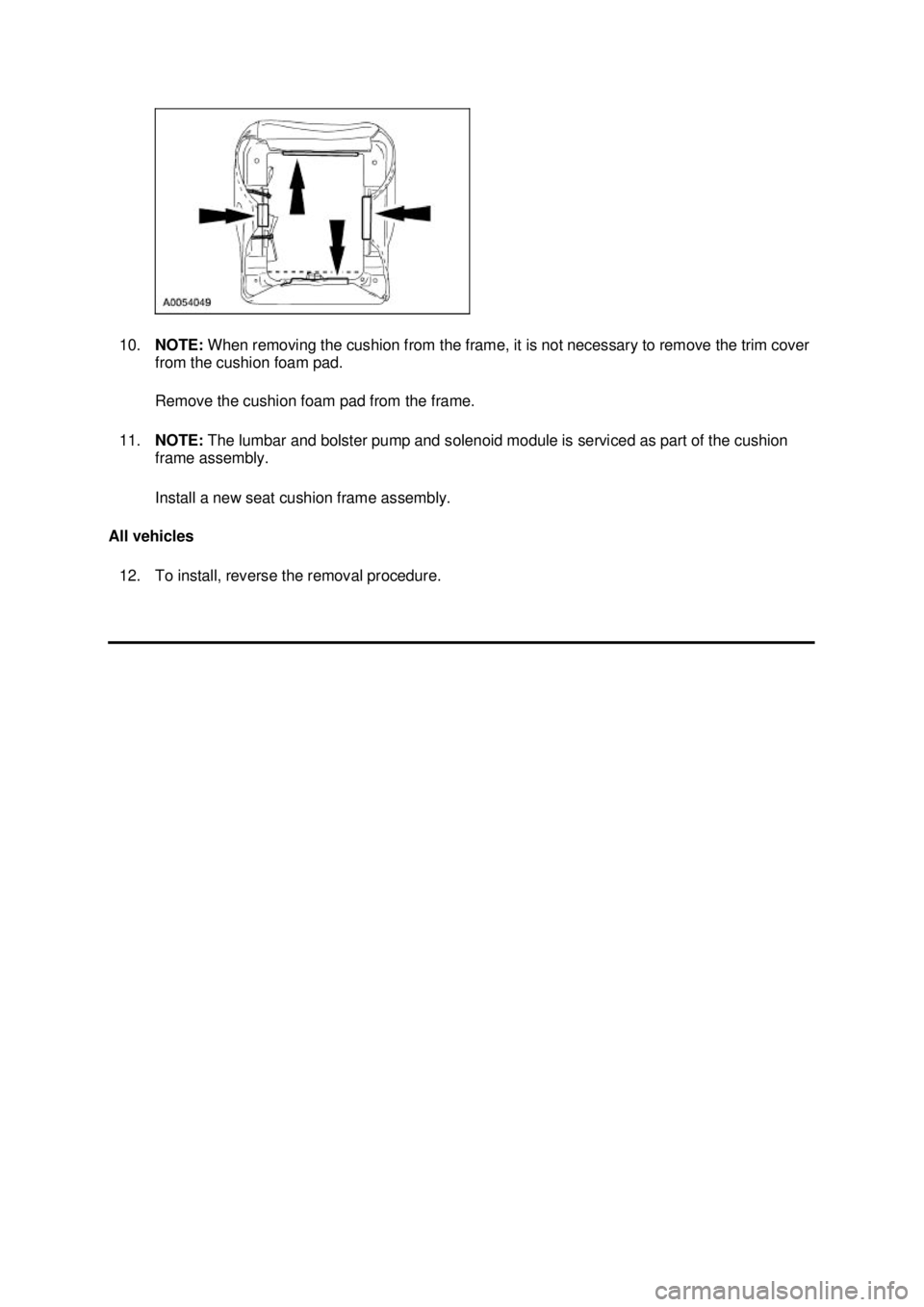

FORD MUSTANG 2003 Workshop Manual 10. NOTE: When removing the cushion from the frame, it is not necessary to remove the trim cover from the cushion foam pad. Remove the cushion foam pad from the frame. 11. NOTE: The lumbar and bo

Page 3699 of 4378

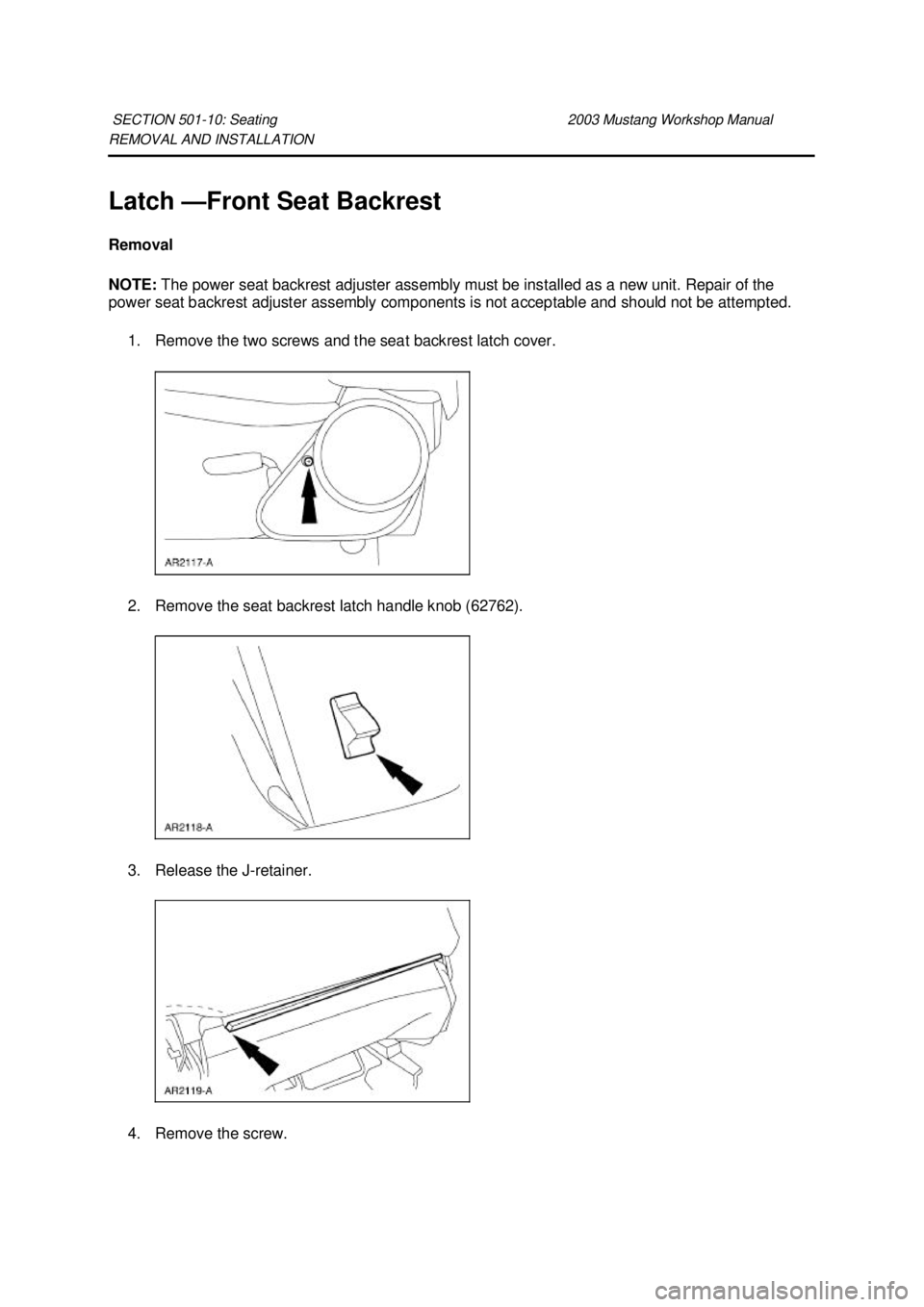

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION Latch — Front Seat Backrest Removal NOTE: The power seat backrest adjuster assembly must be installed as a new unit. Repair of the power seat backrest adjuster assembly

Page 3700 of 4378

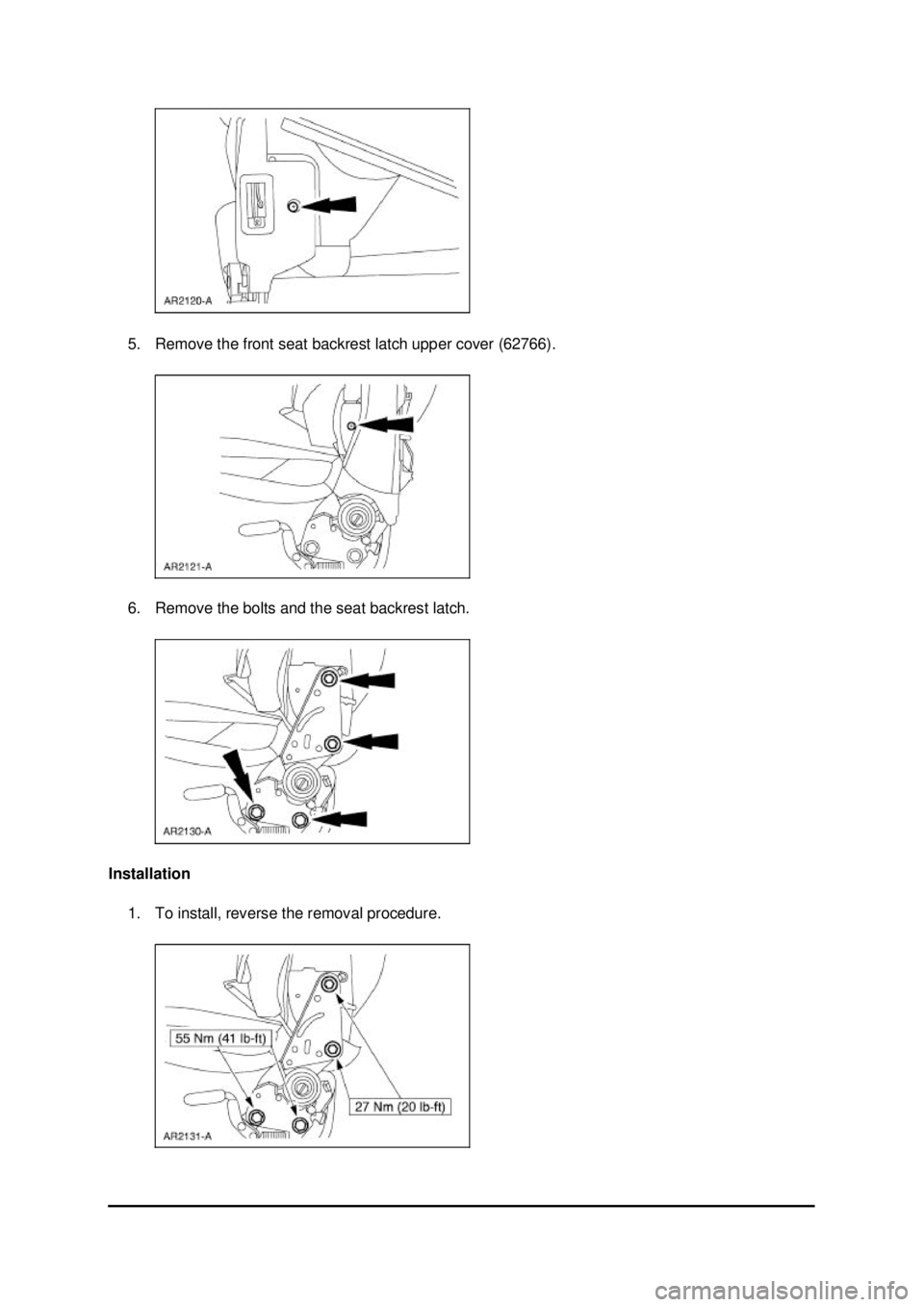

FORD MUSTANG 2003 Workshop Manual 5. Remove the front seat backrest latch upper cover (62766). 6. Remove the bolts and the seat backrest latch. Installation 1. To install, reverse the removal procedure. Klj . 2 ba 32003 Mu

Page 3701 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 3 ba 32003 Mustang Workshop Manual 18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

Page 3702 of 4378

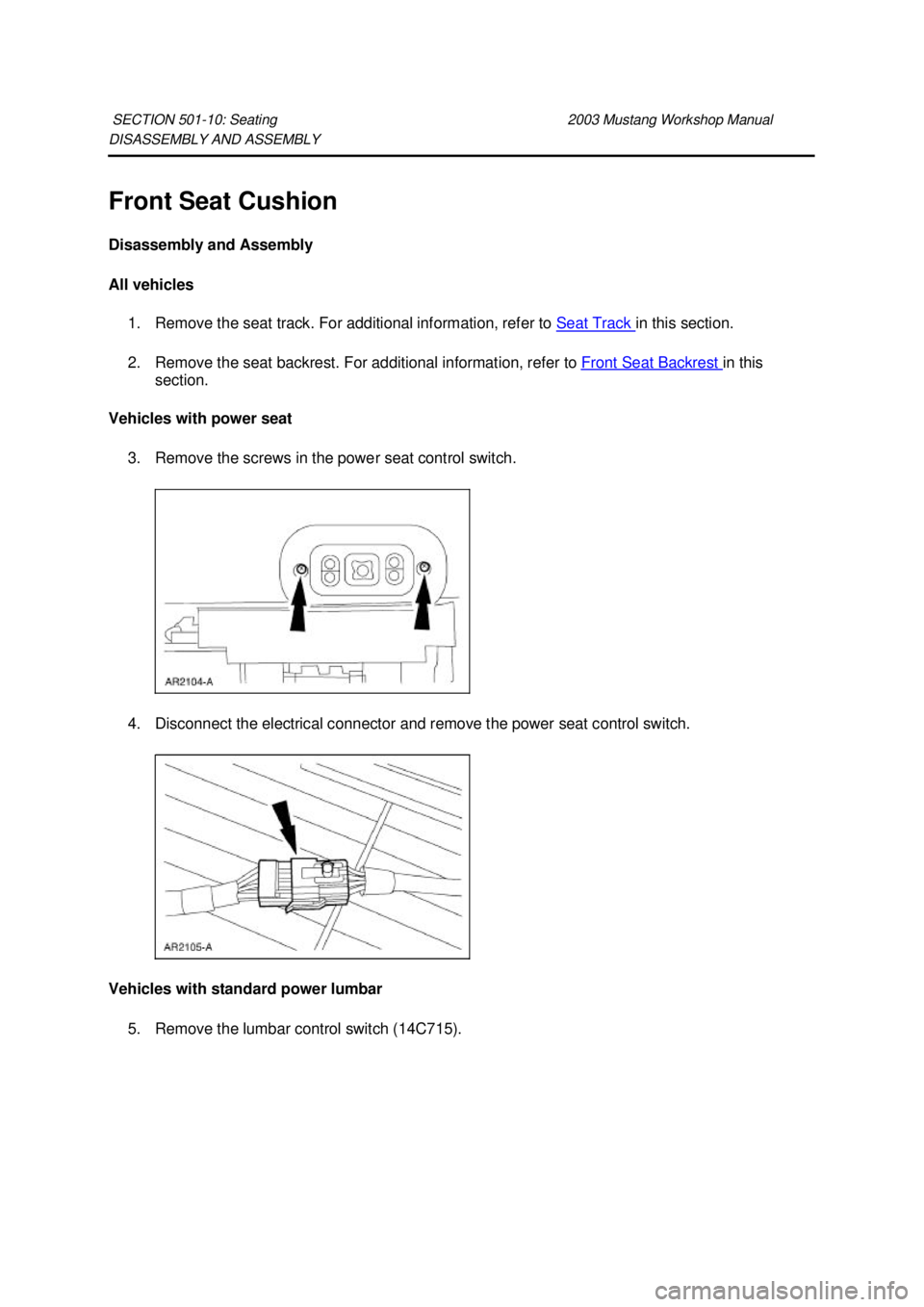

FORD MUSTANG 2003 Workshop Manual DISASSEMBLY AND ASSEMBLY Front Seat Cushion Disassembly and Assembly All vehicles 1. Remove the seat track. For additional information, refer to Seat Track in this section. 2. Remove the seat b

Page 3703 of 4378

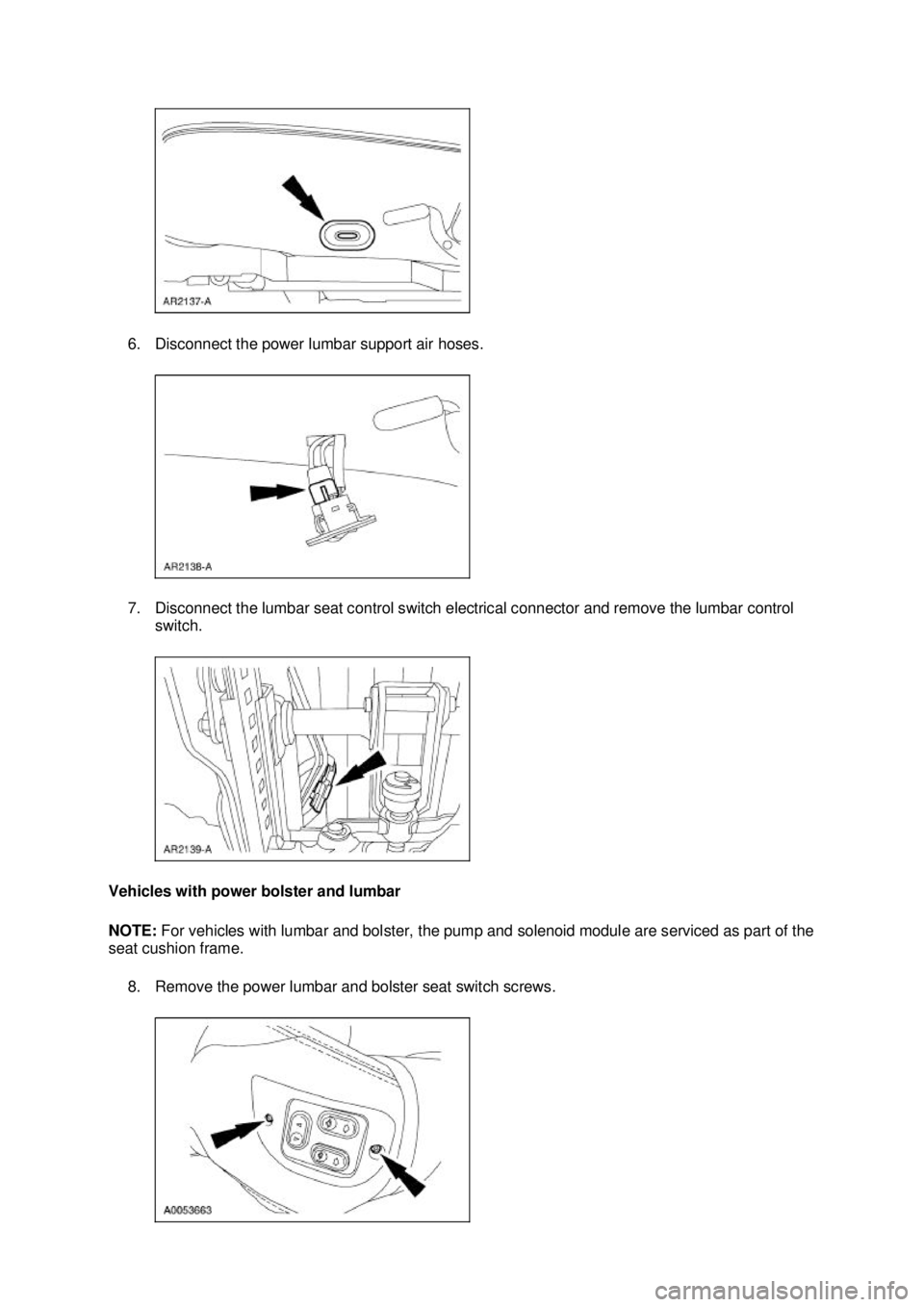

FORD MUSTANG 2003 Workshop Manual 6. Disconnect the power lumbar support air hoses. 7. Disconnect the lumbar seat control switch electrical connector and remove the lumbar control switch. Vehicles with power bolster and lumbar NOT

Page 3704 of 4378

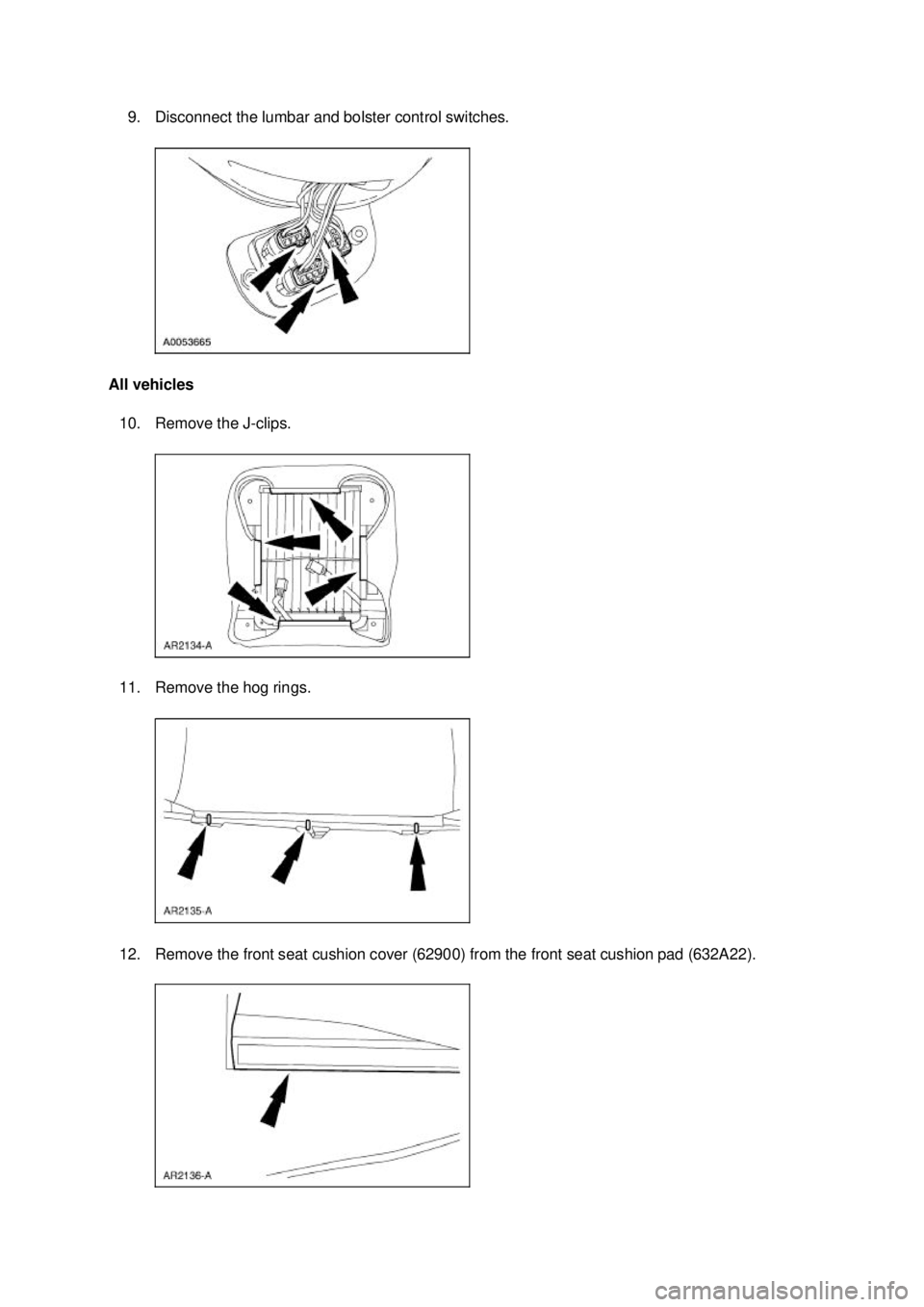

FORD MUSTANG 2003 Workshop Manual 9. Disconnect the lumbar and bolster control switches. All vehicles 10. Remove the J- clips. 11. Remove the hog rings. 12. Remove the front seat cushion cover (62900) from the front seat cushion p
